UART C5505ezdsp

Ahmed Niri

Other Parts Discussed in Thread: TMS320VC5505

Using the UART in the C5505ezdsp REV C, I figured that the UART is not connected to the USB and that the output of the UART TX and RX are in the expansion connectors (as seen in the figure bellow). So I went ahead and soldered the pin 40 and 38 and then connected it to a max 232 chip which is outputed through DB9 connector. And from the DB9 female connector I used a serial to USB cable to transmit the information to the computer. Using the UART example provided, I tried to output what is expected on the terminal but nothing was functioning as expected. My question is I don't know whether I am setting up properly so that I could output the UART? Or maybe I am not using the proper code?

Thanks in advance for your help.

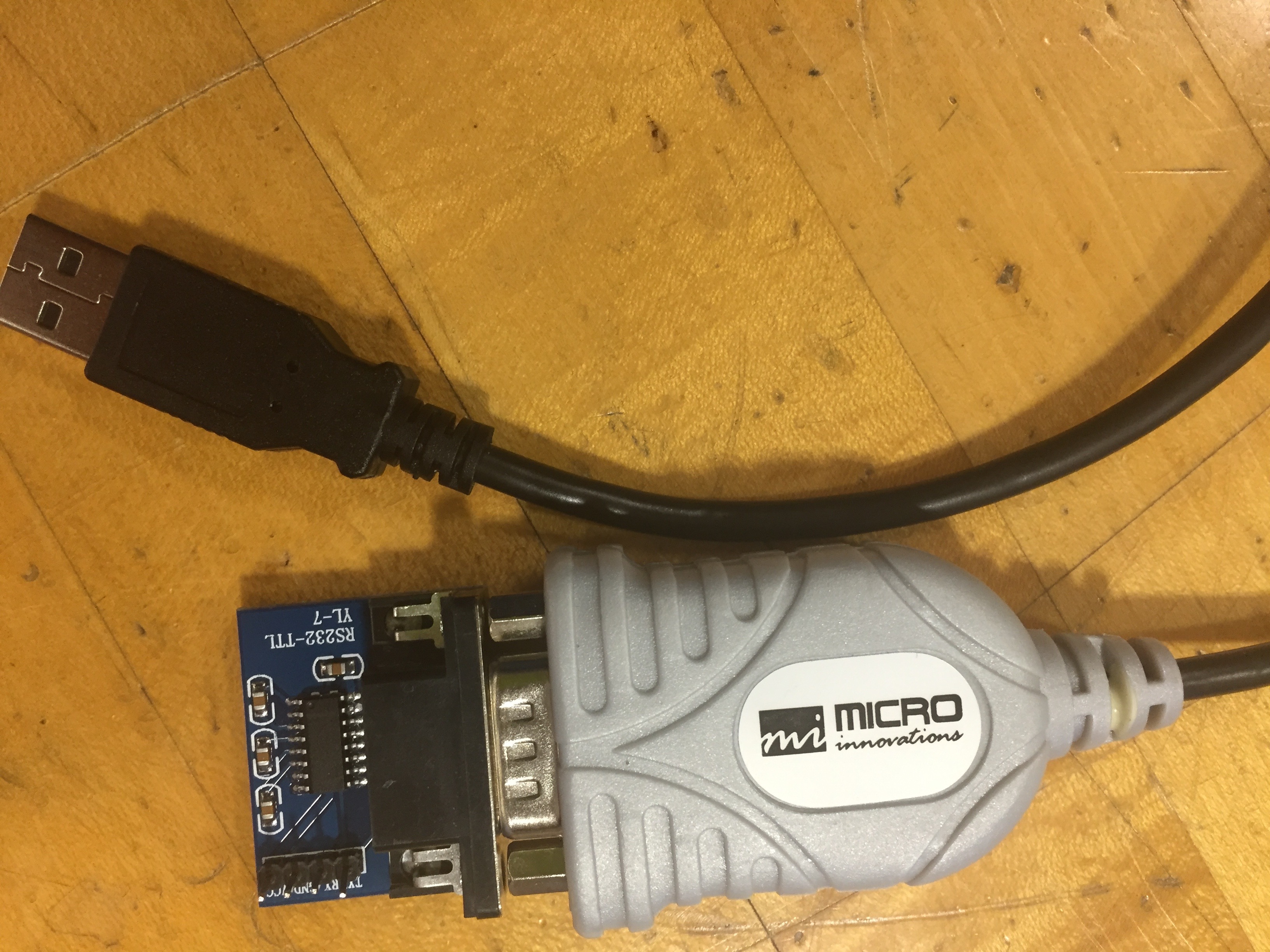

Figure 1: max 232 and the serial to usb cable

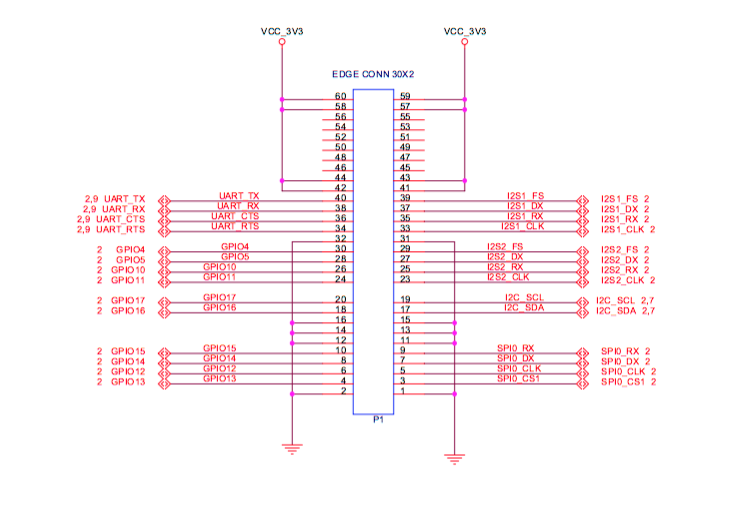

Figure 2: The c5505ezdsp connector

Code:

#include <stdio.h>
#include "csl_uart.h"
#include "csl_uartAux.h"
#include "csl_intc.h"
#include "csl_general.h"
#include "csl_error.h"

#define CSL_TEST_FAILED         (1U)
#define CSL_TEST_PASSED         (0)
#define	CSL_UART_BUF_LEN    	(4U)

/* Global constants */
/* String length to be received and transmitted */
#define WR_STR_LEN        80
#define RD_STR_LEN        10

#define CSL_PLL_DIV_000    (0)
#define CSL_PLL_DIV_001    (1u)
#define CSL_PLL_DIV_002    (2u)
#define CSL_PLL_DIV_003    (3u)
#define CSL_PLL_DIV_004    (4u)
#define CSL_PLL_DIV_005    (5u)
#define CSL_PLL_DIV_006    (6u)
#define CSL_PLL_DIV_007    (7u)

#define CSL_PLL_CLOCKIN    (32768u)


/* Global data definition */
/* UART setup structure */
CSL_UartSetup mySetup =
{
	/* Input clock freq in MHz */
    100000000,
	/* Baud rate */
    2400,
	/* Word length of 8 */
    CSL_UART_WORD8,
	/* To generate 1 stop bit */
    0,
	/* Disable the parity */
    CSL_UART_DISABLE_PARITY,
	/* Enable trigger 14 fifo */
	CSL_UART_FIFO_DMA1_DISABLE_TRIG14,
	/* Loop Back enable */
	CSL_UART_NO_LOOPBACK,
	/* No auto flow control*/
	CSL_UART_NO_AFE ,
	/* No RTS */
	CSL_UART_NO_RTS ,
};

/* CSL UART data structures */
CSL_UartObj uartObj;
CSL_UartHandle hUart;

/* CSL UART data buffers */
Uint16    uartIntcWriteBuff[CSL_UART_BUF_LEN ];
Uint16    uartIntcReadBuff[CSL_UART_BUF_LEN ];
char      buffer1[30];
char      buffer2[10];
char      buffer3[30];
Uint16    gcount = 16;
Uint16    mutex = 0;
char      *ptr = buffer1;
Uint16    setbit;
volatile Bool    endOfTest = FALSE;

/* Interrupt vector start address */
extern void VECSTART(void);

/**
 *  \brief  Function to calculate the system clock
 *
 *  \param    none
 *
 *  \return   System clock value in Hz
 */
Uint32 getSysClk(void);

/**
 *  \brief  Interrupt Service Routine to handle UART Line Status Interrupt
 *
 *  \param  none
 *
 *  \return none
 */
void uart_lsiIsr(void)
{
	Uint16 reg;
	reg=hUart->uartRegs->LSR;
	reg= reg;
}

/**
 *  \brief  Interrupt Service Routine to handle UART Character Timeout Interrupt
 *
 *  \param  none
 *
 *  \return none
 */
void uart_ctoIsr(void)
{
	UART_read( hUart,buffer2,0,0);
	ptr = buffer2;
	gcount = 1;
  	UART_eventEnable(hUart,CSL_UART_XMITOR_REG_EMPTY_INTERRUPT);
}

/**
 *  \brief  Interrupt Service Routine to handle UART Transmit Interrupt
 *
 *  \param  none
 *
 *  \return none
 */
void uart_txIsr(void)
{
	if(gcount == 1)
	{
		UART_write(hUart, buffer3, 2, 0);
		UART_write(hUart, ptr, gcount, 0);
		if(*ptr == '$')
		{
			endOfTest = TRUE;
		}
		gcount = 13;
	}

	if(endOfTest == FALSE)
	{
		UART_write( hUart,buffer1,gcount,0);
	}

	UART_eventDisable(hUart, CSL_UART_XMITOR_REG_EMPTY_INTERRUPT);
}

/**
 *  \brief  Interrupt Service Routine to handle UART Receive Interrupt
 *
 *  \param  none
 *
 *  \return none
 */
void uart_rxIsr(void)
{
	UART_read( hUart,buffer2,12,0);
	gcount = 1;
 	UART_eventEnable(hUart,CSL_UART_XMITOR_REG_EMPTY_INTERRUPT);
}

/**
 *  \brief  Interrupt Dispatcher to identify interrupt source
 *
 *  This function identify the type of UART interrupt generated and
 *  calls concerned ISR to handle the interrupt
 *
 *  \param  none
 *
 *  \return none
 */
interrupt void UART_intrDispatch(void)
{
	Uint16 eventId = 0;

	IRQ_disable(UART_EVENT);

	/* Get the event Id which caused interrupt */
	eventId = UART_getEventId(hUart);

	if (((void (*)(void))(hUart->UART_isrDispatchTable[eventId])))
	{
		((void (*)(void))(hUart->UART_isrDispatchTable[eventId]))();
	}

	IRQ_enable(UART_EVENT);

	return;
}

/**
 *  \brief  UART interrupt Test function
 *
 *   This function verifies the UART operation in interrupt mode.
 *   This function runs in an infinite loop to read the characters
 *   from HyperTerminal and echo the characters back to HyperTerminal.
 *
 *  \param  none
 *
 *  \return Test result(Only Failure Case)
 */
CSL_Status uart_IntcSample(void)
{
	CSL_UartIsrAddr    isrAddr;
	CSL_Status         status;
	Uint32            sysClk;

	sysClk = getSysClk();

	mySetup.clkInput = sysClk;

    /* Loop counter and error flag */
    status = UART_init(&uartObj,CSL_UART_INST_0,UART_INTERRUPT);
    if(CSL_SOK != status)
    {
        printf("UART_init failed error code %d\n",status);
        return(status);
    }
	else
	{
		printf("UART_init Successful\n");
	}

    /* Handle created */
    hUart = (CSL_UartHandle)(&uartObj);

    /* Configure UART registers using setup structure */
    status = UART_setup(hUart,&mySetup);
    if(CSL_SOK != status)
    {
        printf("UART_setup failed error code %d\n",status);
        return(status);
    }
	else
	{
		printf("UART_setup Successful\n");
	}

//	/* Send the details of the test to HyperTerminal */
   	status = UART_fputs(hUart,"\r\n\nUART INTERRUPT TEST!",0);
    if(CSL_SOK != status)
    {
        printf("UART_fputs failed error code %d\n",status);
        return(status);
    }

   	status = UART_fputs(hUart,"\r\nTEST READS A CHARACTER FROM HYPERTERMINAL CONTINUOUSLY",0);
    if(CSL_SOK != status)
    {
        printf("UART_fputs failed error code %d\n",status);
        return(status);
    }

   	status = UART_fputs(hUart,"\r\nENTER '$' TO END THE TEST\r\n",0);
    if(CSL_SOK != status)
    {
        printf("UART_fputs failed error code %d\n",status);
        return(status);
    }

	/* Configure and Register the UART interrupts */
	isrAddr.rbiAddr  = uart_rxIsr;
	isrAddr.tbeiAddr = uart_txIsr;
	isrAddr.ctoi     = uart_ctoIsr;
	isrAddr.lsiAddr  = uart_lsiIsr;

    /* Disable interrupt */
    IRQ_globalDisable();

    /* Clear any pending interrupts */
	IRQ_clearAll();

	/* Disable all the interrupts */
	IRQ_disableAll();

	IRQ_setVecs((Uint32)(&VECSTART));

	/* Configuring Interrupt */
	IRQ_plug (UART_EVENT, &UART_intrDispatch);

	/* Enabling Interrupt */
	IRQ_enable(UART_EVENT);
	IRQ_globalEnable();

	/* Set the UART callback function */
 	status = UART_setCallback(hUart,&isrAddr);
	if(status != CSL_SOK)
	{
		printf("UART_setCallback Failed\n");
		return(status);
	}

 	/* Enable the UART Events */
	status = UART_eventEnable(hUart, CSL_UART_XMITOR_REG_EMPTY_INTERRUPT);
	if(status != CSL_SOK)
	{
		printf("UART_eventEnable Failed\n");
		return(status);
	}

	status = UART_eventEnable(hUart, CSL_UART_RECVOR_REG_DATA_INTERRUPT);
	if(status != CSL_SOK)
	{
		printf("UART_eventEnable Failed\n");
		return(status);
	}

	status = UART_eventEnable(hUart, CSL_UART_RECVOR_LINE_STATUS_INTERRUPT);
	if(status != CSL_SOK)
	{
		printf("UART_eventEnable Failed\n");
		return(status);
	}

	/* Tests runs until users enters Symbol '$' on the HyperTerminal */
	while(endOfTest == FALSE)
	{
		printf("Enter something");
	}
//	UART_fgets(hUart,Char * pBuf, Uint16 bufSize, Uint32 timeout);
//	UART_fputs(hUart,"\r\nTEST READS A CHARACTER FROM HYPERTERMINAL CONTINUOUSLY",0);
    /* Disable interrupt */
    IRQ_globalDisable();

    /* Clear any pending interrupts */
	IRQ_clearAll();

	/* Disable all the interrupts */
	IRQ_disableAll();
}

/**
 *  \brief  Configures Dma
 *
 *  \param  chanNum - Dma channel number
 *
 *  \return Dma handle
 */
   /////INSTRUMENTATION FOR BATCH TESTING -- Part 1 --
   /////  Define PaSs_StAtE variable for catching errors as program executes.
   /////  Define PaSs flag for holding final pass/fail result at program completion.
        volatile Int16 PaSs_StAtE = 0x0001; // Init to 1. Reset to 0 at any monitored execution error.
        volatile Int16 PaSs = 0x0000; // Init to 0.  Updated later with PaSs_StAtE when and if
   /////                                  program flow reaches expected exit point(s).
   /////
void main()
{
	CSL_Status   status;
	status = uart_IntcSample();
	if(status != CSL_SOK)
	{
		printf("\nCSL UART INTERRUPT MODE TEST FAILED!!\n");
   /////INSTRUMENTATION FOR BATCH TESTING -- Part 2 --
   /////  Reseting PaSs_StAtE to 0 if error detected here.
        PaSs_StAtE = 0x0000; // Was intialized to 1 at declaration.
   /////
	}
	else
	{
		printf("\nCSL UART INTERRUPT MODE TEST COMPLETED!!\n");
	}
   /////INSTRUMENTATION FOR BATCH TESTING -- Part 3 --
   /////  At program exit, copy "PaSs_StAtE" into "PaSs".
        PaSs = PaSs_StAtE; //If flow gets here, override PaSs' initial 0 with
   /////                   // pass/fail value determined during program execution.
   /////  Note:  Program should next exit to C$$EXIT and halt, where DSS, under
   /////   control of a host PC script, will read and record the PaSs' value.
   /////
}

/**
 *  \brief  Function to calculate the clock at which system is running
 *
 *  \param    none
 *
 *  \return   System clock value in Hz
 */
#if (defined(CHIP_C5505_C5515) || defined(CHIP_C5504_C5514))

Uint32 getSysClk(void)
{
	Bool      pllRDBypass;
	Bool      pllOutDiv;
	Uint32    sysClk;
	Uint16    pllVP;
	Uint16    pllVS;
	Uint16    pllRD;
	Uint16    pllVO;

	pllVP = CSL_FEXT(CSL_SYSCTRL_REGS->CGCR1, SYS_CGCR1_VP);
	pllVS = CSL_FEXT(CSL_SYSCTRL_REGS->CGCR1, SYS_CGCR1_VS);

	pllRD = CSL_FEXT(CSL_SYSCTRL_REGS->CGICR, SYS_CGICR_RDRATIO);
	pllVO = CSL_FEXT(CSL_SYSCTRL_REGS->CGOCR, SYS_CGOCR_OD);

	pllRDBypass = CSL_FEXT(CSL_SYSCTRL_REGS->CGICR, SYS_CGICR_RDBYPASS);
	pllOutDiv   = CSL_FEXT(CSL_SYSCTRL_REGS->CGOCR, SYS_CGOCR_OUTDIVEN);

	sysClk = CSL_PLL_CLOCKIN;

	if (0 == pllRDBypass)
	{
		sysClk = sysClk/(pllRD + 4);
	}

	sysClk = (sysClk * ((pllVP << 2) + pllVS + 4));

	if (1 == pllOutDiv)
	{
		sysClk = sysClk/(pllVO + 1);
	}

	/* Return the value of system clock in KHz */
	return(sysClk);
}

#else

Uint32 getSysClk(void)
{
	Bool      pllRDBypass;
	Bool      pllOutDiv;
	Bool      pllOutDiv2;
	Uint32    sysClk;
	Uint16    pllVP;
	Uint16    pllVS;
	Uint16    pllRD;
	Uint16    pllVO;
	Uint16    pllDivider;
	Uint32    pllMultiplier;

	pllVP = CSL_FEXT(CSL_SYSCTRL_REGS->CGCR1, SYS_CGCR1_MH);
	pllVS = CSL_FEXT(CSL_SYSCTRL_REGS->CGICR, SYS_CGICR_ML);

	pllRD = CSL_FEXT(CSL_SYSCTRL_REGS->CGICR, SYS_CGICR_RDRATIO);
	pllVO = CSL_FEXT(CSL_SYSCTRL_REGS->CGOCR, SYS_CGOCR_ODRATIO);

	pllRDBypass = CSL_FEXT(CSL_SYSCTRL_REGS->CGICR, SYS_CGICR_RDBYPASS);
	pllOutDiv   = CSL_FEXT(CSL_SYSCTRL_REGS->CGOCR, SYS_CGOCR_OUTDIVEN);
	pllOutDiv2  = CSL_FEXT(CSL_SYSCTRL_REGS->CGOCR, SYS_CGOCR_OUTDIV2BYPASS);

	pllDivider = ((pllOutDiv2) | (pllOutDiv << 1) | (pllRDBypass << 2));

	pllMultiplier = ((Uint32)CSL_PLL_CLOCKIN * ((pllVP << 2) + pllVS + 4));

	switch(pllDivider)
	{
		case CSL_PLL_DIV_000:
		case CSL_PLL_DIV_001:
			sysClk = pllMultiplier / (pllRD + 4);
		break;

		case CSL_PLL_DIV_002:
			sysClk = pllMultiplier / ((pllRD + 4) * (pllVO + 4) * 2);
		break;

		case CSL_PLL_DIV_003:
			sysClk = pllMultiplier / ((pllRD + 4) * 2);
		break;

		case CSL_PLL_DIV_004:
		case CSL_PLL_DIV_005:
			sysClk = pllMultiplier;
		break;

		case CSL_PLL_DIV_006:
			sysClk = pllMultiplier / ((pllVO + 4) * 2);
		break;

		case CSL_PLL_DIV_007:
			sysClk = pllMultiplier / 2;
		break;
	}

	/* Return the value of system clock in KHz */
	return(sysClk);
}

#endif

over 9 years ago

0 Lalindra Jayatilleke over 9 years ago

TI__Mastermind 30365 points

Ahmed,
We are looking at your query and will get back to you. Thanks.

Lali

0 Lalindra Jayatilleke over 9 years ago

TI__Mastermind 30365 points

Ahmed,

Are you using the TMS320VC5505 eZdsp? It seems that pins 34 and 36 are the UART signals. Please see page 2-5 of

http://support.spectrumdigital.com/boards/usbstk5505/revb/files/usbstk5505_TechRef_revb.pdf

Please ensure your hardware connections are good i.e TX-RX and RX-TX.

Where did you get the pinout diagram that your posted earlier?

Lali

0 Ahmed Niri over 9 years ago in reply to Lalindra Jayatilleke

Prodigy 50 points

Hi Lali,

Yes I am using the TMS320VC5505 eZdsp REV C. The diagram that I posted I got from: support.spectrumdigital.com/.../usbstk5505_Schematics_RevD.pdf
Ahmed

0 Lalindra Jayatilleke over 9 years ago in reply to Ahmed Niri

TI__Mastermind 30365 points

Ahmed,

Ah ok. It seems that Revs C and D have the UART TX and RX at 40 and 38.
Rev B has TX and RX at 34 and 36.

Have you tried to first ensure that your Max 232 UART-Serial bridge is working correctly? If you loopback the TX-RX on the device are you able to type things into the console (e.g Terraterm) and have it echoed back immediately? Just trying to ensure that the bridge is working first.

Lali

0 Ahmed Niri over 9 years ago in reply to Lalindra Jayatilleke

Prodigy 50 points

Hi,

Yes I have checked the MAX 232 UART bridge and it is working correctly. No I am able to write anything on HyperTerminal. I have checked everything once again and everything works properly except for the DB9 to USB connector. I found out that the connector does not support interrupt transfer mode devices. So I ask another question. Do you by any chance know another way to connect the micro controller to my laptop (via usb just like the previous connector)?

Thank you

Ahmed

0 Lalindra Jayatilleke over 9 years ago in reply to Ahmed Niri

TI__Mastermind 30365 points

Ahmed,

You would need some sort of UART-USB bridge which is what you have used. I'm wondering if you would need some sort of level shifting.

Have you checked the UART TX FIFO to see if anything is going out? I'm not sure on the register location. but the TRM should have this info.

Also, if you step through the code in CCS, is if(status != CSL_SOK) returning successfully? Is it failing anywhere?

Lali

Processors

Processors forum

UART C5505ezdsp
