Hi
I want to implement DC latch functionality over AM335x ICE board.
i have successfully implemented SYNC 0 time stamping functionality but was not able to implement LATCH.
I want to latch the signal with its time .
Can someone pls tell me how to proceed with that.
In twincat 3 any changes needed ?
Thanks
Hi Prashant, I got steps on how you can test LATCH on AM335x. Please see below

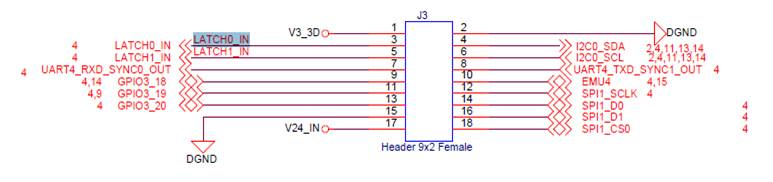

1. Pins (J3 Latch 0 IN) and (Sync 0 OUT) should be used, for the latch tests.
2. Edit 0 to 0x981 -> deactivate sync 0 generation
3. Edit 0 to 0x9a0:0x9a7 -> for single-shot
4. Edit 03 to 0x9a8 -> configure latch 0 single shot
5. Ensure 0x996 = 916 (if not equal write the value of 916 to 0x996)
6. Edit 0x994 to a value after 0x914 -> writing a suitable time
7. Edit 03 to 0x981 -> activate sync 0 generation
Thank you,
Paula
