AM335x external interrupt pins

weiji jiang

Expert 2040 points

Other Parts Discussed in Thread: AM3358

Hi TI Folks,

Good day to you.

Because our design need 4 external interrupt pin, and we would like to use AM3358 platform now, please teach that how many external interrupt pin can AM3358 provide? and please share me the the configure instruction document.

best regards

Jiang WeiJi

over 8 years ago

0 Biser Gatchev-XID over 8 years ago

TI__Guru**** 393215 points

Hi,

AM335x has one nNMI input that goes directly to the Interrupt Controller. However all available GPIO pins can be configured as interrupt sources. See section 25.3.3 in the AM335x TRM Rev. O for details.

0 weiji jiang over 8 years ago in reply to Biser Gatchev-XID

Expert 2040 points

Hi Biser,
Thanks for your quickly reply.
Dose it mean that only one external interrupt which named nNMI provided by AM3358?
In our new design, we are requested 4 external interrupt pins, so that please advise how to do.
best regards
Jiang WeiJi

0 Biser Gatchev-XID over 8 years ago in reply to weiji jiang

TI__Guru**** 393215 points

Please read my previous post.

0 Biser Gatchev-XID over 8 years ago in reply to Biser Gatchev-XID

TI__Guru**** 393215 points

All available GPIO pins can be configured as interrupt sources. See section 25.3.3 in the AM335x TRM Rev. O for details.

0 weiji jiang over 8 years ago in reply to Biser Gatchev-XID

Expert 2040 points

Hi Biser,
Thanks for your quickly reply.
I got it.

best regards
Jiang WeiJi

0 weiji jiang over 8 years ago in reply to Biser Gatchev-XID

Expert 2040 points

Hi Biser,

Good day to you.

Please correct me if my understanding is wrong in below:

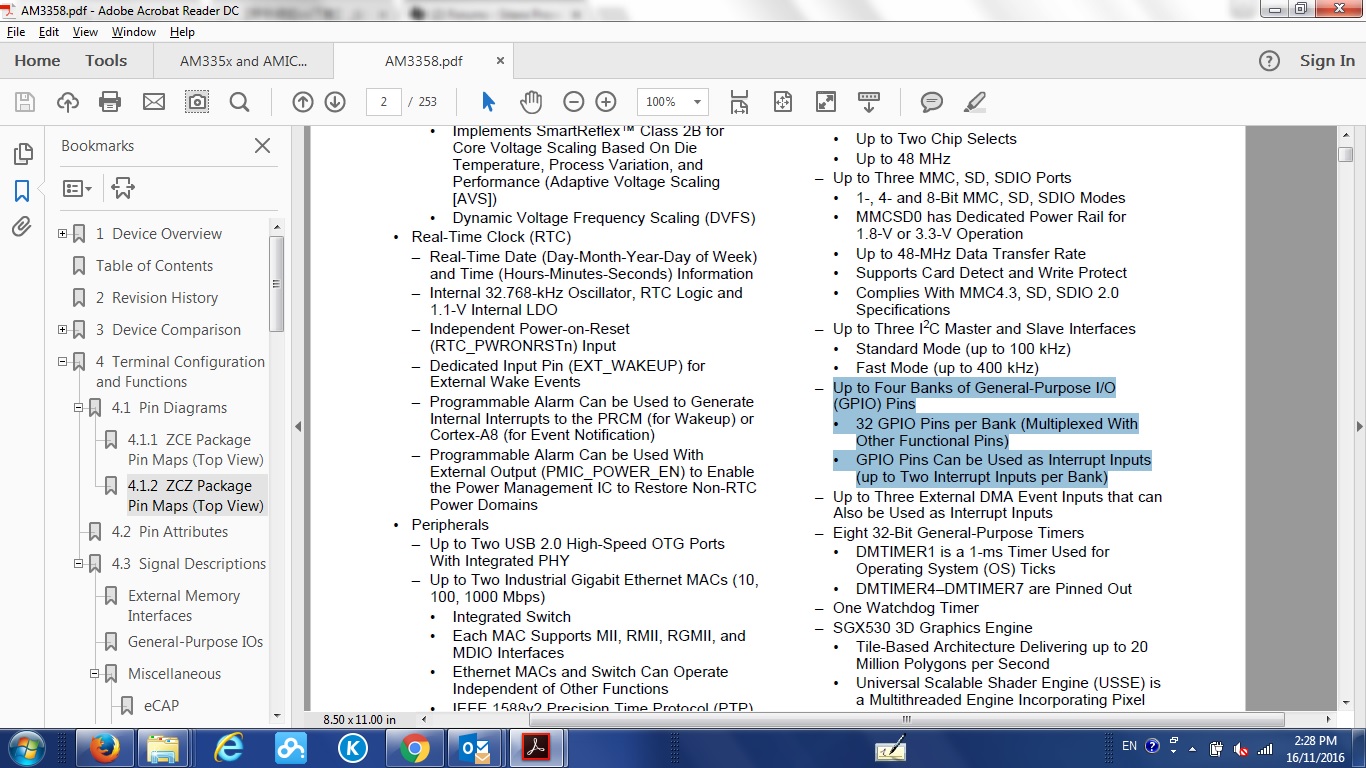

1. All GPIOs can be configured as external interrupt, but Only 2 interrupt per Bank.

2. Total 4 bank of GPIO are provided by AM3358.

3. Therefore total configurable system GPIO interrupt is only 8 from AM3358.

best regards

Jiang WeiJi
