TDA3X CSI2 PHY Register Question

user4484759

Hello,

I have a ISP connected to the TDA3X CSI2 interface. The driver seems to work correctly but TDA3X can't get any data from ISP.

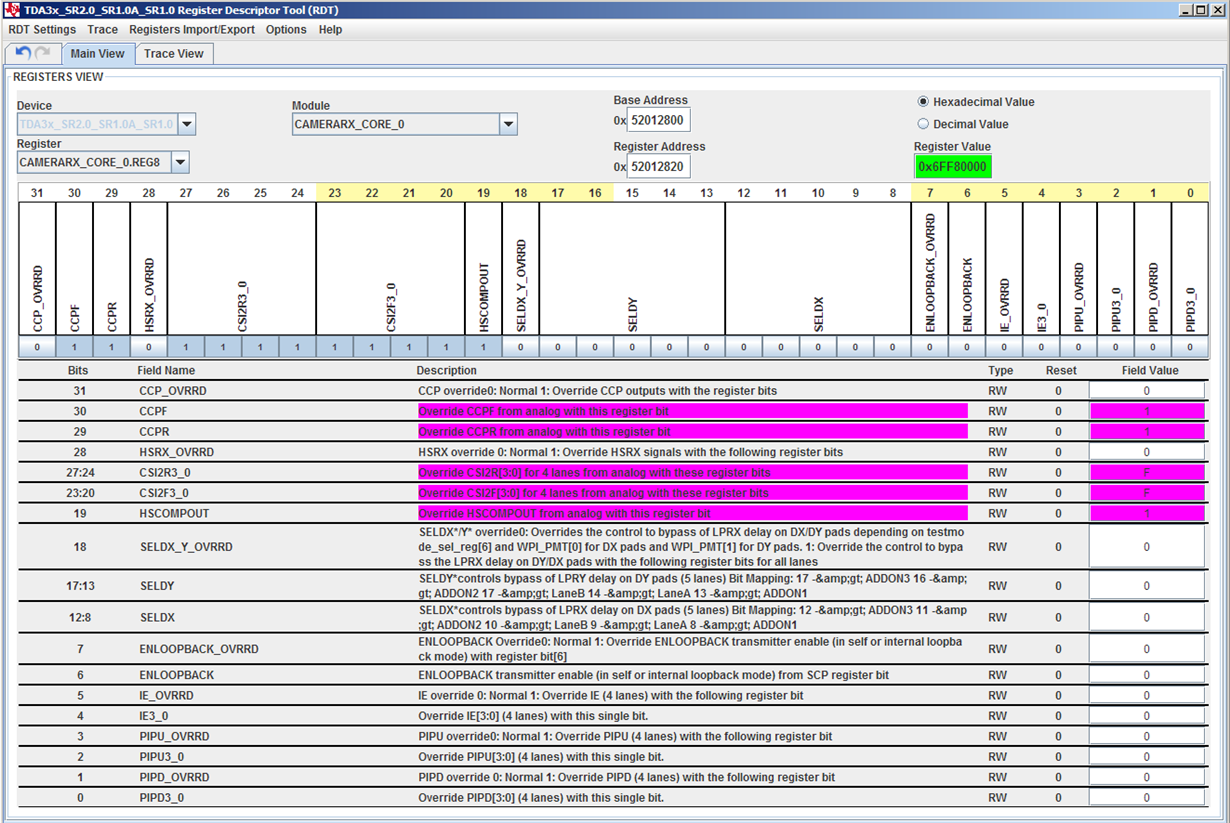

I dump all the PHY register and find the value of REG8 is abnormal. The value is 0x6ff80000. According to the TRM, it indicate CCPF/CCPR/HSRX_OVRRD/CSI2R3_0 are override.

But I don't konw what is meaning. Can someone tell me what is CCPF/CCPR/HSRX_OVRRD/CSI2R3_0 override?

Thank you very much

over 8 years ago

0 Sujith over 8 years ago

TI__Genius 12455 points

Hi,

With these register one could override sensed data among others.
Are you trying to bring up the ISP with EVM or custom board and also have you updated the driver configurations to suite ISP CSI2 parameters?

Regards,
Sujith

0 Alex Bashkov over 8 years ago in reply to Sujith

TI__Genius 13630 points

Hi,

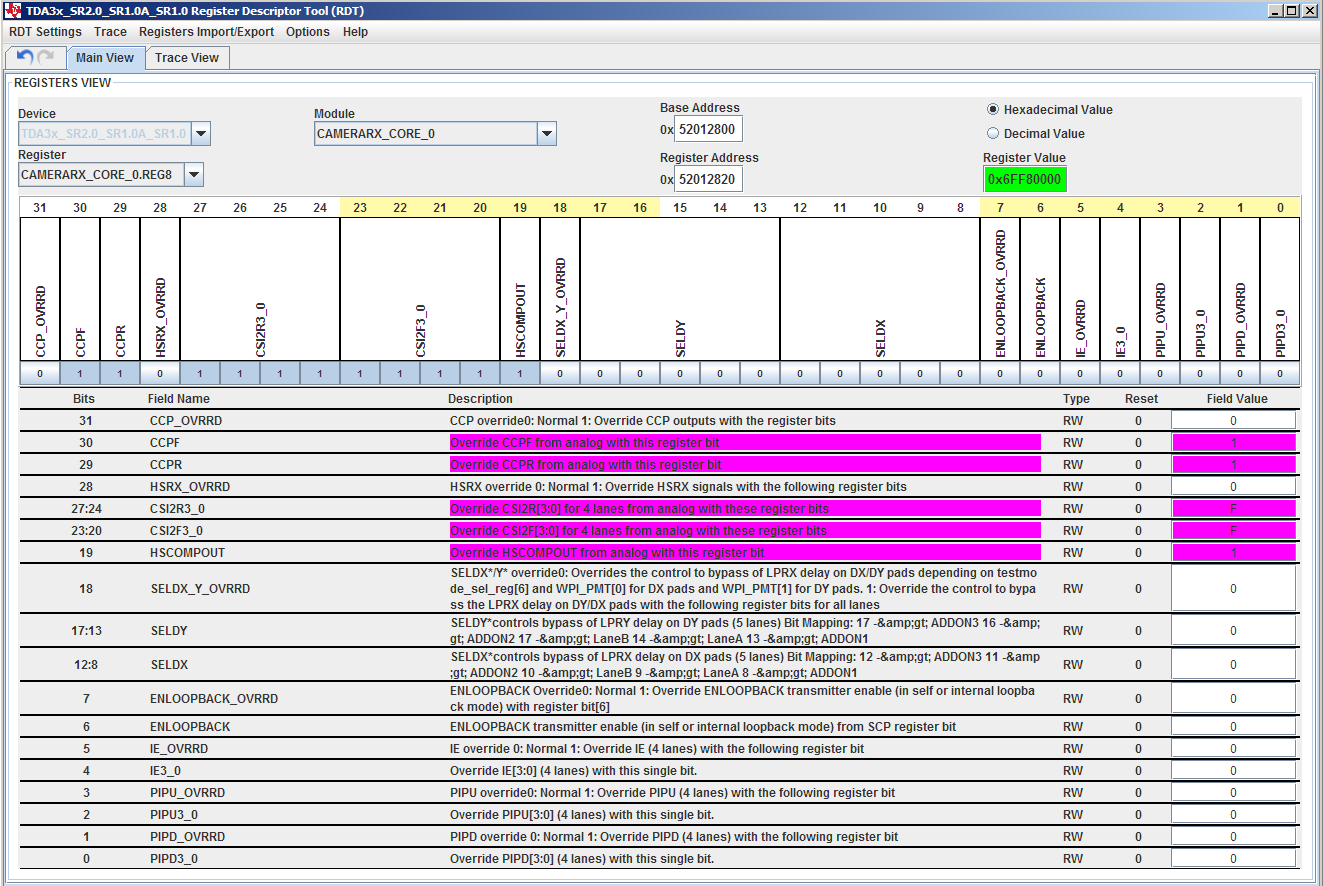

In addition, you are overriding other fields than originally stated. See below in purple. Also, REG3 through REG9 are generally used for HiSPi mode. Are you using the phy in HiSPi mode?

thanks

Alex

0 user4484759 over 8 years ago in reply to Sujith

Intellectual 450 points

Hi,

Thank you for you reply.

I have updated the driver configurations to suite ISP CSI2 parameter and validates the parameters on custom board. It can work properly.

Then i got another custom board use the same hardware and software but it can't work.

I think it may be a hardware issue. So i want to find out the root cause accroding to the register status.

But i don't konw the relative between register status and hardware issue.

Thanks.

0 user4484759 over 8 years ago in reply to Alex Bashkov

Intellectual 450 points

Hi,
Yes, I using the phy in HiSPi mode

Thanks

0 Sujith over 8 years ago in reply to user4484759

TI__Genius 12455 points

Hi,

I have not tested in HiSPi mode. I thought you were receiving CSI2 streams, if so, you should not configure in HiSPi mode.

Regards,

Sujith
