AM5728: Pinmux tool question

Alberto Soattin

Part Number: AM5728

Hi Support,

my customer is trying customizing ti/pdk_am57xx_1_0_5/packages/ti/board/src/evmAM572x/evmam572x_pinmux.c
The current task is to add pin multiplexing for SPI3 and SPI4.
They would probably be able to tailor the file manually after spending some time with debugging, but the feeling is that there should be some tool to generate it automatically. So they tried with pinmux tool
https://dev.ti.com/pinmux/app.html#/config/undefined/AM5728_SR2.0/ID_500/ID_0/null/null
but they are not able to generate pinmux.c file, neither they've found how to use the generated devicetree.txt.

Could you please give me some hints as what is the recommended way to generate/modify pinmux setting for use in the PDK?

Thanks in advance,

regards,

Alberto

over 8 years ago

0 Biser Gatchev-XID over 8 years ago

TI__Guru**** 393215 points

Hi Alberto,

The Pinmux team have been notified. They will respond here.

0 Alex Bashkov over 8 years ago

TI__Genius 13650 points

Hi Alberto,

Please find a thorough app note on how to use pinmux tool and generate files as needed:

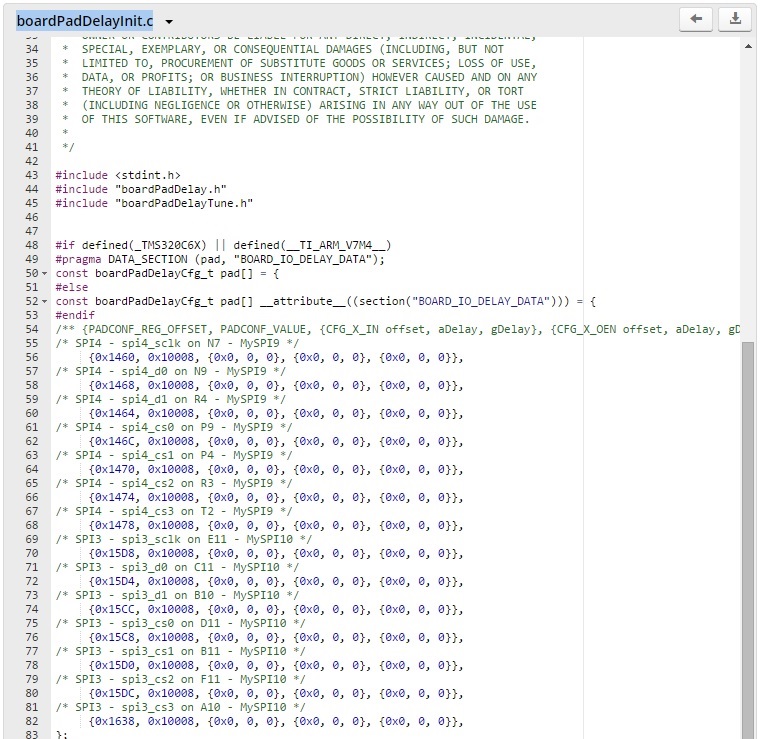

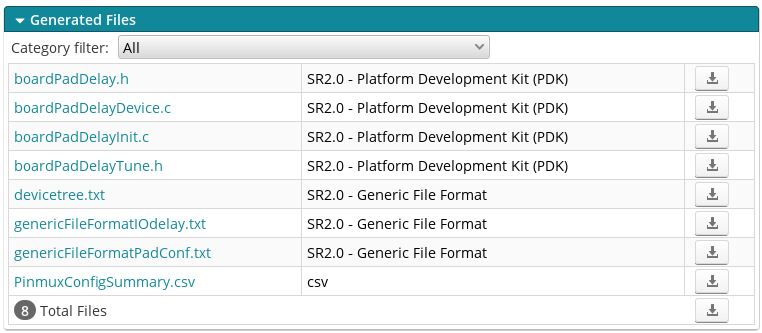

Or simply for you current task you can configure the SPI3 and SPI4 as needed from the GUI and export a the pdk files. In the the boardPadDelayInit.c the tool will generate something like the below:

From there you can use that and paste it into the original "evmam572x_pinmux.c" file.

Hope it helps,

Thanks,

Alex
