CCS/AM5728: Target connect error

Aldric Molina

Prodigy 205 points

Part Number: AM5728

Tool/software: Code Composer Studio

Hello everyone,

I have an issue to connect to my GPEVM572x using an XDS200 and code composer V7.

When I push the connect button on the CortexA15_0, the Console display an error.

CS_DAP_DebugSS: GEL: Error while executing OnTargetConnect(): Target failed to read 0x80031804@APB_View

What does it mean and how can I solve it?

Thank in adavance best regards

over 8 years ago

0 Biser Gatchev-XID over 8 years ago

TI__Guru**** 393215 points

Hi,

The CCS version supported for AM572x is v6.1.1. See processors.wiki.ti.com/.../AM572x_GP_EVM_Hardware_Setup

0 Aldric Molina over 8 years ago in reply to Biser Gatchev-XID

Prodigy 205 points

I have installed v7 because I received the link from the technical assistance from TI. Then if I install V6.1.1 it will work?

0 Biser Gatchev-XID over 8 years ago in reply to Aldric Molina

TI__Guru**** 393215 points

Yes it should work with CCS v6.1.1.

0 Aldric Molina over 8 years ago in reply to Biser Gatchev-XID

Prodigy 205 points

I installed CCS 6.1.1 and tried the hello world example and it didnt work.

Something is wrong with the gel files od the DebugSS.

How can I solve this issue?

Best Regards

0 Biser Gatchev-XID over 8 years ago in reply to Aldric Molina

TI__Guru**** 393215 points

Did you follow the steps as described here: processors.wiki.ti.com/.../AM572x_GP_EVM_Hardware_Setup

0 Aldric Molina over 8 years ago in reply to Biser Gatchev-XID

Prodigy 205 points

Yes indeed. I followed all the steps described in the document: the error is exactly the same as the one I got with ccs7.

The emulator can not connect to the dap. Thank you for your support

Aldric

0 Biser Gatchev-XID over 8 years ago in reply to Aldric Molina

TI__Guru**** 393215 points

Have you verified that the emulator is OK?

0 Aldric Molina over 8 years ago in reply to Biser Gatchev-XID

Prodigy 205 points

I have tested the emulator (xds200) with the button verify connection and all went fine. Do I need to perform another test? Thank for your help Aldric

0 Biser Gatchev-XID over 8 years ago in reply to Aldric Molina

TI__Guru**** 393215 points

How are you trying to connect? With or without SD card? There is a PMIC timeout if you are connecting without an SD card as noted in the wiki:

Note: Keep in mind the PMIC shutdown issue discussed in previous section while connecting to the target cores. Due to the PMIC shutdown issue, users need to connect to A15_0 as soon as you push the power button to enable power to the SoC.

0 Aldric Molina over 8 years ago in reply to Biser Gatchev-XID

Prodigy 205 points

I am using CCS6.1.1 0r CCS7.1.0 without the SD card. I have read the user manual and know about the PMIC issue.

Who can help me with the issue?

I have a brand new developement kit with the AM572x, a new XDS200, a full version of CCS and it is not working after 1 week of debug.

Hopfully I will be better with my specific software.

Best Regards

Aldric

0 Aldric Molina over 8 years ago in reply to Aldric Molina

Prodigy 205 points

0 Rogerio Almeida over 8 years ago in reply to Aldric Molina

TI__Mastermind 26205 points

Aldric, you last post is blank....(4/20/17 3:35pm).

0 Aldric Molina over 8 years ago in reply to Rogerio Almeida

Prodigy 205 points

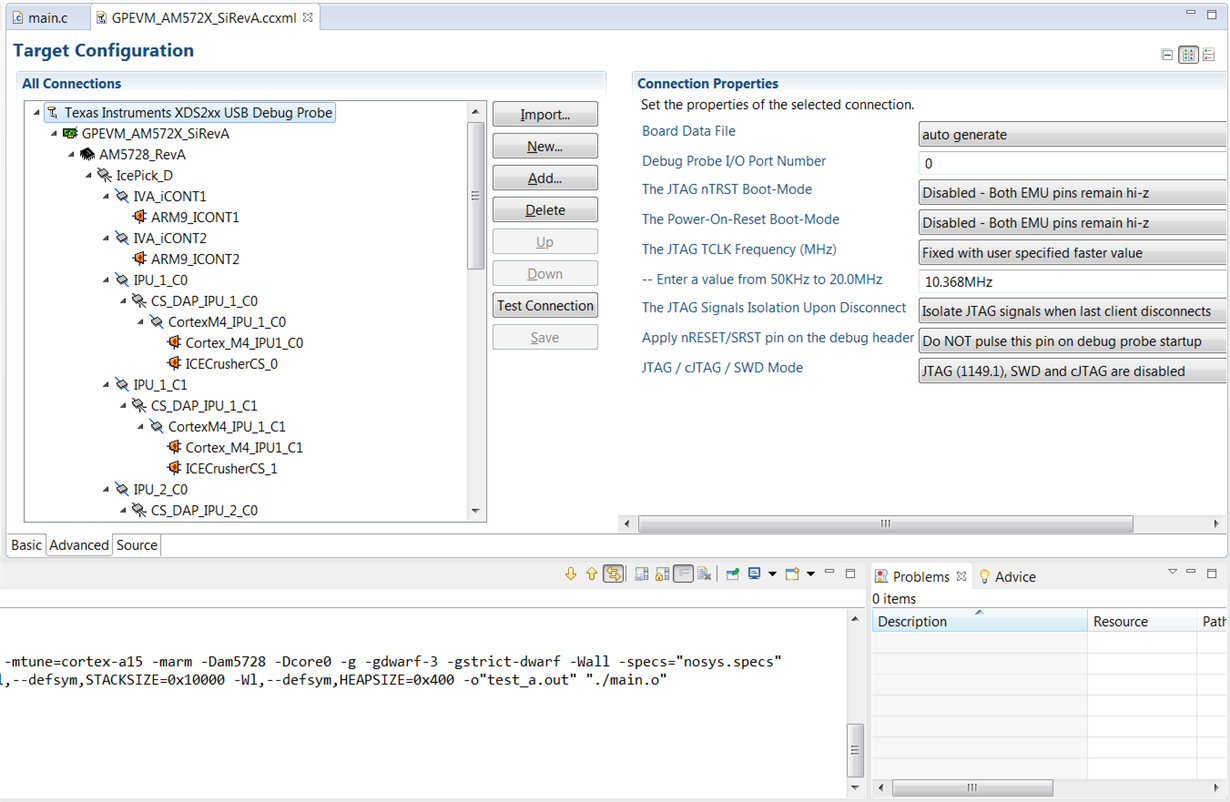

Thank you Rogelio. I tried to past a print screen from the error I got. It is still the same after installing CCS6.1.1 with a full license and a full update software. It seems that my kit is locked or have an issue with the gel file which initilize the dap when I tried to connect to the cortex A 15_0

Thanks for your help

Best regards

Aldric

0 Rogerio Almeida over 8 years ago in reply to Aldric Molina

TI__Mastermind 26205 points

Aldric,
I am informing our CCS team about this post....

0 Aldric Molina over 8 years ago in reply to Rogerio Almeida

Prodigy 205 points

Thank you for your help.
In addition of that, I have bought 1-2 month ago a full version of ccs and with the new policy (no license) the free license I got for css6.1.1 is not working-> I can use only ccs7.1.0 with the xds200.

Best Regards
Aldric

0 Aldric Molina over 8 years ago in reply to Rogerio Almeida

Prodigy 205 points

Up of the topic with the error:

Error connecting to the target:

(Error -1170 @ 0x0)
Unable to access the DAP. Reset the device, and retry the operation. If error persists, confirm configuration, power-cycle the board, and/or try more reliable JTAG settings (e.g. lower TCLK).
(Emulation package 6.0.579.0)

thank you for your help

Aldric

0 Rogerio Almeida over 8 years ago in reply to Aldric Molina

TI__Mastermind 26205 points

Aldric,
we should be replying soon....I have contacted the engineer that works with CCS...

0 Aldric Molina over 8 years ago in reply to Rogerio Almeida

Prodigy 205 points

any news?

Thank you for your support

Aldric

0 Rahul Prabhu over 8 years ago in reply to Aldric Molina

TI__Guru** 116170 points

Aldric,

Can you confirm that the jumper setting on the side of the ethernet port are configured for SD boot. Have you tried with or without SD card?

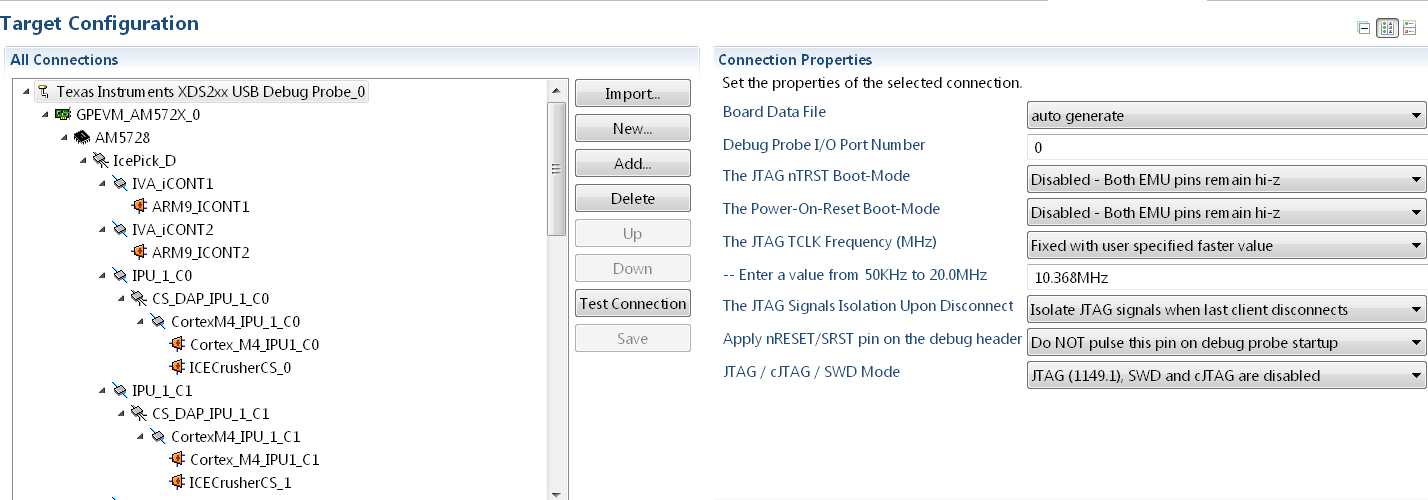

For XDS200, can you look at the advanced setting and see if it matched the following.

Can you confirm that the test Connection option passes and that you are seeing the LED glowing when you try to connect to the EVM.

Regards,

Rahul

0 Aldric Molina over 8 years ago in reply to Rahul Prabhu

Prodigy 205 points

Dear Rahul,

thank you for your time.

I have exactly the same option for the XDS200 than you.

The Led from the XDS is blinking when I try to connect.

Best Regards

Aldric

0 Rahul Prabhu over 8 years ago in reply to Aldric Molina

TI__Guru** 116170 points

Are you using a Spectrum digital XDS200 emulator or is it from a different manufacturer. Can you also confirm that there is no blue wiring on this board ? Is it connected to the LCD panel ?

Also, indicate if LED D3 on the EVM is on (not blinking). This indicate the Power management IC is on and powering up the SOC. Are LEDs D4 to D7 blinking or OFF ? If they are blinking, it indicates that you have microSD card inserted and Linux is running.

If that doesn`t work then you can try changing JTAG TCLK to 10MHz, 8Mhz, 5Mhz and 1Mhz. Is this the only board you have? If yes, can you insert the microSD card that came with kit in the EVM(as described in the QuickStartGuide) and let us know if you see boot logs on the UART. This will let us know if there is any issue with the board.
www.ti.com/.../sprw281a.pdf

Regards,
Rahul

0 Aldric Molina over 8 years ago in reply to Rahul Prabhu

Prodigy 205 points

Dear Rahul,

I have bought an offical XDS200 emulator.

I do not understand what means "blue wiring" but there is no wire wrap on both boards.

When I connect to the A15_0 I push the ON switch then the led is ON. After 7 seconds the power go down (led off) but the error I am mentionning in the header of the discussion had already happend.

I tried all this experiment without the SD card.

When I am laucnhing Linux using the SD card I have access to the serial communication through putty (COM8).

I tried to change the TCKL to the frequencies you mentionned and nothing changed.

Thank you for your help

Aldric

0 Aldric Molina over 8 years ago in reply to Aldric Molina

Prodigy 205 points

Here is the log when I connect to the A15_0:

IcePick_D: GEL Output: Ipu RTOS is released from Wait-In-Reset.
IcePick_D: GEL Output: Ipu SIMCOP is released from Wait-In-Reset.
IcePick_D: GEL Output: IVAHD C66 is released from Wait-In-Reset.
IcePick_D: GEL Output: IVAHD ICONT1 is released from Wait-In-Reset.
IcePick_D: GEL Output: IVAHD ICONT2 is released from Wait-In-Reset.
CS_DAP_DebugSS: GEL Output: --->>> CONFIGURE DEBUG DPLL settings to 1.9 GHZs <<<---
CS_DAP_DebugSS: GEL: Error while executing OnTargetConnect(): Target failed to read 0x80031804@APB_View
at (*((unsigned int *) 0x80031804@data)&0x2) [AM572x_dap_startup.gel:244]
at dpll_dbgss_config_board() [AM572x_dap_startup.gel:185]
at OnTargetConnect()
CS_DAP_PC: Error connecting to the target: (Error -1170 @ 0x0) Unable to access the DAP. Reset the device, and retry the operation. If error persists, confirm configuration, power-cycle the board, and/or try more reliable JTAG settings (e.g. lower TCLK). (Emulation package 6.0.576.0)

0 Aldric Molina over 8 years ago in reply to Aldric Molina

Prodigy 205 points

Any update on this topic?

Best Regards

0 Rahul Prabhu over 8 years ago in reply to Aldric Molina

TI__Guru** 116170 points

Aldric,

It is still unclear why your board is unable to connect using XDS200 emulator even with lower TCLK settings. From what you indicated the Linux can boot from SD card and you are seeing UART logs to indicate the boot and the Test connection is passing. Can you confirm that the board you have is A3 or higher revision (check label on the board) and you are using a power cable with the following spec:
processors.wiki.ti.com/.../AM572x_General_Purpose_EVM_HW_User_Guide

I have asked the hardware team to take a look at the information that you have provided so far and if this is an hardware issue then you may need to do RMA process and replace your board.

Regards,
Rahul

0 Aldric Molina over 8 years ago in reply to Rahul Prabhu

Prodigy 205 points

Hello Rahul,

thank you for your support.
My board is a A3A -> serial number 40164P551268.

I am using the power supply from the box of the kit.
Do you know how long does it take to replace the board?
I have already lost 3 weeks in my development plan and need to update it.

It is a shame that the board has an issue but in the other side reinsure myself that there are nothing wrong with this development path.

Best Regards

0 Aldric Molina over 8 years ago in reply to Aldric Molina

Prodigy 205 points

Dear Rahul,

what are the next steps?

Best Regards

0 Rogerio Almeida over 8 years ago in reply to Aldric Molina

TI__Mastermind 26205 points

Aldric,
I was discussing this issue with our apps this afternoon and we will contact you asap....we are checking a couple of options internally....sorry for all the delays...

0 Rogerio Almeida over 8 years ago in reply to Rogerio Almeida

TI__Mastermind 26205 points

Aldric,
how can I contact you offline?
