Hi,

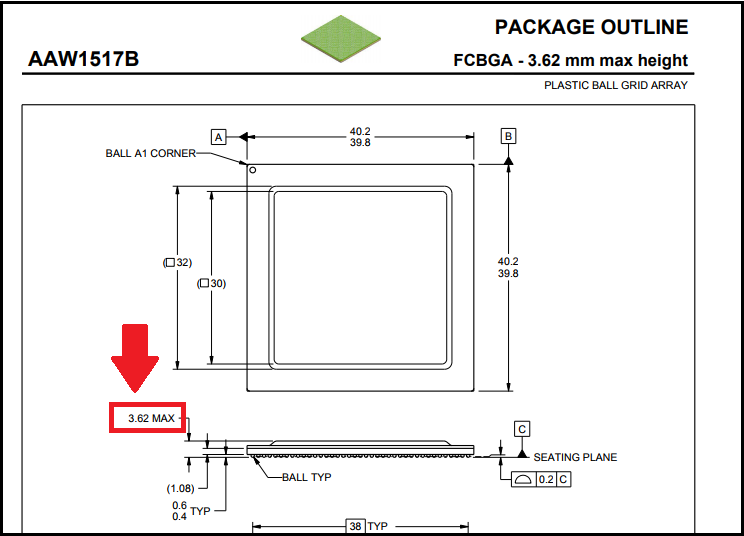

I want to know the package height of 66AK2H06.
The maximum value of the height is stated in the following Datasheet, do you have minimum value?
I am concerned that the chip can not touch the heat sink, if the minimum value of the package height is extremely low.

Best regards,
H.U

over 8 years ago

0 Cvetolin Shulev-XID over 8 years ago

TI__Guru 65405 points

I've forwarded this to the HW experts. Their feedback should be posted here.

BR
Tsvetolin Shulev

0 Tom Johnson 16214 over 8 years ago in reply to Cvetolin Shulev-XID

TI__Mastermind 46460 points

H.U.,

Where did you get the drawing that you are displaying in this E2E? The proper mechanical drawing for this product is at the end of the Data Manual: http://www.ti.com/lit/gpn/66ak2h06

The drawing clearly shows the min and max thicknesses.

Tom

0 UNA over 8 years ago in reply to Tom Johnson 16214

Mastermind 7980 points

Hi Tom,

>Where did you get the drawing that you are displaying in this E2E?

Please see page 326 of the following data manual document.
http://www.ti.com/lit/ds/symlink/66ak2h06.pdf

It seems that the minimum value is not listed for "AAW1517B" package.

Sorry, I mistakenly verified your answer...

Best regards,
H.U

0 Tom Johnson 16214 over 8 years ago in reply to UNA

TI__Mastermind 46460 points

H.U.,

That is a summary drawing. The detailed package drawing is on the previous page.

Tom

0 UNA over 8 years ago in reply to Tom Johnson 16214

Mastermind 7980 points

Hi Tom,

>That is a summary drawing. The detailed package drawing is on the previous page.

I don't think so, "AAW (S-PBGA-N1517)" and "AAW1517B" should be in different packages.
New packages(AAW1517B) of TCI6638K2K is discussed in the following threads. I think that it is the issue also applicable to K2H.

https://e2e.ti.com/support/dsp/c6000_multi-core_dsps/f/639/p/602300/2243200?tisearch=e2e-sitesearch&keymatch=AAW1517B#2243200

Best regards,
H.U

0 Tom Johnson 16214 over 8 years ago in reply to UNA

TI__Mastermind 46460 points

HU,

There is only one package for the 66AK2Hxx devices. I will check with the packaging team why there are 2 drawings listed.

Tom

0 UNA over 8 years ago in reply to Tom Johnson 16214

Mastermind 7980 points

Hi Tom,

I'm waiting for your reply. Please get back as soon as possible.

Best regards,
H.U

0 Tom Johnson 16214 over 8 years ago in reply to UNA

TI__Mastermind 46460 points

H.U.,

The online Data Manual will be corrected to show a single package drawing to prevent confusion. It will show the same drawing as the one attached here.

Tom

AAW1517B_ePOD.PDF

0 UNA over 8 years ago in reply to Tom Johnson 16214

Mastermind 7980 points

Hi Tom,

I want to know the minimum height of the AAW1517B package.
I think that the minimum height is not stated in the file you attached.
It is important for me how much the height of the package is different. So, please tell me the minimum package height.

Best regards,
H.U

0 Tom Johnson 16214 over 8 years ago in reply to UNA

TI__Mastermind 46460 points

H.U.,

The fabrication drawing shows that the package is 3.48 +/-0.14mm. This results in a maximum thickness of 3.62mm as shown in the DM and a minimum thickness of 3.34mm.

Tom
