TMS320C6748: Timer DMA doent transfer source to destination

Part Number: TMS320C6748

Hello.

I want to use timer3 DMA routine. I did a program and it enters DMA completion routine as per requirement,but transfer of data from source register to destination register in DMA channel corresponding do not occur. My DMA channel is 26. I have used ping pong approach, the link address and source address updates successfully in DMA channel, but data not written from source to destination. Now I have configured to write 1 byte of data from source to destination. Even that doent occur. Attached is my program,below given is acnt,bcnt setting etc. help me to solve issue.

paramSet1.srcAddr = (unsigned int)buffer;
paramSet1.destAddr =(unsigned int) &(toggle_val);//0x01e26064; //gpio_outdata45
paramSet1.aCnt = (unsigned short)1;
paramSet1.bCnt = (unsigned short)1;
paramSet1.cCnt = (unsigned short)1;


paramSet1.srcBIdx = (short) 0u;


paramSet1.destBIdx = (short) 0u;

/* A sync Transfer Mode */
paramSet1.srcCIdx = (short) 0u;
paramSet1.destCIdx = (short) 0u;
paramSet1.linkAddr = 0x01e34220;
paramSet1.bCntReload = (unsigned short)0u;
paramSet1.opt =0x0011a003;

Thanks in advance

Shalini

/**
 * \file  timerCounter.c
 *
 * \brief Sample application for timer.
 */

/*
* Copyright (C) 2012 Texas Instruments Incorporated - http://www.ti.com/
*
*  Redistribution and use in source and binary forms, with or without
*  modification, are permitted provided that the following conditions
*  are met:
*
*    Redistributions of source code must retain the above copyright
*    notice, this list of conditions and the following disclaimer.
*
*    Redistributions in binary form must reproduce the above copyright
*    notice, this list of conditions and the following disclaimer in the
*    documentation and/or other materials provided with the
*    distribution.
*
*    Neither the name of Texas Instruments Incorporated nor the names of
*    its contributors may be used to endorse or promote products derived
*    from this software without specific prior written permission.
*
*  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
*  "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
*  LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
*  A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
*  OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
*  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
*  LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
*  DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
*  THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
*  (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
*  OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/

#include "uart.h"
#include "hw_uart.h"
#include "interrupt.h"
#include "soc_C6748.h"
#include "hw_syscfg0_C6748.h"
#include "timer.h"
#include "lcdkC6748.h"
#include "uartStdio.h"
#include "gpio.h"
#include "psc.h"
#include"hw_types.h"

#include "edma_event.h"
#include "edma.h"
#include "spi.h"
#include <stddef.h>
#include <stdio.h>                     /* This ert_main.c example uses printf/fflush */



#ifndef _TMS320C6X
#include "cpu.h"
#endif

/******************************************************************************
**                      INTERNAL MACRO DEFINITIONS
*******************************************************************************/
#define STR_LEN                        (13)
#define TMR_PERIOD_LSB32               (0x000002AF)
//#define TMR_PERIOD_LSB32               (0x00000dfa)

//#define TMR_PERIOD_LSB32               (0x0F424000)
//#define TMR_PERIOD_LSB32               (0x00B71B00)
#define TMR_PERIOD_MSB32               (0x0)

/******************************************************************************
**                      INTERNAL FUNCTION PROTOTYPES
*******************************************************************************/
//static void TimerIsr(void);
static void TimerSetUp64Bit(void);
//static void TimerIntrSetUp(void);

/******************************************************************************
**                      INTERNAL VARIABLE DEFINITIONS
*******************************************************************************/

/******************************************************************************
**                          FUNCTION DEFINITIONS
*******************************************************************************/


#define PINMUX11_GPIO5_8_ENABLE    (SYSCFG_PINMUX11_PINMUX11_31_28_GPIO5_8  << \
                                    SYSCFG_PINMUX11_PINMUX11_31_28_SHIFT)

void  GPIOBank6Pin13PinMuxSetup();

volatile int dummy=0;
volatile int intflag=0;
volatile int flag1=0;

volatile int toggle_val;
static void (*cb_Fxn[EDMA3_NUM_TCC]) (unsigned int tcc, unsigned int status);
static void EDMA3Initialize(void);
static void SetupInt(void);
static void edma3ComplHandler(unsigned int baseAdd, unsigned int regionNum);
static void Edma3ComplHandlerIsr(void);
static void edma3CCErrHandler(unsigned int baseAdd);
static void Edma3CCErrHandlerIsr();
static void ConfigureIntEDMA3(void);
static void callback(unsigned int tccNum, unsigned int status);
static void SPITransmitData(unsigned int tccNum, unsigned int chNum,volatile char*);
void GPIOBank5Pin8PinMuxSetup();

#define EVT_QUEUE_NUM             40

volatile char toggle_val1[4];
volatile char toggle_val2[4];
int i=0;

int main(void)
{
    //HWREG(0x01C11100)|=0x00000001;                          //Enabling PLLCTL
    HWREG(0x01C11100) =0x00000051;
   // HWREG(0x01C11110)=                                                   //PLLM
    HWREG(0x01C11128)= 0x0008000;                                                  //POSTDIV

   //HWREG(0x01e1a100)|=0x00000001;                          //Enabling PLLCTL
  HWREG(0x01e1a100)=0x00000051;
   //HWREG(0x01e1a110)=                                                   //PLLM
   HWREG(0x01e1a128)= 0x0008000;                                         //POSTDIV


toggle_val=0x01000000;

for(i=0;i<4;i++)
     toggle_val1[i]=0xff;

for(i=0;i<4;i++)
     toggle_val2[i]=0xff;


EDMA3Initialize();

/* The Local PSC number for GPIO is 3. GPIO belongs to PSC1 module.*/
        PSCModuleControl(SOC_PSC_1_REGS, HW_PSC_GPIO, PSC_POWERDOMAIN_ALWAYS_ON,
                 PSC_MDCTL_NEXT_ENABLE);

        /* Pin Multiplexing of pin 8 of GPIO Bank 5.*/
        GPIOBank5Pin8PinMuxSetup();

        /* Sets the pin 89 (GP6[13]) as output.*/
        GPIODirModeSet(SOC_GPIO_0_REGS, 89, GPIO_DIR_OUTPUT);


    /* Set up the Timer3 peripheral */
    TimerSetUp64Bit();
    /* Enable the timer interrupt */

    TimerIntEnable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);

    EDMA3RequestChannel(SOC_EDMA31CC_0_REGS , EDMA3_CHANNEL_TYPE_DMA,
                       EDMA3_CHA_TIMER64P3_EVT12, EDMA3_CHA_TIMER64P3_EVT12,
                        EVT_QUEUE_NUM);

    cb_Fxn[EDMA3_CHA_TIMER64P3_EVT12] = &callback;

    SPITransmitData(EDMA3_CHA_TIMER64P3_EVT12,EDMA3_CHA_TIMER64P3_EVT12,toggle_val1);
    /* Set up the AINTC to generate Timer2 interrupts */
 //  TimerIntrSetUp();
  /* Enable the timer interrupt */
 //   TimerIntEnable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);

#ifndef _TMS320C6X
    /* Switch to non privileged mode; This is done for demonstration purpose */
    CPUSwitchToUserMode();
#endif


    /* Start the timer. Characters from cntArr will be sent from the ISR */




    TimerEnable(SOC_TMR_3_REGS, TMR_TIMER12, TMR_ENABLE_CONT);

//    while (rtmGetErrorStatus(code_total_M) == (NULL)) {
//      /*  Perform other application tasks here */
//    }

    while(1)
    {

        //if(intflag==1)
       // {
        //    for(flag1=0;flag1<5;flag1++);
       //     intflag=0;
        //    TimerIntEnable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);

       // }

    }

    /* Disable rt_OneStep() here */

    /* Terminate model */



    //TimerDisable(SOC_TMR_3_REGS, TMR_TIMER12);

    /* Halt the program */
    //while(1);
}

/*
** Timer Interrupt Service Routine
*/
static void SPITransmitData(unsigned int tccNum, unsigned int chNum,volatile char*buffer)
{
        EDMA3CCPaRAMEntry paramSet;

        EDMA3CCPaRAMEntry paramSet1;
        EDMA3CCPaRAMEntry paramSet2;

        paramSet1.srcAddr = (unsigned int)buffer;
        paramSet1.destAddr =(unsigned int) &(toggle_val);//0x01e26064;    //gpio_outdata45
        paramSet1.aCnt = (unsigned short)1;
        paramSet1.bCnt = (unsigned short)1;
        paramSet1.cCnt = (unsigned short)1;

       /* The src index should increment for every byte being transferred. */
       paramSet1.srcBIdx = (short) 0u;

       /* The dst index should not be increment since it is a h/w register*/
       paramSet1.destBIdx = (short) 0u;

       /* A sync Transfer Mode */
       paramSet1.srcCIdx = (short) 0u;
       paramSet1.destCIdx = (short) 0u;
       paramSet1.linkAddr = 0x01e34220;
       paramSet1.bCntReload = (unsigned short)0u;
       paramSet1.opt =0x0011a003;
       EDMA3SetPaRAM(SOC_EDMA31CC_0_REGS, 16, &paramSet1);


       paramSet2.srcAddr = (unsigned int)buffer;
       paramSet2.destAddr =(unsigned int) &(toggle_val);    //gpio_outdata45
       paramSet2.aCnt = (unsigned short)1;
       paramSet2.bCnt = (unsigned short)1;
       paramSet2.cCnt = (unsigned short)1;

       /* The src index should increment for every byte being transferred. */
       paramSet2.srcBIdx = (short) 0u;

       /* The dst index should not be increment since it is a h/w register*/
       paramSet2.destBIdx = (short) 0u;

       /* A sync Transfer Mode */
       paramSet2.srcCIdx = (short)0u;
       paramSet2.destCIdx = (short) 0u;
       paramSet2.linkAddr = 0x01e34200;
       paramSet2.bCntReload = (unsigned short)0u;
       paramSet2.opt =0x0011a003;
       EDMA3SetPaRAM(SOC_EDMA31CC_0_REGS, 17, &paramSet2);

        /* Fill the PaRAM Set with transfer specific information */
        paramSet.srcAddr = (unsigned int)buffer;
        paramSet.destAddr = (unsigned int) &(toggle_val);    //gpio_outdata45
        paramSet.aCnt = (unsigned short)1;
        paramSet.bCnt = (unsigned short)1;
        paramSet.cCnt = (unsigned short)1;

        /* The src index should increment for every byte being transferred. */
        paramSet.srcBIdx = (short) 0u;

        /* The dst index should not be increment since it is a h/w register*/
        paramSet.destBIdx = (short) 0u;

        /* A sync Transfer Mode */
        paramSet.srcCIdx = (short) 0u;
        paramSet.destCIdx = (short) 0u;
       paramSet.linkAddr = 0x01e34220;
       paramSet.bCntReload = (unsigned short)0u;
       paramSet.opt =0x0011a003;

        /* Now write the PaRAM Set */
        EDMA3SetPaRAM(SOC_EDMA31CC_0_REGS, chNum, &paramSet);


        EDMA3EnableTransfer(SOC_EDMA31CC_0_REGS, chNum, EDMA3_TRIG_MODE_EVENT);
}


//static void TimerIsr(void)
//{
//    /* Disable the timer interrupt */
//    TimerIntDisable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
//   if(dummy==0)
//       dummy=1;
//   else
//       dummy=0;
//    GPIOPinWrite(SOC_GPIO_0_REGS, 89,dummy);
//
//#ifdef _TMS320C6X
//    /* Clear interrupt status in DSPINTC */
//    IntEventClear(SYS_INT_T64P3_TINTALL);
//#else
//    /* Clear the interrupt status in AINTC */
//    IntSystemStatusClear(SYS_INT_TIMR3_ALL);
//#endif
//    TimerIntStatusClear(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
//
//
//
// // GPIOPinWrite(SOC_GPIO_0_REGS, 89, GPIO_PIN_LOW);
//    /* Enable the timer interrupt */
//  TimerIntEnable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
//// intflag=1;
//}


/*
** Setup the timer for 64 bit mode
*/
static void TimerSetUp64Bit(void)
{
    /* Configuration of Timer */
  //  TimerConfigure(SOC_TMR_3_REGS, TMR_CFG_64BIT_CLK_EXT);
   TimerConfigure(SOC_TMR_3_REGS, TMR_CFG_64BIT_CLK_INT );

    /* Set the 64 bit timer period */
    TimerPeriodSet(SOC_TMR_3_REGS, TMR_TIMER12, TMR_PERIOD_LSB32);
    TimerPeriodSet(SOC_TMR_3_REGS, TMR_TIMER34, TMR_PERIOD_MSB32);

   // HWREG(SOC_TMR_3_REGS + 0x20)|=0x02000200;                   //using external clock
}



void GPIOBank5Pin8PinMuxSetup()                 //HEADER J14 PIN 29
{
    unsigned int savePinmux = 0;

    /*
    ** Clearing the bit in context and retaining the other bit values
    ** in PINMUX13 register.
    */
    savePinmux = (HWREG(SOC_SYSCFG_0_REGS + SYSCFG0_PINMUX(11)) &
    ~(SYSCFG_PINMUX11_PINMUX11_31_28));

    /* Setting the pins corresponding to GP6[13] in PINMUX13 register.*/
    HWREG(SOC_SYSCFG_0_REGS + SYSCFG0_PINMUX(11)) =
    (PINMUX11_GPIO5_8_ENABLE | savePinmux);
}
/***************************** End Of File ***********************************/

/* Function used to Initialize EDMA3 */
static void EDMA3Initialize(void)
{
    /* Enabling the PSC for EDMA3CC_0.*/
    PSCModuleControl(SOC_PSC_1_REGS, HW_PSC_CC1, PSC_POWERDOMAIN_ALWAYS_ON,
             PSC_MDCTL_NEXT_ENABLE);

    /* Enabling the PSC for EDMA3TC_0.*/
    PSCModuleControl(SOC_PSC_1_REGS, HW_PSC_TC2, PSC_POWERDOMAIN_ALWAYS_ON,
             PSC_MDCTL_NEXT_ENABLE);

    /* Initialization of EDMA3 */
    EDMA3Init(SOC_EDMA31CC_0_REGS, EVT_QUEUE_NUM);

    /*
    ** Enable AINTC to handle interuppts. Also enable IRQ interuppt in
    ** ARM processor.
    */
    SetupInt();

    /* Register EDMA3 Interrupts */
    ConfigureIntEDMA3();
}

/* Function used to Setup ARM Interuppt Controller */
static void SetupInt(void)
{
#ifdef _TMS320C6X
    // Initialize the DSP Interrupt controller
    IntDSPINTCInit();

    // Enable DSP interrupts globally
    IntGlobalEnable();
#else
    /*Initialize the ARM Interrupt Controller(AINTC). */
    IntAINTCInit();

    /* Enable IRQ in CPSR.*/
    IntMasterIRQEnable();

    /* Enable the interrupts in GER of AINTC.*/
    IntGlobalEnable();

    /* Enable the interrupts in HIER of AINTC.*/
    IntIRQEnable();
#endif
}

/* EDMA3 Completion Handler */
static void edma3ComplHandler(unsigned int baseAdd, unsigned int regionNum)
{
    TimerIntDisable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
    volatile unsigned int pendingIrqs;
    volatile unsigned int isIPR = 0;

    unsigned int indexl;
    unsigned int Cnt = 0;
    indexl = 1;

#ifdef _TMS320C6X
    IntEventClear(SYS_INT_EDMA3_1_CC0_INT1);


#else
    IntSystemStatusClear(SYS_INT_CCINT0);
#endif
    isIPR = HWREG(baseAdd + EDMA3CC_S_IPR(regionNum));
    if(isIPR)
    {
       // while ((Cnt < EDMA3CC_COMPL_HANDLER_RETRY_COUNT)&& (indexl != 0u))
        while ((Cnt < 31)&& (indexl != 0u))
        {
            indexl = 0u;
            pendingIrqs = HWREG(baseAdd + EDMA3CC_S_IPR(regionNum));
            while (pendingIrqs)
            {
                if((pendingIrqs & 1u) == TRUE)
                {
                    /**
                    * If the user has not given any callback function
                    * while requesting the TCC, its TCC specific bit
                    * in the IPR register will NOT be cleared.
                    */
                    /* here write to ICR to clear the corresponding IPR bits */
                    HWREG(baseAdd + EDMA3CC_S_ICR(regionNum)) = (1u << indexl);

                    (*cb_Fxn[indexl])(indexl, EDMA3_XFER_COMPLETE);
                }
                ++indexl;
                pendingIrqs >>= 1u;
            }
            Cnt++;
        }
    }
   TimerIntEnable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);

}





static void Edma3ComplHandlerIsr(void)
{
#ifdef _TMS320C6X
    // Invoke Completion Handler ISR
    edma3ComplHandler(SOC_EDMA31CC_0_REGS, 1);
#else
    /* Invoke Completion Handler ISR */
    edma3ComplHandler(SOC_EDMA31CC_0_REGS, 0);
#endif
}

//static void Edma3ComplHandlerIsr1(void)
//{
//#ifdef _TMS320C6X
//    // Invoke Completion Handler ISR
//    edma3ComplHandler(SOC_EDMA30CC_0_REGS, 2);
//#else
//    /* Invoke Completion Handler ISR */
//    edma3ComplHandler(SOC_EDMA30CC_0_REGS, 0);
//#endif
//}

/* EDMA3 Error Handler */
static void edma3CCErrHandler(unsigned int baseAdd)
{
    volatile unsigned int pendingIrqs = 0;
    unsigned int regionNum = 0;
    unsigned int evtqueNum = 0;
    unsigned int index = 1;
    unsigned int Cnt = 0;

#ifdef _TMS320C6X
    IntEventClear(SYS_INT_EDMA3_1_CC0_ERRINT);
#else
    IntSystemStatusClear(SYS_INT_CCERRINT);
#endif

    if((HWREG(baseAdd + EDMA3CC_EMR) != 0 ) || \
       (HWREG(baseAdd + EDMA3CC_QEMR) != 0) || \
       (HWREG(baseAdd + EDMA3CC_CCERR) != 0))
    {
        /* Loop for EDMA3CC_ERR_HANDLER_RETRY_COUNT number of time, breaks
           when no pending interrupt is found */
        while ((Cnt < EDMA3CC_ERR_HANDLER_RETRY_COUNT) && (index != 0u))
        {
            index = 0u;
            pendingIrqs = HWREG(baseAdd + EDMA3CC_EMR);
            while (pendingIrqs)
            {
                /*Process all the pending interrupts*/
                if((pendingIrqs & 1u)==TRUE)
                {
                    /* Write to EMCR to clear the corresponding EMR bits.*/
                    HWREG(baseAdd + EDMA3CC_EMCR) = (1u<<index);
                    /*Clear any SER*/
                    HWREG(baseAdd + EDMA3CC_S_SECR(regionNum)) = (1u<<index);
                }
                ++index;
                pendingIrqs >>= 1u;
            }
            index = 0u;
            pendingIrqs = HWREG(baseAdd + EDMA3CC_QEMR);
            while (pendingIrqs)
            {
                /*Process all the pending interrupts*/
                if((pendingIrqs & 1u)==TRUE)
                {
                    /* Here write to QEMCR to clear the corresponding QEMR bits*/
                    HWREG(baseAdd + EDMA3CC_QEMCR) = (1u<<index);
                    /*Clear any QSER*/
                    HWREG(baseAdd + EDMA3CC_S_QSECR(0)) = (1u<<index);
                }
                ++index;
                pendingIrqs >>= 1u;
            }
            index = 0u;
            pendingIrqs = HWREG(baseAdd + EDMA3CC_CCERR);
    if (pendingIrqs != 0u)
    {
        /* Process all the pending CC error interrupts. */
        /* Queue threshold error for different event queues.*/
        for (evtqueNum = 0u; evtqueNum < EDMA3_0_NUM_EVTQUE; evtqueNum++)
        {
            if((pendingIrqs & (1u << evtqueNum)) != 0u)
            {
                /* Clear the error interrupt. */
                HWREG(baseAdd + EDMA3CC_CCERRCLR) = (1u << evtqueNum);
            }
         }

         /* Transfer completion code error. */
         if ((pendingIrqs & (1 << EDMA3CC_CCERR_TCCERR_SHIFT)) != 0u)
         {
             HWREG(baseAdd + EDMA3CC_CCERRCLR) = \
                  (0x01u << EDMA3CC_CCERR_TCCERR_SHIFT);
         }
         ++index;
    }
    Cnt++;
        }
    }
}

static void Edma3CCErrHandlerIsr()
{
    /* Invoke CC Error Handler ISR */
    edma3CCErrHandler(SOC_EDMA31CC_0_REGS);
}

/* Function to register EDMA3 Interuppts */
static void ConfigureIntEDMA3(void)
{
    /* Register Interrupts Here */

#ifdef _TMS320C6X
    IntRegister(C674X_MASK_INT4, Edma3ComplHandlerIsr);
    //IntRegister(C674X_MASK_INT6, Edma3ComplHandlerIsr1);
    IntRegister(C674X_MASK_INT5, Edma3CCErrHandlerIsr);
  //  IntRegister(C674X_MASK_INT6, TimerIsr);

    IntEventMap(C674X_MASK_INT4, SYS_INT_EDMA3_1_CC0_INT1);
    //IntEventMap(C674X_MASK_INT6, SYS_INT_EDMA3_0_CC0_INT2);
    IntEventMap(C674X_MASK_INT5, SYS_INT_EDMA3_1_CC0_ERRINT);
  //  IntEventMap(C674X_MASK_INT6, SYS_INT_T64P3_TINTALL);

    IntEnable(C674X_MASK_INT4);
    IntEnable(C674X_MASK_INT5);
 //   IntEnable(C674X_MASK_INT6);

    #else
    IntRegister(SYS_INT_CCINT0, Edma3ComplHandlerIsr);

    IntChannelSet(SYS_INT_CCINT0, 2);

    IntSystemEnable(SYS_INT_CCINT0);

    IntRegister(SYS_INT_CCERRINT, Edma3CCErrHandlerIsr);

    IntChannelSet(SYS_INT_CCERRINT, 2);

    IntSystemEnable(SYS_INT_CCERRINT);
#endif
}


/*
** This function is used as a callback from EDMA3 Completion Handler.
** UART in DMA Mode is Disabled over here.
*/
static void callback(unsigned int tccNum, unsigned int status)
{



}


//static void TimerIsr(void)
//{
//    /* Disable the timer interrupt */
//    TimerIntDisable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
//
//
//#ifdef _TMS320C6X
//    /* Clear interrupt status in DSPINTC */
//    IntEventClear(SYS_INT_T64P3_TINTALL);
//#else
//    /* Clear the interrupt status in AINTC */
//    IntSystemStatusClear(SYS_INT_TIMR3_ALL);
//#endif
//    TimerIntStatusClear(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
//
//
//
// // GPIOPinWrite(SOC_GPIO_0_REGS, 89, GPIO_PIN_LOW);
//    /* Enable the timer interrupt */
//  TimerIntEnable(SOC_TMR_3_REGS, TMR_INT_TMR12_NON_CAPT_MODE);
//
//}

  • The team is notified. They will post their feedback directly here.

    BR
    Tsvetolin Shulev
  • Hello,

    I have recently noticed that the EDMATC2 registers: ERRSTAT set to 1 signalling buserror and ERRDET 0x00011a01 ie read addressing error.

    Please consider these register setting also.

    Thanks in advance

    With regards
    Shalini
  • Hello,

    I have checked the source address. It is just the address of an array in the program. What is the difficulty in accessing this registers?
    Why is a read addressing error occurring?

    With Regards
    Shalini
  • Hello,

    please post a reply. I am stuck...

    Thanks in advance

    With regards
    Shalini
  • Hi Shalini,

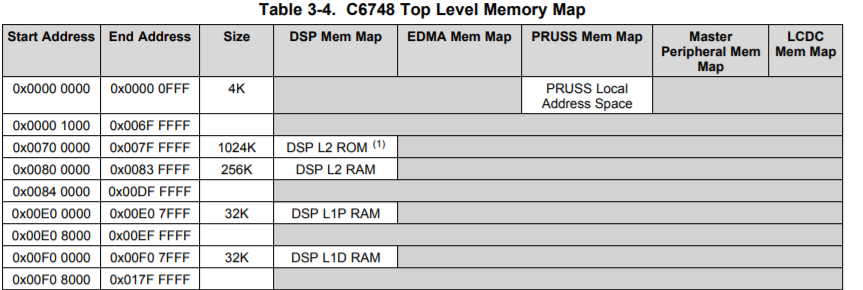

    If ERRDET is indicating a read addressing error then I suspect your read address is in invalid space. Refer to the Memory Map Summary (Table 3-4) in the C6748 datasheet linked below for illegal or reserved addresses. It would be good if you could share the hex values in the PaRAM as well.

    A couple of other points to consider:

    AAAA PPPP said:

    paramSet1.linkAddr = 0x01e34220;

    You are placing a 32-bit value into a 16-bit field. The compiler should handle it but it's something to consider.

    AAAA PPPP said:

    paramSet1.opt =0x0011a003;

    This indicates OPT.SAM and OPT.DAM bits are set. These should be 0, so change this to 0x0011a000.

    Also, here are some EDMA resources that may be useful to you, in case you are not aware of them.

    EDMA FAQ for C6748 devices:

    C6000 EDMA Training series:

    C6748 EDMA User's Guide:

  • Hello,

    Thanks for reply.But my problem still persist.

    "If ERRDET is indicating a read addressing error then I suspect your read address is in invalid space. "

    I have just given addresses of variables in the program. They are assigned address by program. I have also checked address assigned.
    destination=0x11806a00
    source=0x00f00300.
    These address are not invalid.

    "You are placing a 32-bit value into a 16-bit field. The compiler should handle it but it's something to consider."

    The link address I have is 32bit. How can I give it in to a 16 bit variable. Is it ok to give only low 16 bytes?

    "This indicates OPT.SAM and OPT.DAM bits are set. These should be 0, so change this to 0x0011a000."
    I am planning to move from a constant memory to another constant memory. So it was given as 11, not in incremental mode.

    My problem still persist. Dont consider this as resolved.

    Thanks in advance

    With Regards
    Shalini
  • Hi Shalini,

    I think your source address may be the issue. Looking at the memory map table, the EDMA does not have access to this address space.

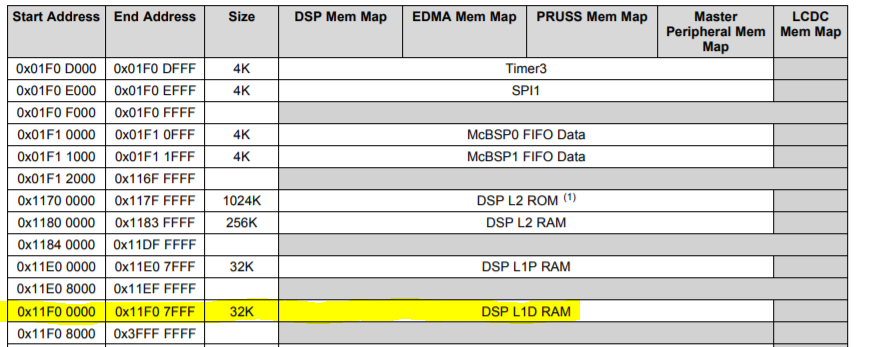

    The EDMA can only access DSP L1D RAM using the global address range starting at 0x11F00000:

    So I believe you need to change your source address to 0x11f00300.

  • Hello,

    Thank you a lot that solved my issue.

    With Regards
    Shalini
