AM5716: RTC wakeup signals

Patrick Ruf

Part Number: AM5716

Hi,

In the "AM57xx Schematic Checklist" I see that if one wants to use RTC timer functional, Wakeup0 and Wakeup3 needs to pulldown to VSS. At the moment I can't see any reasons to do so.
We want use Wakup0 and Wakeup3 als GPIO. Will we face any functional limitation to RTC timer when not pulling down this two pins to VSS?

Thanks and best regards,
Patrick

over 7 years ago

0 Biser Gatchev-XID over 7 years ago

TI__Guru**** 393215 points

If you want to use RTC functionality, e.g. timekeeping function, both Wakeup_0 and Wakeup_3 must be pulled to GND.

0 Patrick Ruf over 7 years ago in reply to Biser Gatchev-XID

Genius 5005 points

Biser,

Can you please go into more detail about those Wakup pins. Where can I find a description why to have those pins pulled to VSS?

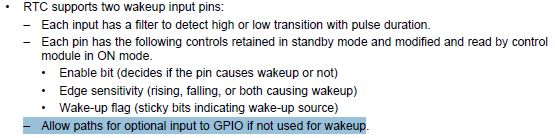

I can only see the following in the TRM:

What is the Wakeup function in the RTC? So if I want to use the RTC functionality I can not use GPIO1_0 and GPIO1_3?

Regards,
Patrick

0 Patrick Ruf over 7 years ago in reply to Patrick Ruf

Genius 5005 points

Hi,

Any further explanation to this topic is highly appreciated. I need to know whether I can use GPIO1_0 and GPIO1_3 while using the RTC for keeping time and date while fully powered. An external RTC (I2C) is used to keep time and date while power is off. Internal RTC is only used to have faster access to time and date and not using I2C all the time for this purpose.
As RTC only mode is not available with AM5716 I also need to know what the Wakeup function is used for.

Best regards,
Patrick

0 Patrick Ruf over 7 years ago in reply to Patrick Ruf

Genius 5005 points

Hi,

We need further information to this topic quite soon. As we have to decide if we can use GPIO1_0 and GPIO1_3.

Regards,
Patrick

0 melissaw over 7 years ago in reply to Patrick Ruf

TI__Genius 15940 points

Hi Patrick,

Sorry for the delays. I am looking into your question and hope to have an answer tomorrow.

Regards,
Melissa

0 Patrick Ruf over 7 years ago in reply to melissaw

Genius 5005 points

Melissa,

Any news for this topic?

Regards,
Patrick

0 melissaw over 7 years ago in reply to Patrick Ruf

TI__Genius 15940 points

Hi Patrick,

I've confirmed that this requirement only applies if the pinmux is activating the WAKEUP0/3 function. If these pins are muxed for a different function, they will not need to be pulled to VSS.

Regards,
Melissa
