AM5718: Custom board boot issue

igor lektorov

Intellectual 255 points

Other Parts Discussed in Thread: AM5718, AM5749

Hello

On custom board I can't get any logs with booting via microsd and serial. Issue at omap_smc1() call.

I use last sdk images.

I can connect to debug and upload SPL firmware. But have an issues with stepping in debug mode.

Firmware loaded:

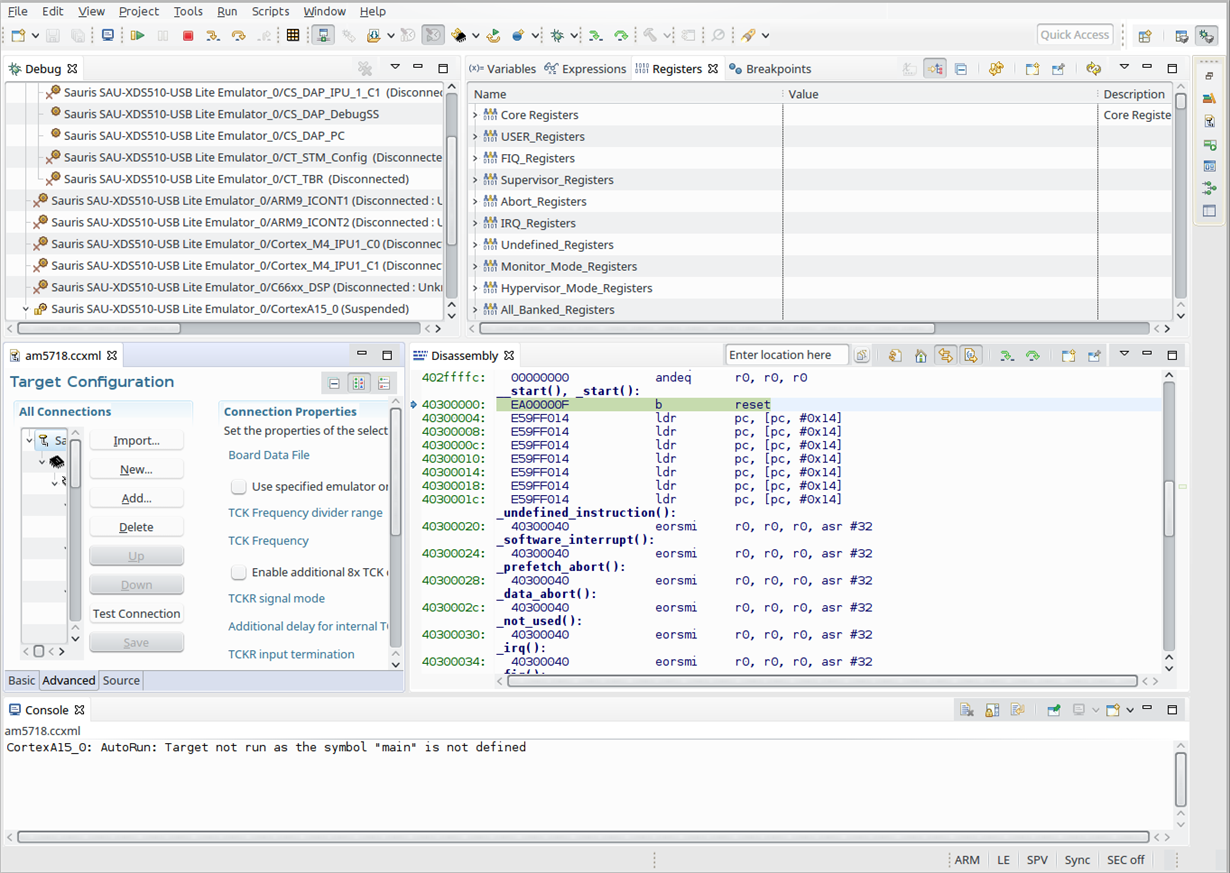

Go step by step till 'pop' command:

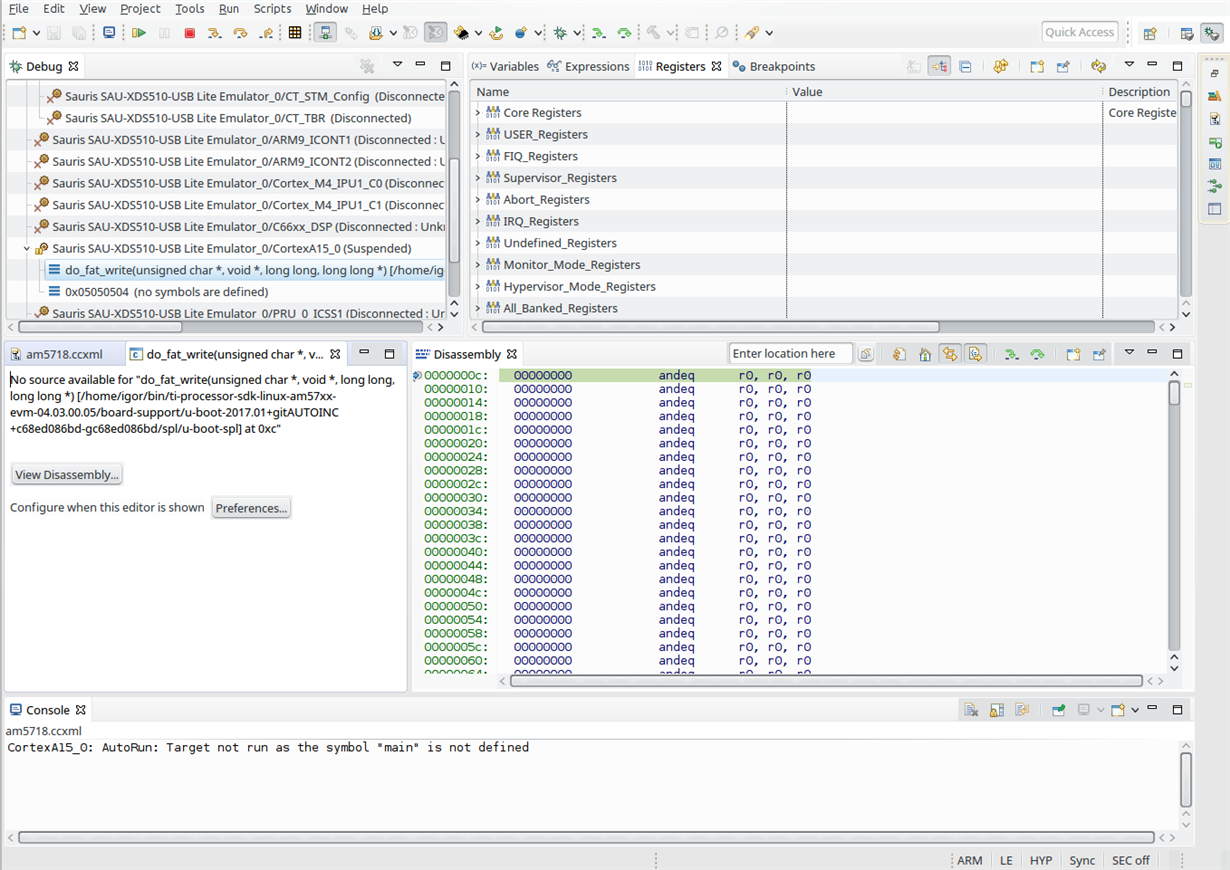

'pop' doesn't work and CPU jumps to beginning of memory:

What else can I do bringup my board?

over 7 years ago

0 Biser Gatchev-XID over 7 years ago

TI__Guru**** 393215 points

What software is this? Which version?

0 igor lektorov over 7 years ago in reply to Biser Gatchev-XID

Intellectual 255 points

u-boot from
ti-processor-sdk-linux-am57xx-evm-04.02.00.09 and ti-processor-sdk-linux-am57xx-evm-04.03.00.05
Just compiled u-boot by 'make' command. I tried also some previous versions of SDK.

0 Biser Gatchev-XID over 7 years ago in reply to igor lektorov

TI__Guru**** 393215 points

Thanks. The Linux team have been notified. They will respond here.

0 Steve Kipisz over 7 years ago in reply to Biser Gatchev-XID

TI__Genius 15510 points

Are you able to step over the smc call?

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Yes, I can

0 igor lektorov over 7 years ago in reply to igor lektorov

Intellectual 255 points

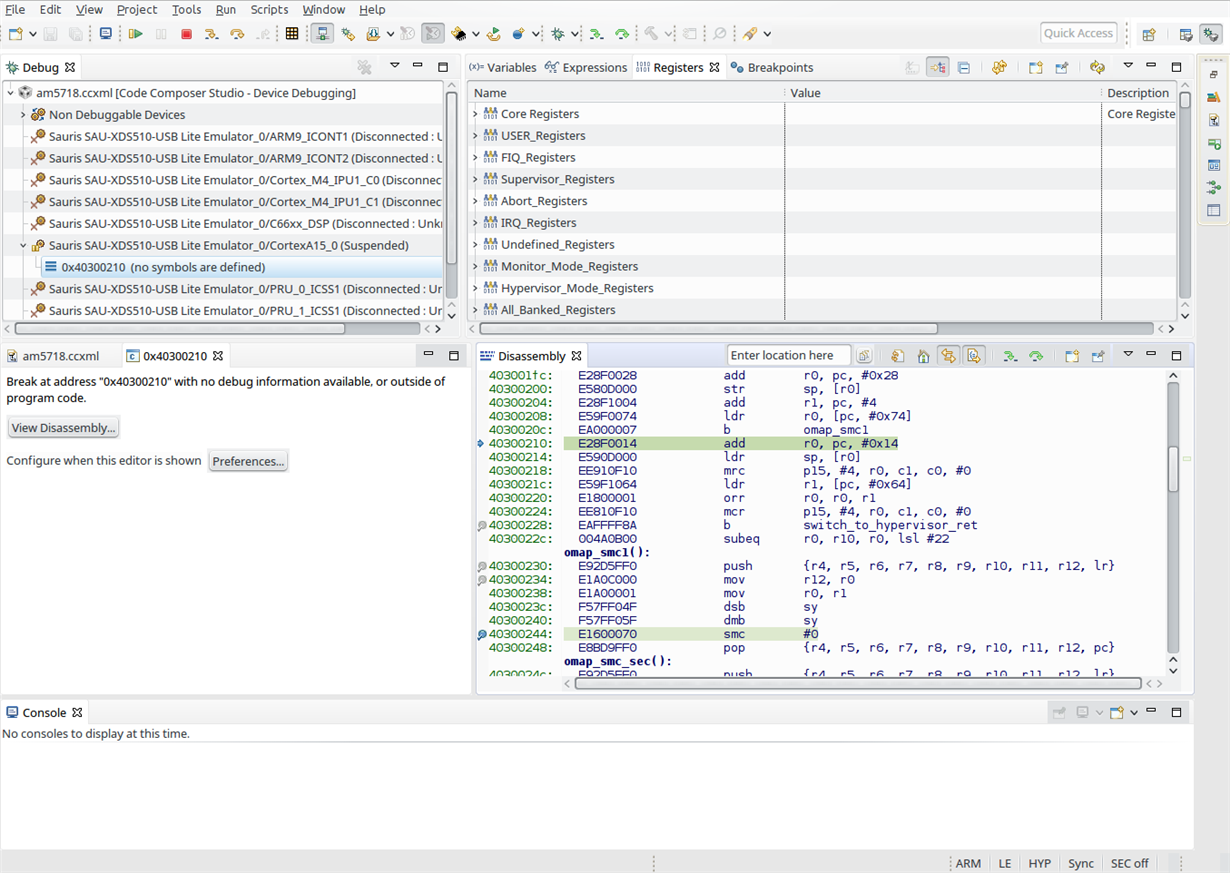

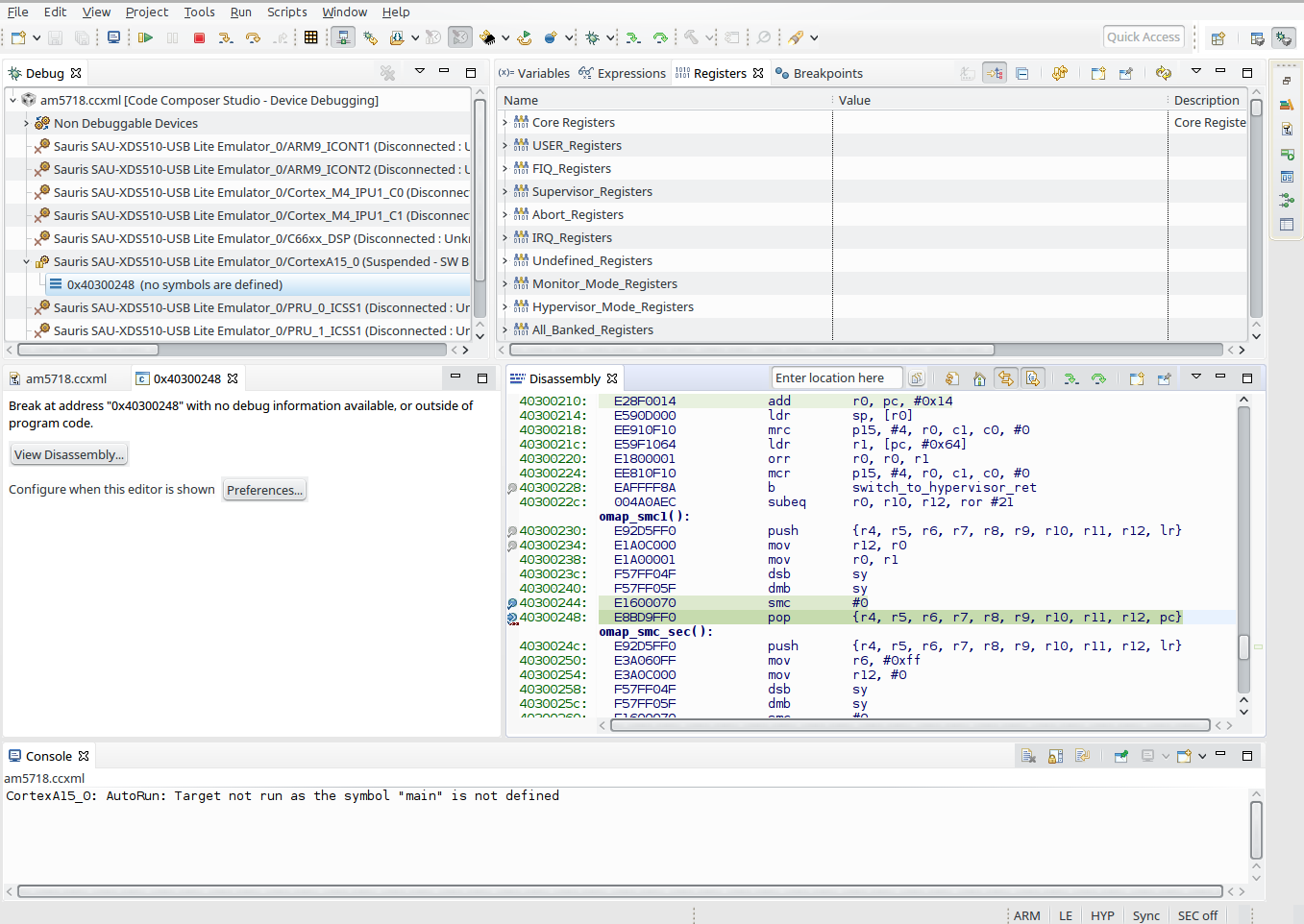

First "step over" (F6)

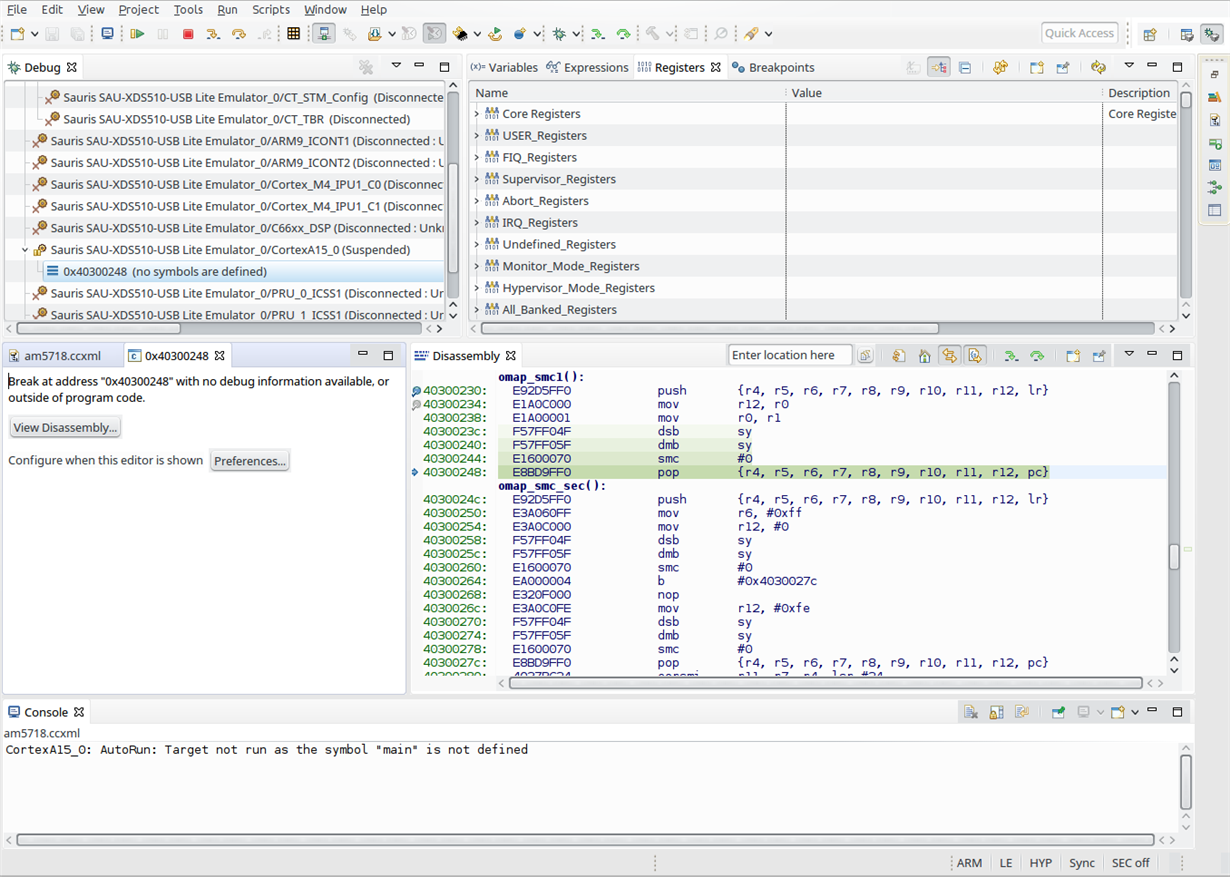

Second "Step over" (F6)

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

Ok, while I try to figure this out can you just comment the call to omap_smc1() ? That should get you moving along.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

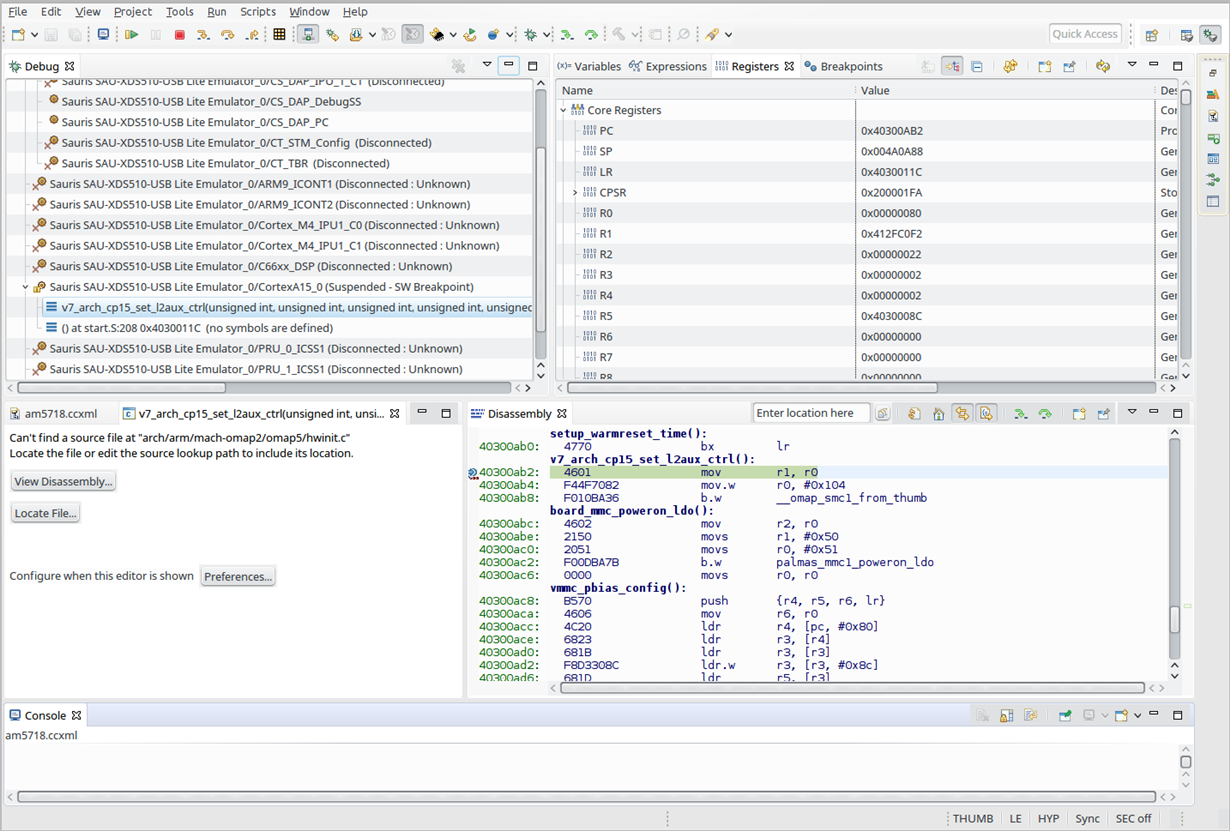

Commented call to omap_smc1, now hangs at v7_arch_cp15_set_l2aux_ctrl()

Could you pass over the same steps in debugger with am5718?

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

I'll try. I did talk with a member of the CCS team and he said the XDS510 is rather old so do you have access to a newer JTAG emulator?

Steve K.

0 Steve Kipisz over 7 years ago in reply to Steve Kipisz

TI__Genius 15510 points

Which file are you loading?

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

>>> Which file are you loading?
"Tools" - "Load Memory": u-boot-spl.bin to 0x40300000
"Load" - "Load symbols" : u-boot-spl for symbols

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

>>> I did talk with a member of the CCS team and he said the XDS510 is rather old so do you have access to a newer JTAG emulator?

According to www.ti.com/.../debug.html

XDS200 USB Debug Probe
and
XDS100v2 JTAG Debug Probe (14-pin version) are applicable for me.
I will try to find it.
Could you give me list of probably another debuggers compatible with Sitara?

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

Before trying a different emulator, can you load the file u-boot-spl-dtb.bin and see if that works.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

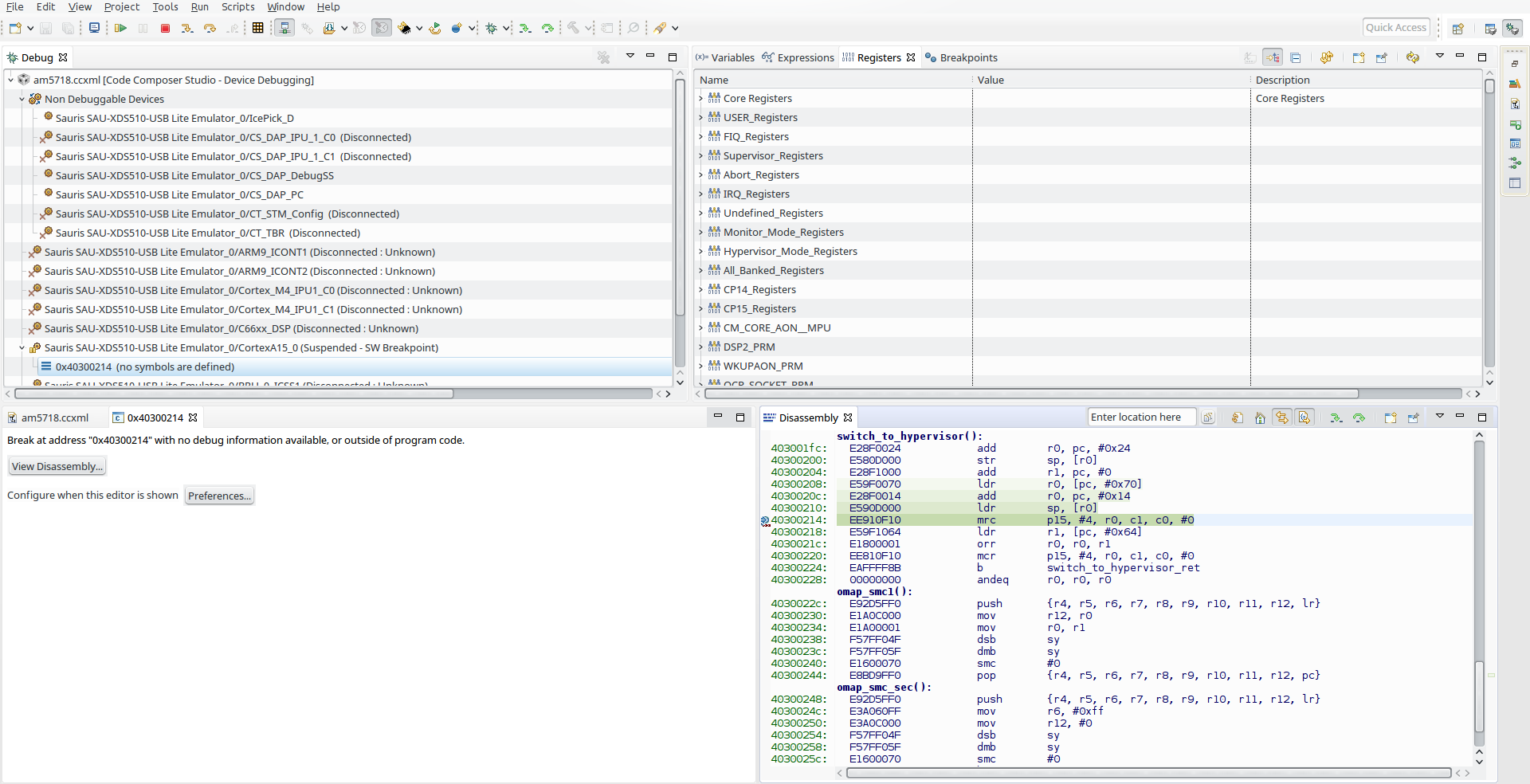

Done, hangs at 'mrc' instruction (symbols from u-boot-spl):

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

I just single-stepped through SPL code by loading u-boot-spl-dtb.bin.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
I just single-stepped through SPL code by loading u-boot-spl-dtb.bin.

Steve K.

Could you give me more details please: CPU/board, u-boot version/sdk version, CCS version, load address, debugger, some screenshots if possible.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

give me more details please: CPU/board, u-boot version/sdk version, CCS version, load address, debugger

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
I'll try. I did talk with a member of the CCS team and he said the XDS510 is rather old so do you have access to a newer JTAG emulator?

Steve K.

I jsut tried with sau100v2 and u-boot-nodtb.bin file. No difference, can't step over 'mrc p15, #4, r0, c1, c0, #0'

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

You need to use u-boot-spl-dtb.bin.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:

You need to use u-boot-spl-dtb.bin.

Steve K.

The same: I tried u-boot-spl-dtb.bin file with sau100v2. Can't single step over 'mrc p15, #4, r0, c1, c0, #0'

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

The same behavior...

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

Try a different emulator. I used CCS 8.0. My board is an AM5749 IDK which has an integrated FTDI chip so the USB port has a UART interface and something like an XDS100 emulator. I am able to use CCS without any problems.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
Try a different emulator. I used CCS 8.0. My board is an AM5749 IDK which has an integrated FTDI chip so the USB port has a UART interface and something like an XDS100 emulator. I am able to use CCS without any problems.

Steve K.

I already use another one (sau100v2) and CCS8. u-boot (sdk 04.03.00.05) was compiled without any config changes. u-boot-spl-dtb.bin can't step over 'mrc p15, #4, r0, c1, c0, #0' call. As I understand despite on any board periphery (DDR etc.) CPU core should go through initialization. Probably some secure restrictions present? Or specific power/boot configuration?

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

Can you un-comment the smc call and try again? That mrc assumes the hypervisor is enabled.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
Can you un-comment the smc call and try again? That mrc assumes the hypervisor is enabled.

Steve K.

smc call was uncommented, clear initial code is used u-boot-spl-dtb.bin.

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

Do you have access to a TI GP EVM or TI IDK board? I have tried on the IDK and do not have any problems.

Steve K.

0 Steve Kipisz over 7 years ago in reply to Steve Kipisz

TI__Genius 15510 points

Are you using CCS on Windows or Linux? I have everything working with CCS on Windows.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
Are you using CCS on Windows or Linux? I have everything working with CCS on Windows.

Steve K.

I use CCS8 with Linux.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
Do you have access to a TI GP EVM or TI IDK board? I have tried on the IDK and do not have any problems.

Steve K.

I'm trying to find it.

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

One more question: Are you running on a Linux PC or a Linux virtual machine on Windows? I am using a dedicated Linux PC with no problems at all.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
One more question: Are you running on a Linux PC or a Linux virtual machine on Windows? I am using a dedicated Linux PC with no problems at all.

Steve K.

Real Linux Ubuntu 16.04 PC with XDS100v2, ccsv8

and

Real Windows 7 PC with XDS100v2, ccsv8.

The same problem/behavior.

So I have to check with another am57xx board which I don't have now.

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

Ok. I am using Ubuntu 14.04 on a dedicated PC. I have to check with the CCS team and see if it is supported on Ubuntu 16.04.

Steve K.

0 Steve Kipisz over 7 years ago in reply to Steve Kipisz

TI__Genius 15510 points

I was just over with a CCS person and we could only re-create your problem if we started in Abort mode. If we did a CPU reset, the board would go to Supervisor mode. But I just noticed that you start in Supervisor mode? Are you doing a reset before loading code and symbols? That was how we ended up in Supervisor mode.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
I was just over with a CCS person and we could only re-create your problem if we started in Abort mode. If we did a CPU reset, the board would go to Supervisor mode. But I just noticed that you start in Supervisor mode? Are you doing a reset before loading code and symbols? That was how we ended up in Supervisor mode.

Steve K.

I triyed a lot of variants with reset and without, but it's not the reason. See my next post.

0 igor lektorov over 7 years ago in reply to igor lektorov

Intellectual 255 points

The reason was simple but I don't know why it happens. 'pop' command couldn't work properly because SP is wrong, only one my screenshot shows it, so, I don't know why it happened. After firmware loading we have right PC = 0x40300000 and wrong SP = 0x0BADCODE e.g.

To fix this I added one ASM line to reset vector:

reset:
	ldr     sp, =CONFIG_SYS_INIT_SP_ADDR

It solved my very initial code and I've got next issue with DDR, but it will be new post.

Please answer why SP is wrong after booting via JTAG. Thanks.

0 Steve Kipisz over 7 years ago in reply to igor lektorov

TI__Genius 15510 points

I did not have to do that. In CCS I did a CPU reset so the boot ROM code gets executed and stops at the reset vector. SP contains the internal RAM offset that the boot ROM used for the stack. Then I loaded the SPL code and it executed just fine.

Steve K.

0 igor lektorov over 7 years ago in reply to Steve Kipisz

Intellectual 255 points

Steve Kipisz said:
I did not have to do that. In CCS I did a CPU reset so the boot ROM code gets executed and stops at the reset vector. SP contains the internal RAM offset that the boot ROM used for the stack. Then I loaded the SPL code and it executed just fine.

Steve K.

So, probably some troubles with IDE but very strange. Thansk for support
