AM5716: IDK PCB layout

Lawrence Wong

Part Number: AM5716
Other Parts Discussed in Thread: AM5718

Customer wants to confirm Does the EVM use blind via holes or Micro Vias? The PCB fab seems to suggest that but wanted to confirm

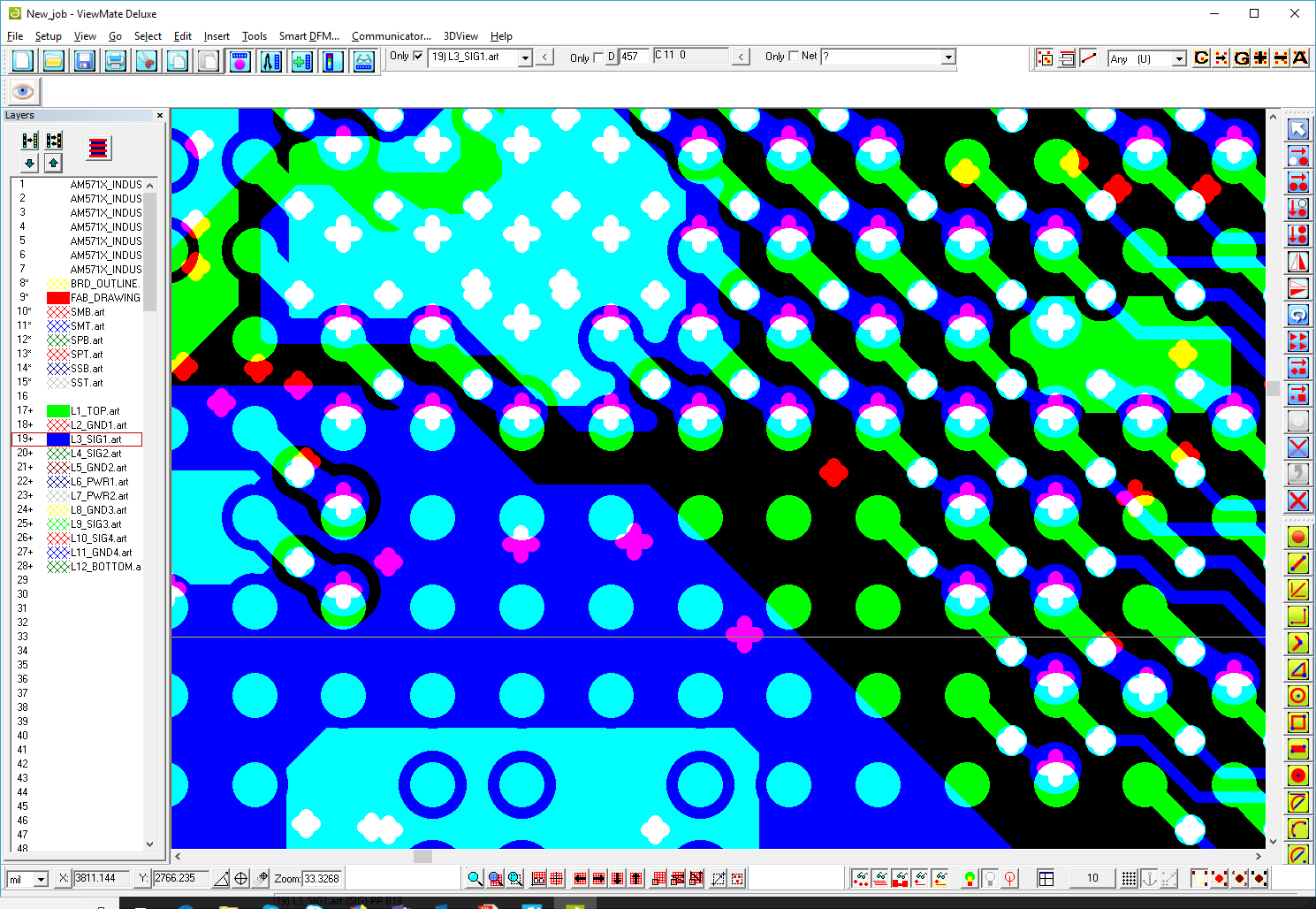

IDK Gerber Layers don’t seem to be aligned when viewing the drill holes, don’t see this alignment when viewing all the Layers combined (see pics below)

over 7 years ago

0 Biser Gatchev-XID over 7 years ago

TI__Guru**** 393215 points

The factory team have been notified. They will respond here.

0 Bill Taboada over 7 years ago

TI__Mastermind 42545 points

Hi Lawrence,

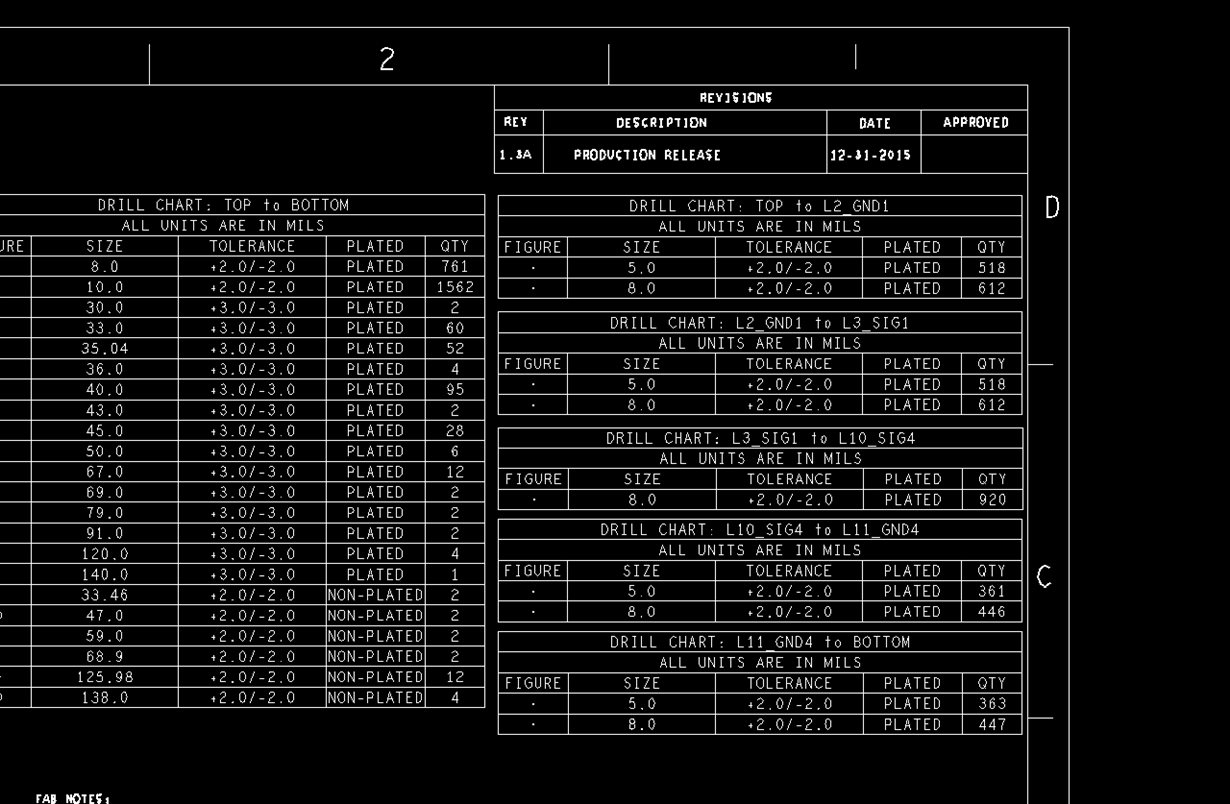

The AM5718 EVM does use blind and buried vias. In the drill drawing above you can see that there is a drill chart for Top to L2, a drill chart for L2 to L3, a drill chart for L3 to L10, a drill chart for L10 to L11 and a drill chart for L11 to Bottom. If you highlight all the layers the drills will not line up since these drill charts are treated separately. I do see alignment when I turn on layers 3 to 10. Which agrees with the tables above.
Regards, Bill

0 Tom Johnson 16214 over 7 years ago in reply to Bill Taboada

TI__Mastermind 46460 points

Lawrence,

It appears that you are using the open-source gerber viewer, gerbv. As Bill said, this is an HDI stackup with 2 layers of HDI with micro-vias. Once you look at the layers individually, the drill drawing holes align.

Tom
