Hello,

Currently I am referring to ar0143 sensor code available in Vision SDK 03.03 at "vision_sdk\apps\src\rtos\iss\src\sensor\ar0143".

In file "iss_sensor_ar0143.c", there is a lookup table in "glbceWdrCfg_ar0143" array with different value. For our AR0220 sensor how can I create similar WDR table.

How to decide what values need to be added in this LUT ?

Regards,

Abhay

over 7 years ago

0 Sujith over 7 years ago

TI__Genius 12455 points

Hi Abhay,

You will have to tune for the sensor, please check \vision_sdk\docs\TrainingSlides\TDA3xISP.pdf

Regards,
Sujith

0 Brijesh Jadav over 7 years ago in reply to Sujith

TI__Guru**** 477995 points

Hi Abhay,

This GLBCE WDR config is not really for WDR merge mode, it is only used for single pass mode.. This requires to be tuned for the sensor.
Btw, why do you want to use this module?

Rgds,
Brijesh

0 Abhay Sorte over 7 years ago in reply to Brijesh Jadav

Genius 4105 points

Hi Sujith,
Thanks, I will look into it and get back to you if I have any doubts.

Hi Brijesh,
Actually I am new to this sensor related stuff. I have a brand new sensor AR0220 with me for which I have to add support in Vision SDK for using it in ISS usecase. So I am referring to already available sensor files (ar0143 & ar0140) in Vision SDK to understand how things are done.

Regards,
Abhay

0 Brijesh Jadav over 7 years ago in reply to Abhay Sorte

TI__Guru**** 477995 points

Abhay,

Is this AR0220 Bayer or RCCB sensor?

Regards,
Brijesh

0 Abhay Sorte over 7 years ago in reply to Brijesh Jadav

Genius 4105 points

Hi Brijesh,

In the datasheet of Ar0220 sensor I found the following information,

Multiple CFA Options including Bayer (RGB), RCCC and RCCB

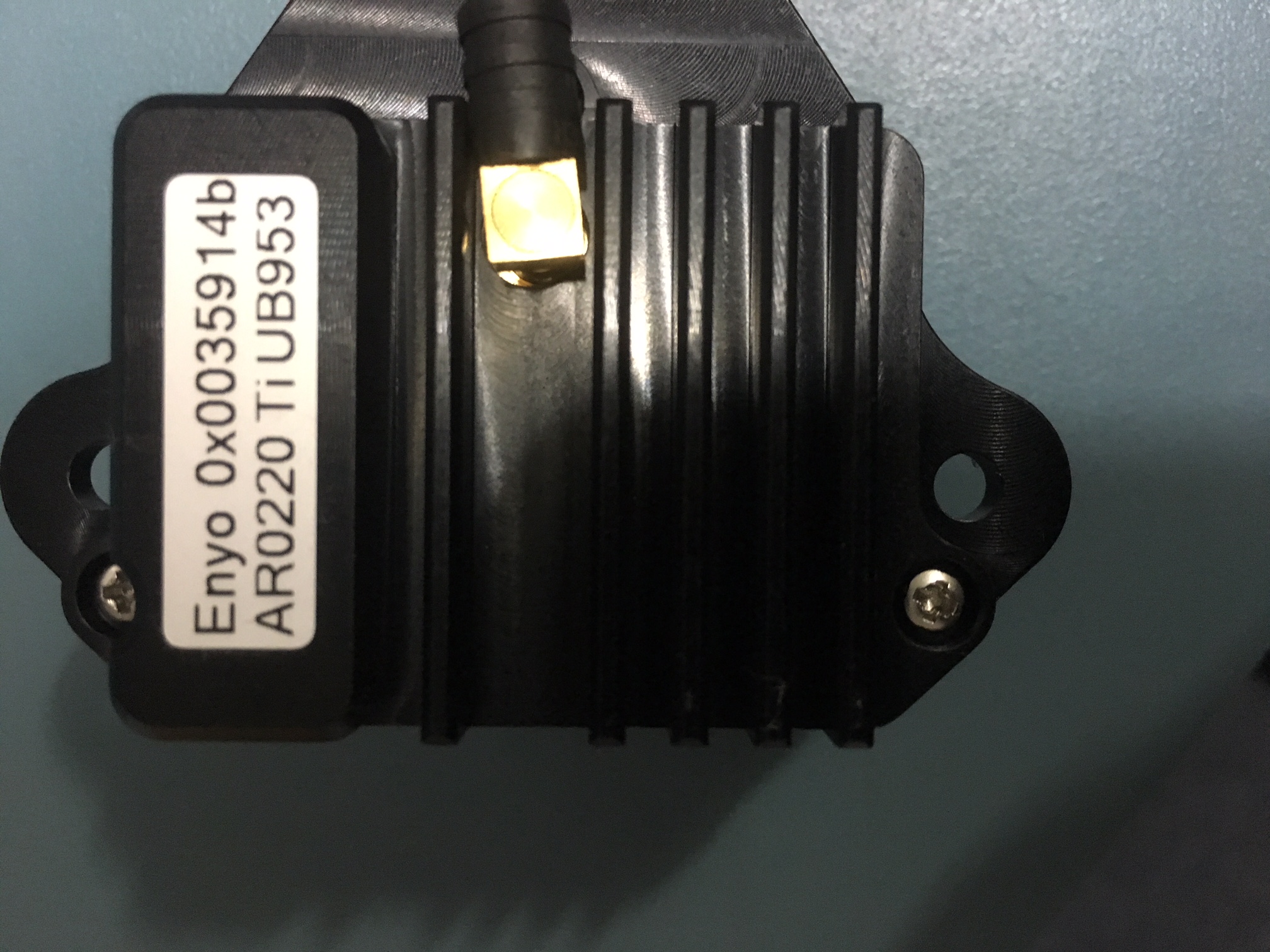

Also I have attached the image of our ar0220 camera sensor for your reference.

Regards,

Abhay

0 Brijesh Jadav over 7 years ago in reply to Abhay Sorte

TI__Guru**** 477995 points

Abhay,

It is not clear from the board. Please check with your sensor board manufacturer.

Rgds,
Brijesh

0 Abhay Sorte over 7 years ago in reply to Brijesh Jadav

Genius 4105 points

Hi Brijesh,

From what I have understood from the AR0220 datasheet, there is register named CFA_TYPE which we need to read in order get the CFA type (Bayer RGB, Monochrome, RCCB, RCCC).

Regards,
Abhay

0 Brijesh Jadav over 7 years ago in reply to Abhay Sorte

TI__Guru**** 477995 points

Abhay,

ok, read this register and figure out what kind of sensor it is.

Rgds,
Brijesh

0 Abhay Sorte over 7 years ago in reply to Brijesh Jadav

Genius 4105 points

Hi,

By default it is set to Bayer (RGB) . This register is a R/W.

Regards,
Abhay

0 Brijesh Jadav over 7 years ago in reply to Abhay Sorte

TI__Guru**** 477995 points

Abhay,

ok, you could first try capturing raw bayer data and see if it looks ok.
AR0220 sensor is not supported in the Vision SDK, so there is no tuning database for this sensor. Sensor requires to be tuned to get good quality output from ISP.

Rgds,
Brijesh

0 Abhay Sorte over 7 years ago in reply to Brijesh Jadav

Genius 4105 points

Hello Brijesh,

As we are running different thread to sort out the sensor issue, I will close this thread.
Thanks for your support.

Regards,
Abhay
