TDA2EXEVM: tda2ex

Javier Jimenez80 ,

Can you bring up the memory view and the register view in CCS? Try serching for these registers/addresses in the memory view and in the register view and verify if they are different than 0s?

thanks
Alex

Hi Alex,

As I'm running a script from a gel file, I don't think I can see any of theses values before implementing the auto generated c file in the TDA.

In any case, I think the problem could be in the same gel file or sbl.

Thanks.

Best regards,

Javier

Javier,

No you should be able to see them. Is the platform running? You can brin up the memory view and scan for these values.

thanks
Alex

Dear Alex,

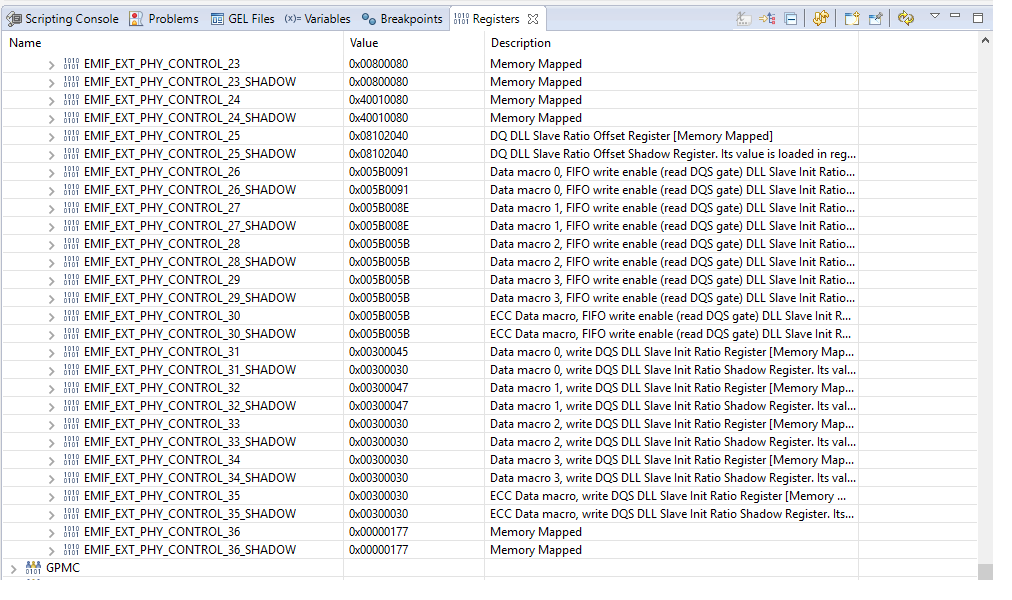

Here I attach the value of the registers.

Best regards,

Javier

Javier,

Then, that looks like the actual hardware is exactly configured as the spreadsheet values you provided (i.e. CCS registers match values generated by the spreadsheet). I'm not familiar with the c file you have generated with blank values. How did you generate that? Can you try again now that we see the values are not 0's in the register view?

Thanks,

Alex

Hi Alex,

The process that I follow is similar as Praveen does in this post but for a different processor:
e2e.ti.com/.../1346421

For some reason when I execute the Script-->DDR leveling and compile and execute the code, it generates automatically the c file with these registers in blank.

B.R.
Javier

Right, what I am trying to understand is why the HW shows values then the scripts exports blank ones... perhaps I can bring in DDR experts here for comments. They will reply here directly.

thanks
Alex

Hi Kevin,

Is strange as I have configured the spreadsheet for HW-LVL

Best regards,

Javier

Hi Javier,

You previously mentioned the following:

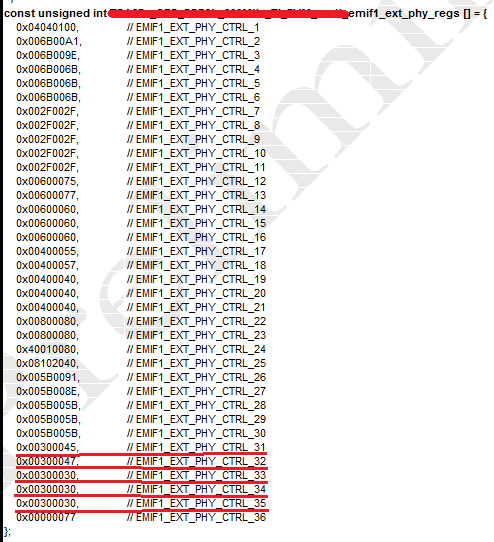

"After performing the write leveling, code composer generates a c file with some registers configured to zero and thats what concerns me as the spreeadsheet gives a totally different value (please see attached pictures)."

Thus although you selected hardware leveling in the spreadsheet, it sounds like you are running a software leveling program / tool which is providing optimal DLL ratio values. If you are using hardware leveling, you do not need to use the software leveling tool. You can use the register values provided by the spreadsheet.

If you believe you are not running software leveling, please provide us with more details on what tool you are using to auto-generate the .c file.

Thanks!

Best regards,
Kevin

Hi all,

These are the steps that I follow.

1.-

2.-

3.-

4.-

Best regards,

Javier

Hi Javier,

It is not entirely clear what is being run when you execute the GEL or the binary file. As a kind reminder, you do not need to run software leveling if you are using hardware leveling.

If there is concern that the bad boards are due to DDR, a few suggestions include:
1) Run a memory test on the bad board to see if you observe any failures
2) After configuring the DDR on both a bad board and a good board, dump the registers to a .dat file and compare the differences.

Best regards,
Kevin
