TCI6630K2L: Number of JESD Lanes

Shashank Meti

Part Number: TCI6630K2L
Other Parts Discussed in Thread: 66AK2L06

Hi,

We are trying to interface ADC & DAC with K2L. What is the exact number of JESD lanes available for ADC & DAC separately?

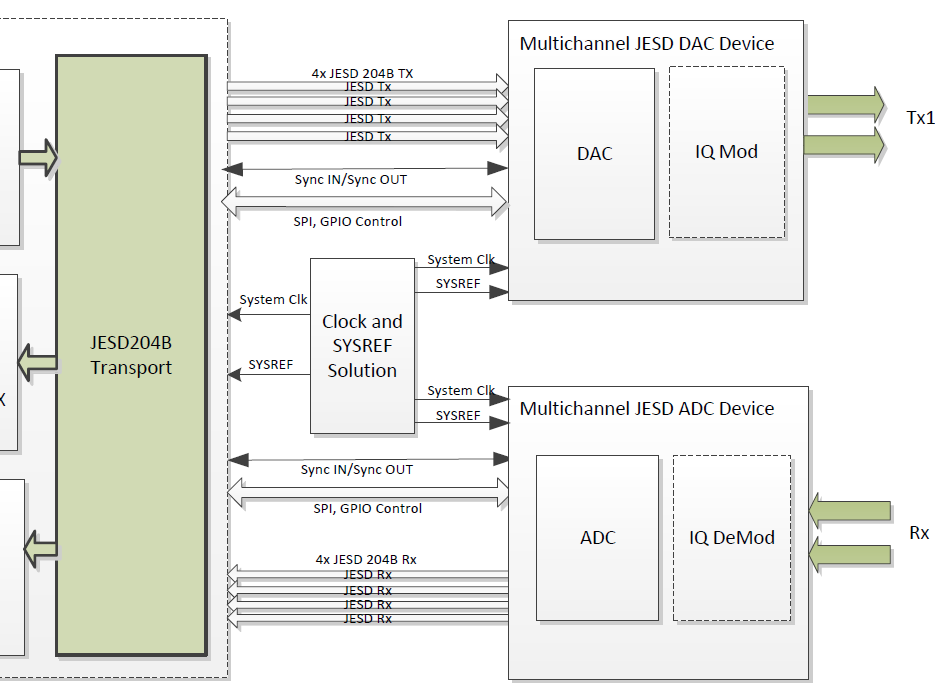

1st Page of datasheet says that only 4 lanes are available but the DFE userguide shows the below picture:

According to this, 4 separate lanes are available for TX and Rx. So is it whether 8 lanes in total available? 4 for Tx and 4 for Rx? Can these 8 lanes work simultaneously with 7.37 GSPS rate?

Thanks,

Shashank

over 7 years ago

0 Radio-Joe over 7 years ago

TI__Mastermind 37500 points

Hello
There are 4 Tx and 4Rx JESD Lanes for the TCI6630K2L, 66AK2L06 devices.
Because the 2Tx / 2Rx are shared in a common serdes, they require the same Line rate.
There are 2 sets of 2 lanes.
Regards.
Joe Quintal

0 Shashank Meti over 7 years ago in reply to Radio-Joe

TI__Intellectual 1020 points

"Because the 2Tx / 2Rx are shared in a common serdes" - This line is again ambigious.Is it 2Tx & 2Rx or 2Tx / 2Rx?

0 Radio-Joe over 7 years ago in reply to Shashank Meti

TI__Mastermind 37500 points

Hello,

There are 4 physical Tx, and 4 physical Rx serdes connections.

The SOC implementation has 2 blocks of 2Tx and 2Rx .

Each block of 2Tx and 2Rx must have a common Line Rate.

In the DFE-JESD portion, there are two implementations of JESD Links, these affect the standard LVDS connections of SYNC OUT, and SYNC IN.

The JESD204 configuration within DFE, can group or separate physical serdes configurations with the JESD Link.

These are further detailed in the TI documentation:

SOC Device datasheet - "www.ti.com/.../tci6630k2l.pdf "

Two PHYA two lane serdes are implemented as discussed in

Serdes User Guide - " www.ti.com/.../spruho3a.pdf "

DFE User Guide - " www.ti.com/.../spruhx8a.pdf ", see section 1.12.

Regards,

Joe Quintal
