CCS/TDA3XEVM: How to run use cases under control of debugger ?

Amer Naseem

Part Number: TDA3XEVM

Tool/software: Code Composer Studio

TDA3x is connected to computer terminal. Capture source is OV10640 Sensor 720P30 - CSI2. Vision SDK usecase is 'Single Camera Usecase'. Images are captured by camera and displayed on computer monitor.

Then, I am unable to debugger to target?

Regards,

Amer

over 6 years ago

0 Rishabh Garg over 6 years ago

TI__Guru 55685 points

Hi,

You most probably have code previously running on your target that pre-initialized and protected some registers. This may be either running from a SD card or from code pre-programmed in Flash memory in the board. I suggest changing the boot mode to debug or simply removing the SD card.

Regards,
Rishabh

0 Amer Naseem over 6 years ago in reply to Rishabh Garg

Expert 1380 points

I changed boot mode to debug. Now I'm able to connect target configuration to the board.

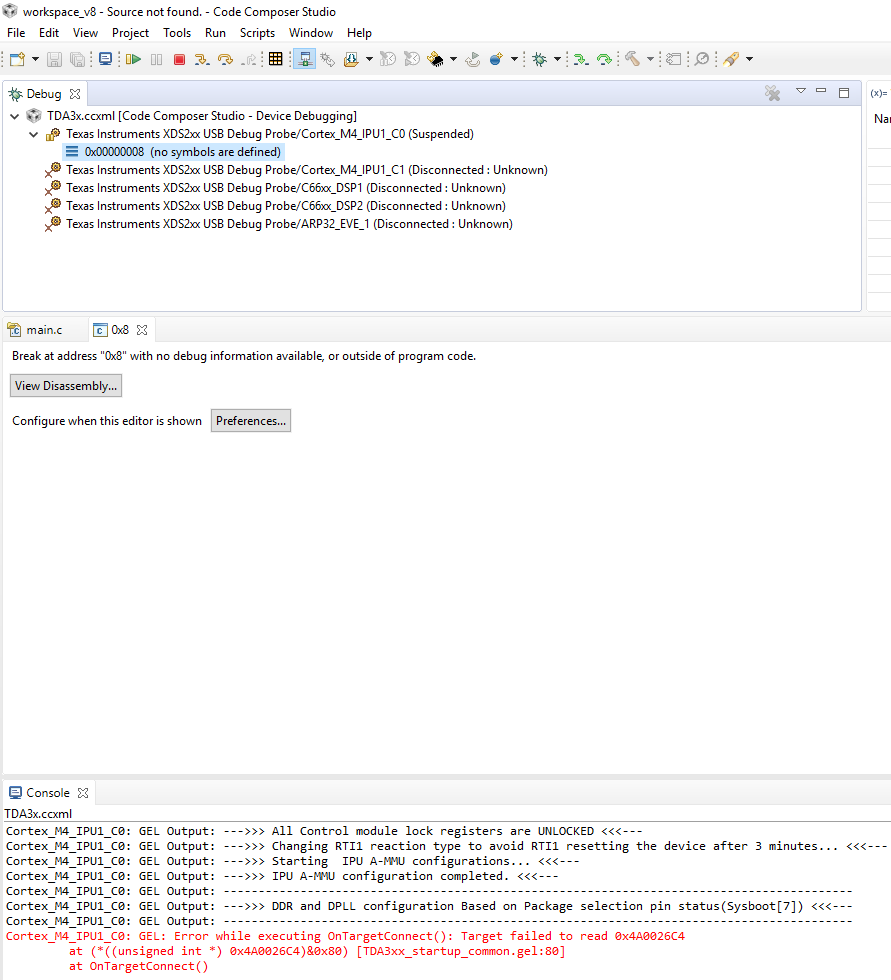

I'm also able to connect Cortex-M4_IPU1_C0 to target. But I get following error when I click on resume button.

I didn't make any code changes to vision sdk. I loaded application using QSPI and SD boot.

I don't have any project in CCS. I need to execute demo use cases under debugger control.

Regards,

Amer

0 Rishabh Garg over 6 years ago in reply to Amer Naseem

TI__Guru 55685 points

Hi Amer,

Did you set Vision SDK Config to 1 in TDA3xx Multicore gel file?

Regards,
Rishabh

0 Amer Naseem over 6 years ago in reply to Rishabh Garg

Expert 1380 points

Per instructions in TDA3x user guide, I installed GELs from C:\PROCESSOR_SDK_VISION_03_05_00_00\ti_components\ccs_csp\auto_rvp_rsp_device_support_1.0.7.zip to C:\ti\ccsv8\ccs_base.

I set VISION_SDK_CONFIG to 1 in TDA3xx_multicore_reset.gel but I get same error.

Regards,

Amer

0 Amer Naseem over 6 years ago in reply to Amer Naseem

Expert 1380 points

In following file, I set VISION_SDK_CONFIG to 1
C:\ti\ccsv8\ccs_base\emulation\gel\TDA3x\TDA3xx_multicore_reset.gel

0 Amer Naseem over 6 years ago in reply to Amer Naseem

Expert 1380 points

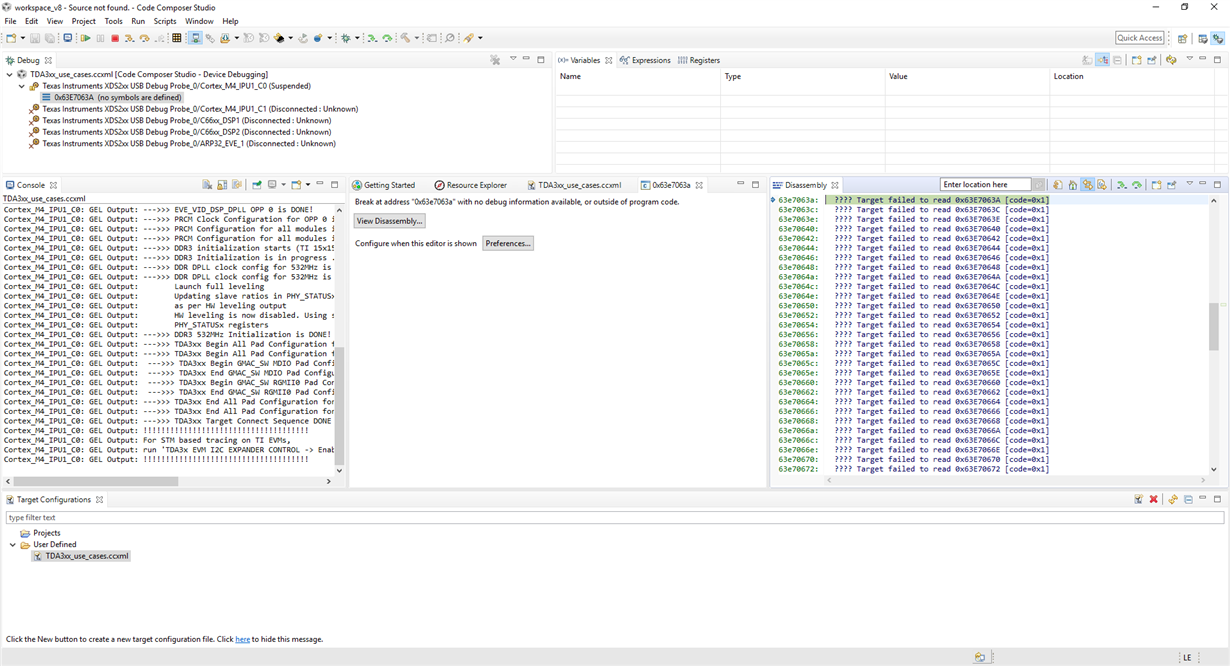

After connecting Cortex_M4_IPU1_C0 to target, I stepped over few instructions and then instructions are ???? as follows:

Regards,

Amer

0 Amer Naseem over 6 years ago in reply to Amer Naseem

Expert 1380 points

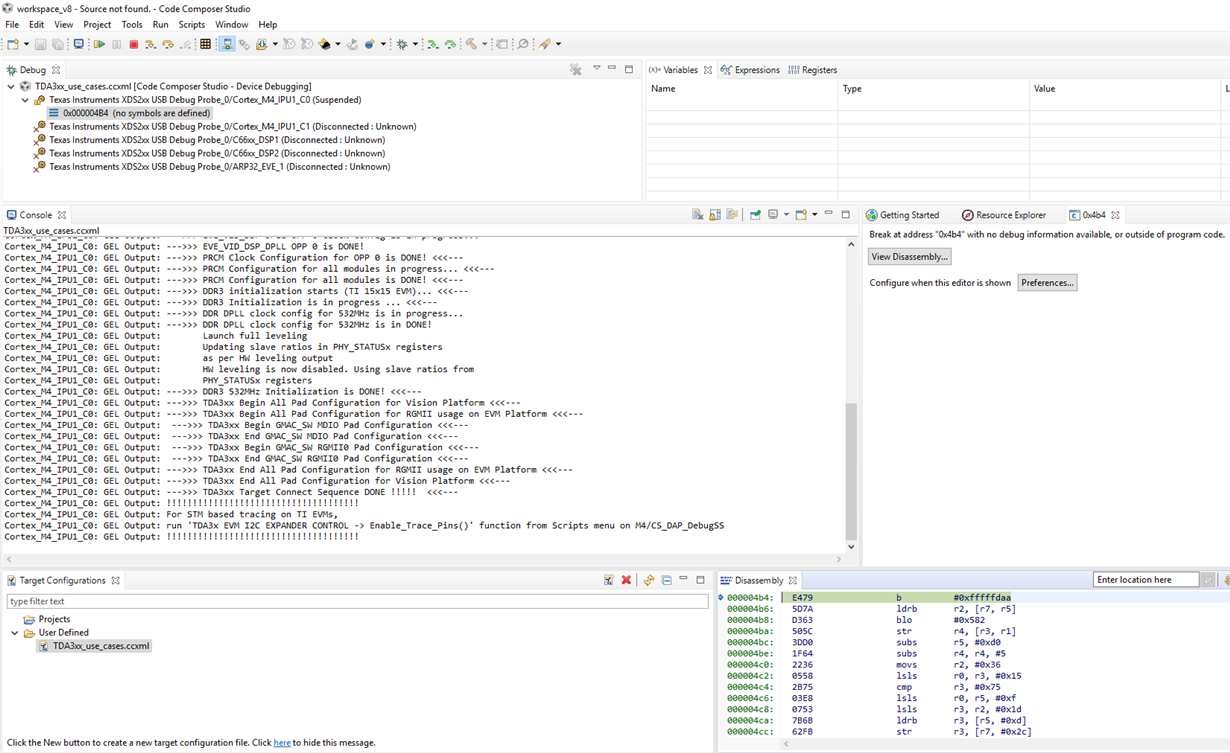

When I connect Cortex_M4_IPU1_C0 to target, PC is at address 0x000004b4. Please see disassembly window as follows:

Is that expected?

Where can I get documentation for TDA3x Processors. For example, Assembly Language Manual for Cortex_M4_IPU1_C0 ?

Regards,

Amer

0 Rishabh Garg over 6 years ago in reply to Amer Naseem

TI__Guru 55685 points

Hi Amer,

0x4b4 is ROM address and is expected. For assembly language details on cortex M4 you should refer to ARM documentation.
What is the binary that you are loading?

Regards,
Rishabh

0 Amer Naseem over 6 years ago in reply to Rishabh Garg

Expert 1380 points

Hi,

I believe in TDA3xx user's guide, there are Three load methods as follows:

1) Load using QSPI

2) Load using QSPI and SD boot

3) Load using CCS

I chose method 2 above. I flashed SBL in QSPI. I copied AppImage to SD card. Now, use case is running fine without the debugger.

Is it possible to run use case under control of the debugger. If yes, what is the process ?

0 Rishabh Garg over 6 years ago in reply to Amer Naseem

TI__Guru 55685 points

Hi Amer,

You need to follow method 3 load using CCS.

Regards,
Rishabh
