AMIC110: What is boot pin logic for?

Eggsy Pang

Part Number: AMIC110
Other Parts Discussed in Thread: TIDA-00299

Hi team,

My customer start to do Ethercat slave module based on AMIC110.

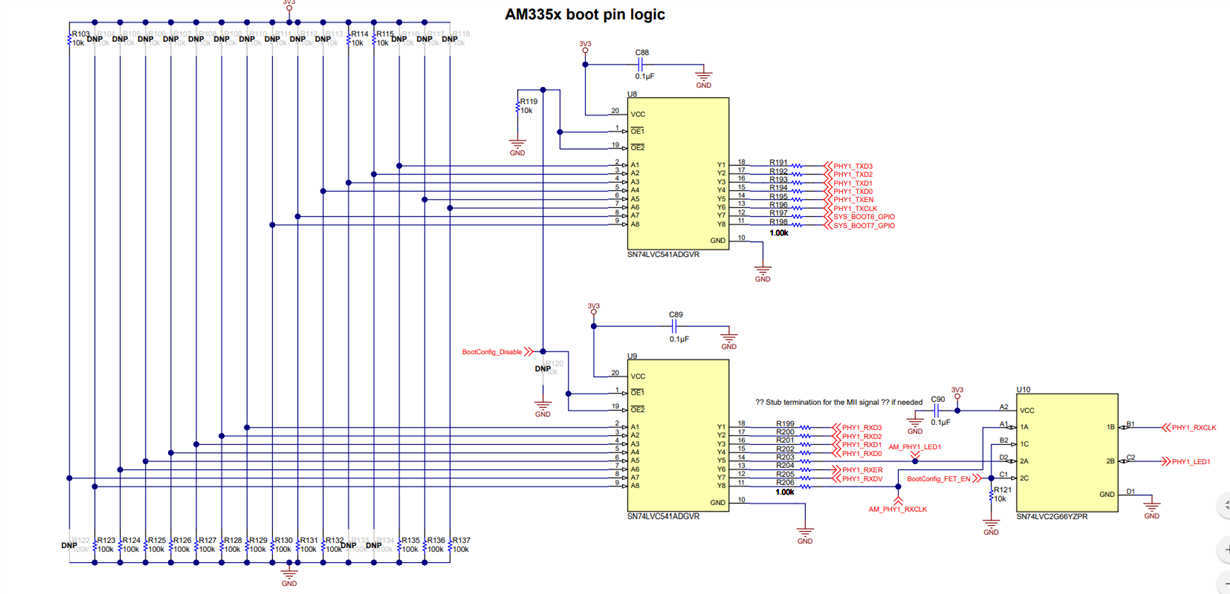

And they learn our SCH and TIDA ,link as below. And find below pic in the SCH, they are not sure if the SN74LVC541ADGVR and SN74LVC2G66YZPR must be in their board. What is effect of this functions? Could you have any suggestions?

Thanks!

over 6 years ago

0 Biser Gatchev-XID over 6 years ago

TI__Guru**** 393215 points

Hi,

This logic is necessary to isolate the SYSBOOT resistors from the PRU MII signals during normal operation.

0 Eggsy Pang over 6 years ago in reply to Biser Gatchev-XID

TI__Expert 4985 points

Hi Biser,

Thanks! So it need two SN74LVC541ADGVR and one SN74LVC2G66YZPR, three logic device, right?

0 Biser Gatchev-XID over 6 years ago in reply to Eggsy Pang

TI__Guru**** 393215 points

Yes, if you are following the AMIC110 ICE design you will need all 3 IC's.

0 Eggsy Pang over 6 years ago in reply to Biser Gatchev-XID

TI__Expert 4985 points

Hi Team，

If customer used RMII interface, so it don;t need RCLK signal. And customer don't need LED.
I think SN74LVC2G66YZPR device don't need on their board, right?
Thanks for your help!

0 Biser Gatchev-XID over 6 years ago in reply to Eggsy Pang

TI__Guru**** 393215 points

The important thing is that they keep the SYSBOOT signals isolated from other external connections at reset release time.

0 Eggsy Pang over 6 years ago in reply to Biser Gatchev-XID

TI__Expert 4985 points

Hi Biser,

SN74LVC541ADGVR can let SYSBOOT signals isolated form other external connections. But what is effort of SN74LVC2G66YZPR ?

0 Biser Gatchev-XID over 6 years ago in reply to Eggsy Pang

TI__Guru**** 393215 points

Please understand that this is a completely abstract discussion at the moment. I cannot give a precise answer without seeing the final schematics. If your customers wish, they can submit a formal schematic review request to TI. I will send you the link in a private e-mail.

0 Eggsy Pang over 6 years ago in reply to Biser Gatchev-XID

TI__Expert 4985 points

Hi Biser,

Customer are working on SCH. They are not sure if SN74LVC2G66YZPR must have.
So they don't have SCH now.
