AM4372: EXTINTn pin's the consumption current value

Sh.Sasaki

Guru 13625 points

Part Number: AM4372

Hi everyone,

Is there information on the consumption current value of EXTINTn pin?

Please let me know if there is one.

Best regards,

Sasaki

over 6 years ago

0 Biser Gatchev-XID over 6 years ago

TI__Guru**** 393215 points

Hi,

The EXTINTn pin has a standard LVCMOS I/O cell. Characteristics can be seen in sections "All other LVCMOS pins (VDDSHVx = 1.8V; x=1–11)" or "All other LVCMOS pins (VDDSHVx = 3.3V; x=1–11)" in section 5.7 of the AM437x Datasheet Rev. D.

0 Sh.Sasaki over 6 years ago in reply to Biser Gatchev-XID

Guru 13625 points

Hi Biser-san,

Thank you for your support.

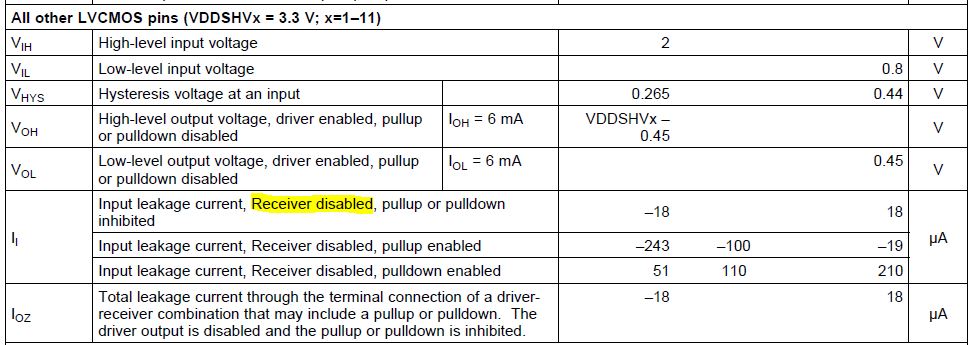

What is the condition of "Receiver disabled" below?

Best regards,

Sasaki

0 Biser Gatchev-XID over 6 years ago in reply to Sh.Sasaki

TI__Guru**** 393215 points

These are settings of the Pad Control Registers, described in section 7.2.1 of the AM437x TRM Rev. H. Register for EXTINTn pin is named CTRL_CONF_NNMI and is located at address 0x44E1_0A84.

0 Sh.Sasaki over 6 years ago in reply to Biser Gatchev-XID

Guru 13625 points

Hi Biser-san,

Thank you for your support!!

Best regards,
Sasaki
