Linux/AM6548: Does Processor SDK 5.02 enabled LCD display?

Tony Tang

Part Number: AM6548
Other Parts Discussed in Thread: TMDX654IDKEVM

Tool/software: Linux

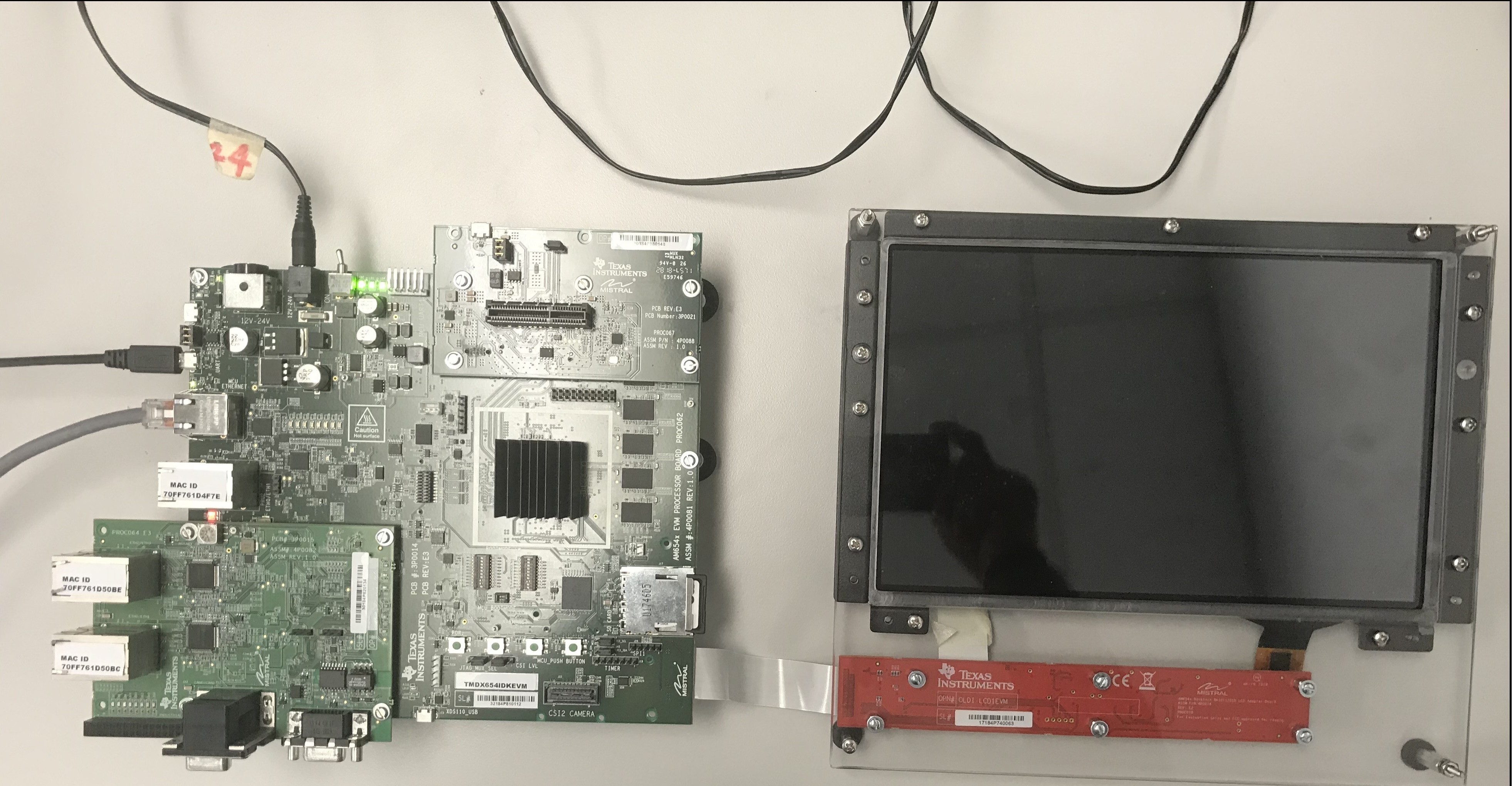

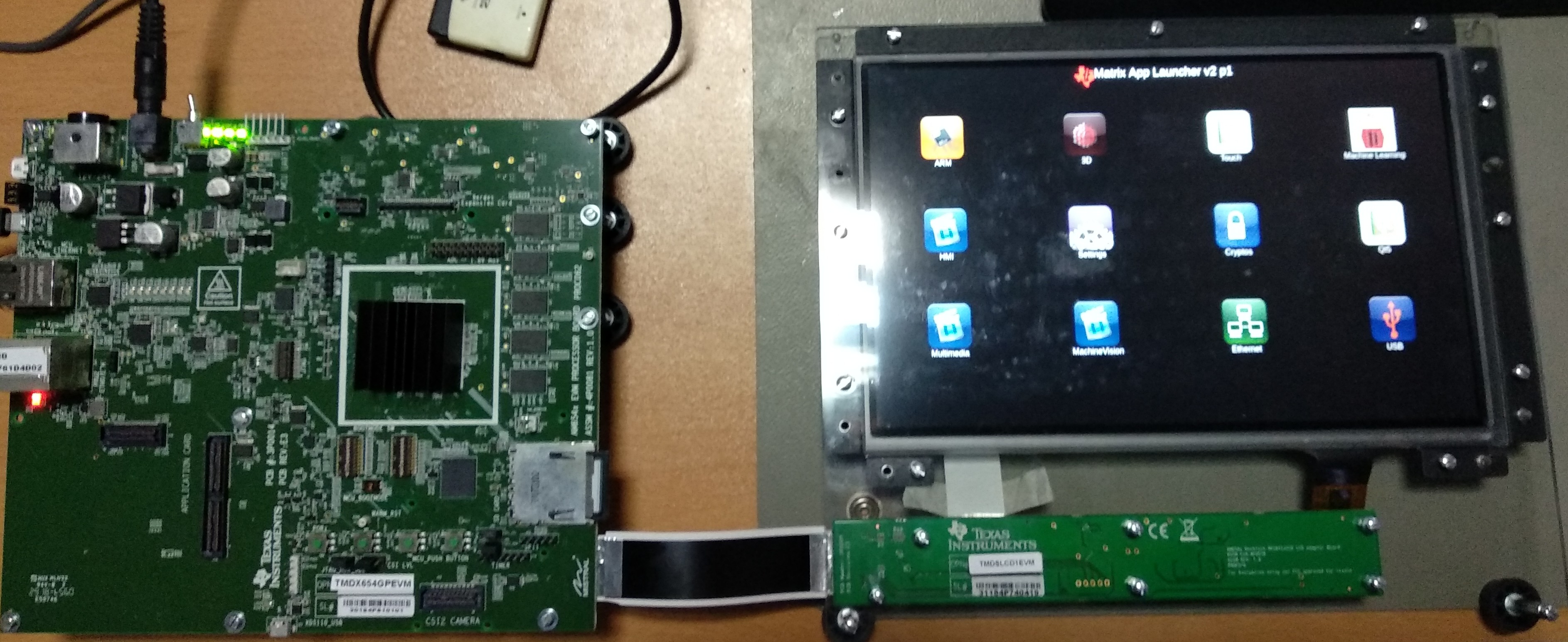

With Processor SDK img file, I can see the system is boot up from console, but no output on display. attach the boot log, and board picture.

the board version is: REV 1.0

Fullscreen am654x_sdk5_02.txt Download

U-Boot SPL 2018.01-ge1183b1ef6 (Jun 29 2018 - 23:53:55)
SYSFW: ABI: 2.4 (firmware rev 0x0012 '18.5.1-v2018.05a (Curious Crow)')
Trying to boot from MMC2
reading tispl.bin
reading tispl.bin
reading tispl.bin
reading tispl.bin
reading tispl.bin
reading tispl.bin
Starting ATF on ARM64 core...

NOTICE:  BL31: v1.5(release):ti2018.02-rc1
NOTICE:  BL31: Built : 14:02:44, Jun 29 2018
I/TC:
I/TC:  OP-TEE version: 3.1.0-143-g940a243-dev #1 Fri Jun 29 14:12:59 UTC 2018 aarch64
I/TC:  Initialized

U-Boot SPL 2018.01-ge1183b1ef6 (Jun 29 2018 - 23:53:36)
Trying to boot from MMC2
reading u-boot.img
reading u-boot.img
reading u-boot.img
reading u-boot.img


U-Boot 2018.01-ge1183b1ef6 (Jun 29 2018 - 23:53:36 +0000)

Model: Texas Instruments AM654 Base Board
I2C:   Error, wrong i2c adapter 0 max 0 possible
Error, wrong i2c adapter 0 max 0 possible
ready
DRAM:  2 GiB
MMC:   sdhci@0: 0, sdhci@0: 1
*** Warning - bad CRC, using default environment

Error, wrong i2c adapter 0 max 0 possible
Error, wrong i2c adapter 0 max 0 possible
In:    serial@2800000
Out:   serial@2800000
Err:   serial@2800000
Net:
Warning: cpsw_nuss@046000000 using MAC address from ROM
eth0: cpsw_nuss@046000000
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc1 is current device
SD/MMC found on device 1
** Unable to read file boot.scr **
** Unable to read file uEnv.txt **
11958280 bytes read in 1468 ms (7.8 MiB/s)
46438 bytes read in 114 ms (397.5 KiB/s)
## Flattened Device Tree blob at 82000000
   Booting using the fdt blob at 0x82000000
   reserving fdt memory region: addr=82000000 size=10c000
   Loading Device Tree to 00000000fde0a000, end 00000000fdf18fff ... OK

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 4.14.52-ge33929df94 (oe-user@oe-host) (gcc version 7.2.1 20171011 (Linaro GCC 7.2-2017.11)) #1 SMP PREEMPT Fri Jun 29 19:31:56 UTC 2018
[    0.000000] Boot CPU: AArch64 Processor [410fd034]
[    0.000000] Machine model: Texas Instruments AM654 Base Board
[    0.000000] earlycon: ns16550a0 at MMIO32 0x0000000002800000 (options '')
[    0.000000] bootconsole [ns16550a0] enabled
[    0.000000] cma: Reserved 512 MiB at 0x00000000c0000000
[    0.000000] NUMA: No NUMA configuration found
[    0.000000] NUMA: Faking a node at [mem 0x0000000000000000-0x00000000ffffffff]
[    0.000000] NUMA: NODE_DATA [mem 0xffffdf00-0xfffffcff]
[    0.000000] Zone ranges:
[    0.000000]   DMA      [mem 0x0000000080000000-0x00000000ffffffff]
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000080000000-0x000000009e7fffff]
[    0.000000]   node   0: [mem 0x00000000a0000000-0x00000000ffffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000080000000-0x00000000ffffffff]
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.1 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: Trusted OS migration not required
[    0.000000] psci: SMC Calling Convention v1.1
[    0.000000] percpu: Embedded 2 pages/cpu @ffff80007fec0000 s42264 r8192 d80616 u131072
[    0.000000] Detected VIPT I-cache on CPU0
[    0.000000] CPU features: enabling workaround for ARM erratum 845719
[    0.000000] Built 1 zonelists, mobility grouping off.  Total pages: 32352
[    0.000000] Policy zone: DMA
[    0.000000] Kernel command line: console=ttyS2,115200n8 earlycon=ns16550a,mmio32,0x02800000 root=PARTUUID=000046cb-02 rw rootfstype=ext4 rootwait
[    0.000000] PID hash table entries: 4096 (order: -1, 32768 bytes)
[    0.000000] Memory: 1531008K/2072576K available (7550K kernel code, 734K rwdata, 2880K rodata, 448K init, 739K bss, 17280K reserved, 524288K cma-reserved)
[    0.000000] Virtual kernel memory layout:
[    0.000000]     modules : 0xffff000000000000 - 0xffff000008000000   (   128 MB)
[    0.000000]     vmalloc : 0xffff000008000000 - 0xffff7bdfffff0000   (126847 GB)
[    0.000000]       .text : 0xffff000008080000 - 0xffff0000087e0000   (  7552 KB)
[    0.000000]     .rodata : 0xffff0000087e0000 - 0xffff000008ac0000   (  2944 KB)
[    0.000000]       .init : 0xffff000008ac0000 - 0xffff000008b30000   (   448 KB)
[    0.000000]       .data : 0xffff000008b30000 - 0xffff000008be7808   (   735 KB)
[    0.000000]        .bss : 0xffff000008be7808 - 0xffff000008ca05e0   (   740 KB)
[    0.000000]     fixed   : 0xffff7fdffe7b0000 - 0xffff7fdffec00000   (  4416 KB)
[    0.000000]     PCI I/O : 0xffff7fdffee00000 - 0xffff7fdfffe00000   (    16 MB)
[    0.000000]     vmemmap : 0xffff7fe000000000 - 0xffff800000000000   (   128 GB maximum)
[    0.000000]               0xffff7fe000000000 - 0xffff7fe000200000   (     2 MB actual)
[    0.000000]     memory  : 0xffff800000000000 - 0xffff800080000000   (  2048 MB)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000]  RCU restricting CPUs from NR_CPUS=64 to nr_cpu_ids=4.
[    0.000000]  Tasks RCU enabled.
[    0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[    0.000000] GICv3: no VLPI support, no direct LPI support
[    0.000000] ITS [mem 0x01820000-0x0182ffff]
[    0.000000] GIC: enabling workaround for ITS: Socionext Synquacer pre-ITS
[    0.000000] ITS@0x0000000001820000: allocated 1048576 Devices @a0800000 (flat, esz 8, psz 64K, shr 0)
[    0.000000] ITS: using cache flushing for cmd queue
[    0.000000] GIC: using LPI property table @0x00000000a00c0000
[    0.000000] ITS: Allocated 1792 chunks for LPIs
[    0.000000] GICv3: CPU0: found redistributor 0 region 0:0x0000000001880000
[    0.000000] CPU0: using LPI pending table @0x00000000a00d0000
[    0.000000] GIC: using cache flushing for LPI property table
[    0.000000] arch_timer: cp15 timer(s) running at 200.00MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2e2049d3e8, max_idle_ns: 440795210634 ns
[    0.000005] sched_clock: 56 bits at 200MHz, resolution 5ns, wraps every 4398046511102ns
[    0.008591] Console: colour dummy device 80x25
[    0.013275] Calibrating delay loop (skipped), value calculated using timer frequency.. 400.00 BogoMIPS (lpj=800000)
[    0.023966] pid_max: default: 32768 minimum: 301
[    0.028812] Security Framework initialized
[    0.033674] Dentry cache hash table entries: 262144 (order: 5, 2097152 bytes)
[    0.041358] Inode-cache hash table entries: 131072 (order: 4, 1048576 bytes)
[    0.048671] Mount-cache hash table entries: 8192 (order: 0, 65536 bytes)
[    0.055557] Mountpoint-cache hash table entries: 8192 (order: 0, 65536 bytes)
[    0.078973] ASID allocator initialised with 32768 entries
[    0.084594] Hierarchical SRCU implementation.
[    0.097157] PCI/MSI: /soc0/interrupt-controller@1800000/gic-its@1000000 domain created
[    0.105507] Platform MSI: /soc0/interrupt-controller@1800000/gic-its@1000000 domain created
[    0.122089] smp: Bringing up secondary CPUs ...
[    0.155203] Detected VIPT I-cache on CPU1
[    0.155240] GICv3: CPU1: found redistributor 1 region 0:0x00000000018a0000
[    0.155292] CPU1: using LPI pending table @0x00000000a06d0000
[    0.155337] CPU1: Booted secondary processor [410fd034]
[    0.216446] Detected VIPT I-cache on CPU2
[    0.216484] GICv3: CPU2: found redistributor 100 region 0:0x00000000018c0000
[    0.216539] CPU2: using LPI pending table @0x00000000a0730000
[    0.216586] CPU2: Booted secondary processor [410fd034]
[    0.244842] Detected VIPT I-cache on CPU3
[    0.244865] GICv3: CPU3: found redistributor 101 region 0:0x00000000018e0000
[    0.244915] CPU3: using LPI pending table @0x00000000a0790000
[    0.244942] CPU3: Booted secondary processor [410fd034]
[    0.245071] smp: Brought up 1 node, 4 CPUs
[    0.316738] SMP: Total of 4 processors activated.
[    0.321556] CPU features: detected feature: GIC system register CPU interface
[    0.328859] CPU features: detected feature: 32-bit EL0 Support
[    0.334830] CPU features: detected feature: Kernel page table isolation (KPTI)
[    0.366535] CPU: All CPU(s) started at EL2
[    0.370752] alternatives: patching kernel code
[    0.376765] devtmpfs: initialized
[    0.387644] random: get_random_u32 called from bucket_table_alloc+0x108/0x258 with crng_init=0
[    0.397206] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.407216] futex hash table entries: 1024 (order: 1, 131072 bytes)
[    0.415066] pinctrl core: initialized pinctrl subsystem
[    0.421104] NET: Registered protocol family 16
[    0.427516] vdso: 2 pages (1 code @ ffff0000087f0000, 1 data @ ffff000008b60000)
[    0.435185] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    0.448324] DMA: preallocated 256 KiB pool for atomic allocations
[    0.458291] davinci_gpio 600000.main_gpio0: IRQ not populated, err = -517
[    0.465488] davinci_gpio 601000.main_gpio1: IRQ not populated, err = -517
[    0.472616] davinci_gpio 42110000.: IRQ not populated, err = -517
[    0.488845] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages
[    0.495723] HugeTLB registered 512 MiB page size, pre-allocated 0 pages
[    0.504686] omap_i2c 42120000.i2c: could not find pctldev for node /soc0/pinmux@4301c000/wkup_i2c0_pins_default, deferring probe
[    0.516581] omap_i2c 2000000.i2c: could not find pctldev for node /soc0/pinmux@11c2e8/main_i2c0_pins_default, deferring probe
[    0.528186] omap_i2c 2010000.i2c: could not find pctldev for node /soc0/pinmux@11c2e8/main_i2c1_pins_default, deferring probe
[    0.539782] omap_i2c 2020000.i2c: could not find pctldev for node /soc0/pinmux@11c000/main_i2c2_pins_default, deferring probe
[    0.551454] media: Linux media interface: v0.10
[    0.556122] Linux video capture interface: v2.00
[    0.560898] EDAC MC: Ver: 3.0.0
[    0.564884] Advanced Linux Sound Architecture Driver Initialized.
[    0.571831] clocksource: Switched to clocksource arch_sys_counter
[    0.578249] VFS: Disk quotas dquot_6.6.0
[    0.582377] VFS: Dquot-cache hash table entries: 8192 (order 0, 65536 bytes)
[    0.596205] NET: Registered protocol family 2
[    0.601207] TCP established hash table entries: 16384 (order: 1, 131072 bytes)
[    0.608775] TCP bind hash table entries: 16384 (order: 2, 262144 bytes)
[    0.615884] TCP: Hash tables configured (established 16384 bind 16384)
[    0.622703] UDP hash table entries: 2048 (order: 0, 65536 bytes)
[    0.628982] UDP-Lite hash table entries: 2048 (order: 0, 65536 bytes)
[    0.635891] NET: Registered protocol family 1
[    0.640767] RPC: Registered named UNIX socket transport module.
[    0.646842] RPC: Registered udp transport module.
[    0.651658] RPC: Registered tcp transport module.
[    0.656474] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.664303] hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available
[    0.672602] kvm [1]: 8-bit VMID
[    0.676107] kvm [1]: GICv3: no GICV resource entry
[    0.681026] kvm [1]: disabling GICv2 emulation
[    0.685611] kvm [1]: GIC system register CPU interface enabled
[    0.691714] kvm [1]: vgic interrupt IRQ1
[    0.695885] kvm [1]: Hyp mode initialized successfully
[    0.705235] workingset: timestamp_bits=44 max_order=15 bucket_order=0
[    0.719409] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.726221] NFS: Registering the id_resolver key type
[    0.731438] Key type id_resolver registered
[    0.735726] Key type id_legacy registered
[    0.739845] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    0.746919] 9p: Installing v9fs 9p2000 file system support
[    0.755955] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 249)
[    0.763538] io scheduler noop registered
[    0.767762] io scheduler cfq registered (default)
[    0.772592] io scheduler mq-deadline registered
[    0.777239] io scheduler kyber registered
[    0.782991] pinctrl-single 11c000.pinmux: 185 pins at pa ffff000009eac000 size 740
[    0.790900] pinctrl-single 11c2e8.pinmux: 9 pins at pa ffff000009ecc2e8 size 36
[    0.798615] pinctrl-single 4301c000.pinmux: 70 pins at pa ffff000009eec000 size 280
[    0.810123] k3-navss-psilcfg soc0:navss256:psilcfg@31f78000: Failed to get tisc -517
[    0.818114] k3-navss-psilcfg soc0:navss-mcu:psilcfg@0x2a268000: Failed to get tisc -517
[    0.829432] Serial: 8250/16550 driver, 10 ports, IRQ sharing enabled
[    0.838859] console [ttyS2] disabled
[    0.842597] 2800000.serial: ttyS2 at MMIO 0x2800000 (irq = 10, base_baud = 3000000) is a 8250
[    0.851423] console [ttyS2] enabled
[    0.851423] console [ttyS2] enabled
[    0.858474] bootconsole [ns16550a0] disabled
[    0.858474] bootconsole [ns16550a0] disabled
[    0.878130] loop: module loaded
[    0.882748] libphy: Fixed MDIO Bus: probed
[    0.887443] tun: Universal TUN/TAP device driver, 1.6
[    0.892700] igbvf: Intel(R) Gigabit Virtual Function Network Driver - version 2.4.0-k
[    0.900528] igbvf: Copyright (c) 2009 - 2012 Intel Corporation.
[    0.906496] sky2: driver version 1.30
[    0.911071] VFIO - User Level meta-driver version: 0.3
[    0.916910] i2c /dev entries driver
[    0.921023] sdhci: Secure Digital Host Controller Interface driver
[    0.927206] sdhci: Copyright(c) Pierre Ossman
[    0.931582] sdhci-pltfm: SDHCI platform and OF driver helper
[    0.938271] ledtrig-cpu: registered to indicate activity on CPUs
[    0.944369] ti-sci soc0:dmsc: invalid resource
[    0.949509] optee: probing for conduit method from DT.
I/TC:  Dynamic shared memory is disabled
[    0.958704] optee: initialized driver
[    0.963420] NET: Registered protocol family 17
[    0.967980] 9pnet: Installing 9P2000 support
[    0.972321] Key type dns_resolver registered
[    0.977192] registered taskstats version 1
[    0.981544] davinci_gpio 600000.main_gpio0: IRQ not populated, err = -517
[    0.988685] davinci_gpio 601000.main_gpio1: IRQ not populated, err = -517
[    0.995681] davinci_gpio 42110000.: IRQ not populated, err = -517
[    1.004201] k3-navss-psilcfg soc0:navss256:psilcfg@31f78000: Failed to get tisc -517
[    1.012103] k3-navss-psilcfg soc0:navss-mcu:psilcfg@0x2a268000: Failed to get tisc -517
[    1.021301] ti-sci soc0:dmsc: invalid resource
[    1.025939] ti-sci soc0:dmsc: ABI: 2.4 (firmware rev 0x0012 '18.5.1-v2018.05a (Curious Crow)')
[    1.058015] random: fast init done
[    1.714394] omap_i2c 42120000.i2c: bus 0 rev0.12 at 400 kHz
[    1.746762] omap_i2c 2000000.i2c: bus 2 rev0.12 at 400 kHz
[    1.752902] omap_i2c 2010000.i2c: bus 3 rev0.12 at 400 kHz
[    1.759016] omap_i2c 2020000.i2c: bus 4 rev0.12 at 400 kHz
[    1.768695] omap-mailbox 31f80000.mailbox: omap mailbox rev 0x66fc5900
[    1.779356] omap-mailbox 31f81000.mailbox: omap mailbox rev 0x66fc5900
[    1.787114] k3-navss-ringacc 3c000000.ringacc: Ring Accelerator probed rings:818, gp-rings[302,466] sci-dev-id:187
[    1.797484] k3-navss-ringacc 3c000000.ringacc: dma-ring-reset-quirk: enabled
[    1.804530] k3-navss-ringacc 3c000000.ringacc: RA Proxy rev. 66344100, num_proxies:64
[    1.812554] k3-navss-ringacc 2b800000.ringacc: Ring Accelerator probed rings:286, gp-rings[96,255] sci-dev-id:195
[    1.822811] k3-navss-ringacc 2b800000.ringacc: dma-ring-reset-quirk: enabled
[    1.829857] k3-navss-ringacc 2b800000.ringacc: RA Proxy rev. 66344100, num_proxies:64
[    1.837788] k3-navss-psilcfg soc0:navss256:psilcfg@31f78000: NAVSS PSI-L manager
[    1.845279] k3-navss-psilcfg soc0:navss-mcu:psilcfg@0x2a268000: NAVSS PSI-L manager
[    1.853683] cadence-qspi 47040000.ospi: mt35xu512 (65536 Kbytes)
[    1.860595] cadence-qspi 47040000.ospi: No Rx DMA available
[    1.866603] am65-cpsw-nuss 46000000.cpsw_nuss: rx-flow-id-base is not set -22
[    1.873845] am65-cpsw-nuss 46000000.cpsw_nuss: initializing am65 cpsw nuss version 0x6BA07100, cpsw version 0x6BA80100 Ports: 2
[    1.885538] UDMA has not been proped
[    1.889130] am65-cpsw-nuss 46000000.cpsw_nuss: Failed to request tx dma channel -517
[    1.896879] am65-cpsw-nuss 46000000.cpsw_nuss: am65_cpsw_nuss_probe error -517
[    1.905614] mmc0: Unknown controller version (4). You may experience problems.
[    1.951842] mmc0: SDHCI controller on 4f80000.sdhci [4f80000.sdhci] using ADMA 64-bit
[    1.964370] mmc1: Unknown controller version (4). You may experience problems.
[    2.011841] mmc1: SDHCI controller on 4fa0000.sdhci [4fa0000.sdhci] using ADMA 64-bit
[    2.020036] ti-udma 31150000.udmap: Number of channels: 270 (tchan: 120, echan: 32, rchan: 150)
[    2.028774] ti-udma 31150000.udmap: Number of rflows: 300
[    2.034814] ti-udma 31150000.udmap: NAVSS UDMA-P
[    2.041481] mmc0: new HS200 MMC card at address 0001
[    2.046982] mmcblk0: mmc0:0001 R1J56L 14.7 GiB
[    2.063910] mmcblk0boot0: mmc0:0001 R1J56L partition 1 8.00 MiB
[    2.070163] mmcblk0boot1: mmc0:0001 R1J56L partition 2 8.00 MiB
[    2.076940] ti-udma 285c0000.udmap: Number of channels: 96 (tchan: 48, echan: 0, rchan: 48)
[    2.085318] mmcblk0rpmb: mmc0:0001 R1J56L partition 3 4.00 MiB
[    2.091866] ti-udma 285c0000.udmap: Number of rflows: 96
[    2.098791] ti-udma 285c0000.udmap: NAVSS UDMA-P
[    2.109278] am65-cpsw-nuss 46000000.cpsw_nuss: rx-flow-id-base is not set -22
[    2.116594] am65-cpsw-nuss 46000000.cpsw_nuss: initializing am65 cpsw nuss version 0x6BA07100, cpsw version 0x6BA80100 Ports: 2
[    2.168388] mmc1: new SDHC card at address aaaa
[    2.173405] mmcblk1: mmc1:aaaa SA08G 7.40 GiB
[    2.185350]  mmcblk1: p1 p2
[    2.264929] am65-cpsw-nuss 46000000.cpsw_nuss: set new flow-id-base 48
[    2.358307] am65-cpsw-nuss 46000000.cpsw_nuss: initialized cpsw ale version 0.4
[    2.365645] am65-cpsw-nuss 46000000.cpsw_nuss: ALE Table size 64
[    2.411845] am65-cpsw-nuss 46000000.cpsw_nuss: davinci mdio revision 9.7, bus freq 1000000
[    2.420108] libphy: 46000000.cpsw_nuss: probed
[    2.427223] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[    2.434275] hctosys: unable to open rtc device (rtc0)
[    2.532108] ALSA device list:
[    2.535076]   No soundcards found.
[    3.076634] EXT4-fs (mmcblk1p2): 1 orphan inode deleted
[    3.081914] EXT4-fs (mmcblk1p2): recovery complete
[    3.100708] EXT4-fs (mmcblk1p2): mounted filesystem with ordered data mode. Opts: (null)
[    3.108872] VFS: Mounted root (ext4 filesystem) on device 179:130.
[    3.119583] devtmpfs: mounted
[    3.122783] Freeing unused kernel memory: 448K
[    3.626500] systemd[1]: System time before build time, advancing clock.
[    3.779650] NET: Registered protocol family 10
[    3.785277] Segment Routing with IPv6
[    3.839224] systemd[1]: systemd 234 running in system mode. (+PAM -AUDIT -SELINUX +IMA -APPARMOR +SMACK +SYSVINIT +UTMP -LIBCRYPTSETUP -GCRYPT -GNUTLS +ACL +XZ -LZ4 -SECCOMP +BLKID -ELFUTILS +KMOD -IDN2 -IDN default-hierarchy=hybrid)
[    3.860426] systemd[1]: Detected architecture arm64.

Welcome to Arago 2018.06!

[    3.881484] systemd[1]: Set hostname to <am65xx-evm>.
[    4.351504] random: systemd: uninitialized urandom read (16 bytes read)
[    4.358240] systemd[1]: Reached target Swap.
[  OK  ] Reached target Swap.
[    4.371978] random: systemd: uninitialized urandom read (16 bytes read)
[    4.380336] systemd[1]: Created slice User and Session Slice.
[  OK  ] Created slice User and Session Slice.
[    4.396042] random: systemd: uninitialized urandom read (16 bytes read)
[    4.403426] systemd[1]: Created slice System Slice.
[  OK  ] Created slice System Slice.
[    4.423782] systemd[1]: Mounting POSIX Message Queue File System...
         Mounting POSIX Message Queue File System...
[    4.445468] systemd[1]: Created slice system-getty.slice.
[  OK  ] Created slice system-getty.slice.
[    4.464323] systemd[1]: Listening on Journal Socket.
[  OK  ] Listening on Journal Socket.
[    4.484243] systemd[1]: Starting Remount Root and Kernel File Systems...
         Starting Remount Root and Kernel File Systems...
[    4.511566] EXT4-fs (mmcblk1p2): re-mounted. Opts: (null)
[  OK  ] Created slice system-serial\x2dgetty.slice.
         Starting Load Kernel Modules...
[  OK  ] Listening on udev Control Socket.
[  OK  ] Started Dispatch Password Requests to Console[    4.574712] cryptodev: loading out-of-tree module taints kernel.
 Directory Watch.
[    4.586150] cryptodev: driver 1.9 loaded.
[  OK  ] Listening on Network Service Netlink Socket.
         Mounting Temporary Directory (/tmp)...
[  OK  ] Listening on Process Core Dump Socket.
[  OK  ] Listening on udev Kernel Socket.
         Starting Create list of required stce nodes for the current kernel...
         Mounting Huge Pages File System...
[  OK  ] Listening on Journal Socket (/dev/log).
         Starting Journal Service...
[  OK  ] Listening on /dev/initctl Compatibility Named Pipe.
         Mounting Kernel Debug File System...
[  OK  ] Reached target Slices.
[  OK  ] Started Forward Password Requests to Wall Directory Watch.
[  OK  ] Reached target Paths.
[  OK  ] Reached target Remote File Systems.
[  OK  ] Mounted Kernel Debug File System.
[  OK  ] Mounted POSIX Message Queue File System.
[  OK  ] Mounted Huge Pages File System.
[  OK  ] Mounted Temporary Directory (/tmp).
[  OK  ] Started Journal Service.
[  OK  ] Started Remount Root and Kernel File Systems.
[  OK  ] Started Load Kernel Modules.
[  OK  ] Started Create list of required stavice nodes for the current kernel.
         Starting Apply Kernel Variables...
         Mounting Kernel Configuration File System...
         Starting Create System Users...
         Starting Rebuild Hardware Database...
         Starting Flush Journal to Persistent Storage...
[  OK  ] Mounted Kernel Configuration File System.
[  OK  ] Started Apply Kernel Variables.
[  OK  ] Started Create System Users.
         Starting Create Static Device Nodes in /dev...
[    5.125608] systemd-journald[140]: Received request to flush runtime journal from PID 1
[  OK  ] Started Flush Journal to Persistent Storage.
[  OK  ] Started Create Static Device Nodes in /dev.
         Starting udev Kernel Device Manager...
[  OK  ] Reached target Local File Systems (Pre).
         Mounting /media/ram...
         Mounting /var/volatile...
[  OK  ] Mounted /var/volatile.
[  OK  ] Mounted /media/ram.
         Starting Load/Save Random Seed...
[  OK  ] Reached target Local File Systems.
         Starting Create Volatile Files and Directories...
         Starting Rebuild Dynamic Linker Cache...
         Starting Rebuild Journal Catalog...
[  OK  ] Started udev Kernel Device Manager.
[  OK  ] Started Load/Save Random Seed.
[  OK  ] Started Create Volatile Files and Directories.
[FAILED] Failed to start Rebuild Dynamic Linker Cache.
See 'systemctl status ldconfig.service' for details.
[  OK  ] Started Rebuild Journal Catalog.
         Starting Network Time Synchronization...
         Starting Update UTMP about System Boot/Shutdown...
[  OK  ] Started Update UTMP about System Boot/Shutdown.
[  OK  ] Started Network Time Synchronization.
[  OK  ] Reached target System Time Synchronized.
[  OK  ] Started Rebuild Hardware Database.
         Starting Update is Completed...
         Starting udev Coldplug all Devices...
[  OK  ] Started Update is Completed.
[  OK  ] Started udev Coldplug all Devices.
[  OK  ] Reached target System Initialization.
[  OK  ] Started Daily Cleanup of Temporary Directories.
[  OK  ] Listening on D-Bus System Message Bus Socket.
[  OK  ] Started Daily rotation of log files.
[  OK  ] Reached target Timers.
[  OK  ] Listening on RPCbind Server Activation Socket.
         Starting Network Service...
[  OK  ] Listening on dropbear.socket.
[  OK  ] Reached target Sockets.
[  OK  ] Reached target Basic System.
[    7.663746] pruss b000000.icssg: creating PRU cores and other child platform devices
[    7.679010] remoteproc remoteproc0: b034000.pru is available
[    7.690284] pru-rproc b034000.pru: PRU rproc node /soc0/pruss_soc_bus@b026004/icssg@0/pru@34000 probed successfully
         Starting Print notice about GPLv3 packages...
[    7.704102] remoteproc remoteproc1: b004000.rtu is available
[    7.716412] pru-rproc b004000.rtu: PRU rproc node /soc0/pruss_soc_bus@b026004/icssg@0/rtu@4000 probed successfully
[    7.729728] remoteproc remoteproc2: b038000.pru is available
[    7.735597] pru-rproc b038000.pru: PRU rproc node /soc0/pruss_soc_bus@b026004/icssg@0/pru@38000 probed successfully
[    7.737285] remoteproc remoteproc3: b006000.rtu is available
[    7.737351] pru-rproc b006000.rtu: PRU rproc node /soc0/pruss_soc_bus@b026004/icssg@0/rtu@6000 probed successfully
[    7.740930] at24 0-0050: 131072 byte 24c1024 EEPROM, writable, 1 bytes/write
[    7.744389] pruss b100000.icssg: creating PRU cores and other child platform devices
[    7.750510] remoteproc remoteproc4: b134000.pru is available
[    7.750580] pru-rproc b134000.pru: PRU rproc node /soc0/pruss_soc_bus@b126004/icssg@0/pru@34000 probed successfully
[    7.752791] remoteproc remoteproc5: b104000.rtu is available
[    7.752852] pru-rproc b104000.rtu: PRU rproc node /soc0/pruss_soc_bus@b126004/icssg@0/rtu@4000 probed successfully
[    7.756214] remoteproc remoteproc6: b138000.pru is available
[    7.756292] pru-rproc b138000.pru: PRU rproc node /soc0/pruss_soc_bus@b126004/icssg@0/pru@38000 probed successfully
[    7.758535] remoteproc remoteproc7: b106000.rtu is available
[    7.758600] pru-rproc b106000.rtu: PRU rproc node /soc0/pruss_soc_bus@b126004/icssg@0/rtu@6000 probed successfully
[    7.769275] pruss b200000.icssg: creating PRU cores and other child platform devices
[    7.778294] remoteproc remoteproc8: b234000.pru is available
[    7.778379] pru-rproc b234000.pru: PRU rproc node /soc0/pruss_soc_bus@b226004/icssg@0/pru@34000 probed successfully
[    7.780427] remoteproc remoteproc9: b204000.rtu is available
[    7.780483] pru-rproc b204000.rtu: PRU rproc node /soc0/pruss_soc_bus@b226004/icssg@0/rtu@4000 probed successfully
[    7.781938] remoteproc remoteproc10: b238000.pru is available
[    7.781995] pru-rproc b238000.pru: PRU rproc node /soc0/pruss_soc_bus@b226004/icssg@0/pru@38000 probed successfully
[    7.784641] remoteproc remoteproc11: b206000.rtu is available
[    7.784704] pru-rproc b206000.rtu: PRU rproc node /soc0/pruss_soc_bus@b226004/icssg@0/rtu@6000 probed successfully
[    7.828491] davinci_mdio b232400.mdio: davinci mdio revision 1.7, bus freq 1000000
[    7.828502] libphy: b232400.mdio: probed
[    7.846571] davinci_mdio b232400.mdio: phy[0]: device b232400.mdio:00, driver TI DP83867
[    7.846580] davinci_mdio b232400.mdio: phy[3]: device b232400.mdio:03, driver TI DP83867
[    7.847986] icssg-prueth pruss2_eth: port 1: using random MAC addr: 2a:dc:8f:25:bc:c0
[    7.857666] icssg-prueth pruss2_eth: port 2: using random MAC addr: 2a:da:32:50:e9:d7
[    7.859174] icssg-prueth pruss2_eth: TI PRU ethernet driver initialized: dual EMAC mode
         Starting System Logger Daemon...
[  OK  ] Started Periodic Command Scheduler.
         Starting Login Service...
         Starting telnetd.service...
         Starting Ethernet Bridge Filtering Tables...
[  OK  ] Started Hardware RNG Entropy Gatherer Daemon.
[  OK  ] Started Job spooling tools.
[  OK  ] Started D-Bus System Message Bus.
[    8.348272] random: crng init done
[    8.351693] random: 7 urandom warning(s) missed due to ratelimiting
         Starting RPC Bind Service...
[  OK  ] Reached target Containers.
[  OK  ] Started strongSwan IPsec IKEv1/IKEv2 daemon using ipsec.conf.
[  OK  ] Started telnetd.service.
[  OK  ] Started Ethernet Bridge Filtering Tables.
[  OK  ] Started Network Service.
[  OK  ] Found device /dev/ttyS2.
[    8.974830] remoteproc remoteproc10: powering up b238000.pru
[    9.008109] remoteproc remoteproc10: Booting fw image ti-pruss/am65x-pru1-prueth-fw.elf, size 5616
[    9.017553] remoteproc remoteproc10: remote processor b238000.pru is now up
[    9.024781] remoteproc remoteproc11: powering up b206000.rtu
[  OK  ] Reached target Network.
[  OK  ] Started Vsftpd ftp daemon.
[    9.095989] remoteproc remoteproc11: Booting fw image ti-pruss/am65x-rtu1-prueth-fw.elf, size 5520
[    9.105177] remoteproc remoteproc11: remote processor b206000.rtu is now up
[    9.107225] icssg-prueth pruss2_eth: setting rx flow id 150
[    9.108502] net eth2: started
[    9.108730] IPv6: ADDRCONF(NETDEV_UP): eth2: link is not ready
         Starting Berkeley Internet Name Domain (DNS)...
         Starting Permit User Sessions...
         Starting Lightning Fast Webserver With Light System Requirements...
         Starting Network Name Resolution...
         Starting bind.service...
         Starting syslog.service...
         Starting thttpd.service...
[    9.179947] remoteproc remoteproc8: powering up b234000.pru
[  OK  ] Started RPC Bind Service.
[  OK  ] Started System Logger Daemon.
[  OK  ] Started Login Service.
[    9.204506] remoteproc remoteproc8: Booting fw image ti-pruss/am65x-pru0-prueth-fw.elf, size 5676
[    9.214948] remoteproc remoteproc8: remote processor b234000.pru is now up
[    9.221928] remoteproc remoteproc9: powering up b204000.rtu
[    9.236312] remoteproc remoteproc9: Booting fw image ti-pruss/am65x-rtu0-prueth-fw.elf, size 5524
[    9.245340] remoteproc remoteproc9: remote processor b204000.rtu is now up
[    9.247371] icssg-prueth pruss2_eth: setting rx flow id 151
[    9.248387] net eth1: started
[    9.248611] IPv6: ADDRCONF(NETDEV_UP): eth1: link is not ready
[    9.253888] am65-cpsw-nuss 46000000.cpsw_nuss: Phy mode driver DT not found
[    9.262607] TI DP83867 k3-cpsw-mdio:00: attached PHY driver [TI DP83867] (mii_bus:phy_addr=k3-cpsw-mdio:00, irq=POLL)
[    9.264108] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[  OK  ] Started thttpd.service.
[  OK  ] Started Lightning Fast Webserver With Light System Requirements.
[  OK  ] Started syslog.service.
[    9.414187] FAT-fs (mmcblk1p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
[  OK  ] Started Permit User Sessions.
[  OK  ] Started Serial Getty on ttyS2.
[  OK  ] Started Getty on tty1.
[  OK  ] Reached target Login Prompts.
         Starting Synchronize System and HW clocks...
[FAILED] Failed to start Synchronize System and HW clocks.
See 'systemctl status sync-clocks.service' for details.
[  OK  ] Started Network Name Resolution.
[    9.719252] NET: Registered protocol family 15
[    9.840358] Initializing XFRM netlink socket
[  OK  ] Started bind.service.
         Starting rng-tools.service...
[  OK  ] Started Berkeley Internet Name Domain (DNS).
[  OK  ] Reached target Host and Network Name Lookups.
[  OK  ] Started NFS status monitor for NFSv2/3 locking..
[  OK  ] Started rng-tools.service.
         Starting matrix-gui-2.0.service...
[  OK  ] Started matrix-gui-2.0.service.
         Starting thermal-zone-init.service...
[  OK  ] Started thermal-zone-init.service.
[   10.285242] am65-cpsw-nuss 46000000.cpsw_nuss eth0: Link is Down
***************************************************************
***************************************************************
NOTICE: This file system contains the following GPLv3 packages:
        autoconf
        bash
        binutils
        cifs-utils
        cpio
        cpp-symlinks
        cpp
        dosfstools
        elfutils
        g++-symlinks
        g++
        gawk
        gcc-symlinks
        gcc
        gdb
        gdbserver
        gettext
        gzip
        libdw1
        libelf1
        libgdbm-compat4
        libgdbm4
        libgettextlib
        libgettextsrc
        libgmp10
        libmpc3
        libmpfr4
        libreadline7
        m4
        make
        which

If you do not wish to distribute GPLv3 components please remove
the above packages prior to distribution.  This can be done using
the opkg remove command.  i.e.:
    opkg remove <package>
Where <package> is the name printed in the list above

NOTE: If the package is a dependency of another package you
      will be notified of the dependent packages.  You should
      use the --force-removal-of-dependent-packages option to
      also remove the dependent packages as well
***************************************************************
***************************************************************
[  OK  ] Started Print notice about GPLv3 packages.
[  OK  ] Reached target Multi-User System.
         Starting Update UTMP about System Runlevel Changes...
[  OK  ] Started Update UTMP about System Runlevel Changes.

 _____                    _____           _         _
|  _  |___ ___ ___ ___   |  _  |___ ___  |_|___ ___| |_
|     |  _| .'| . | . |  |   __|  _| . | | | -_|  _|  _|
|__|__|_| |__,|_  |___|  |__|  |_| |___|_| |___|___|_|
              |___|                    |___|

Arago Project http://arago-project.org am65xx-evm ttyS2

Arago 2018.06 am65xx-evm ttyS2

am65xx-evm login: [   13.357370] am65-cpsw-nuss 46000000.cpsw_nuss eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[   13.366221] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready

 _____                    _____           _         _
|  _  |___ ___ ___ ___   |  _  |___ ___  |_|___ ___| |_
|     |  _| .'| . | . |  |   __|  _| . | | | -_|  _|  _|
|__|__|_| |__,|_  |___|  |__|  |_| |___|_| |___|___|_|
              |___|                    |___|

Arago Project http://arago-project.org am65xx-evm ttyS2

Arago 2018.06 am65xx-evm ttyS2

am65xx-evm login:
 _____                    _____           _         _
|  _  |___ ___ ___ ___   |  _  |___ ___  |_|___ ___| |_
|     |  _| .'| . | . |  |   __|  _| . | | | -_|  _|  _|
|__|__|_| |__,|_  |___|  |__|  |_| |___|_| |___|___|_|
              |___|                    |___|

Arago Project http://arago-project.org am65xx-evm ttyS2

Arago 2018.06 am65xx-evm ttyS2

am65xx-evm login: root
root@am65xx-evm:~# [   38.842213] usbcore: registered new interface driver usbfs
[   38.848470] usbcore: registered new interface driver hub
[   38.853971] usbcore: registered new device driver usb
[   38.885141] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[   38.890704] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[   38.900568] xhci-hcd xhci-hcd.0.auto: hcc params 0x0298fe6d hci version 0x110 quirks 0x00010010
[   38.909422] xhci-hcd xhci-hcd.0.auto: irq 281, io mem 0x04030000
[   38.916384] hub 1-0:1.0: USB hub found
[   38.920219] hub 1-0:1.0: 1 port detected
[   38.924726] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[   38.930269] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[   38.937971] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0  SuperSpeed
[   38.944748] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[   38.953647] hub 2-0:1.0: USB hub found
[   38.957465] hub 2-0:1.0: 1 port detected

root@am65xx-evm:~#

over 7 years ago

0 Yordan Kovachev over 7 years ago

TI__Guru**** 161600 points

Hi Tony,

The Processor SDK Linux for AM65x IDK is not configured to use the display. You can take a look at the dts files and you will see that the display is NOT enabled. You should port the LCD settings in the dts & rebuild the kernel.

Best Regards,
Yordan

0 Tony Tang over 7 years ago in reply to Yordan Kovachev

TI__Mastermind 30262 points

Does it distinguish GPEVM and IDK by ID in EEPROM?

0 Yordan Kovachev over 7 years ago in reply to Tony Tang

TI__Guru**** 161600 points

No, currently not, but when you create your sd card with the create-sdcard.sh you are prompted to choose between EVM & IDK.

Best Regards,
Yordan

0 Tony Tang over 7 years ago in reply to Yordan Kovachev

TI__Mastermind 30262 points

I use this file am65xx-evm-linux-05.02.00.10.img create SD card from Windows, from the name, should be EVM.

0 Yordan Kovachev over 7 years ago in reply to Tony Tang

TI__Guru**** 161600 points

Hi,

In Linux you have the following options:
Available boards:

1: am65x_evm
2: am65x_idk
3: unknown

The image is most likely done with option 3, so it doesn't have all the EVM features enabled.

Best Regards,
Yordan

0 Tony Tang over 7 years ago in reply to Yordan Kovachev

TI__Mastermind 30262 points

Yordan,

I use create-sdcard.sh make a new SD card with prebuild images(Install pre-build images from SDK,tisdk-docker-rootfs-image-am65xx-evm.tar.xz/tisdk-rootfs-image-am654x-evm.tar.xz), I did not see option to select EVM & IDK. the SD card can boot on the REV1.0 IDK board, but LCD still no displaying.

Please help confirm whether prebuild image contain LCD displaying?

0 Manisha Agrawal over 7 years ago in reply to Tony Tang

TI__Mastermind 22946 points

Hi Tony,

It seems that you have older revision of LCD board (E2) which doesn't have the board ID programmed. The later revision E3 LCD display have the EEPROM programmed.

To enable display on E2 board, you will need to set the boot args as below and then boot the board.

setenv name_overlays k3-am654-pcie-usb3.dtbo k3-am654-evm-csi2-ov490.dtbo k3-am654-evm-oldi-lcd1evm.dtbo

Regards,

Manisha

0 Tony Tang over 7 years ago in reply to Manisha Agrawal

TI__Mastermind 30262 points

Manisha,

Thanks, the LCD version is E2, the EVM is TMDX654IDKEVM REV1.0. also I have a REV:E2 AM654x EVM board on hand, but was told no support anymore.

I did setenv and saveenv, reboot, still can't light LCD. below are steps I did.

U-Boot 2018.01-g313dcd69c2 (Dec 16 2018 - 05:15:53 +0000)

=> pri
arch=arm
args_all=setenv optargs earlycon=ns16550a,mmio32,0x02800000 ${mtdparts}
args_mmc=run finduuid;setenv bootargs console=${console} ${optargs} root=PARTUUID=${uuid} rw rootfstype=${mmcrootfstype}
args_ubi=setenv bootargs ${console} ${optargs} rootfstype=ubifs root=ubi0:rootfs rw ubi.mtd=ospi.rootfs
baudrate=115200
board=am65x
board_name=am65x
board_rev=E3
board_serial=0112
board_software_revision=01
boot=mmc
bootargs=androidboot.serialno=${serial#} console=ttyS2,115200 androidboot.console=ttyS2 androidboot.hardware=am65xevmboard
bootcmd=run check_dofastboot; run findfdt; run check_android; if test $is_android -eq 1; then run emmc_android_boot; fi; setenv mmcdev 1; run envboot; run init_${boot}; run get_kern_${boot}; run get_fdt_${boot}; run get_overlay_${boot}; run run_kern
bootdelay=2
bootdir=/boot
bootenvfile=uEnv.txt
bootpart=1:2
bootscript=echo Running bootscript from mmc${mmcdev} ...; source ${loadaddr}
check_android=setenv mmcdev 0; env delete boot_start; part start mmc ${mmcdev} boot boot_start; if test "$boot_start" = ""; then env set is_android 0; else env set is_android 1; fi; env delete boot_start
check_dofastboot=if test "${dofastboot}" -eq 1; then echo Boot fastboot requested, resetting dofastboot ...;setenv dofastboot 0; env save; echo Booting into fastboot ...; fastboot 0; fi
console=ttyS2,115200n8
cpu=armv8
dfu_alt_info_emmc=rawemmc raw 0 0x800000 mmcpart 1;rootfs part 0 1 mmcpart 0;tiboot3.bin.raw raw 0x0 0x400 mmcpart 1;tispl.bin.raw raw 0x400 0x1000 mmcpart 1;u-boot.img.raw raw 0x1400 0x2000 mmcpart 1;u-env.raw raw 0x3400 0x100 mmcpart 1;sysfw.itb.raw raw 0x3600 0x800 mmcpart 1
dfu_alt_info_mmc=boot part 1 1;rootfs part 1 2;tiboot3.bin fat 1 1;tispl.bin fat 1 1;u-boot.img fat 1 1;uEnv.txt fat 1 1;sysfw.itb fat 1 1
dfu_alt_info_ospi=tiboot3.bin raw 0x0 0x080000;tispl.bin raw 0x080000 0x200000;u-boot.img raw 0x280000 0x400000;u-boot-env raw 0x680000 0x020000;sysfw.itb raw 0x6c0000 0x100000;rootfs raw 0x800000 0x3800000
dfu_bufsiz=0x20000
emmc_android_boot=echo Trying to boot Android from eMMC ...; setenv fit_loadaddr 0x87000000; setenv loadaddr ${fit_loadaddr}; setenv eval_bootargs setenv bootargs $bootargs; run eval_bootargs; setenv mmcdev 0; mmc dev $mmcdev; mmc rescan; part start mmc ${mmcdev} boot boot_start; part size mmc ${mmcdev} boot boot_size; mmc read ${fit_loadaddr} ${boot_start} ${boot_size}; for overlay in $overlay_files;do;setenv overlaystring ${overlaystring}'#'${overlay};done;bootm ${fit_loadaddr}#${fdtfile}${overlaystring}
envboot=mmc dev ${mmcdev}; if mmc rescan; then echo SD/MMC found on device ${mmcdev};if run loadbootscript; then run bootscript;else if run loadbootenv; then echo Loaded env from ${bootenvfile};run importbootenv;fi;if test -n $uenvcmd; then echo Running uenvcmd ...;run uenvcmd;fi;fi;fi;
eth1addr=70:ff:76:1d:4f:7e
eth2addr=70:ff:76:1d:4f:7f
eth3addr=70:ff:76:1d:50:bc
eth4addr=70:ff:76:1d:50:bd
eth5addr=70:ff:76:1d:50:be
eth6addr=70:ff:76:1d:50:bf
ethaddr=f4:84:4c:ed:34:d9
fastboot.board_rev=E3
fastboot.cpu=AM654
fastboot.secure=GP
fdtaddr=0x82000000
fdtcontroladdr=fdec6258
findfdt=setenv name_fdt k3-am654-base-board.dtb;setenv fdtfile ${name_fdt};setenv overlay_files ${name_overlays}
finduuid=part uuid mmc ${bootpart} uuid
get_fdt_mmc=load mmc ${bootpart} ${fdtaddr} ${bootdir}/${name_fdt}
get_fdt_ubi=ubifsload ${fdtaddr} ${bootdir}/${name_fdt}
get_kern_mmc=load mmc ${bootpart} ${loadaddr} ${bootdir}/${name_kern}
get_kern_ubi=ubifsload ${loadaddr} ${bootdir}/${name_kern}
get_overlay_mmc=fdt address ${fdtaddr};fdt resize 0x100000;for overlay in $overlay_files;do;load mmc ${bootpart} ${overlayaddr} ${bootdir}/${overlay};fdt apply ${overlayaddr};done;
importbootenv=echo Importing environment from mmc${mmcdev} ...; env import -t ${loadaddr} ${filesize}
init_mmc=run args_all args_mmc
init_ubi=run args_all args_ubi; sf probe; ubi part ospi.rootfs; ubifsmount ubi:rootfs;
loadaddr=0x80080000
loadbootenv=fatload mmc ${mmcdev} ${loadaddr} ${bootenvfile}
loadbootscript=load mmc ${mmcdev} ${loadaddr} boot.scr
loadfdt=load ${devtype} ${bootpart} ${fdtaddr} ${bootdir}/${fdtfile}
loadimage=load ${devtype} ${bootpart} ${loadaddr} ${bootdir}/${bootfile}
mmcboot=mmc dev ${mmcdev}; setenv devnum ${mmcdev}; setenv devtype mmc; if mmc rescan; then echo SD/MMC found on device ${mmcdev};if run loadimage; then if test ${boot_fit} -eq 1; then run loadfit; else run mmcloados;fi;fi;fi;
mmcdev=1
mmcloados=run args_mmc; if test ${boot_fdt} = yes || test ${boot_fdt} = try; then if run loadfdt; then bootz ${loadaddr} - ${fdtaddr}; else if test ${boot_fdt} = try; then bootz; else echo WARN: Cannot load the DT; fi; fi; else bootz; fi;
mmcrootfstype=ext4 rootwait
mtdids=nor0=47040000.ospi.0
mtdparts=mtdparts=47040000.ospi.0:512k(ospi.tiboot3),2m(ospi.tispl),4m(ospi.u-boot),128k(ospi.env),128k(ospi.env.backup),1m(ospi.sysfw),-@8m(ospi.rootfs)
name_kern=Image
name_overlays=k3-am654-idk.dtbo k3-am654-pcie-usb2.dtbo
overlayaddr=0x83000000
partitions=uuid_disk=${uuid_gpt_disk};name=rootfs,start=0,size=-,uuid=${uuid_gpt_rootfs}
partitions_android=uuid_disk=${uuid_gpt_disk};name=bootloader,start=5M,size=8M,uuid=${uuid

.....

=> setenv name_overlays k3-am654-pcie-usb3.dtbo k3-am654-evm-csi2-ov490.dtbo k3-am654-evm-oldi-lck1evm.dtbo
=> saveenv
Saving Environment to MMC...
Writing to redundant MMC(0)... done
=>

=> pri

arch=arm
args_all=setenv optargs earlycon=ns16550a,mmio32,0x02800000 ${mtdparts}
args_mmc=run finduuid;setenv bootargs console=${console} ${optargs} root=PARTUUID=${uuid} rw rootfstype=${mmcrootfstype}
args_ubi=setenv bootargs ${console} ${optargs} rootfstype=ubifs root=ubi0:rootfs rw ubi.mtd=ospi.rootfs
baudrate=115200
board=am65x
board_name=am65x
board_rev=E3
board_serial=0112
board_software_revision=01
boot=mmc
bootargs=androidboot.serialno=${serial#} console=ttyS2,115200 androidboot.console=ttyS2 androidboot.hardware=am65xevmboard
bootcmd=run check_dofastboot; run findfdt; run check_android; if test $is_android -eq 1; then run emmc_android_boot; fi; setenv mmcdev 1; run envboot; run init_${boot}; run get_kern_${boot}; run get_fdt_${boot}; run get_overlay_${boot}; run run_kern
bootdelay=2
bootdir=/boot
bootenvfile=uEnv.txt
bootpart=1:2
bootscript=echo Running bootscript from mmc${mmcdev} ...; source ${loadaddr}
check_android=setenv mmcdev 0; env delete boot_start; part start mmc ${mmcdev} boot boot_start; if test "$boot_start" = ""; then env set is_android 0; else env set is_android 1; fi; env delete boot_start
check_dofastboot=if test "${dofastboot}" -eq 1; then echo Boot fastboot requested, resetting dofastboot ...;setenv dofastboot 0; env save; echo Booting into fastboot ...; fastboot 0; fi
console=ttyS2,115200n8
cpu=armv8
dfu_alt_info_emmc=rawemmc raw 0 0x800000 mmcpart 1;rootfs part 0 1 mmcpart 0;tiboot3.bin.raw raw 0x0 0x400 mmcpart 1;tispl.bin.raw raw 0x400 0x1000 mmcpart 1;u-boot.img.raw raw 0x1400 0x2000 mmcpart 1;u-env.raw raw 0x3400 0x100 mmcpart 1;sysfw.itb.raw raw 0x3600 0x800 mmcpart 1
dfu_alt_info_mmc=boot part 1 1;rootfs part 1 2;tiboot3.bin fat 1 1;tispl.bin fat 1 1;u-boot.img fat 1 1;uEnv.txt fat 1 1;sysfw.itb fat 1 1
dfu_alt_info_ospi=tiboot3.bin raw 0x0 0x080000;tispl.bin raw 0x080000 0x200000;u-boot.img raw 0x280000 0x400000;u-boot-env raw 0x680000 0x020000;sysfw.itb raw 0x6c0000 0x100000;rootfs raw 0x800000 0x3800000
dfu_bufsiz=0x20000
emmc_android_boot=echo Trying to boot Android from eMMC ...; setenv fit_loadaddr 0x87000000; setenv loadaddr ${fit_loadaddr}; setenv eval_bootargs setenv bootargs $bootargs; run eval_bootargs; setenv mmcdev 0; mmc dev $mmcdev; mmc rescan; part start mmc ${mmcdev} boot boot_start; part size mmc ${mmcdev} boot boot_size; mmc read ${fit_loadaddr} ${boot_start} ${boot_size}; for overlay in $overlay_files;do;setenv overlaystring ${overlaystring}'#'${overlay};done;bootm ${fit_loadaddr}#${fdtfile}${overlaystring}
envboot=mmc dev ${mmcdev}; if mmc rescan; then echo SD/MMC found on device ${mmcdev};if run loadbootscript; then run bootscript;else if run loadbootenv; then echo Loaded env from ${bootenvfile};run importbootenv;fi;if test -n $uenvcmd; then echo Running uenvcmd ...;run uenvcmd;fi;fi;fi;
eth1addr=70:ff:76:1d:4f:7e
eth2addr=70:ff:76:1d:4f:7f
eth3addr=70:ff:76:1d:50:bc
eth4addr=70:ff:76:1d:50:bd
eth5addr=70:ff:76:1d:50:be
eth6addr=70:ff:76:1d:50:bf
ethaddr=f4:84:4c:ed:34:d9
fastboot.board_rev=E3
fastboot.cpu=AM654
fastboot.secure=GP
fdtaddr=0x82000000
fdtcontroladdr=fdec6258
findfdt=setenv name_fdt k3-am654-base-board.dtb;setenv fdtfile ${name_fdt};setenv overlay_files ${name_overlays}
finduuid=part uuid mmc ${bootpart} uuid
get_fdt_mmc=load mmc ${bootpart} ${fdtaddr} ${bootdir}/${name_fdt}
get_fdt_ubi=ubifsload ${fdtaddr} ${bootdir}/${name_fdt}
get_kern_mmc=load mmc ${bootpart} ${loadaddr} ${bootdir}/${name_kern}
get_kern_ubi=ubifsload ${loadaddr} ${bootdir}/${name_kern}
get_overlay_mmc=fdt address ${fdtaddr};fdt resize 0x100000;for overlay in $overlay_files;do;load mmc ${bootpart} ${overlayaddr} ${bootdir}/${overlay};fdt apply ${overlayaddr};done;
importbootenv=echo Importing environment from mmc${mmcdev} ...; env import -t ${loadaddr} ${filesize}
init_mmc=run args_all args_mmc
init_ubi=run args_all args_ubi; sf probe; ubi part ospi.rootfs; ubifsmount ubi:rootfs;
loadaddr=0x80080000
loadbootenv=fatload mmc ${mmcdev} ${loadaddr} ${bootenvfile}
loadbootscript=load mmc ${mmcdev} ${loadaddr} boot.scr
loadfdt=load ${devtype} ${bootpart} ${fdtaddr} ${bootdir}/${fdtfile}
loadimage=load ${devtype} ${bootpart} ${loadaddr} ${bootdir}/${bootfile}
mmcboot=mmc dev ${mmcdev}; setenv devnum ${mmcdev}; setenv devtype mmc; if mmc rescan; then echo SD/MMC found on device ${mmcdev};if run loadimage; then if test ${boot_fit} -eq 1; then run loadfit; else run mmcloados;fi;fi;fi;
mmcdev=1
mmcloados=run args_mmc; if test ${boot_fdt} = yes || test ${boot_fdt} = try; then if run loadfdt; then bootz ${loadaddr} - ${fdtaddr}; else if test ${boot_fdt} = try; then bootz; else echo WARN: Cannot load the DT; fi; fi; else bootz; fi;

mmcrootfstype=ext4 rootwait
mtdids=nor0=47040000.ospi.0
mtdparts=mtdparts=47040000.ospi.0:512k(ospi.tiboot3),2m(ospi.tispl),4m(ospi.u-boot),128k(ospi.env),128k(ospi.env.backup),1m(ospi.sysfw),-@8m(ospi.rootfs)
name_kern=Image
name_overlays=k3-am654-pcie-usb3.dtbo k3-am654-evm-csi2-ov490.dtbo k3-am654-evm-oldi-lck1evm.dtbo
overlayaddr=0x83000000
partitions=uuid_disk=${uuid_gpt_disk};name=rootfs,start=0,size=-,uuid=${uuid_gpt_rootfs}
partitions_android=uuid_disk=${uuid_gpt_disk};name=bootloader,start=5M,size=8M,uuid=${uuid_gpt_bootloader};name=tiboot3,start=4M,size=1M,uuid=${uuid_gpt_tiboot3};name=boot,start=13M,size=40M,uuid=${uuid_gpt_boot};name=vendor,size=512M,uuid=${uuid_gpt_vendor};name=system,size=2048M,uuid=${uuid_gpt_system};name=userdata,size=-,uuid=${uuid_gpt_userdata}
rd_spec=-
run_kern=booti ${loadaddr} ${rd_spec} ${fdtaddr}
serial#=0000000000000112
soc=k3
stderr=serial@2800000
stdin=serial@2800000
stdout=serial@2800000
vendor=ti

Environment size: 5749/131067 bytes
=>
=>boot

...........

_____ _____ _ _
| _ |___ ___ ___ ___ | _ |___ ___ |_|___ ___| |_
| | _| .'| . | . | | __| _| . | | | -_| _| _|
|__|__|_| |__,|_ |___| |__| |_| |___|_| |___|___|_|
|___| |___|

Arago Project http://arago-project.org am65xx-evm ttyS2

Arago 2018.10 am65xx-evm ttyS2

am65xx-evm login:

No display on LCD. then reboot in Linux or power cycle the board, stop in UBOOT, and the environment parameter back to old one, not changed.

U-Boot 2018.01-g313dcd69c2 (Dec 16 2018 - 05:15:53 +0000)

Model: Texas Instruments AM654 Base Board
DRAM: 4 GiB
MMC: sdhci@0: 0, sdhci@0: 1
In: serial@2800000
Out: serial@2800000
Err: serial@2800000
GUID Partition Table Header signature is wrong: 0x0 != 0x5452415020494645
part_get_info_efi: *** ERROR: Invalid GPT ***
GUID Partition Table Header signature is wrong: 0x0 != 0x5452415020494645
part_get_info_efi: *** ERROR: Invalid Backup GPT ***
detected AM6-IDKAPPEVM
detected SER-PCIE2LEVM
Net: eth0: cpsw_nuss@046000000
Hit any key to stop autoboot: 0
=> pri
arch=arm
args_all=setenv optargs earlycon=ns16550a,mmio32,0x02800000 ${mtdparts}
args_mmc=run finduuid;setenv bootargs console=${console} ${optargs} root=PARTUUID=${uuid} rw rootfstype=${mmcrootfstype}
args_ubi=setenv bootargs ${console} ${optargs} rootfstype=ubifs root=ubi0:rootfs rw ubi.mtd=ospi.rootfs
baudrate=115200
board=am65x
board_name=am65x
board_rev=E3
board_serial=0112
board_software_revision=01
boot=mmc
bootargs=androidboot.serialno=${serial#} console=ttyS2,115200 androidboot.console=ttyS2 androidboot.hardware=am65xevmboard
bootcmd=run check_dofastboot; run findfdt; run check_android; if test $is_android -eq 1; then run emmc_android_boot; fi; setenv mmcdev 1; run envboot; run init_${boot}; run get_kern_${boot}; run get_fdt_${boot}; run get_overlay_${boot}; run run_kern
bootdelay=2
bootdir=/boot
bootenvfile=uEnv.txt
bootpart=1:2
bootscript=echo Running bootscript from mmc${mmcdev} ...; source ${loadaddr}
check_android=setenv mmcdev 0; env delete boot_start; part start mmc ${mmcdev} boot boot_start; if test "$boot_start" = ""; then env set is_android 0; else env set is_android 1; fi; env delete boot_start
check_dofastboot=if test "${dofastboot}" -eq 1; then echo Boot fastboot requested, resetting dofastboot ...;setenv dofastboot 0; env save; echo Booting into fastboot ...; fastboot 0; fi
console=ttyS2,115200n8
cpu=armv8
dfu_alt_info_emmc=rawemmc raw 0 0x800000 mmcpart 1;rootfs part 0 1 mmcpart 0;tiboot3.bin.raw raw 0x0 0x400 mmcpart 1;tispl.bin.raw raw 0x400 0x1000 mmcpart 1;u-boot.img.raw raw 0x1400 0x2000 mmcpart 1;u-env.raw raw 0x3400 0x100 mmcpart 1;sysfw.itb.raw raw 0x3600 0x800 mmcpart 1
dfu_alt_info_mmc=boot part 1 1;rootfs part 1 2;tiboot3.bin fat 1 1;tispl.bin fat 1 1;u-boot.img fat 1 1;uEnv.txt fat 1 1;sysfw.itb fat 1 1
dfu_alt_info_ospi=tiboot3.bin raw 0x0 0x080000;tispl.bin raw 0x080000 0x200000;u-boot.img raw 0x280000 0x400000;u-boot-env raw 0x680000 0x020000;sysfw.itb raw 0x6c0000 0x100000;rootfs raw 0x800000 0x3800000
dfu_bufsiz=0x20000
emmc_android_boot=echo Trying to boot Android from eMMC ...; setenv fit_loadaddr 0x87000000; setenv loadaddr ${fit_loadaddr}; setenv eval_bootargs setenv bootargs $bootargs; run eval_bootargs; setenv mmcdev 0; mmc dev $mmcdev; mmc rescan; part start mmc ${mmcdev} boot boot_start; part size mmc ${mmcdev} boot boot_size; mmc read ${fit_loadaddr} ${boot_start} ${boot_size}; for overlay in $overlay_files;do;setenv overlaystring ${overlaystring}'#'${overlay};done;bootm ${fit_loadaddr}#${fdtfile}${overlaystring}
envboot=mmc dev ${mmcdev}; if mmc rescan; then echo SD/MMC found on device ${mmcdev};if run loadbootscript; then run bootscript;else if run loadbootenv; then echo Loaded env from ${bootenvfile};run importbootenv;fi;if test -n $uenvcmd; then echo Running uenvcmd ...;run uenvcmd;fi;fi;fi;
eth1addr=70:ff:76:1d:4f:7e
eth2addr=70:ff:76:1d:4f:7f
eth3addr=70:ff:76:1d:50:bc
eth4addr=70:ff:76:1d:50:bd
eth5addr=70:ff:76:1d:50:be
eth6addr=70:ff:76:1d:50:bf
ethaddr=f4:84:4c:ed:34:d9
fastboot.board_rev=E3
fastboot.cpu=AM654
fastboot.secure=GP
fdtaddr=0x82000000
fdtcontroladdr=fdec6258
findfdt=setenv name_fdt k3-am654-base-board.dtb;setenv fdtfile ${name_fdt};setenv overlay_files ${name_overlays}
finduuid=part uuid mmc ${bootpart} uuid
get_fdt_mmc=load mmc ${bootpart} ${fdtaddr} ${bootdir}/${name_fdt}
get_fdt_ubi=ubifsload ${fdtaddr} ${bootdir}/${name_fdt}
get_kern_mmc=load mmc ${bootpart} ${loadaddr} ${bootdir}/${name_kern}
get_kern_ubi=ubifsload ${loadaddr} ${bootdir}/${name_kern}
get_overlay_mmc=fdt address ${fdtaddr};fdt resize 0x100000;for overlay in $overlay_files;do;load mmc ${bootpart} ${overlayaddr} ${bootdir}/${overlay};fdt apply ${overlayaddr};done;
importbootenv=echo Importing environment from mmc${mmcdev} ...; env import -t ${loadaddr} ${filesize}
init_mmc=run args_all args_mmc
init_ubi=run args_all args_ubi; sf probe; ubi part ospi.rootfs; ubifsmount ubi:rootfs;
loadaddr=0x80080000
loadbootenv=fatload mmc ${mmcdev} ${loadaddr} ${bootenvfile}
loadbootscript=load mmc ${mmcdev} ${loadaddr} boot.scr
loadfdt=load ${devtype} ${bootpart} ${fdtaddr} ${bootdir}/${fdtfile}
loadimage=load ${devtype} ${bootpart} ${loadaddr} ${bootdir}/${bootfile}
mmcboot=mmc dev ${mmcdev}; setenv devnum ${mmcdev}; setenv devtype mmc; if mmc rescan; then echo SD/MMC found on device ${mmcdev};if run loadimage; then if test ${boot_fit} -eq 1; then run loadfit; else run mmcloados;fi;fi;fi;
mmcdev=1
mmcloados=run args_mmc; if test ${boot_fdt} = yes || test ${boot_fdt} = try; then if run loadfdt; then bootz ${loadaddr} - ${fdtaddr}; else if test ${boot_fdt} = try; then bootz; else echo WARN: Cannot load the DT; fi; fi; else bootz; fi;
mmcrootfstype=ext4 rootwait

mtdids=nor0=47040000.ospi.0
mtdparts=mtdparts=47040000.ospi.0:512k(ospi.tiboot3),2m(ospi.tispl),4m(ospi.u-boot),128k(ospi.env),128k(ospi.env.backup),1m(ospi.sysfw),-@8m(ospi.rootfs)
name_kern=Image
name_overlays=k3-am654-idk.dtbo k3-am654-pcie-usb2.dtbo
overlayaddr=0x83000000
partitions=uuid_disk=${uuid_gpt_disk};name=rootfs,start=0,size=-,uuid=${uuid_gpt_rootfs}
partitions_android=uuid_disk=${uuid_gpt_disk};name=bootloader,start=5M,size=8M,uuid=${uuid_gpt_bootloader};name=tiboot3,start=4M,size=1M,uuid=${uuid_gpt_tiboot3};name=boot,start=13M,size=40M,uuid=${uuid_gpt_boot};name=vendor,size=512M,uuid=${uuid_gpt_vendor};name=system,size=2048M,uuid=${uuid_gpt_system};name=userdata,size=-,uuid=${uuid_gpt_userdata}
rd_spec=-
run_kern=booti ${loadaddr} ${rd_spec} ${fdtaddr}
serial#=0000000000000112
soc=k3
stderr=serial@2800000
stdin=serial@2800000
stdout=serial@2800000
vendor=ti

Environment size: 5708/131067 bytes
=>
=>

anything I missed to do?

0 Yordan Kovachev over 7 years ago in reply to Tony Tang

TI__Guru**** 161600 points

Hi Tony,

I think there is a problem with the images you download. I managed to get the Display working with both EVM & IDK. I DID NOT made any changes to the boot parameters. Just installed the ti-processor-sdk-linux-am65xx-evm-05.02.00.10-Linux-x86-Install.bin & created my sd card with the prebuilt images using create-sdcard.sh. Both boards IDK & EVM booted detecting & enabling the display:

The LCD revision is E3, I used the LATEST SDK: ti-processor-sdk-linux-am65xx-evm-05.02.00.10-Linux-x86-Install.bin

Best Regards,
Yordan

0 Tony Tang over 7 years ago in reply to Yordan Kovachev

TI__Mastermind 30262 points

My LCD is REV:E2. IDK same as yours.

0 Yordan Kovachev over 7 years ago in reply to Tony Tang

TI__Guru**** 161600 points

Try installing the ti-processor-sdk-linux-am65xx-evm-05.02.00.10-Linux-x86-Install.bin and use available prebuilt images. As I said it may b e a problem with the.tar archives you download.

Also check the connection between the EVM & LCD.

Best Regards,
Yordan

0 Manisha Agrawal over 7 years ago in reply to Yordan Kovachev

TI__Mastermind 22946 points

Hi Tony,

Please note that the environment variable name_overlays=k3-am654-idk.dtbo k3-am654-pcie-usb2.dtbo set by u-boot needs to be overwritten at each boot.

Can you share your dmesg log after the new name_overlays is set?

Regards,
Manisha

0 Tony Tang over 7 years ago in reply to Manisha Agrawal

TI__Mastermind 30262 points

0652.Desktop.zip

Manisha,

attach dmesg, 3 files description:

1powerup.txt: power on the board, dmesg.

2setenv and saveenv and boot.txt: setenv, saveenv, boot, dmesg.

3setenv and boot.txt: boot.txt: setenv, saveenv, boot, power cycle, dmesg

0 Manisha Agrawal over 7 years ago in reply to Tony Tang

TI__Mastermind 22946 points

Hi Tony,

The boot log looks fine.

From whom did you receive this LCD panel? Did it ever work before?

Is the EEPROM on the LCD daughter card programmed? Are all the connector connected at the LCD daughter card?

Is there anything shown on the screen, such as command prompt or “please wait”?

You can try running the diagnostic image and should see some display activity. You can also try to run “modetest –M tidss” after Linux boot and let us know what you see.

Regards,
Manisha

0 Manisha Agrawal over 7 years ago in reply to Manisha Agrawal

TI__Mastermind 22946 points

Hi Tony,

I am not sure if you are still stuck in bringing up your LCD board up. If you are still trying to bring up the board, my suggestion will be to order the Rev E3 version of the board as the E2 board is early prototype version and not supposed to be released to broad customers and hence there is limited documentation support on it.

Regards,
Manisha

Processors

Processors forum

Linux/AM6548: Does Processor SDK 5.02 enabled LCD display?
