DRA72: Can DRA72 support bt601 output？

user5927238

Prodigy 90 points

Part Number: DRA72
Other Parts Discussed in Thread: DS90UB933-Q1, DS90UB936-Q1, DS90UB934-Q1

Can DRA72 support bt601 output？

over 7 years ago

0 Brijesh Jadav over 7 years ago

TI__Guru**** 501715 points

You mean discrete sync 8bit output? Yes, it does, but in RGB format.

Rgds,
Brijesh

0 user5927238 over 7 years ago in reply to Brijesh Jadav

Prodigy 90 points

I want to know what output DRA72 supports when DRA72 connect to DS90UB933-Q1 for 1280*720 video?

0 Brijesh Jadav over 7 years ago in reply to user5927238

TI__Guru**** 501715 points

Well, it can be connected, but it really depends on what is expected on receiving device??

Rgds,
Brijesh

0 user5927238 over 7 years ago in reply to Brijesh Jadav

Prodigy 90 points

Thanks!

First,When the receiving device is DS90UB936-Q1 ,how to connect DRA72 and DS90UB933-Q1?

Second,When the receiving device is DS90UB934-Q1 ,how to connect DRA72 and DS90UB933-Q1?

0 Brijesh Jadav over 7 years ago in reply to user5927238

TI__Guru**** 501715 points

Hi,

Actually, i was asking what is requirement on your final receiving device? Does it expect embedded sync or discrete sync interface? what is the frame format expected?

Rgds,
Brijesh

0 user5927238 over 7 years ago in reply to Brijesh Jadav

Prodigy 90 points

It is MIPI out,it expect discrete sync interface. the frame format is the following。

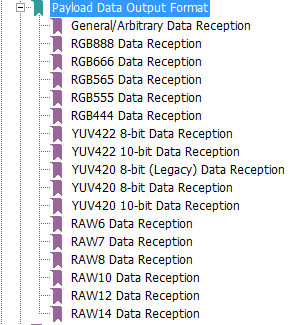

• RGB, YUV and RAW color space definitions

• From 24-bit down to 6-bit per pixel

• Generic or user-defined byte-based data types

0 Brijesh Jadav over 7 years ago in reply to user5927238

TI__Guru**** 501715 points

Hi,

Since UB933 supports only 10 or 12bit data and It looks like the receiving devices support RGB565, i think you could use RGB565 as output data type from SoC.
I think UB934 does not output MIPI..

Rgds,
Brijesh

0 user5927238 over 7 years ago in reply to Brijesh Jadav

Prodigy 90 points

The receiving device is DS90UB936-Q1,It can output MIPI,but RGB565 need 16 bit data,UB933 suports only 10 or 12bit data?

0 Brijesh Jadav over 7 years ago in reply to user5927238

TI__Guru**** 501715 points

Hi,

Ok, as i explained in below forum, you could even get YUV422 output over discrete sync interface from DSS. This is possible, but not supported in existing examples..

e2e.ti.com/.../2840275

Regards,
Brijesh

Processors

Processors forum

DRA72: Can DRA72 support bt601 output？
