Hello Sir,
We have connected eMMC IC (MTFC4GACAJCN-4MIT) on MMC1 Interface of processor AM3359, for booting the processor.
Is this eMMC IC (MTFC4GACAJCN-4MIT) is compatible with processor AM3359?
Kindly confirm it.
Regards,
Vamsi
Please read my last post above. I think it's obvious that while AM335x MMC is not v5.0 compatible, eMMC v5.0 memories ARE BACKWARD COMPATIBLE to older versions of the JEDEC/MMC standard, therefore they CAN BE USED with AM335x devices.
Thanks for the immediate response.

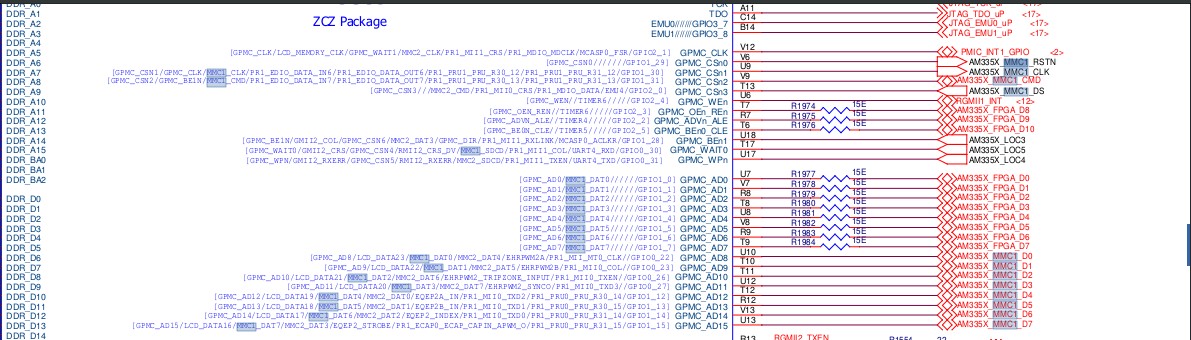

In our custom board we have connected eMMC IC (MTFC4GACAJCN-4MIT) with AM3359 processor to MMC1 as shown in the picture below.
Please confirm our schematic, particularly AM335x_MMC1_RSTN and AM335x_MMC1_DS.
Regards
Vamsi
Why it is showing uuid as dead for eMMC. Here device 0 is SD Card and device 1 is eMMC.
=> mmc part
Partition Map for MMC device 1 -- Partition Type: DOS
Part Start Sector Num Sectors UUID Type
1 2048 32768 7001dead-01 0e Boot
2 34816 7485440 7001dead-02 83
=> mmc dev 0
switch to partitions #0, OK
mmc0 is current device
=> mmc part
Partition Map for MMC device 0 -- Partition Type: DOS
Part Start Sector Num Sectors UUID Type
1 2048 143360 000a7a14-01 0c Boot
2 145408 30939136 000a7a14-02 83
=> mmc info
Device: OMAP SD/MMC
Manufacturer ID: 3
OEM: 5344
Name: SC16G
Bus Speed: 48000000
Mode : SD High Speed (50MHz)
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 14.8 GiB
Bus Width: 4-bit
Erase Group Size: 512 Bytes
=>
Following is the output of dmesg on my custom board. Kindly let me know, If you find anything wrong.
root@am335x-evm:/sys/class/gpio/gpio60/power# dmesg
