TDA2EVM5777: Specifications For OV10635 Camera Connecting Hardware

Uday M S

Part Number: TDA2EVM5777

Hi ,

OV10635 Camera which has a 10-bit parallel DVP Interface, is connected to the Vision Application Board by a 32 Pin Hardware.

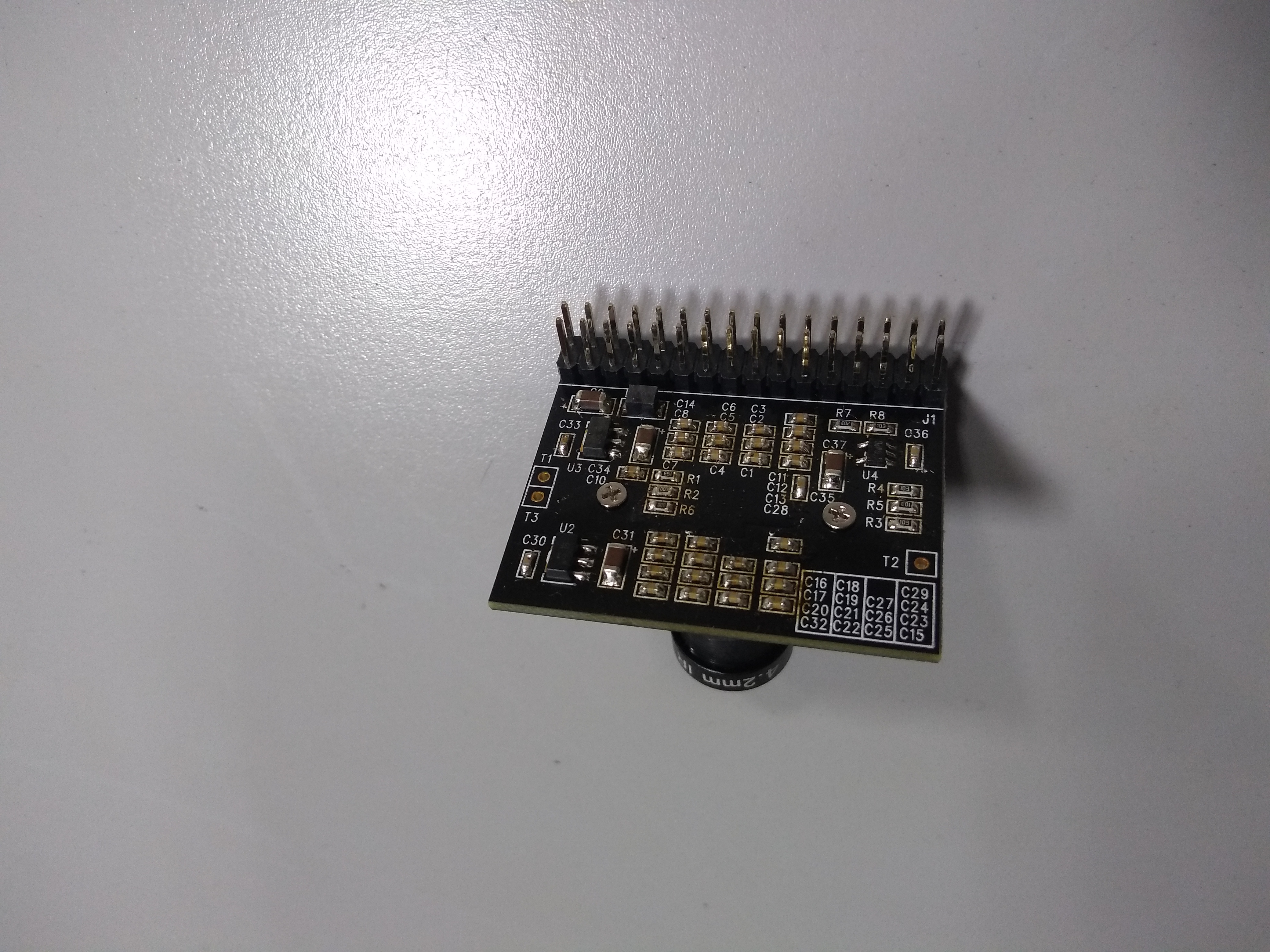

Can someone let me know where I can find the Specification of that converter ? (Image Attached)

Thanks,

Uday M S

over 7 years ago

0 Brijesh Jadav over 7 years ago

TI__Guru**** 501985 points

Hi Uday,

You could find the schematic of this board on spectrum digital site @support.spectrumdigital.com/.../sat0088_0089.

Rgds,
Brijesh

0 Uday M S over 7 years ago in reply to Brijesh Jadav

Intellectual 620 points

Hi Brijesh,

In the provided link I could only find the schematic of Serializer and De-Serializer.

I need the schematic of the hardware which connects to the serializer (on which the Image Sensor is mounted)

Regards,
Uday M S

0 Brijesh Jadav over 7 years ago in reply to Uday M S

TI__Guru**** 501985 points

Hi Uday,

Unfortunately, i don't have schematic of this board. I am checking with the other team members, let me get back to you.

Rgds,
Brijesh

0 Uday M S over 7 years ago in reply to Brijesh Jadav

Intellectual 620 points

Hi Brijesh,

Any updates on this ?

0 Brijesh Jadav over 7 years ago in reply to Uday M S

TI__Guru**** 501985 points

Hi Uday,

I have been trying to get the schematic from my my team mates, but could not get it.
Could you please also put this question to Spectrum Digital site?

Rgds,
Brijesh
