66AK2G12: metal lid of ABY package

Naoki Kawada

Guru 19890 points

Part Number: 66AK2G12

Hi,

My customer would like to know about metal lid of ABY package. The are now trying to design their custom board with 66AK2G12 and surprised by package lid because its material is metal.
The question from the customer is which documents actually state that 66AK2G12 has metal lid rather than plastic one. Could you please suggest ?
I`ve searched the datasheet, but i could not find the statement.

Best Regards,
NK

over 6 years ago

0 Yordan Kovachev over 6 years ago

TI__Guru**** 161600 points

Hi,

There is the device nomenclature in the datasheet & ABY0625A Package Drawing (www.ti.com/.../mpbgan3.pdf) when you click on the package links in the sample buy tab in the product folder www.ti.com/.../samplebuy . However these documents don't suggest whether there is a metal lid or not.

Is this metal lid an issue with the customer design?

Best Regards,
Yordan

0 Naoki Kawada over 6 years ago in reply to Yordan Kovachev

Guru 19890 points

Hello Yordan,

Thanks for your reply.
I don't think the metal lid can be an issue for now, but the problem is that is not documented in the datasheet or something.
This is an extreme example, but if you changed the package spec in the future, we could not complain about it. How do you think ?

Best Regards,
NK

0 Yordan Kovachev over 6 years ago in reply to Naoki Kawada

TI__Guru**** 161600 points

Hi,

There is the following statement in the datasheet (Section 9.1 Packaging Information):
The following pages include mechanical packaging and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document.For browser-based versions of this datasheet, refer to the left-hand navigation.

For future support on such issues, please contact TI support Center through this link:
www.ti.com/.../call-ti-support;jsessionid=0319A8DA001B458823E46A82B3CBCED2.tiapp-prod-2-node10

Best Regards,
Yordan

0 Naoki Kawada over 6 years ago in reply to Yordan Kovachev

Guru 19890 points

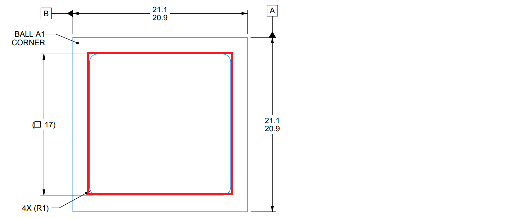

Ok, one more question. Is the metal lid indicated by the following red frame in the datasheet ?

Best Regards,

0 Yordan Kovachev over 6 years ago in reply to Naoki Kawada

TI__Guru**** 161600 points

Hi,

Looking at the datasheet, no I don't see metal lid indicated.

Best Regards,
Yordan

0 Naoki Kawada over 6 years ago in reply to Yordan Kovachev

Guru 19890 points

Hello Yordan,
I'm asking about the size of metal lid, not its material. I understand the material is not indicated, but how about the metal lid size ? Can you suggest ?

Best Regards,
NK

0 Naoki Kawada over 6 years ago in reply to Naoki Kawada

Guru 19890 points

Any response ? We need to clarify the metal lid size specification at least.

0 peaves over 6 years ago in reply to Naoki Kawada

TI__Guru 63375 points

I have never seen a TI package drawing that specifies the lid is metal. Non-molded packages typically have a cavity where the die is placed with metal lid covering it.

With respect to your concern about the package or package materials changing, this is very unlikely. There is a significant effort required to qualify a package, which is done for every TI device. We are not allowed to change the package without re-qualifying the new package.

Thermal characteristics of the package would most likely change if any portion of the package was changed. This would definitely be the case if the metal lid was eliminated since it is thermally bonded to the back-side of the die. If this type of change was made, TI would need to update the data sheet with new thermal characteristics which initiates a Product Change Notification (PCN) that is sent to everyone that has purchased the device.

You are correct the metal lid is 17mm square as indicated by the feature you highlighted in the package drawing.

Regards,
Paul

0 Naoki Kawada over 6 years ago in reply to peaves

Guru 19890 points

Hello Paul,

Thanks for your clarification. I think this would answer to their questions.

Best Regards,
NK
