TDA2SX: the data of package size

Wade shao

Part Number: TDA2SX

Dear,

Customers want to know the package size data and 3D size for further design, such as shell design and heat dissipation structure.

But, in chapter 10.1 of the Datasheet, there is no relevant introduction.

Could you please share it?

Thanks a lot.

Wade

0 Mariya Petkova over 6 years ago

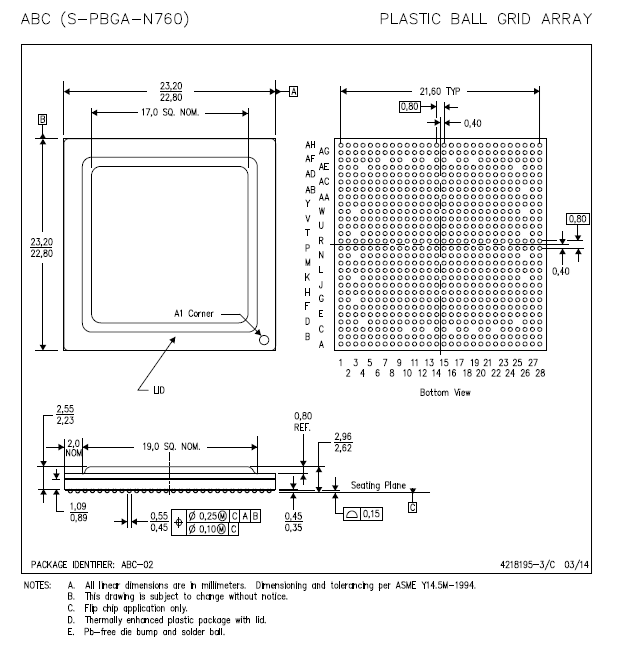

Something got wrong during the upload to ti.com. Here is the missing picture from the DM:

Regards,

Mariya

0 user5958036 over 6 years ago in reply to Mariya Petkova

Hi Mariya,

Thanks a lot

Wade

0 Wade shao over 6 years ago in reply to user5958036

Hi Mariya,

Thanks a lot.

And more, Do you have Part symbol for OrCAD capture?

could you please share it to customer.

Thank you again.

Wade

0 Mariya Petkova over 6 years ago in reply to Wade shao

Please check if you can take the symbol from DRA74x/DRA75x/TDA2x CPU Board Schematic Rev H (Source) under Design Files section in

Regards,

Mariya
