RTOS/TDA2P-ACD: Issue With Draw2D_drawLine Function

Abhay Sorte

Part Number: TDA2P-ACD

Tool/software: TI-RTOS

Hello,

I am using Draw2D_drawLine() function to draw line from my vision sdk link to display on HDMI.

While this function draw straight line for horizontal and vertical points, but when the points are for a slope, there are inconsistencies in the line drawn on HDMI.

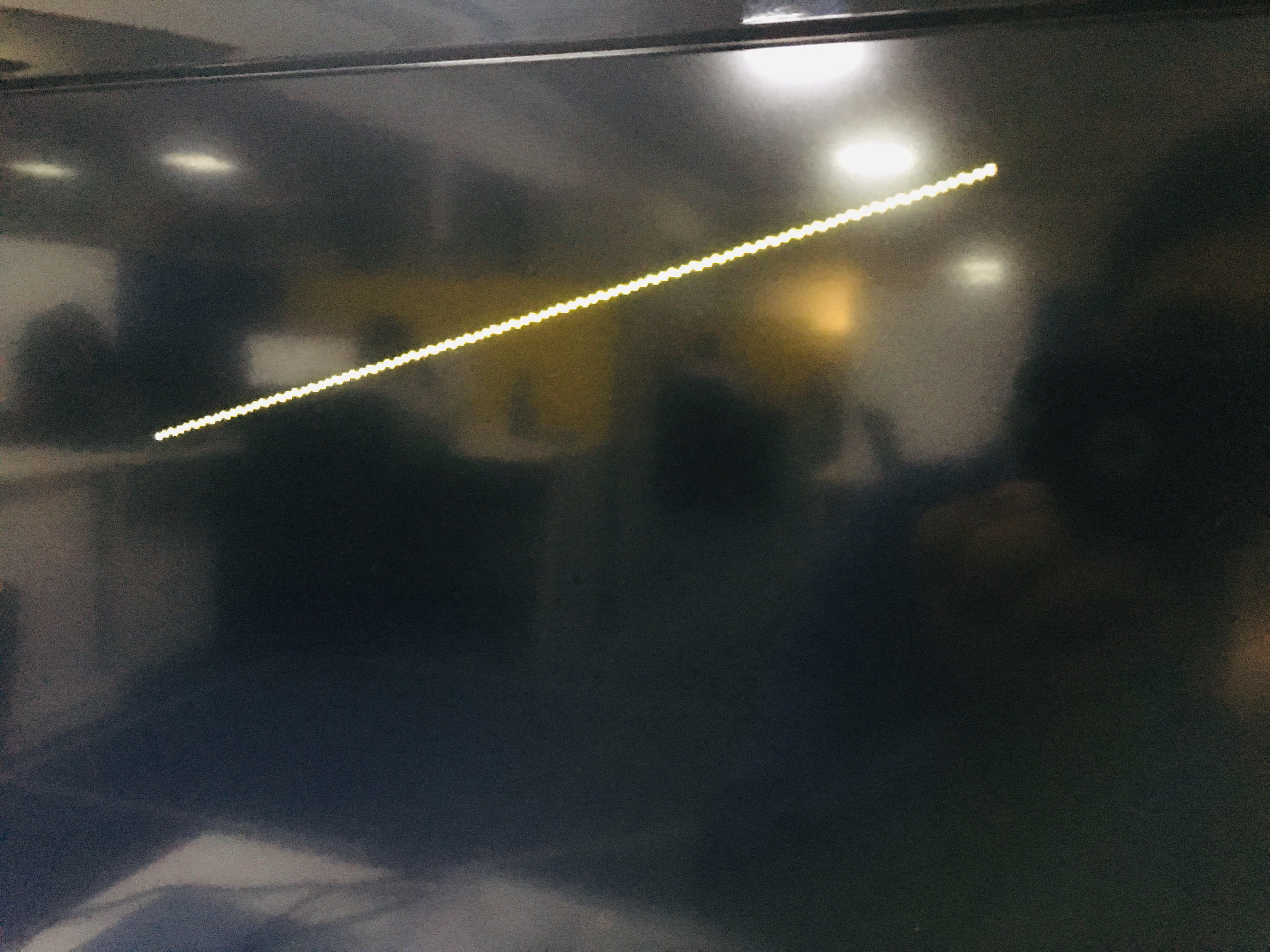

I have attached the image below.

As can be seen, the drawn line is not straight but with zigzag effect. Is there any way to draw a consistent line using Vision SDK draw2D functions.

Regards,

Abhay

over 7 years ago

0 Anuj Gupta over 7 years ago

TI__Genius 15985 points

Hi,

Is the issue is only seen while drawing a line with a slope.
What is the Draw2D_LinePrm *pPrm are you sending?

Regards,
Anuj

0 Abhay Sorte over 7 years ago in reply to Anuj Gupta

Genius 4105 points

Hi Anuj,

Yes the issue is seen only for a line with a slope.
Below are the parameters passed,

Draw2D_LinePrm LinePrm;
LinePrm.lineSize = 2;
LinePrm.lineColor = RGB888_TO_BGRA444(0, 0, 255, 255);
LinePrm.lineColorFormat = SYSTEM_DF_BGR16_565;

Draw2D_drawLine((Draw2D_Handle) pImgDataPtr,
500,
50,
290,
136,
&LinePrm);

Regards,
Abhay

0 Abhay Sorte over 7 years ago in reply to Abhay Sorte

Genius 4105 points

Hi Anuj,

Is there any update on this.

Regards,
Abhay

0 Anuj Gupta over 7 years ago in reply to Abhay Sorte

TI__Genius 15985 points

Hi,

Can you try to send Draw2D_LinePrm LinePrm; as NULL and try?

Regards,
Anuj

0 Abhay Sorte over 7 years ago in reply to Anuj Gupta

Genius 4105 points

Hi Anuj,

With LinePrm as NULL, it does not draw anything.
Tell me one thing is this an issue of Vision SDK Draw2D functions or is it the issue of algorithm itself (algorithm used for drawing line with a slope) ?

Regards,
Abhay

0 Anuj Gupta over 7 years ago in reply to Abhay Sorte

TI__Genius 15985 points

Hi,

Can you try with line color format as SYSTEM_DF_YUV420SP_UV
and color as 0x960000.

Regards,
Anuj

0 Anuj Gupta over 7 years ago in reply to Anuj Gupta

TI__Genius 15985 points

Hi,

I haven't heard back from you, I'm assuming you were able to resolve your issue.
If not, just post a reply below (or create a new thread if the thread has locked due to time-out).

Regards,
Anuj

0 Abhay Sorte over 7 years ago in reply to Anuj Gupta

Genius 4105 points

Hi,

Color format SYSTEM_DF_YUV420SP_UV and color as 0x960000 doesn't draw anything.

Regards,
Abhay

0 Anuj Gupta over 7 years ago in reply to Abhay Sorte

TI__Genius 15985 points

Hi,

Can you check if you are reducing the slope and at whats the threshold for slope when the issue is observed.

Regards,
Anuj

0 Anuj Gupta over 6 years ago in reply to Anuj Gupta

TI__Genius 15985 points

Hi,

If you draw a inclined line then it will come like this.
As it is developed as a demo code only so its not support everything.
If you are interested then you to change the logic and draw each pixel.

Regards,
Anuj

0 Abhay Sorte over 6 years ago in reply to Anuj Gupta

Genius 4105 points

Ok Anuj,

Thank you for your support.

Regards,
Abhay
