TMDSICE3359: Is there Ethernet Interface on the Sitara?

doner_t

Part Number: TMDSICE3359
Other Parts Discussed in Thread: AM3359

Hello,

Is there standard Ethernet interface on the AM3359 Sitara ? There are two Ethernet RJ-45 connectors on the demo board TMDSICE3359. I have run the EtherCAT led blinking application on the this demo board. I wonder that can these two RJ-45 ports be used as standard Ethernet ? Or standard Ethernet pins on the AM3359 processor are different from the Industrial Ethernet pins ? There are seen 2-Port 10/100 PRU EMAC and 2-Port 1Gb Switch on the AM3359 datasheet. Can I connect the standard Ethernet (I mean TCP/IP or UDP/IP) to this one of this ports?

Thank you.

over 6 years ago

0 Biser Gatchev-XID over 6 years ago

TI__Guru**** 393215 points

Hi,

Yes, there are 2-Port 10/100 PRU EMAC and 2-Port 1Gb Switch on the AM3359 device. However the pins used are overlapping and all ports cannot be used at the same time. Please see processors.wiki.ti.com/.../AM335x_Industrial_Communication_Engine_EVM_Rev2_1_HW_User_Guide

0 RonB over 6 years ago

TI__Mastermind 30536 points

Hello and thanks for your post regarding the ICE board and Ethernet support.

I think you'll find this well documented here:

http://processors.wiki.ti.com/index.php/AM335x_Industrial_Communication_Engine_EVM_Rev2_1_HW_User_Guide#Ethernet

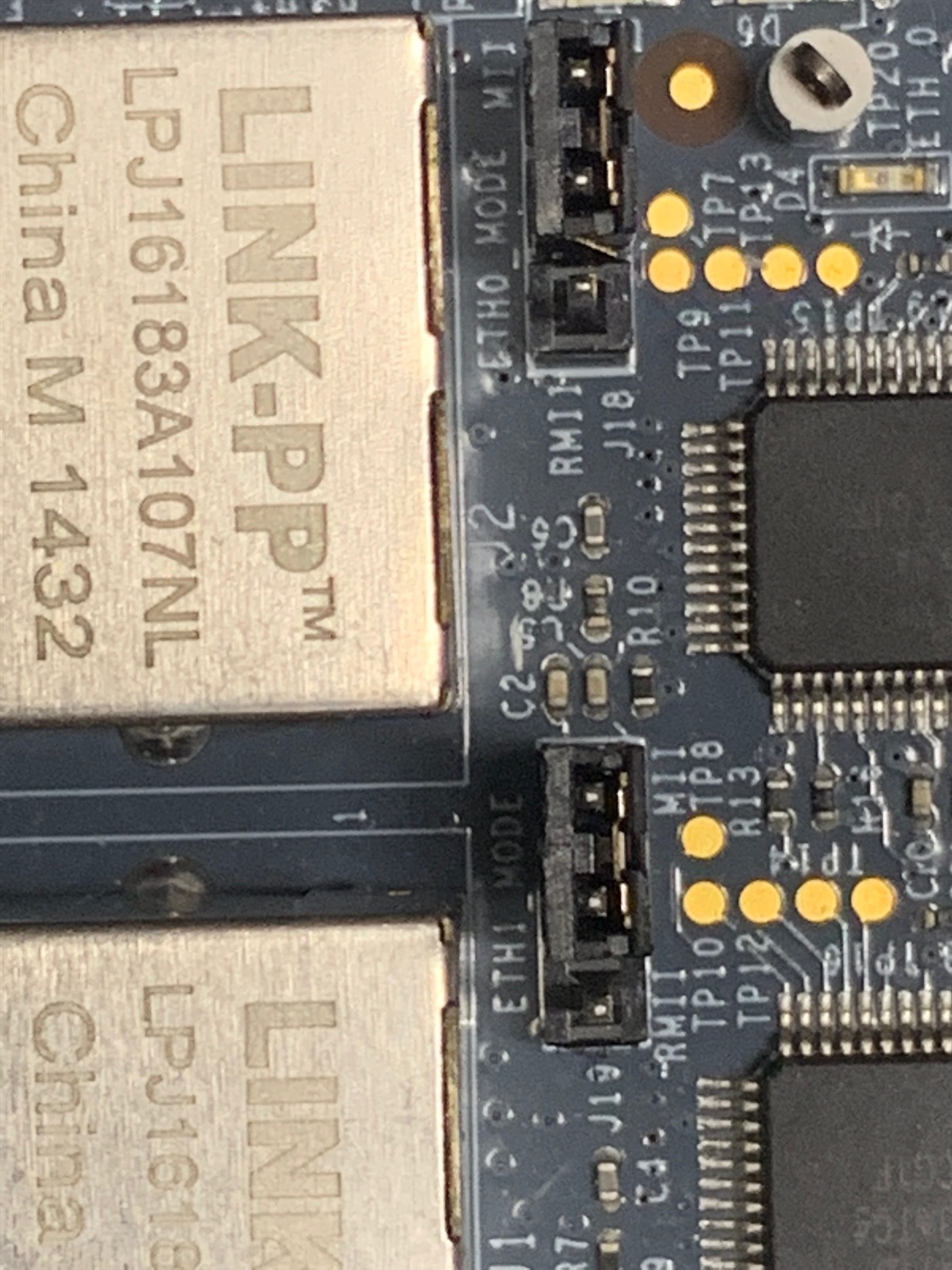

Here's a picture of the jumpers that switch between the PRU/ICSS and the CPSW 2-port switch:

Both Linux and TI-RTOS can support TCP/UDP over either PRU/ICSS or Linux. For Linux, it works out of the box as a standard Ethernet interface. And you could choose to use only one of these ports if you'd like.

I hope this addresses your question.

0 doner_t over 6 years ago in reply to RonB

Intellectual 645 points

Hello,

Thank you for this quick response.

When I make Sitara as EtherCAT Master with one of Real time Linux or TI-RTOS, I will only use one RJ-45 connector on the demo board. The other RJ-45 is unused. Can I use this unused port as standard Ethernet (TCP/IP or UDP/IP) ? It would be great.

If I make Sitara as EtherCAT slave, I will use both RJ-45 connectors because of topology.

Thank you again.

0 Schuyler Patton over 6 years ago in reply to doner_t

TI__Mastermind 40130 points

Hi,

Do you need to continue to use the PRU ports or is using the CPSW ports an option?

Best Regards,
Schuyler

0 doner_t over 6 years ago in reply to Schuyler Patton

Intellectual 645 points

Dear Schuyler Patton ,

There are two RJ-45 connectors on the ICE board. I want to use one connector as EtherCAT master. I also want to use other connector as standard Ethernet at the same time. Can it be used this way?

Thank you.

0 Schuyler Patton over 6 years ago in reply to doner_t

TI__Mastermind 40130 points

Hi,

I think a major part of the answer that you are looking for will be concerning what are you using for an EtherCAT master stack. To my knowledge EtherCAT master stacks usually run using a raw socket mode on an Ethernet port that supports IP traffic. Also please note that how the RJ-45 connectors are configured might matter for the software that you are running on the platform.

If you are using Linux and set the RJ-45 connectors to use the CPSW. I have seen the topology you are asking about in Linux on other TI Sitara platforms when the CPSW ports are used, IP traffic on one port and EtherCAT Master on the other port. A 3rd party must provide the EtherCAT master stack in this case.

If you are using Linux and set the RJ-45 connectors to use the PRU then a non-industrial PRU firmware will be loaded (support IP traffic) and this should work like the CPSW case. Again a 3rd party must provide the EtherCAT master stack.

Best Regards,
Schuyler
