TDA2HG: TDA2HG device run VSDK 0305, but boot fail

Part Number: TDA2HG

Hello,

We are using TDA2HG based on VSDK 03 05. But it will boot fail.It said,

[ 2.459167] evm_1v8: disabling
[ 2.462241] evm_3v3_sw: disabling
[ 2.465568] aic_dvdd: disabling
[ 2.468744] vmmcwl_fixed: disabling
[ 2.472485] pbias_mmc_omap5: disabling
[ 2.476460] ALSA device list:
[ 2.479460] No soundcards found.
[ 2.483733] Waiting for root device PARTUUID=9aebabbd-02...

PS: Please find the detail log in the attachment. Could you help to have a look?

Thanks

Terence

[BEGIN] 2019/9/26 11:06:19

U-Boot SPL 2016.05 (Sep 26 2019 - 10:48:47)
DRA752-GP ES2.0
no pinctrl for hs200_1_8v
no pinctrl for ddr_1_8v
** First descriptor is NOT a primary desc on 1:1 **
*** Warning - bad CRC, using default environment

Trying to boot from MMC1
reading dra7-ipu2-fw.lzop
spl_load_file_fat: error reading file dra7-ipu2-fw.lzop, err - -1
spl: error reading image dra7-ipu2-fw.lzop, err - -1
Error loading remotecore IPU2!,Continuing with boot ...
reading dra7-dsp1-fw.lzop
spl_load_file_fat: error reading file dra7-dsp1-fw.lzop, err - -1
spl: error reading image dra7-dsp1-fw.lzop, err - -1
Error loading remotecore DSP1!,Continuing with boot ...
reading dra7-dsp2-fw.lzop
spl_load_file_fat: error reading file dra7-dsp2-fw.lzop, err - -1
spl: error reading image dra7-dsp2-fw.lzop, err - -1
Error loading remotecore DSP2!,Continuing with boot ...
reading dra7-ipu1-fw.lzop
spl_load_file_fat: error reading file dra7-ipu1-fw.lzop, err - -1
spl: error reading image dra7-ipu1-fw.lzop, err - -1
Error loading remotecore IPU1!,Continuing with boot ...
*** Warning - bad CRC, using default environment

reading u-boot.img
reading u-boot.img
reading u-boot.img
reading u-boot.img
[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Initializing cgroup subsys cpuset
[    0.000000] Initializing cgroup subsys cpu
[    0.000000] Initializing cgroup subsys cpuacct
[    0.000000] Linux version 4.4.84 (xiachunjiang@ecarx-5288-V3) (gcc version 5.3.1 20160113 (Linaro GCC 5.3-2016.02) ) #1 SMP PREEMPT Tue Sep 24 10:38:48 CST 2019
[    0.000000] CPU: ARMv7 Processor [412fc0f2] revision 2 (ARMv7), cr=10c5387d
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, PIPT instruction cache
[    0.000000] Machine model: TI DRA742
[    0.000000] Reserved memory: created DMA memory pool at 0x40300000, size 3 MiB
[    0.000000] Reserved memory: initialized node cmem@40300000, compatible id shared-dma-pool
[    0.000000] Reserved memory: regions without no-map are not yet supported
[    0.000000] Reserved memory: created CMA memory pool at 0x99000000, size 80 MiB
[    0.000000] Reserved memory: initialized node ipu2_cma@99000000, compatible id shared-dma-pool
[    0.000000] Reserved memory: created CMA memory pool at 0x9e000000, size 32 MiB
[    0.000000] Reserved memory: initialized node ipu1_cma@9E000000, compatible id shared-dma-pool
[    0.000000] Reserved memory: regions without no-map are not yet supported
[    0.000000] Reserved memory: created CMA memory pool at 0xa1000000, size 32 MiB
[    0.000000] Reserved memory: initialized node dsp1_cma@A1000000, compatible id shared-dma-pool
[    0.000000] Reserved memory: created CMA memory pool at 0xa3000000, size 32 MiB
[    0.000000] Reserved memory: initialized node dsp2_cma@A3000000, compatible id shared-dma-pool
[    0.000000] Reserved memory: regions without no-map are not yet supported
[    0.000000] Reserved memory: created DMA memory pool at 0xa9000000, size 32 MiB
[    0.000000] Reserved memory: initialized node cmem@A9000000, compatible id shared-dma-pool
[    0.000000] cma: Reserved 128 MiB at 0xb7c00000
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] OMAP4: Map 0xbfe00000 to fe600000 for dram barrier
[    0.000000] DRA752 ES2.0
[    0.000000] PERCPU: Embedded 11 pages/cpu @ef630000 s14912 r8192 d21952 u45056
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 251712
[    0.000000] Kernel command line: console=ttyS0,115200n8 vram=16M root=PARTUUID=9aebabbd-02 rw rootwait ip=none mem=1024M cma=128M
[    0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes)
[    0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[    0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[    0.000000] Memory: 288624K/1013760K available (6683K kernel code, 324K rwdata, 2428K rodata, 332K init, 286K bss, 413840K reserved, 311296K cma-reserved, 129024K highmem)
[    0.000000] Virtual kernel memory layout:
[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
[    0.000000]     fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
[    0.000000]     vmalloc : 0xf0800000 - 0xff800000   ( 240 MB)
[    0.000000]     lowmem  : 0xc0000000 - 0xf0000000   ( 768 MB)
[    0.000000]     pkmap   : 0xbfe00000 - 0xc0000000   (   2 MB)
[    0.000000]     modules : 0xbf000000 - 0xbfe00000   (  14 MB)
[    0.000000]       .text : 0xc0008000 - 0xc08ee00c   (9113 kB)
[    0.000000]       .init : 0xc08ef000 - 0xc0942000   ( 332 kB)
[    0.000000]       .data : 0xc0942000 - 0xc09933e0   ( 325 kB)
[    0.000000]        .bss : 0xc0995000 - 0xc09dc980   ( 287 kB)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000] 	Build-time adjustment of leaf fanout to 32.
[    0.000000] NR_IRQS:16 nr_irqs:16 16
[    0.000000] ti_dt_clocks_register: failed to lookup clock node gmac_gmii_ref_clk_div
[    0.000000] OMAP clockevent source: timer1 at 32786 Hz
[    0.000000] Architected cp15 timer(s) running at 6.14MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x16af5adb9, max_idle_ns: 440795202250 ns
[    0.000004] sched_clock: 56 bits at 6MHz, resolution 162ns, wraps every 4398046511023ns
[    0.000015] Switching to timer-based delay loop, resolution 162ns
[    0.000332] clocksource: 32k_counter: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 58327039986419 ns
[    0.000339] OMAP clocksource: 32k_counter at 32768 Hz
[    0.000784] Console: colour dummy device 80x30
[    0.000807] Calibrating delay loop (skipped), value calculated using timer frequency.. 12.29 BogoMIPS (lpj=61475)
[    0.000820] pid_max: default: 32768 minimum: 301
[    0.000915] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes)
[    0.000926] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes)
[    0.001494] Initializing cgroup subsys io
[    0.001510] Initializing cgroup subsys memory
[    0.001537] Initializing cgroup subsys devices
[    0.001548] Initializing cgroup subsys freezer
[    0.001559] Initializing cgroup subsys perf_event
[    0.001571] Initializing cgroup subsys pids
[    0.001597] CPU: Testing write buffer coherency: ok
[    0.001822] /cpus/cpu@0 missing clock-frequency property
[    0.001838] /cpus/cpu@1 missing clock-frequency property
[    0.001848] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[    0.001891] Setting up static identity map for 0x80008340 - 0x800083a0
[    0.080111] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[    0.080179] Brought up 2 CPUs
[    0.080191] SMP: Total of 2 processors activated (24.59 BogoMIPS).
[    0.080198] CPU: All CPU(s) started in HYP mode.
[    0.080204] CPU: Virtualization extensions available.
[    0.081247] devtmpfs: initialized
[    0.110713] VFP support v0.3: implementor 41 architecture 4 part 30 variant f rev 0
[    0.111688] omap_hwmod: l3_main_2 using broken dt data from ocp
[    0.316639] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.316662] futex hash table entries: 512 (order: 3, 32768 bytes)
[    0.323208] pinctrl core: initialized pinctrl subsystem
[    0.324107] NET: Registered protocol family 16
[    0.325083] DMA: preallocated 256 KiB pool for atomic coherent allocations
[    0.360255] cpuidle: using governor ladder
[    0.390283] cpuidle: using governor menu
[    0.398965] OMAP GPIO hardware version 0.1
[    0.405580] irq: no irq domain found for /ocp/l4@4a000000/scm@2000/pinmux@1400 !
[    0.422828] omap-gpmc 50000000.gpmc: GPMC revision 6.0
[    0.422841] gpmc_mem_init: disabling cs 0 mapped at 0x0-0x1000000
[    0.432096] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[    0.432106] hw-breakpoint: maximum watchpoint size is 8 bytes.
[    0.432593] omap4_sram_init:Unable to allocate sram needed to handle errata I688
[    0.432603] omap4_sram_init:Unable to get sram pool needed to handle errata I688
[    0.433092] OMAP DMA hardware revision 0.0
[    0.471598] omap-dma-engine 4a056000.dma-controller: OMAP DMA engine driver (LinkedList1/2/3 supported)
[    0.472770] edma 43300000.edma: memcpy is disabled
[    0.477491] edma 43300000.edma: TI EDMA DMA engine driver
[    0.481947] omap-iommu 40d01000.mmu: 40d01000.mmu registered
[    0.482123] omap-iommu 40d02000.mmu: 40d02000.mmu registered
[    0.482280] omap-iommu 58882000.mmu: 58882000.mmu registered
[    0.482434] omap-iommu 55082000.mmu: 55082000.mmu registered
[    0.482739] omap-iommu 41501000.mmu: 41501000.mmu registered
[    0.482926] omap-iommu 41502000.mmu: 41502000.mmu registered
[    0.485960] palmas 0-0058: IRQ missing: skipping irq request
[    0.501276] palmas 0-0058: Muxing GPIO 51, PWM 0, LED 2
[    0.563277] pcf857x: probe of 0-0020 failed with error -121
[    0.563536] pcf857x: probe of 0-0021 failed with error -121
[    0.563698] omap_i2c 48070000.i2c: bus 0 rev0.12 at 400 kHz
[    0.564107] omap_i2c 48060000.i2c: bus 2 rev0.12 at 400 kHz
[    0.564307] media: Linux media interface: v0.10
[    0.564357] Linux video capture interface: v2.00
[    0.564397] pps_core: LinuxPPS API ver. 1 registered
[    0.564404] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.564431] PTP clock support registered
[    0.564474] EDAC MC: Ver: 3.0.0
[    0.565242] omap-mailbox 48840000.mailbox: omap mailbox rev 0x400
[    0.565534] omap-mailbox 48842000.mailbox: omap mailbox rev 0x400
[    0.565880] Advanced Linux Sound Architecture Driver Initialized.
[    0.566748] clocksource: Switched to clocksource arch_sys_counter
[    0.577367] NET: Registered protocol family 2
[    0.577875] TCP established hash table entries: 8192 (order: 3, 32768 bytes)
[    0.577941] TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
[    0.578066] TCP: Hash tables configured (established 8192 bind 8192)
[    0.578121] UDP hash table entries: 512 (order: 2, 16384 bytes)
[    0.578152] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[    0.578366] NET: Registered protocol family 1
[    0.578624] RPC: Registered named UNIX socket transport module.
[    0.578632] RPC: Registered udp transport module.
[    0.578639] RPC: Registered tcp transport module.
[    0.578645] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.579687] hw perfevents: enabled with armv7_cortex_a15 PMU driver, 7 counters available
[    0.588701] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.589331] NFS: Registering the id_resolver key type
[    0.589363] Key type id_resolver registered
[    0.589370] Key type id_legacy registered
[    0.589433] ntfs: driver 2.1.32 [Flags: R/O].
[    0.590726] bounce: pool size: 64 pages
[    0.590871] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 247)
[    0.590887] io scheduler noop registered
[    0.590901] io scheduler deadline registered
[    0.590936] io scheduler cfq registered (default)
[    0.595835] pinctrl-single 4a003400.pinmux: 282 pins at pa fc003400 size 1128
[    0.599082] PCI host bridge /ocp/axi@0/pcie_rc@51000000 ranges:
[    0.599095]   No bus range found for /ocp/axi@0/pcie_rc@51000000, using [bus 00-ff]
[    0.599129]    IO 0x20003000..0x20012fff -> 0x00000000
[    0.599150]   MEM 0x20013000..0x2fffffff -> 0x20013000
[    0.629396] dra7-pcie 51000000.pcie_rc: link is not up
[    0.629567] dra7-pcie 51000000.pcie_rc: PCI host bridge to bus 0000:00
[    0.629580] pci_bus 0000:00: root bus resource [bus 00-ff]
[    0.629591] pci_bus 0000:00: root bus resource [io  0x0000-0xffff]
[    0.629600] pci_bus 0000:00: root bus resource [mem 0x20013000-0x2fffffff]
[    0.630017] PCI: bus0: Fast back to back transfers disabled
[    0.630143] PCI: bus1: Fast back to back transfers enabled
[    0.630226] pci 0000:00:00.0: BAR 0: assigned [mem 0x20100000-0x201fffff]
[    0.630241] pci 0000:00:00.0: BAR 1: assigned [mem 0x20020000-0x2002ffff]
[    0.630254] pci 0000:00:00.0: PCI bridge to [bus 01]
[    0.630471] pcieport 0000:00:00.0: Signaling PME through PCIe PME interrupt
[    0.690846] Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
[    0.694248] console [ttyS0] disabled
[    0.694302] 4806a000.serial: ttyS0 at MMIO 0x4806a000 (irq = 301, base_baud = 3000000) is a 8250
[    1.683640] console [ttyS0] enabled
[    1.688056] 4806c000.serial: ttyS1 at MMIO 0x4806c000 (irq = 302, base_baud = 3000000) is a 8250
[    1.697755] 48020000.serial: ttyS2 at MMIO 0x48020000 (irq = 303, base_baud = 3000000) is a 8250
[    1.707404] 4ae2b000.serial: ttyS9 at MMIO 0x4ae2b000 (irq = 304, base_baud = 3000000) is a 8250
[    1.717457] [drm] Initialized drm 1.1.0 20060810
[    1.722986] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[    1.729647] [drm] No driver support for vblank timestamp query.
[    1.735776] [drm] Initialized vdrm 1.0.0 20110917 on minor 0
[    1.748890] loop: module loaded
[    1.752429] vmemexp device MAJOR num = 245
[    1.756556] vmemexp class registered
[    1.760286] /dev/vmemexp device registered
[    1.764399] ioctl DBUFIOC_EXPORT_VIRTMEM = -1072899120
[    1.770111] nand: No NAND device found
[    1.773880] omap2-nand 8000000.nand: scan failed, may be bus-width mismatch
[    1.783724] m25p80 spi32766.0: unrecognized JEDEC id bytes: 00,  0,  0
[    1.791506] libphy: Fixed MDIO Bus: probed
[    1.846780] davinci_mdio 48485000.mdio: davinci mdio revision 1.6
[    1.852902] davinci_mdio 48485000.mdio: no live phy, scanning all
[    1.956750] davinci_mdio 48485000.mdio: timed out waiting for user access
[    2.056750] davinci_mdio 48485000.mdio: timed out waiting for idle
[    2.062983] davinci_mdio: probe of 48485000.mdio failed with error -5
[    2.070104] cpsw 48484000.ethernet: Detected MACID = 4c:3f:d3:54:98:88
[    2.076772] cpsw 48484000.ethernet: cpts: overflow check period 800
[    2.083729] cpsw 48484000.ethernet: cpsw: Detected MACID = 4c:3f:d3:54:98:89
[    2.091347] PPP generic driver version 2.4.2
[    2.096871] mousedev: PS/2 mouse device common for all mice
[    2.113108] i2c /dev entries driver
[    2.121940] omap_hsmmc 4809c000.mmc: Got CD GPIO
[    2.127630] omap_hsmmc 480b4000.mmc: no pinctrl state for sdr25 mode
[    2.134014] omap_hsmmc 480b4000.mmc: no pinctrl state for sdr12 mode
[    2.140590] evm_3v3_sw: supplied by sysen1
[    2.145241] omap_hsmmc: probe of 480b4000.mmc failed with error -1
[    2.270751] ledtrig-cpu: registered to indicate activity on CPUs
[    2.279230] 	[AK4951] ak4951_modinit(1582)
[    2.283870] evm_3v3_sw: supplied by sysen1
[    2.289479] tlv320aic3x-codec 0-0019: Failed to get supply 'IOVDD': -1
[    2.296038] tlv320aic3x-codec 0-0019: Failed to request supplies: -1
[    2.302545] tlv320aic3x-codec: probe of 0-0019 failed with error -1
[    2.310822] davinci-mcasp 4847c000.mcasp: invalid tdm slots: 0
[    2.318211] NET: Registered protocol family 10
[    2.333466] sit: IPv6 over IPv4 tunneling driver
[    2.338719] NET: Registered protocol family 17
[    2.343390] Key type dns_resolver registered
[    2.347824] omap_voltage_late_init: Voltage driver support not added
[    2.354707] Adding alias for supply vdd,cpu0 -> vdd,4a003b20.oppdm
[    2.360934] Adding alias for supply vbb,cpu0 -> vbb,4a003b20.oppdm
[    2.367632] Adding alias for supply vdd,cpu0 -> vdd,4a003b20.oppdm
[    2.373840] Adding alias for supply vbb,cpu0 -> vbb,4a003b20.oppdm
[    2.380546] smps123: ramp_delay not set
[    2.385025] Power Management for TI OMAP4+ devices.
[    2.390187] Registering SWP/SWPB emulation handler
[    2.396349] dmm 4e000000.dmm: workaround for errata i878 in use
[    2.403895] dmm 4e000000.dmm: initialized all PAT entries
[    2.410349] [drm] Initialized omapdrm 1.0.0 20110917 on minor 1
[    2.427396] omap_hsmmc 4809c000.mmc: Got CD GPIO
[    2.434031] input: gpio_keys as /devices/platform/gpio_keys/input/input0
[    2.441011] hctosys: unable to open rtc device (rtc0)
[    2.447694] omap_hsmmc 4809c000.mmc: Got CD GPIO
[    2.459167] evm_1v8: disabling
[    2.462241] evm_3v3_sw: disabling
[    2.465568] aic_dvdd: disabling
[    2.468744] vmmcwl_fixed: disabling
[    2.472485] pbias_mmc_omap5: disabling
[    2.476460] ALSA device list:
[    2.479460]   No soundcards found.
[    2.483733] Waiting for root device PARTUUID=9aebabbd-02...

[END] 2019/9/26 11:06:59

  • Hi

    can you clarify if you are running on TI EVM or on a custom board

    from the boot log information that you have shared, it looks like the SD card that hosts the root filesystem is not being detected correctly as part of the boot up sequence.

    Can you review changes(if you are using custom board) with respect to handling of SD card

  • Hi Sriram,

    We run VSDK 03 05 on custom board. Now, it can boot normal. We modify dra7-evm.dts as below, but we don't know which pin we need to set, just set regulator-always-on now.

    Thanks

    Terence

    =======================================

    before:

    evm_3v3_sd: fixedregulator-sd {

    compatible = "regulator-fixed";
    regulator-name = "evm_3v3_sd";
    regulator-min-microvolt = <3300000>;
    regulator-max-microvolt = <3300000>;

    enable-active-high;

    gpio=<&pcf_gpio_21 5 GPIO_ACTIVE_HIGH>;

    ================================================

    after:

    evm_3v3_sd: fixedregulator-sd {


    compatible = "regulator-fixed";
    regulator-name = "evm_3v3_sd";
    regulator-min-microvolt = <3300000>;
    regulator-max-microvolt = <3300000>;
    regulator-always-on;
    regulator-active-high;

    };

  • Hi,

    So, it's working now and you wan to confirm the dts changes?
    Is my understanding correct?

    Regards,
    Vishal

  • Hi Terence,


    -1-

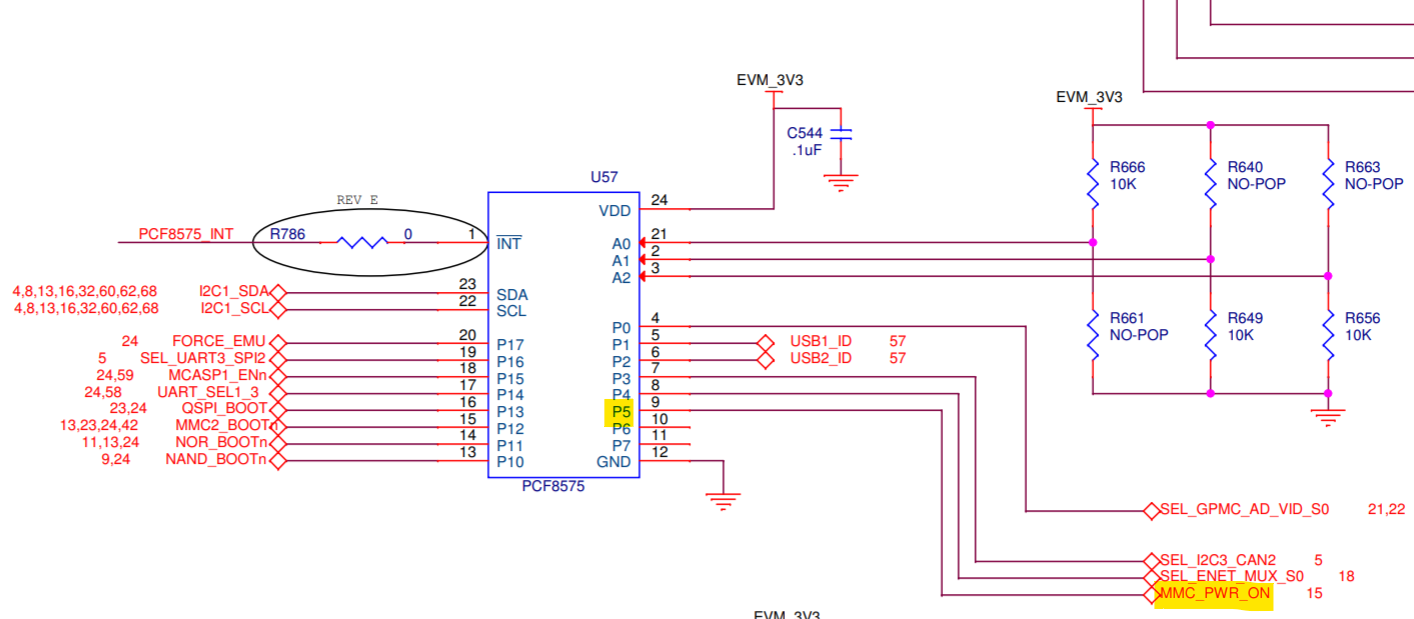

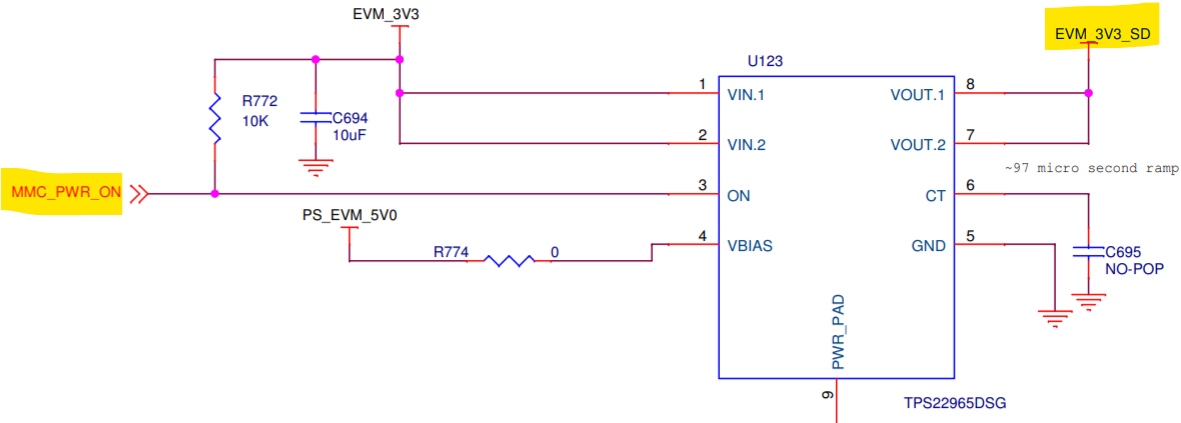

    On TI EVM, we have a GPIO that controls the power switch to turn on EVM_3V3_SD, and that's why we have the below GPIO entry in our kernel.
    Based on your board design this may not apply, so it's ok to skip this.

    gpio=<&pcf_gpio_21 5 GPIO_ACTIVE_HIGH>;





    -2-

    Based on your board design if you need this regulator to be on all the time.  You have to set the 'regulator-always-on' property.
    For more information on regulator properties of dts, refer to file Documentation/devicetree/bindings/regulator/regulator.txt in Kernel


    Regards,
    Vishal
