AM3358: Graphics SDK of am3358

Hello LIANG,

Can you make debug build and retry? Also remove all the modules from /lib/modules/ before installing the new ones.

BUILD=debug

LIANG WANG102707 said:

and it stop update since 2015 ,why?

Hello Kemal:

here is the debug build

root@DR02:/opt/gfxsdkdemos# ./335x-demo
0x10205
debug8.x
installing 8.x SGX debug user libraries

Installing PowerVR Consumer/Embedded DDK 'sgxddk_1.10@2359475' on target

File system installation root is /

Uninstalling existing version sgxddk_1.10@2359475
Uninstallation completed.
boot script rc.pvr -> /etc/init.d/rc.pvr
kernel module pvrsrvkm.ko -> /lib/modules/3.2.0/extra/pvrsrvkm.ko
kernel module omaplfb.ko -> /lib/modules/3.2.0/extra/omaplfb.ko
shared library libGLES_CM.so -> /usr/lib/libGLES_CM.so.1.10.2359475
shared library libusc.so -> /usr/lib/libusc.so.1.10.2359475
shared library libGLESv2.so -> /usr/lib/libGLESv2.so.1.10.2359475
shared library libglslcompiler.so -> /usr/lib/libglslcompiler.so.1.10.2359475
shared library libIMGegl.so -> /usr/lib/libIMGegl.so.1.10.2359475
shared library libEGL.so -> /usr/lib/libEGL.so.1.10.2359475
shared library libpvr2d.so -> /usr/lib/libpvr2d.so.1.10.2359475
shared library libpvrPVR2D_BLITWSEGL.so -> /usr/lib/libpvrPVR2D_BLITWSEGL.so.1.1 0.2359475
shared library libpvrPVR2D_FLIPWSEGL.so -> /usr/lib/libpvrPVR2D_FLIPWSEGL.so.1.1 0.2359475
shared library libpvrPVR2D_FRONTWSEGL.so -> /usr/lib/libpvrPVR2D_FRONTWSEGL.so.1 .10.2359475
shared library libpvrPVR2D_LINUXFBWSEGL.so -> /usr/lib/libpvrPVR2D_LINUXFBWSEGL. so.1.10.2359475
shared library libsrv_um.so -> /usr/lib/libsrv_um.so.1.10.2359475
shared library libsrv_init.so -> /usr/lib/libsrv_init.so.1.10.2359475
shared library libPVRScopeServices.so -> /usr/lib/libPVRScopeServices.so.1.10.23 59475
binary pvrsrvctl -> /usr/local/bin/pvrsrvctl
binary sgx_init_test -> /usr/local/bin/sgx_init_test
binary services_test -> /usr/local/bin/services_test
binary sgx_blit_test -> /usr/local/bin/sgx_blit_test
binary sgx_clipblit_test -> /usr/local/bin/sgx_clipblit_test
binary sgx_flip_test -> /usr/local/bin/sgx_flip_test
binary sgx_render_flip_test -> /usr/local/bin/sgx_render_flip_test
binary pvr2d_test -> /usr/local/bin/pvr2d_test
shader glsltest1_vertshader.txt -> /usr/local/bin/glsltest1_vertshader.txt
shader glsltest1_fragshaderA.txt -> /usr/local/bin/glsltest1_fragshaderA.txt
shader glsltest1_fragshaderB.txt -> /usr/local/bin/glsltest1_fragshaderB.txt

Installation complete!
You may now reboot your target.

[ 75.008026] Disabling lock debugging due to kernel taint
[ 75.031311] PVR: PVRCore_Init
[ 75.036041] PVR: PVRSRVDriverProbe(pDevice=df06a800)
[ 75.041564] PVR: EnableSystemClocks: Enabling System Clocks
[ 75.047454] PVR: GPTIMER11 clock is 24MHz
[ 75.052185] ------------[ cut here ]------------
[ 75.057037] WARNING: at fs/sysfs/dir.c:481 sysfs_add_one+0x88/0xa8()
[ 75.063751] sysfs: cannot create duplicate filename '/bus/platform/devices/pv rsrvkm'
[ 75.071868] Modules linked in: pvrsrvkm(O+)
[ 75.076263] Backtrace:
[ 75.078857] [<c0017dbc>] (dump_backtrace+0x0/0x10c) from [<c04a0b04>] (dump_s tack+0x18/0x1c)
[ 75.087707] r6:c00fbfdc r5:00000009 r4:de249d18 r3:c06a668c
[ 75.093658] [<c04a0aec>] (dump_stack+0x0/0x1c) from [<c003dff0>] (warn_slowpa th_common+0x54/0x6c)
[ 75.102996] [<c003df9c>] (warn_slowpath_common+0x0/0x6c) from [<c003e0ac>] (w arn_slowpath_fmt+0x38/0x40)
[ 75.112945] r8:00000001 r7:de4e6000 r6:de4e6000 r5:df3b0c20 r4:ffffffef
[ 75.119812] r3:00000009
[ 75.122558] [<c003e074>] (warn_slowpath_fmt+0x0/0x40) from [<c00fbfdc>] (sysf s_add_one+0x88/0xa8)
[ 75.131866] r3:de4e6000 r2:c05af570
[ 75.135620] [<c00fbf54>] (sysfs_add_one+0x0/0xa8) from [<c00fc878>] (sysfs_do _create_link+0xf8/0x1e0)
[ 75.145294] r7:de249d70 r6:df012db0 r5:df3b0c20 r4:df3b0680
[ 75.151275] [<c00fc780>] (sysfs_do_create_link+0x0/0x1e0) from [<c00fc974>] ( sysfs_create_link+0x14/0x18)
[ 75.161315] [<c00fc960>] (sysfs_create_link+0x0/0x18) from [<c027c888>] (bus_ add_device+0xcc/0x184)
[ 75.170806] [<c027c7bc>] (bus_add_device+0x0/0x184) from [<c027abe8>] (device _add+0x430/0x574)
[ 75.179870] r8:00000000 r7:c06c6550 r6:bf066c28 r5:00000000 r4:bf066c20
[ 75.186706] r3:00000000
[ 75.189483] [<c027a7b8>] (device_add+0x0/0x574) from [<c027eef8>] (platform_d evice_add+0xfc/0x1e8)
[ 75.198883] [<c027edfc>] (platform_device_add+0x0/0x1e8) from [<c027f230>] (p latform_device_register+0x28/0x2c)
[ 75.209472] r7:de248000 r6:c06ef140 r5:bf066df8 r4:bf066c18
[ 75.215698] [<c027f208>] (platform_device_register+0x0/0x2c) from [<bf0770ec> ] (PVRCore_Init+0xec/0x398 [pvrsrvkm])
[ 75.226623] r4:bf066df8 r3:00000000
[ 75.230468] [<bf077000>] (PVRCore_Init+0x0/0x398 [pvrsrvkm]) from [<c000876c> ] (do_one_initcall+0x128/0x1a8)
[ 75.240753] [<c0008644>] (do_one_initcall+0x0/0x1a8) from [<c006ae18>] (sys_i nit_module+0x3e4/0x1b68)
[ 75.250457] [<c006aa34>] (sys_init_module+0x0/0x1b68) from [<c0014740>] (ret_ fast_syscall+0x0/0x30)
[ 75.259948] ---[ end trace e574e16145c78813 ]---
[ 75.264862] PVR: PVRSRVDriverRemove(pDevice=df06a800)
[ 75.270355] PVR: DisableSystemClocks: Disabling System Clocks
[ 75.276489] PVR_K:(Error): PVRCore_Init: unable to register platform device ( -17) [999, home/dr/Graphics_SDK_4_10_00_01/GFX_Linux_KM/services4/srvkm/env/linu x/module.c]
BusyBox v1.20.2 (2013-06-25 16:43:45 CDT) multi-call binary.

Usage: mknod [-m MODE] NAME TYPE MAJOR MINOR

chmod: /dev/pvrsrvkm: No such file or directory

I also copy the  tisdk-rootfs-image-am335x-evm.tar.gz in  my /home/root folder of my nfs filesystem ,

which is released in 201306 of am335x-evm-sdk-bin-06.00.00.00,then I unpack it ,

it is as following ,I insert the two module it seem fine.

root@DR02:~/lib/modules/3.2.0/kernel/drivers/gpu/pvr# ls
bufferclass_ti.ko omaplfb.ko pvrsrvkm.ko

root@DR02:~/lib/modules/3.2.0/kernel/drivers/gpu/pvr# lsmod
Module Size Used by
omaplfb 11075 0
pvrsrvkm 170641 1 omaplfb

but when I run the tool in my nfs ~/usr/bin/

./gles2test1

it output nothing ,then end.

Best regards

wangl

Hello Wangl,

We do not support gfxsdk anymore and please refer to our latest PSDK. I found an old thread with a similar issue and please refer to the following thread.

Regards,
Krunal

Hello Krunal:

Thanks for your answer, yes ,it do work

 make BUILD=release  FBDEV=yes OMAPES=8.x all PM_RUNTIME=1  install

root@DR02:~# source gfx_check.sh

WSEGL settings
[default]
WindowSystem=libpvrPVR2D_FRONTWSEGL.so
#WindowSystem=libpvrPVR2D_FLIPWSEGL.so

------
ARM CPU information
Processor : ARMv7 Processor rev 2 (v7l)
BogoMIPS : 996.14
Features : swp half thumb fastmult vfp edsp thumbee neon vfpv3 tls
CPU implementer : 0x41
CPU architecture: 7
CPU variant : 0x3
CPU part : 0xc08
CPU revision : 2

Hardware : am335xevm
Revision : 0000
Serial : 0000000000000000
------
SGX driver information
Version SGX_DDK_Linux_CustomerTI sgxddk 1.10@2359475 (release) /home/dr/workspace/Graphics_SDK_4_10_00_01/GFX_Linux_KM
System Version String: None
------
Framebuffer settings

mode "1280x800-35"
# D: 40.000 MHz, H: 29.630 kHz, V: 35.148 Hz
geometry 1280 800 1280 1600 16
timings 25000 5 64 2 40 1 1
rgba 5/11,6/5,5/0,0/0
endmode

Frame buffer device information:
Name : DA8xx FB Drv
Address : 0x9f400000
Size : 4096000
Type : PACKED PIXELS
Visual : TRUECOLOR
XPanStep : 0
YPanStep : 1
YWrapStep : 0
LineLength : 2560
Accelerator : No
------
Rotation settings
0
------
Kernel Module information
Module Size Used by
omaplfb 10959 0
pvrsrvkm 170386 1 omaplfb
------
Boot settings
console=ttyO0,115200 root=/dev/nfs ip=192.168.1.171:::::eth0:off nfsroot=192.168.1.38:/export/rootfs,v3,tcp
------
Linux Kernel version
Linux DR02 3.2.0 #212 Thu Oct 31 15:52:34 CST 2019 armv7l GNU/Linux

root@DR02:/etc/init.d# lsmod
Module Size Used by
omaplfb 10959 0
pvrsrvkm 170386 1 omaplfb

however,I comment the following pvrsrvctl  command in /etc/init.d/rc.pver,

If I dont comment it  the omaplfb module will not  be inserted.

# if ! /usr/local/bin/pvrsrvctl --start --no-module; then return; fi

Because the pvrsrvctl will fail , following is output of

strace  /usr/local/bin/pvrsrvctl --start --no-module

execve("/usr/local/bin/pvrsrvctl", ["/usr/local/bin/pvrsrvctl", "--start", "--no-module"], [/* 27 vars */]) = 0
brk(0) = 0x11000
uname({sys="Linux", node="DR02", ...}) = 0
access("/etc/ld.so.nohwcap", F_OK) = -1 ENOENT (No such file or directory)
mmap2(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x40016000
access("/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
open("/usr/local/XSGX/lib/tls/v7l/neon/vfp/libsrv_init.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT (No such file or directory)

open("/usr/lib/vfp/libsrv_init.so", O_RDONLY|O_CLOEXEC) = -1 ENOENT (No such file or directory)
stat64("/usr/lib/vfp", 0xbec79240) = -1 ENOENT (No such file or directory)

.

.

open("/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3

.

open("/usr/lib/libsrv_init.so", O_RDONLY|O_CLOEXEC) = 3

read(3, "\177ELF\1\1\1\0\0\0\0\0\0\0\0\0\3\0(\0\1\0\0\0\220\7\0\0004\0\0\0"..., 512) = 512
lseek(3, 93288, SEEK_SET) = 93288
read(3, "\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0"..., 960) = 960
lseek(3, 92976, SEEK_SET) = 92976
read(3, "A2\0\0\0aeabi\0\1(\0\0\0\0057-A\0\6\n\7A\10\1\t\2\n\3\f"..., 51) = 51
exit_group(1) = ?
+++ exited with 1 +++

why it failed?

Hello,

As mentioned above, we do not support GFXSDK anymore and please migrate to newer SDK.

Regards,
Krunal

Hello Krunal:

Is there any doc ,how to build custom qt5 with opengl support  uing the new TI sdk,such as TI SDK V03_03_00_04?

when I build the Qt5.5.1 meet the problem

backend/qgraphicscontext.cpp:1035:22: error: ‘Qt3D::QAttribute::DataType’ is not a class or namespace

Best regards

wangl

Hello,

We use the Yocto Project to integrate Qt into our PSDK and here are a couple of links to get you familiar with Yocto:
1. http://software-dl.ti.com/processor-sdk-linux/esd/docs/latest/linux/Overview_Building_the_SDK.html
2. https://training.ti.com/customizing-yocto-for-production-packagegroups

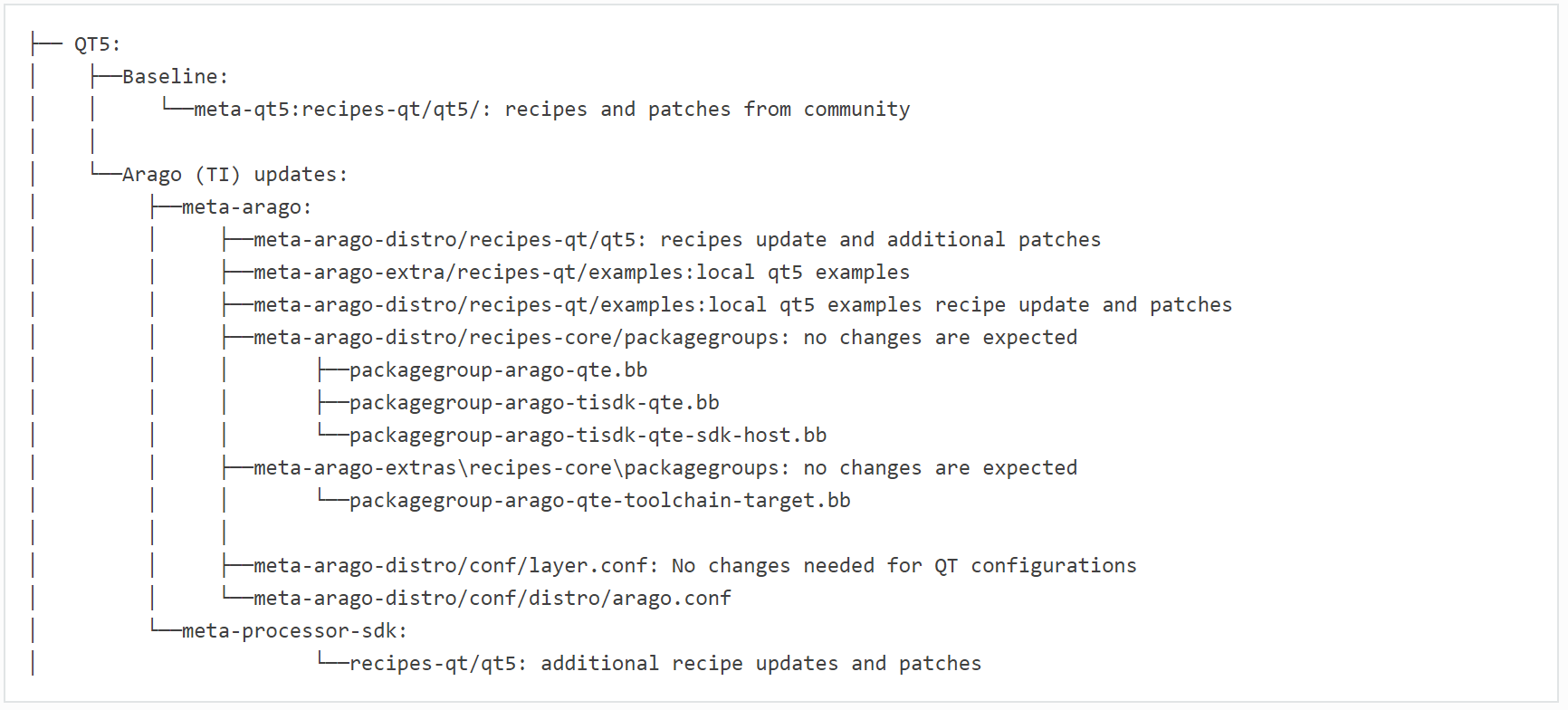

Here is an image that describes all the recipes we have modified for Qt:


Regards,
Krunal

Hello Krunal:

I have compile the Qt5.6.0 with the arm-linux-gnueabihf-gcc-4.7.3 and  Graphics_SDK_4_10_00_01

and I run sgx_init_test sgx_flip_test sgx_clipblit_test sgx_blit_test both run fine.

the following is the result of  sgx_flip_test

----------------------- Start -----------------------
Call PVRSRVConnect with a valid argument:
OK
Get number of devices from PVRSRVEnumerateDevices:
OK
.... Reported 1 devices
.... Device Number | Device Type
0000 | PVRSRV_DEVICE_ID_SGX
Attempt to acquire device 0:
OK
Getting SGX Client info
OK
.... ui32ProcessID:1329
Display Class API: enumerate devices
OK
PVRSRVEnumerateDeviceClass() returns 1 display device(s)
OK
Attempt to create memory context for SGX:
OK
Display Class API: open device
OK
Display Class API: Get display info
OK
.... Name:PowerVR OMAP Linux Display Driver
.... MaxSwapChains:1
.... MaxSwapChainBuffers:2
.... MinSwapInterval:0
.... MaxSwapInterval:1
Display Class API: enumerate display formats
OK
OK
.... Display format 0 - Pixelformat:1
Display Class API: enumerate display dimensions
OK
OK
.... Display dimensions 0 - ByteStride:2560 Width:1280 Height:800
Display Class API: get the system (primary) buffer
OK
.... Shared heap 0 - HeapID:0x7000000 DevVAddr:0x1000 Size:0x87fe000 Attr:0x2014200
.... Shared heap 1 - HeapID:0x7000001 DevVAddr:0xc800000 Size:0xfff000 Attr:0x2024200
.... Shared heap 2 - HeapID:0x7000002 DevVAddr:0xe400000 Size:0x7f000 Attr:0x2024200
.... Shared heap 3 - HeapID:0x7000003 DevVAddr:0xf000000 Size:0x3ff000 Attr:0x2024200
.... Shared heap 4 - HeapID:0x7000004 DevVAddr:0xf400000 Size:0x4ff000 Attr:0x2014200
.... Shared heap 5 - HeapID:0x7000005 DevVAddr:0xfc00000 Size:0x1ff000 Attr:0x2014200
.... Shared heap 6 - HeapID:0x7000006 DevVAddr:0xdc00000 Size:0x7ff000 Attr:0x2014200
.... Shared heap 7 - HeapID:0x7000007 DevVAddr:0xe800000 Size:0x7ff000 Attr:0x2014200
.... Shared heap 8 - HeapID:0x7000008 DevVAddr:0xd800000 Size:0x3ff000 Attr:0x2024200
.... Shared heap 9 - HeapID:0x7000009 DevVAddr:0x8800000 Size:0x0 Attr:0x2024200
.... Shared heap 10 - HeapID:0x700000a DevVAddr:0x8800000 Size:0x3fff000 Attr:0x2014200
Display Class API: map display surface to SGX
OK
FAIL - PVRSRV_ERROR_TOOMANYBUFFERS

kernel is also fine:

root@DR02:~# lsmod
Module Size Used by
omaplfb 10967 0
pvrsrvkm 170426 1 omaplfb

I found that  on https://doc.qt.io/archives/qt-5.6/embedded-linux.html

 some devices require vendor-specific adaptation code for EGL and OpenGL ES 2.0 support.

This is not relevant for non-accelerated platforms, for example the ones using the LinuxFB plugin, which is meant for software-based rendering only.

so  export QT_QPA_PLATFORM=linuxfb:fb=/dev/fb0 should be wrong.

so I change export environment as following

root@DR02:~# export
export EDITOR="/bin/vi"
export HOME="/home/root"
export HUSHLOGIN="FALSE"
export HZ="100"
export LD_LIBRARY_PATH="/usr/lib/plugins"
export LOGNAME="root"
export OLDPWD="/usr/lib/plugins/platforms"
export OPIEDIR
export PATH="/usr/local/bin:/usr/bin:/bin:/usr/local/sbin:/usr/sbin:/sbin"
export PS1="\\u@\\h:\\w\\\$ "
export PWD="/home/root"
export QPEDIR
export QTDIR="/usr"
export QT_QPA_EGLFS_FB="/dev/fb0"
export QT_QPA_EGLFS_HEIGHT="800"
export QT_QPA_EGLFS_PHYSICAL_HEIGHT="800"
export QT_QPA_EGLFS_PHYSICAL_WIDTH="1280"
export QT_QPA_EGLFS_WIDTH="1280"
export QT_QPA_FB_TSLIB="1"
export QT_QPA_FONTDIR="/usr/lib/fonts"
export QT_QPA_GENERIC_PLUGINS="tslib:/dev/input/touchscreen0"
export QT_QPA_PLATFORM="eglfs"
export QT_QPA_PLATFORM_PLUGIN_PATH="/usr/lib/plugins"
export QWS_MOUSE_PROTO
export SHELL="/bin/sh"
export SHLVL="1"
export TERM="linux"
export TSLIB_CONFFILE="/etc/ts.conf"
export TSLIB_TSDEVICE="/dev/input/touchscreen0"
export TZ="UTC"
export USER="root"

but when I run the opengl_demo  from the following

www.trentreed.net/.../

But it report that

root@DR02:~# ./0_OpenGLWindow
Cannot find EGLConfig, returning null config
EGL Error : Could not create the egl surface: error = 0x3005

what is wrong?

Best regards

wangl

Dear Krunal:

The man in OGLES2ChameleonMan run very fast.on my machine

It is only Qt problem,not related to Graphics_SDK .

Best regards

wangl

Hello,

As mentioned in the following document, TI SDK integrates many open source software but we do not own, maintain and support all the packages. Please post Qt specific questions on Qt forms.

QT Framework

• https://www.qt.io
• https://doc.qt.io
• https://forum.qt.io

Also, please try running the Qt out of box examples included in the folder "/usr/share/qt5/examples" of the TI filesystem.

Regards,
Krunal

Dear Krunal:

I have change to ti sdk version V03_03_00_04

and I use the bigger one rootfs in  am335x-evm-linux-sdk-bin-03.03.00.04  as my nfs rootfs.

When I run

root@am335x-evm:/etc/init.d# source rc.pvr start
Loaded PowerVR consumer services.

root@am335x-evm:/usr/bin/SGX/demos/Raw# ./OGLES2ExampleUI
Can't open keypad input device (/dev/input/event0)
PVR:(Error): WSEGL_InitialiseDisplay: Failed to open primary device: No such file or directory [0, ]
Exit message has been set to: "PVRShell: Unable to initialise EGL
".
PVRShell: EGL Error (EGL_NOT_INITIALIZED)
InitAPI failed!

root@am335x-evm:/usr/bin/SGX/demos/Raw# lsmod
Module Size Used by
bc_example 7250 0
pvrsrvkm 406839 1 bc_example

why the demo failed?

and when I run the qt5 opengl demo

root@am335x-evm:~# ./0_OpenGLWindow
failed to load module: /usr/lib/gbm/gbm_dri.so: cannot open shared object file: No such file or directory
failed to load module: /usr/lib/gbm/gbm_gallium_drm.so: cannot open shared object file: No such file or directory
loaded module : gbm_pvr.so
found valid GBM backend : gbm_pvr.so
PVR:(Error): [ 1909-> 1909] < gbm_pvr_create_device():585|ERROR> Failed to create DBM device: No such device [0, ]
Could not create GBM device (No such device)
Could not open device /dev/dri/card0 - aborting!

Can you tell me why?

Best regards

wangl

Hello Krunal:

I have changed the configure according

e2e.ti.com/.../831112

cat /etc/powervr.ini
[default]
WindowSystem=libpvrGBMWSEGL.so

./0_OpenGLWindow
failed to load module: /usr/lib/gbm/gbm_dri.so: cannot open shared object file: No such file or directory
failed to load module: /usr/lib/gbm/gbm_gallium_drm.so: cannot open shared object file: No such file or directory
loaded module : gbm_pvr.so
found valid GBM backend : gbm_pvr.so
Could not create buffer for cursor!
Failed to move cursor on screen LVDS1: -14
No such plugin for spec "tslib:/dev/input/touchscreen0"
Cannot find EGLConfig, returning null config
EGL Error : Could not create the egl surface: error = 0x3005

The error  is same as when I use old sdk. But I am using the newer sdk which have qt5.6.2 in it.

Best regards

wangl

Hello Wangl,

I am wondering if you could please download the latest PSDK from the following link. In the TI file-system, we have pre-built Qt examples under the following directory: "/usr/share/qt5/examples". I am able to run the examples without any problems.

Regards,
Krunal
