xds110

leizhiguang lzg

Other Parts Discussed in Thread: TMDSEMU110-U

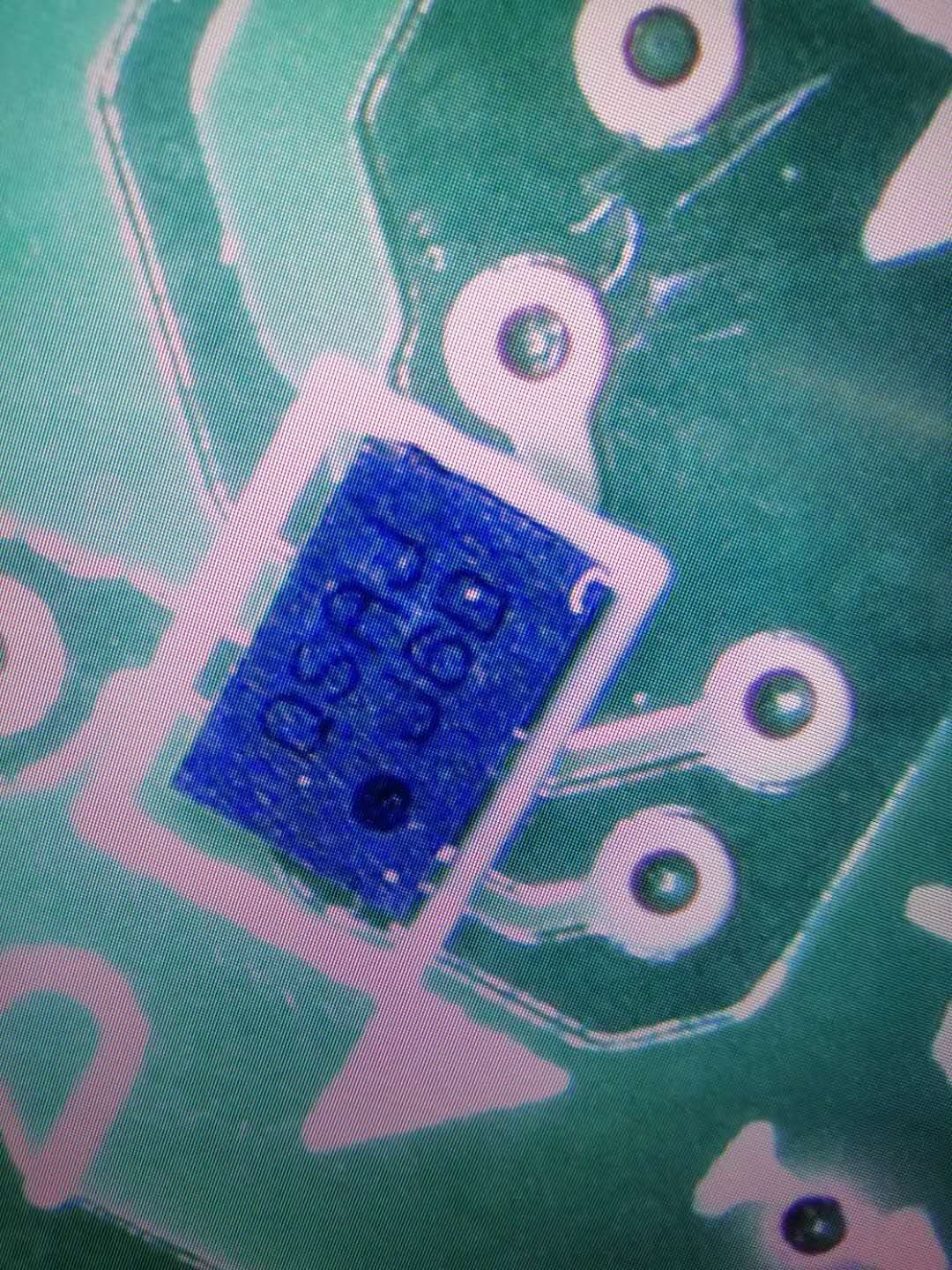

I USE XDS110,but now it is bad,i find hte part is very heat,i think this ic is bad.i want buy this ic to replace it.but i don't know the full style,this ic silkscreen is "QSAJ J6D",please tell me the full style.thank

over 6 years ago

0 leizhiguang lzg over 6 years ago

Intellectual 540 points

it is U8 U10 U23

0 Yordan Kovachev over 6 years ago in reply to leizhiguang lzg

TI__Guru**** 161600 points

Which board is this? Check the evm schematics.

Best Regards,
Yordan

0 leizhiguang lzg over 6 years ago in reply to Yordan Kovachev

Intellectual 540 points

it is "TMDSEMU110-U",ti have not give schematics,please help me,thanks a lot.if can not give schematics,please tell me the ic full style ,U8 U10 U23,

0 leizhiguang lzg over 6 years ago in reply to Yordan Kovachev

Intellectual 540 points

it is "TMDSEMU110-U",ti have not give schematics,please help me,thanks a lot.if can not give schematics,please tell me the ic full style ,U8 U10 U23,

www.ti.com.cn/.../TMDSEMU110-U

0 Yordan Kovachev over 6 years ago in reply to leizhiguang lzg

TI__Guru**** 161600 points

Hi,

Unfortunately it seems that TMDSEMU110-U design files (schematics, BOM and so on) are not public, see:

https://e2e.ti.com/support/tools/ccs/f/81/t/734558

and I cannot discuss them on the forum.

Best Regards,
Yordan
