Part Number: TDA4VM
Other Parts Discussed in Thread: UNIFLASH
Tool/software: TI C/C++ Compiler
NOTICE: BL31: v2.2(release):ti2019.05-rc1 NOTICE: BL31: Built : 09:32:00, Feb 17 2020 I/TC: I/TC: OP-TEE version: ti2019.05-rc1-dev (gcc version 8.3.0 (GNU Toolchain for the A-profile Architecture 8.3-2019.03 (arm-rel-8.36))) #1 Mon Feb 17 09:40:16 UTC 2020 aarch64 I/TC: Initialized [ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x411fd080] [ 0.000000] Linux version 4.19.94-g5a23bc00e0 (oe-user@oe-host) (gcc version 8.3.0 (GNU Toolchain for the A-profile Architecture 8.3-2019.03 (arm-rel-8.36))) #1 SMP PREEMPT Mon Feb 17 09:01:06 UTC 2020 [ 0.000000] Machine model: Texas Instruments K3 J721E SoC [ 0.000000] earlycon: ns16550a0 at MMIO32 0x0000000002800000 (options '') [ 0.000000] bootconsole [ns16550a0] enabled [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a0000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a0000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a0100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a0100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a1000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a1000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a1100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a1100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a2000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a2000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a2100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a2100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a3000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a3000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a3100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a3100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a4000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a4000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a4100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a4100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a5000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a5000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a5100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a5100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a6000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node c66-dma-memory@a6000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a6100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node c66-memory@a6100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a7000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node c66-dma-memory@a7000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a7100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node c66-memory@a7100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a8000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node c71-dma-memory@a8000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a8100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node c71-memory@a8100000, compatible id shared-dma-pool [ 0.000000] cma: Reserved 512 MiB at 0x00000000e0000000 [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: Trusted OS migration not required [ 0.000000] psci: SMC Calling Convention v1.1 [ 0.000000] random: get_random_bytes called from start_kernel+0x94/0x3e4 with crng_init=0 [ 0.000000] percpu: Embedded 2 pages/cpu s48536 r8192 d74344 u131072 [ 0.000000] Detected PIPT I-cache on CPU0 [ 0.000000] CPU features: enabling workaround for EL2 vector hardening [ 0.000000] Speculative Store Bypass Disable mitigation not required [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 62339 [ 0.000000] Kernel command line: console=ttyS2,115200n8 earlycon=ns16550a,mmio32,0x02800000 [ 0.000000] Dentry cache hash table entries: 524288 (order: 6, 4194304 bytes) [ 0.000000] Inode-cache hash table entries: 262144 (order: 5, 2097152 bytes) [ 0.000000] software IO TLB: mapped [mem 0xdbff0000-0xdfff0000] (64MB) [ 0.000000] Memory: 3377664K/3993600K available (8510K kernel code, 738K rwdata, 3136K rodata, 576K init, 641K bss, 91648K reserved, 524288K cma-reserved) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Preemptible hierarchical RCU implementation. [ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=64 to nr_cpu_ids=2. [ 0.000000] Tasks RCU enabled. [ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: Distributor has no Range Selector support [ 0.000000] GICv3: no VLPI support, no direct LPI support [ 0.000000] ITS [mem 0x01820000-0x0182ffff] [ 0.000000] GIC: enabling workaround for ITS: Socionext Synquacer pre-ITS [ 0.000000] ITS@0x0000000001820000: allocated 1048576 Devices @8c0800000 (flat, esz 8, psz 64K, shr 0) [ 0.000000] ITS: using cache flushing for cmd queue [ 0.000000] GIC: using LPI property table @0x00000008c00a0000 [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x0000000001900000 [ 0.000000] CPU0: using LPI pending table @0x00000008c00b0000 [ 0.000000] GIC: using cache flushing for LPI property table [ 0.000000] arch_timer: cp15 timer(s) running at 200.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2e2049d3e8, max_idle_ns: 440795210634 ns [ 0.000002] sched_clock: 56 bits at 200MHz, resolution 5ns, wraps every 4398046511102ns [ 0.010453] Console: colour dummy device 80x25 [ 0.016153] Calibrating delay loop (skipped), value calculated using timer frequency.. 400.00 BogoMIPS (lpj=800000) [ 0.029488] pid_max: default: 32768 minimum: 301 [ 0.035419] Security Framework initialized [ 0.040677] Mount-cache hash table entries: 8192 (order: 0, 65536 bytes) [ 0.049249] Mountpoint-cache hash table entries: 8192 (order: 0, 65536 bytes) [ 0.082427] ASID allocator initialised with 32768 entries [ 0.097337] rcu: Hierarchical SRCU implementation. [ 0.111546] Platform MSI: gic-its@1820000 domain created [ 0.118586] PCI/MSI: /interconnect@100000/interrupt-controller@1800000/gic-its@1820000 domain created [ 0.138379] smp: Bringing up secondary CPUs ... [ 0.176522] Detected PIPT I-cache on CPU1 [ 0.176550] GICv3: CPU1: found redistributor 1 region 0:0x0000000001920000 [ 0.176587] CPU1: using LPI pending table @0x00000008c0310000 [ 0.176621] CPU1: Booted secondary processor 0x0000000001 [0x411fd080] [ 0.176684] smp: Brought up 1 node, 2 CPUs [ 0.211483] SMP: Total of 2 processors activated. [ 0.217496] CPU features: detected: GIC system register CPU interface [ 0.225723] CPU features: detected: 32-bit EL0 Support [ 0.232598] CPU: All CPU(s) started at EL2 [ 0.237833] alternatives: patching kernel code [ 0.244125] devtmpfs: initialized [ 0.254577] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns [ 0.267041] futex hash table entries: 512 (order: -1, 32768 bytes) [ 0.275798] pinctrl core: initialized pinctrl subsystem [ 0.282993] NET: Registered protocol family 16 [ 0.289097] vdso: 2 pages (1 code @ (____ptrval____), 1 data @ (____ptrval____)) [ 0.298552] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers. [ 0.310075] DMA: preallocated 256 KiB pool for atomic allocations [ 0.327287] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages [ 0.335862] HugeTLB registered 512 MiB page size, pre-allocated 0 pages [ 0.345203] cryptd: max_cpu_qlen set to 1000 [ 0.351404] vsys_3v3: supplied by evm_12v0 [ 0.356762] vsys_5v0: supplied by evm_12v0 [ 0.362459] SCSI subsystem initialized [ 0.367549] media: Linux media interface: v0.10 [ 0.373353] videodev: Linux video capture interface: v2.00 [ 0.380372] pps_core: LinuxPPS API ver. 1 registered [ 0.386712] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> [ 0.398386] PTP clock support registered [ 0.403402] EDAC MC: Ver: 3.0.0 [ 0.408289] Advanced Linux Sound Architecture Driver Initialized. [ 0.416515] clocksource: Switched to clocksource arch_sys_counter [ 0.424402] VFS: Disk quotas dquot_6.6.0 [ 0.429455] VFS: Dquot-cache hash table entries: 8192 (order 0, 65536 bytes) [ 0.441476] NET: Registered protocol family 2 [ 0.447448] tcp_listen_portaddr_hash hash table entries: 4096 (order: 0, 65536 bytes) [ 0.457514] TCP established hash table entries: 32768 (order: 2, 262144 bytes) [ 0.466869] TCP bind hash table entries: 32768 (order: 3, 524288 bytes) [ 0.475951] TCP: Hash tables configured (established 32768 bind 32768) [ 0.484380] UDP hash table entries: 2048 (order: 0, 65536 bytes) [ 0.492112] UDP-Lite hash table entries: 2048 (order: 0, 65536 bytes) [ 0.500468] NET: Registered protocol family 1 [ 0.506310] RPC: Registered named UNIX socket transport module. [ 0.513877] RPC: Registered udp transport module. [ 0.519881] RPC: Registered tcp transport module. [ 0.525885] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.534483] hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available [ 0.546473] Initialise system trusted keyrings [ 0.552262] workingset: timestamp_bits=46 max_order=16 bucket_order=0 [ 0.562443] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.570161] NFS: Registering the id_resolver key type [ 0.576623] Key type id_resolver registered [ 0.581964] Key type id_legacy registered [ 0.587086] nfs4filelayout_init: NFSv4 File Layout Driver Registering... [ 0.595734] 9p: Installing v9fs 9p2000 file system support [ 0.604591] Key type asymmetric registered [ 0.609824] Asymmetric key parser 'x509' registered [ 0.616082] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 245) [ 0.625533] io scheduler noop registered [ 0.630541] io scheduler deadline registered [ 0.636048] io scheduler cfq registered (default) [ 0.642056] io scheduler mq-deadline registered [ 0.647839] io scheduler kyber registered [ 0.654087] pinctrl-single 4301c000.pinmux: 94 pins, size 376 [ 0.661702] pinctrl-single 11c000.pinmux: 173 pins, size 692 [ 0.669417] pinctrl-single a40000.timesync_router: 512 pins, size 2048 [ 0.680867] ti-pat 31010000.pat: Found PAT Rev 1.0 with 16384 pages [ 0.688889] ti-pat 31010000.pat: Failed to create 31010000.pat debugfs directory [ 0.698511] ti-pat 31011000.pat: Found PAT Rev 1.0 with 16384 pages [ 0.706527] ti-pat 31011000.pat: Failed to create 31011000.pat debugfs directory [ 0.716080] ti-pat 31012000.pat: Found PAT Rev 1.0 with 16384 pages [ 0.724100] ti-pat 31012000.pat: Failed to create 31012000.pat debugfs directory [ 0.733656] ti-pat 31013000.pat: Found PAT Rev 1.0 with 2048 pages [ 0.741558] ti-pat 31013000.pat: Failed to create 31013000.pat debugfs directory [ 0.751106] ti-pat 31014000.pat: Found PAT Rev 1.0 with 2048 pages [ 0.759009] ti-pat 31014000.pat: Failed to create 31014000.pat debugfs directory [ 0.770169] Serial: 8250/16550 driver, 10 ports, IRQ sharing enabled [ 0.784580] brd: module loaded [ 0.792075] loop: module loaded [ 0.797629] libphy: Fixed MDIO Bus: probed [ 0.803062] tun: Universal TUN/TAP device driver, 1.6 [ 0.809828] igbvf: Intel(R) Gigabit Virtual Function Network Driver - version 2.4.0-k [ 0.819835] igbvf: Copyright (c) 2009 - 2012 Intel Corporation. [ 0.827416] sky2: driver version 1.30 [ 0.832824] VFIO - User Level meta-driver version: 0.3 [ 0.839878] i2c /dev entries driver [ 0.844890] sdhci: Secure Digital Host Controller Interface driver [ 0.852784] sdhci: Copyright(c) Pierre Ossman [ 0.858595] sdhci-pltfm: SDHCI platform and OF driver helper [ 0.866391] ledtrig-cpu: registered to indicate activity on CPUs [ 0.875076] optee: probing for conduit method from DT. [ 0.881664] optee: revision 3.7 (5208e5c1) [ 0.881869] optee: initialized driver [ 0.892763] NET: Registered protocol family 17 [ 0.898529] 9pnet: Installing 9P2000 support [ 0.904011] Key type dns_resolver registered [ 0.909704] registered taskstats version 1 [ 0.914939] Loading compiled-in X.509 certificates [ 0.926777] ti-sci 44083000.dmsc: ABI: 2.9 (firmware rev 0x0013 '19.12.1-v2019.12a (Terrific Lla') [ 0.958577] random: fast init done [ 1.013775] omap_i2c 40b00000.i2c: bus 0 rev0.12 at 100 kHz [ 1.021184] omap_i2c 40b10000.i2c: bus 1 rev0.12 at 100 kHz [ 1.028600] omap_i2c 42120000.i2c: bus 2 rev0.12 at 100 kHz [ 1.036123] pca953x 3-0020: 3-0020 supply vcc not found, using dummy regulator [ 1.045385] pca953x 3-0020: Linked as a consumer to regulator.0 [ 1.077192] pca953x 3-0022: 3-0022 supply vcc not found, using dummy regulator [ 1.086442] pca953x 3-0022: Linked as a consumer to regulator.0 [ 1.095033] GPIO line 481 (MCASP/TRACE_MUX_S0) hogged as output/low [ 1.103439] GPIO line 482 (MCASP/TRACE_MUX_S1) hogged as output/high [ 1.111708] omap_i2c 2000000.i2c: bus 3 rev0.12 at 400 kHz [ 1.119205] omap_i2c 2010000.i2c: bus 4 rev0.12 at 400 kHz [ 1.126525] omap_i2c 2020000.i2c: bus 5 rev0.12 at 100 kHz [ 1.133964] pca953x 6-0020: 6-0020 supply vcc not found, using dummy regulator [ 1.143228] pca953x 6-0020: Linked as a consumer to regulator.0 [ 1.173351] GPIO line 464 (CODEC_RSTz) hogged as output/high [ 1.180727] omap_i2c 2030000.i2c: bus 6 rev0.12 at 400 kHz [ 1.188058] omap_i2c 2040000.i2c: bus 7 rev0.12 at 100 kHz [ 1.195360] omap_i2c 2050000.i2c: bus 8 rev0.12 at 100 kHz [ 1.202739] pca953x 9-0020: 9-0020 supply vcc not found, using dummy regulator [ 1.211995] pca953x 9-0020: Linked as a consumer to regulator.0 [ 1.241036] omap_i2c 2060000.i2c: bus 9 rev0.12 at 400 kHz [ 1.248818] ti-sci-intr interconnect@100000:interconnect@28380000:interrupt-controller2: Destination irq resource allocation failed [ 1.263938] ti-sci-intr: probe of interconnect@100000:interconnect@28380000:interrupt-controller2 failed with error -22 [ 1.278060] ti-sci-intr interconnect@100000:interconnect0:interrupt-controller1: Destination irq resource allocation failed [ 1.292288] ti-sci-intr: probe of interconnect@100000:interconnect0:interrupt-controller1 failed with error -22 [ 1.314302] cdns-torrent-phy 5050000.serdes: 4 lanes, max bit rate 5.400 Gbps [ 1.324870] cdns-pcie-host d000000.pcie: missing "mem" [ 1.331870] cdns-pcie-host d000000.pcie: Linked as a consumer to phy-5000000.serdes.0 [ 2.328534] cdns-pcie-host d000000.pcie: Phy link never came up [ 2.336101] cdns-pcie-host d000000.pcie: host bridge /interconnect@100000/pcie@2900000/pcie@d000000 ranges: [ 2.348563] cdns-pcie-host d000000.pcie: IO 0x10001000..0x10010fff -> 0x10001000 [ 2.358352] cdns-pcie-host d000000.pcie: MEM 0x4000000000..0x407fffffff -> 0x00000000 [ 2.368659] cdns-pcie-host d000000.pcie: PCI host bridge to bus 0000:00 [ 2.377113] pci_bus 0000:00: root bus resource [bus 00-0f] [ 2.384120] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] (bus address [0x10001000-0x10010fff]) [ 2.396253] pci_bus 0000:00: root bus resource [mem 0x4000000000-0x407fffffff] (bus address [0x00000000-0x7fffffff]) [ 2.409737] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x4 may corrupt adjacent RW1C bits [ 2.422076] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x4 may corrupt adjacent RW1C bits [ 2.434445] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x92 may corrupt adjacent RW1C bits [ 2.446897] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0xb2 may corrupt adjacent RW1C bits [ 2.459383] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x84 may corrupt adjacent RW1C bits [ 2.474086] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 2.484314] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x3e may corrupt adjacent RW1C bits [ 2.496763] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x3e may corrupt adjacent RW1C bits [ 2.509211] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x3e may corrupt adjacent RW1C bits [ 2.521660] pci_bus 0000:00: 2-byte config write to 0000:00:00.0 offset 0x6 may corrupt adjacent RW1C bits [ 2.535978] pci_bus 0000:00: 1-byte config write to 0000:00:00.0 offset 0x1a may corrupt adjacent RW1C bits [ 2.548441] pci 0000:00:00.0: PCI bridge to [bus 01] [ 2.555216] cdns-pcie-host d800000.pcie: missing "mem" [ 2.562216] cdns-pcie-host d800000.pcie: Linked as a consumer to phy-5010000.serdes.1 [ 3.573639] cdns-pcie-host d800000.pcie: Phy link never came up [ 3.581206] cdns-pcie-host d800000.pcie: host bridge /interconnect@100000/pcie@2910000/pcie@d800000 ranges: [ 3.593667] cdns-pcie-host d800000.pcie: IO 0x18001000..0x18010fff -> 0x18001000 [ 3.603456] cdns-pcie-host d800000.pcie: MEM 0x4100000000..0x417fffffff -> 0x00000000 [ 3.613761] cdns-pcie-host d800000.pcie: PCI host bridge to bus 0001:00 [ 3.622213] pci_bus 0001:00: root bus resource [bus 00-0f] [ 3.629219] pci_bus 0001:00: root bus resource [io 0x10000-0x1ffff] (bus address [0x18001000-0x18010fff]) [ 3.641554] pci_bus 0001:00: root bus resource [mem 0x4100000000-0x417fffffff] (bus address [0x00000000-0x7fffffff]) [ 3.657261] pci 0001:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 3.669486] pci 0001:00:00.0: PCI bridge to [bus 01] [ 3.676249] cdns-pcie-host e000000.pcie: missing "mem" [ 3.683251] cdns-pcie-host e000000.pcie: Linked as a consumer to phy-5020000.serdes.2 [ 4.694671] cdns-pcie-host e000000.pcie: Phy link never came up [ 4.702238] cdns-pcie-host e000000.pcie: host bridge /interconnect@100000/pcie@2920000/pcie@e000000 ranges: [ 4.714697] cdns-pcie-host e000000.pcie: IO 0x4400001000..0x4400010fff -> 0x00001000 [ 4.724930] cdns-pcie-host e000000.pcie: MEM 0x4400011000..0x4407ffffff -> 0x00011000 [ 4.735227] cdns-pcie-host e000000.pcie: PCI host bridge to bus 0002:00 [ 4.743679] pci_bus 0002:00: root bus resource [bus 00-0f] [ 4.750685] pci_bus 0002:00: root bus resource [io 0x20000-0x2ffff] (bus address [0x1000-0x10fff]) [ 4.762244] pci_bus 0002:00: root bus resource [mem 0x4400011000-0x4407ffffff] (bus address [0x00011000-0x07ffffff]) [ 4.777870] pci 0002:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 4.790126] pci 0002:00:00.0: PCI bridge to [bus 01] [ 4.797012] k3-ringacc: probe of 2b800000.ringacc failed with error -22 [ 4.805646] k3-ringacc: probe of 3c000000.ringacc failed with error -22 [ 4.814313] omap8250 40a00000.serial: PM domain pd:149 will not be powered off [ 4.823744] 40a00000.serial: ttyS1 at MMIO 0x40a00000 (irq = 7, base_baud = 6000000) is a 8250 [ 4.835155] 2800000.serial: ttyS2 at MMIO 0x2800000 (irq = 19, base_baud = 3000000) is a 8250 [ 4.846074] console [ttyS2] enabled [ 4.846074] console [ttyS2] enabled [ 4.854870] bootconsole [ns16550a0] disabled [ 4.854870] bootconsole [ns16550a0] disabled [ 4.865984] 2810000.serial: ttyS3 at MMIO 0x2810000 (irq = 20, base_baud = 3000000) is a 8250 [ 4.876976] 2840000.serial: ttyS6 at MMIO 0x2840000 (irq = 21, base_baud = 3000000) is a 8250 [ 4.887888] arm-smmu-v3 36600000.smmu: ias 48-bit, oas 48-bit (features 0x00001faf) [ 4.898636] arm-smmu-v3 36600000.smmu: msi_domain absent - falling back to wired irqs [ 4.910829] cdns-ufshcd 4e84000.ufs: ufshcd_populate_vreg: Unable to find vdd-hba-supply regulator, assuming enabled [ 4.923974] cdns-ufshcd 4e84000.ufs: ufshcd_populate_vreg: Unable to find vcc-supply regulator, assuming enabled [ 4.936666] cdns-ufshcd 4e84000.ufs: ufshcd_populate_vreg: Unable to find vccq-supply regulator, assuming enabled [ 4.949467] cdns-ufshcd 4e84000.ufs: ufshcd_populate_vreg: Unable to find vccq2-supply regulator, assuming enabled [ 4.962982] scsi host0: ufshcd [ 4.979421] cadence-qspi 47040000.spi: mt35xu512aba (65536 Kbytes) [ 4.998564] cdns-ufshcd 4e84000.ufs: ufshcd_print_pwr_info:[RX, TX]: gear=[1, 1], lane[1, 1], pwr[SLOWAUTO_MODE, SLOWAUTO_MODE], rate = 0 [ 5.000668] cadence-qspi 47040000.spi: Cadence QSPI NOR probe failed -517 [ 5.023379] cadence-qspi 47050000.spi: n25q512a (65536 Kbytes) [ 5.039257] cdns-ufshcd 4e84000.ufs: ufshcd_print_pwr_info:[RX, TX]: gear=[3, 3], lane[2, 2], pwr[FAST MODE, FAST MODE], rate = 2 [ 5.044640] cadence-qspi 47050000.spi: Cadence QSPI NOR probe failed -517 [ 5.053847] cdns-ufshcd 4e84000.ufs: ufshcd_find_max_sup_active_icc_level: Regulator capability was not set, actvIccLevel=0 [ 5.076353] scsi 0:0:0:49488: Well-known LUN TOSHIBA THGAF8G8T23BAILB 0300 PQ: 0 ANSI: 6 [ 5.086937] am65-cpsw-nuss 46000000.ethernet: rx-flow-id-base is not set -22 [ 5.095820] am65-cpsw-nuss 46000000.ethernet: initializing am65 cpsw nuss version 0x6BA00101, cpsw version 0x6BA80100 Ports: 2 [ 5.095939] scsi 0:0:0:49476: Well-known LUN TOSHIBA THGAF8G8T23BAILB 0300 PQ: 0 ANSI: 6 [ 5.110110] am65-cpsw-nuss 46000000.ethernet: Failed to request tx dma channel -517 [ 5.128686] cdns-ufshcd 4e84000.ufs: ufshcd_scsi_add_wlus: BOOT WLUN not found [ 5.139294] mmc0: Unknown controller version (4). You may experience problems. [ 5.148366] mmc0: CQHCI version 5.10 [ 5.183667] mmc0: SDHCI controller on 4f80000.sdhci [4f80000.sdhci] using ADMA 64-bit [ 5.199472] vdd_mmc1: supplied by vsys_3v3 [ 5.205185] pca953x 4-0020: 4-0020 supply vcc not found, using dummy regulator [ 5.214234] pca953x 4-0020: Linked as a consumer to regulator.0 [ 5.245347] GPIO line 448 (DP0_PWR_SW_EN) hogged as output/high [ 5.261759] mmc0: Command Queue Engine enabled [ 5.267317] mmc0: new HS400 MMC card at address 0001 [ 5.274008] mmcblk0: mmc0:0001 S0J56X 14.8 GiB [ 5.280045] mmcblk0boot0: mmc0:0001 S0J56X partition 1 31.5 MiB [ 5.287842] mmcblk0boot1: mmc0:0001 S0J56X partition 2 31.5 MiB [ 5.295364] mmcblk0rpmb: mmc0:0001 S0J56X partition 3 4.00 MiB, chardev (242:0) [ 5.585284] cadence-qspi 47040000.spi: mt35xu512aba (65536 Kbytes) [ 5.608632] cadence-qspi 47040000.spi: Cadence QSPI NOR probe failed -517 [ 5.617950] cadence-qspi 47050000.spi: n25q512a (65536 Kbytes) [ 5.640625] cadence-qspi 47050000.spi: Cadence QSPI NOR probe failed -517 [ 5.649635] am65-cpsw-nuss 46000000.ethernet: rx-flow-id-base is not set -22 [ 5.658457] am65-cpsw-nuss 46000000.ethernet: initializing am65 cpsw nuss version 0x6BA00101, cpsw version 0x6BA80100 Ports: 2 [ 5.672746] am65-cpsw-nuss 46000000.ethernet: Failed to request tx dma channel -517 [ 5.682825] sdhci-am654 4fb0000.sdhci: Linked as a consumer to regulator.4 [ 5.691443] sdhci-am654 4fb0000.sdhci: Linked as a consumer to regulator.5 [ 5.700050] mmc1: Unknown controller version (4). You may experience problems. [ 5.709114] mmc1: CQHCI version 5.10 [ 5.744394] mmc1: SDHCI controller on 4fb0000.sdhci [4fb0000.sdhci] using ADMA 64-bit [ 5.759106] cadence-qspi 47040000.spi: mt35xu512aba (65536 Kbytes) [ 5.780627] cadence-qspi 47040000.spi: Cadence QSPI NOR probe failed -517 [ 5.789966] cadence-qspi 47050000.spi: n25q512a (65536 Kbytes) [ 5.812644] cadence-qspi 47050000.spi: Cadence QSPI NOR probe failed -517 [ 5.821672] am65-cpsw-nuss 46000000.ethernet: rx-flow-id-base is not set -22 [ 5.830496] am65-cpsw-nuss 46000000.ethernet: initializing am65 cpsw nuss version 0x6BA00101, cpsw version 0x6BA80100 Ports: 2 [ 5.844792] am65-cpsw-nuss 46000000.ethernet: Failed to request tx dma channel -517 [ 5.859219] cadence-qspi 47040000.spi: mt35xu512aba (65536 Kbytes) [ 5.880658] cadence-qspi 47040000.spi: Cadence QSPI NOR probe failed -517 [ 5.890032] cadence-qspi 47050000.spi: n25q512a (65536 Kbytes) [ 5.912627] cadence-qspi 47050000.spi: Cadence QSPI NOR probe failed -517 [ 5.921698] am65-cpsw-nuss 46000000.ethernet: rx-flow-id-base is not set -22 [ 5.930537] am65-cpsw-nuss 46000000.ethernet: initializing am65 cpsw nuss version 0x6BA00101, cpsw version 0x6BA80100 Ports: 2 [ 5.944853] am65-cpsw-nuss 46000000.ethernet: Failed to request tx dma channel -517 [ 5.956662] hctosys: unable to open rtc device (rtc0) [ 5.990821] ALSA device list: [ 5.994527] No soundcards found. [ 5.999155] VFS: Cannot open root device "(null)" or unknown-block(0,0): error -6 [ 6.008530] Please append a correct "root=" boot option; here are the available partitions: [ 6.018968] 0100 4096 ram0 [ 6.018969] (driver?) [ 6.026594] 0101 4096 ram1 [ 6.026595] (driver?) [ 6.034210] 0102 4096 ram2 [ 6.034211] (driver?) [ 6.041842] 0103 4096 ram3 [ 6.041843] (driver?) [ 6.049451] 0104 4096 ram4 [ 6.049452] (driver?) [ 6.057070] 0105 4096 ram5 [ 6.057071] (driver?) [ 6.064690] 0106 4096 ram6 [ 6.064691] (driver?) [ 6.072296] 0107 4096 ram7 [ 6.072297] (driver?) [ 6.079913] 0108 4096 ram8 [ 6.079914] (driver?) [ 6.087521] 0109 4096 ram9 [ 6.087522] (driver?) [ 6.095136] 010a 4096 ram10 [ 6.095137] (driver?) [ 6.102871] 010b 4096 ram11 [ 6.102872] (driver?) [ 6.110602] 010c 4096 ram12 [ 6.110603] (driver?) [ 6.118330] 010d 4096 ram13 [ 6.118331] (driver?) [ 6.126055] 010e 4096 ram14 [ 6.126056] (driver?) [ 6.133774] 010f 4096 ram15 [ 6.133775] (driver?) [ 6.141515] b300 15540224 mmcblk0 [ 6.141517] driver: mmcblk [ 6.150014] Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(0,0) [ 6.160320] CPU: 0 PID: 1 Comm: swapper/0 Not tainted 4.19.94-g5a23bc00e0 #1 [ 6.169104] Hardware name: Texas Instruments K3 J721E SoC (DT) [ 6.176373] Call trace: [ 6.179428] dump_backtrace+0x0/0x158 [ 6.183989] show_stack+0x14/0x20 [ 6.188119] dump_stack+0x9c/0xbc [ 6.192245] panic+0x130/0x28c [ 6.196049] mount_block_root+0x1b4/0x264 [ 6.201041] mount_root+0x11c/0x148 [ 6.205383] prepare_namespace+0x158/0x1a0 [ 6.210484] kernel_init_freeable+0x208/0x228 [ 6.215911] kernel_init+0x10/0xfc [ 6.220146] ret_from_fork+0x10/0x18 [ 6.224600] SMP: stopping secondary CPUs [ 6.229486] Kernel Offset: disabled [ 6.233829] CPU features: 0x0,20006008 [ 6.238498] Memory Limit: none [ 6.242304] ---[ end Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(0,0) ]--- [ 6.254150] WARNING: CPU: 0 PID: 1 at kernel/workqueue.c:857 wq_worker_waking_up+0x4c/0x58 [ 6.264451] Modules linked in: [ 6.268254] CPU: 0 PID: 1 Comm: swapper/0 Not tainted 4.19.94-g5a23bc00e0 #1 [ 6.277038] Hardware name: Texas Instruments K3 J721E SoC (DT) [ 6.284307] pstate: 20000085 (nzCv daIf -PAN -UAO) [ 6.290276] pc : wq_worker_waking_up+0x4c/0x58 [ 6.295810] lr : wq_worker_waking_up+0x14/0x58 [ 6.301344] sp : ffff00000800fc40 [ 6.305468] x29: ffff00000800fc40 x28: 0000000000000000 [ 6.312086] x27: 0000000000000000 x26: ffff000008cb3958 [ 6.318704] x25: ffff000008c7aa00 x24: ffff80087fabaa00 [ 6.325322] x23: 0000000000000080 x22: ffff00000800fcf8 [ 6.331940] x21: 0000000000000004 x20: ffff80087fabaa00 [ 6.338557] x19: 0000000000000000 x18: 0000000000000012 [ 6.345174] x17: 0000000000000000 x16: 0000000000000000 [ 6.351791] x15: 0000000000000400 x14: 0000000000000400 [ 6.358409] x13: 00000000000000a7 x12: 0000000000000000 [ 6.365026] x11: 0000000000000001 x10: 0000000002d9aeef [ 6.371643] x9 : 0000000000002674 x8 : ffff80087fabaa80 [ 6.378261] x7 : 0000000000000000 x6 : ffff80087fabaab0 [ 6.384878] x5 : ffff8008415fcb58 x4 : 0000000000000000 [ 6.391495] x3 : 0000000000000000 x2 : ffff80087fada380 [ 6.398112] x1 : 0000000000000001 x0 : ffff800841c62a00 [ 6.404729] Call trace: [ 6.407772] wq_worker_waking_up+0x4c/0x58 [ 6.412876] ttwu_do_activate+0x90/0x98 [ 6.417652] try_to_wake_up+0x1ec/0x3f8 [ 6.422427] default_wake_function+0x10/0x18 [ 6.427747] __wake_up_common+0x80/0x170 [ 6.432631] __wake_up_locked+0x18/0x20 [ 6.437407] complete+0x48/0x68 [ 6.441320] mmc_wait_done+0x10/0x18 [ 6.445769] mmc_request_done+0xb4/0x178 [ 6.450657] sdhci_tasklet_finish+0x11c/0x248 [ 6.456084] tasklet_action_common.isra.2+0x80/0x130 [ 6.462267] tasklet_action+0x24/0x30 [ 6.466826] __do_softirq+0x10c/0x208 [ 6.471385] irq_exit+0xb8/0xc8 [ 6.475296] __handle_domain_irq+0x64/0xb8 [ 6.480396] gic_handle_irq+0x7c/0x178 [ 6.485062] el1_irq+0xb0/0x128 [ 6.488970] panic+0x240/0x28c [ 6.492771] mount_block_root+0x1b4/0x264 [ 6.497763] mount_root+0x11c/0x148 [ 6.502105] prepare_namespace+0x158/0x1a0 [ 6.507205] kernel_init_freeable+0x208/0x228 [ 6.512632] kernel_init+0x10/0xfc [ 6.516866] ret_from_fork+0x10/0x18 [ 6.521317] ---[ end trace 76df2273a336c50e ]---
MCU2_0 started running at 5475981 usecs MCU2_0 initialized at 5477529 usecs MCU2_1 started running at 5476295 usecs MCU2_1 initialized at 5477914 usecs MCU3_0 started running at 5476593 usecs MCU3_0 initialized at 5478357 usecs MCU3_1 started running at 5476888 usecs MCU3_1 initialized at 5478872 usecs C66X_0 started running at 5449264 usecs C66X_0 initialized at 5450588 usecs C66X_1 started running at 5450100 usecs C66X_1 initialized at 5451014 usecs
SBL Revision: 01.00.09.02 (Mar 12 2020 - 12:36:21) SYSFW ver: 19.12.1-v 19.12a (Terrific Lla Failing while reading the register data by returning - -3 CAN Response App:NOTE : Operating in internal loop-back mode CAN Response App:Message Id Received 800000c0 Message Length is 64 CAN Response App:Test completed for 0 instance CAN Response App:NOTE : Operating in internal loop-back mode CAN Response App:Message Id Received 800000b0 Message Length is 64 CAN Response App:Test completed for 1 instance CAN Response App: 8192 bytes used for stack CAN Response App:Early CAN completed!!! Boot App: Started at 419 usec Boot App: Started requesting all cores at 423 usec Boot App: Completed requesting all cores at 902 usec Boot App: Started copying and image parsing at 902 usec Boot App: Completed copying and image parsing at 5408605 usec Boot App: Total Num booted cores = 8 Boot App: Booted Core ID #6 at 5409721 usecs Boot App: Booted Core ID #7 at 5410058 usecs Boot App: Booted Core ID #8 at 5410396 usecs Boot App: Booted Core ID #9 at 5410734 usecs Boot App: Booted Core ID #10 at 5411123 usecs Boot App: Booted Core ID #11 at 5411509 usecs Boot App: Booted Core ID #12 at 5412029 usecs Boot App: Booted Core ID #0 at 5413806 usecs Boot App: Stage #0 finished at 5412029 usecs Boot App: Stage #1 finished at 5413807 usecs MCU Boot Task started at 412 usecs and finished at 7629149 usecs
HI
I followed the "CAN Response and Bootloader Demo Application" instructions,
but the main UART Port#1 output message is unsuccessful,
Software : PSDK 6.2.0

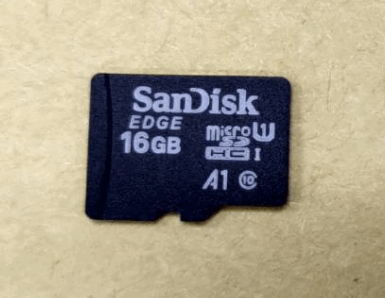

Storage device : MMCSD card
