TMDSIDK437X: AM437x Ethercat slave full and Twincat 3.1

R2d2

Expert 1130 points

Part Number: TMDSIDK437X

I have tried to connect twincat 3.1 to the ethercat slave full application and failed.

I am using the pre-built binary

I have copied the XML file TI_ESC.xml to the twincat folder C:\TwinCAT\3.1\Config\Io\EtherCAT

when I search for devices , I only find device 1 ( which may be found if nothing is connected)

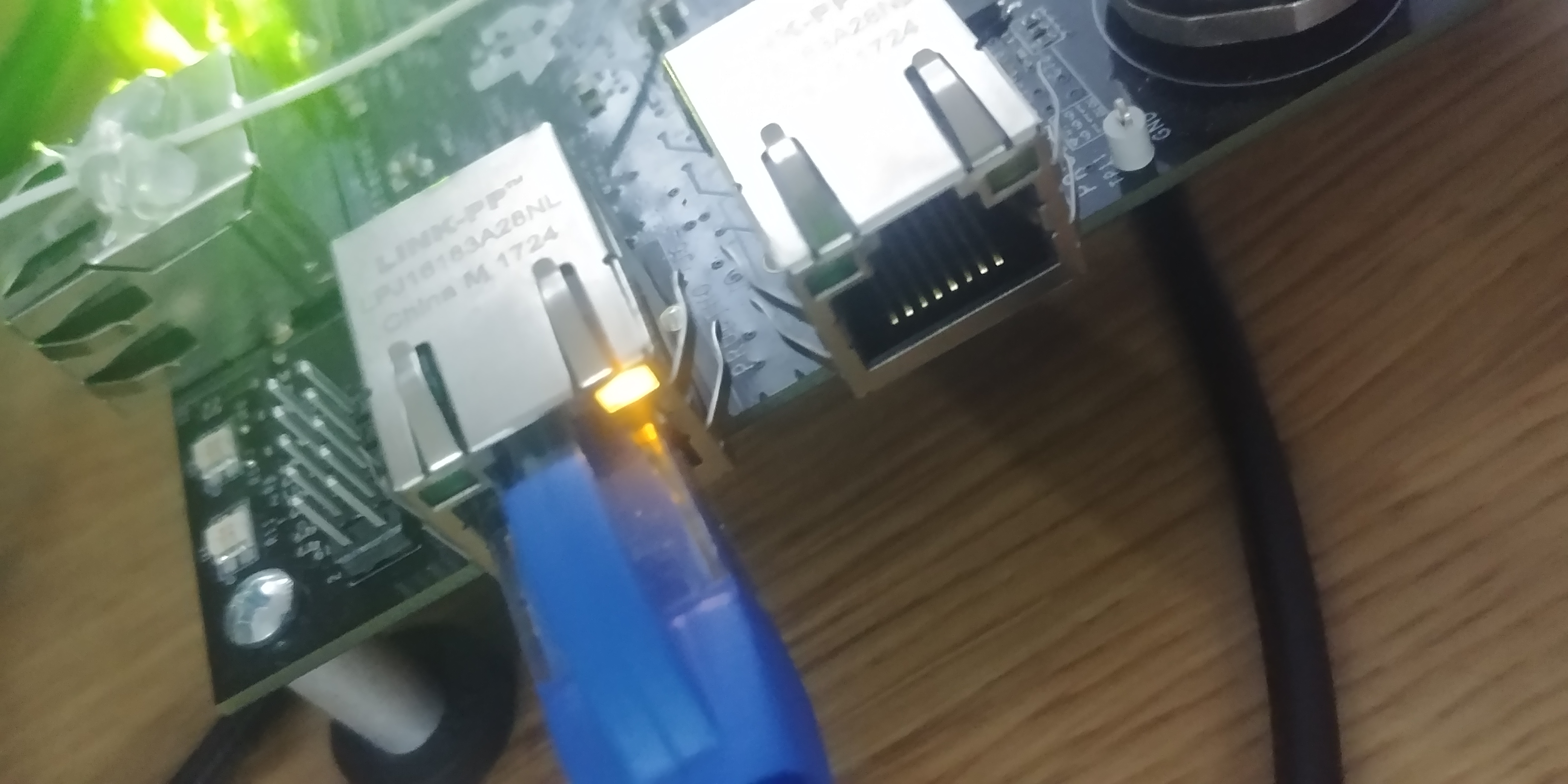

In addition , when I look at the IDK board , I see only the yellow led. it is yellow regardless of whether the cable is connected on not . is there an additional setting I need to do that I missed ? a jumper in the idk ? other ?

note that when checking the network adapter it seems to be disconnected

over 5 years ago

0 Garrett Ding over 5 years ago

TI__Mastermind 43296 points

Hello,

Are you booting the pre-built EtherCAT application binary from flash or SD card? Which SBL binary (MLO) are you using?

The boot procedure is described here:

Also you may need erase on-board flash as noted here - https://processors.wiki.ti.com/index.php/FAQ_Sitara_Industrial#Issues_running_prebuild_applications_using_SD_card_on_AM335x_when_SPI_is_pre-flashed

Regards,

Garrett

0 R2d2 over 5 years ago in reply to Garrett Ding

Expert 1130 points

Thanks for your help

I put the binary on the SD card of the IDK

the MLO I am using is the one that was originally on the SD card and with which I have worked so far. not sure about version...

hen I look at the terminal and LEDs it seems that the application is working

should I change the MLO ? should I follow https://processors.wiki.ti.com/index.php/FAQ_Sitara_Industrial#Issues_running_prebuild_applications_using_SD_card_on_AM335x_when_SPI_is_pre-flashed ?

0 R2d2 over 5 years ago in reply to R2d2

Expert 1130 points

if I do need to follow

https://processors.wiki.ti.com/index.php/FAQ_Sitara_Industrial#Issues_running_prebuild_applications_using_SD_card_on_AM335x_when_SPI_is_pre-flashed

does it apply to idk am437x as well ?

0 R2d2 over 5 years ago in reply to R2d2

Expert 1130 points

adding the terminal screen capture

0 R2d2 over 5 years ago in reply to R2d2

Expert 1130 points

turns out it associated with the cable

note that both the USB cable and the Ethercat cable that came in the box with the IDK HW were faulty
