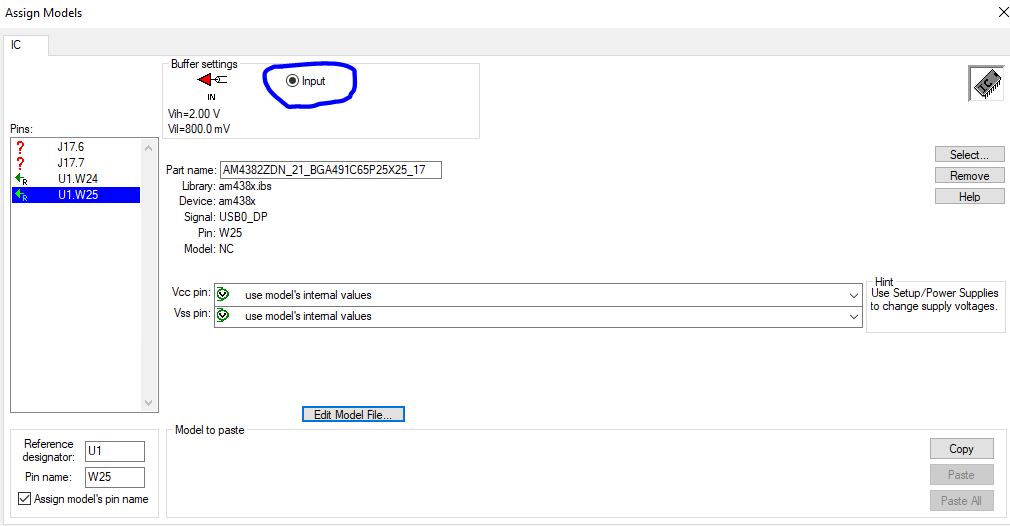

I wanted to simulate Signal integrity with TI's available IBIS file AM438x.IBS, while selecting USB0 and USB1 pins in model these USB pins only shows "INPUT" option only we not able to find driver/output option here in models, Please help here how should i get USB driver pins?

over 5 years ago

0 Shriram Moharil over 5 years ago

TI__Expert 4640 points

Hi Yaseen,

Could you pl. clarify the below follow-on questions:

1. Is the only .ibs model file that you have received for the USB2 interface? Is there another .ibs file that might contain the output model definition?

2. What tool are you using to read in the .ibs file?

regards,

-Shriram

0 Yaseen vantmuri over 5 years ago in reply to Shriram Moharil

Prodigy 180 points

Hi Shriram,

1. the AM438x.ibs is the only file which recieved from TI, in this files USB0 and USB1 both files have input only no driver we can assign.

2. we are using Mentor Graphics –HyperLynx VX 2.3 tool to execute

Regards,

Yaseen

0 Shriram Moharil over 5 years ago in reply to Yaseen vantmuri

TI__Expert 4640 points

Thanks for your reply. Could you attach the .ibs file you are using so we can also confirm it is the correct one?

Once you provide that, I can check internally to confirm that and address your question.

regards,

-Shriram

0 Yaseen vantmuri over 5 years ago in reply to Shriram Moharil

Prodigy 180 points

Hi,

Here with attached Processor IBIS used model.

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/Ibis-Model.7z

0 Shriram Moharil over 5 years ago in reply to Yaseen vantmuri

TI__Expert 4640 points

Hi Yaseen,

Thank you for the information. It appears that the USB DP/DM signals are treated as analog nets and therefore defined as "NC" according to IBIS 4.1 specification. I am checking with our internal teams for the output driver model for the USB signals.

regards,

-Shriram

0 Yaseen vantmuri over 5 years ago in reply to Shriram Moharil

Prodigy 180 points

Hi Shriram,

Please provide us AM4382CZDNA30S processor USB0/1 output driver IBIS model so that we can perform signal integrity ASAP.

Regards,

Yaseen

0 Shriram Moharil over 5 years ago in reply to Yaseen vantmuri

TI__Expert 4640 points

Hi Yaseen,

Thanks for your patience. We are working to identify the correct model to send you and will do so ASAP. The USB2.0 output models were not part of the IBIS model for AM438 shared on ti.com.

regards,

-Shriram

0 Shriram Moharil over 5 years ago in reply to Shriram Moharil

TI__Expert 4640 points

Hi Yaseen,

Could you please provide us your FAE contact at TI?

thanks,

-Shriram

0 Yaseen vantmuri over 5 years ago in reply to Shriram Moharil

Prodigy 180 points

Hi Shriram,

Contact email for FAE: shivasharan.nagalikar@ti.com

Regards,

YAseen

0 Yaseen vantmuri over 5 years ago in reply to Yaseen vantmuri

Prodigy 180 points

Hi Shriram,

Please connect with me, if you have any query.

email: yaseen.vantmuri@einfochips.com

cell: 7799005115

We need to close this ASAP we are about to release gerber.

Regards,

Yaseen

0 Shriram Moharil over 5 years ago in reply to Yaseen vantmuri

TI__Expert 4640 points

Yaseen,

Thanks for your patience. I understand the urgency. I have checked with multiple teams within TI and there is no IBIS model released for these output drivers by TI.

I am checking to see if there any alternate driver models for these available.

Regards,

-Shriram

0 Shriram Moharil over 5 years ago in reply to Yaseen vantmuri

TI__Expert 4640 points

Hi Yaseen,

I am attaching USB2.0 IBIS models for AM438 that should meet your requirements.

Please confirm accordingly

and close.

regards,

-Shriram

USB IBIS.ZIP USB IBIS.ZIP

0 Shriram Moharil over 5 years ago in reply to Yaseen vantmuri

TI__Expert 4640 points

Yaseen,

Can you clarify why this did not resolve your issue? I am re-attaching the zip file in case it did not attach correctly in the previous email.

regards,

-Shriram1018.USB IBIS.ZIP
