AM5728: AM5728 Spec IO Level&Current

Daniel Cheng1

Part Number: AM5728

Hi Expert,

My customer check the AM5728 spec,the spec have data for IO Pull Up and Pull Down Sink Current, but he can't find out Sink Current when U1 and U2 are Open Drian.

AM5728 spec only have data for I2C Open Drain IO Sink Current.

Thanks

Daniel

over 5 years ago

0 kcastille over 5 years ago

TI__Guru 57257 points

Daniel,

Refer to the Idrive parameter in table

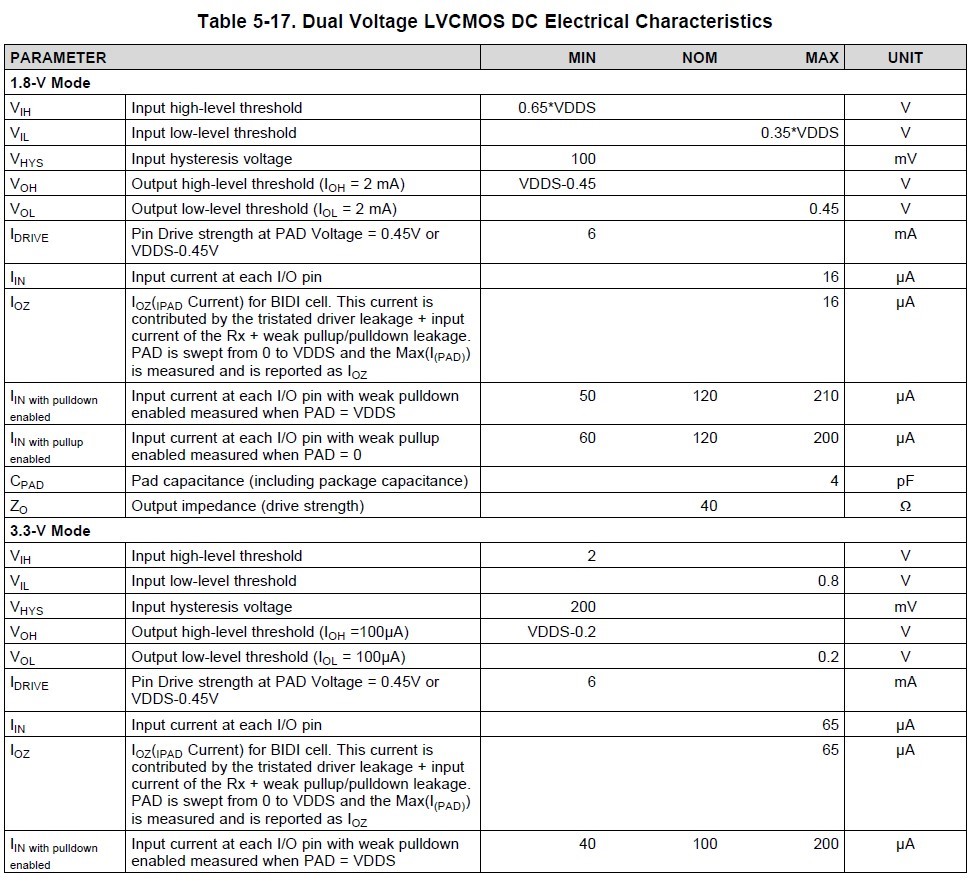

Table 5-17. Dual Voltage LVCMOS DC Electrical Characteristics.

Regards,

Kyle

0 Robert Eschler over 5 years ago in reply to kcastille

TI__Guru 57035 points

The Dual Voltage LVCMOS DC Electrical characteristic tables list the IDRIVE parameter. This is the minimum drive capability of the IO.

0 Daniel Cheng1 over 5 years ago in reply to Robert Eschler

Mastermind 8275 points

Hi Kyle and Robert,

Thanks for your kindly help

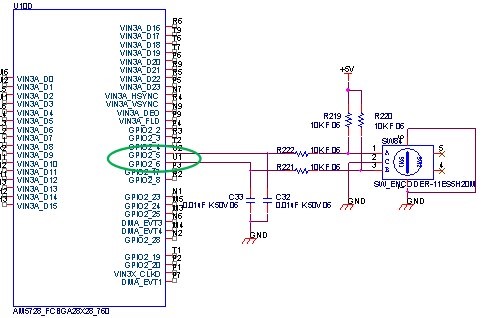

Could you tell me what is the Max Input current at U1 and U2 when U1 and U2 are Open Drian?

I am afraid that over current will damge U1 and U2.

I can't find out from the spec.

Thanks

Daniel

0 Robert Eschler over 5 years ago in reply to Daniel Cheng1

TI__Guru 57035 points

Are you looking to size the pull-up resistor value? We recommend 2.2K-ohms.

The IDrive parameter for the dual-voltage CMOS pins is 6mA.

0 Daniel Cheng1 over 5 years ago in reply to Robert Eschler

Mastermind 8275 points

Hi Expert,

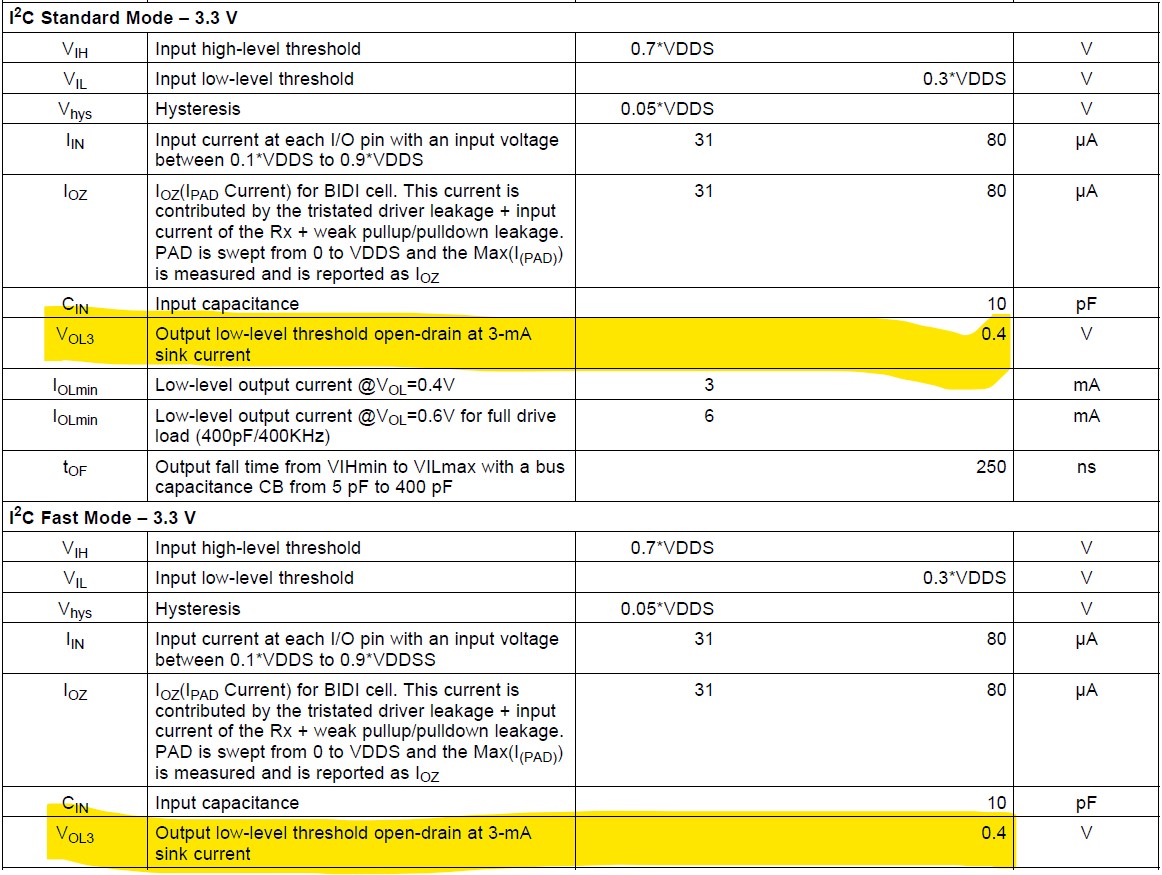

Is there data such as Vol3 for U1 and U2?

Thanks

Daniel

0 Robert Eschler over 5 years ago in reply to Daniel Cheng1

TI__Guru 57035 points

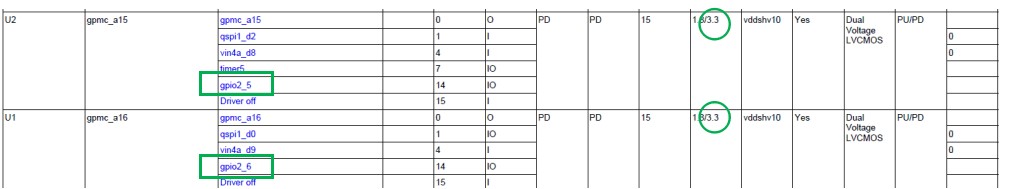

That IO type you show is specifically an open drain IO. U1 and U2 are Dual Voltage LVCMOS pins that are emulating open drain modes. Yes - I think the same information is available

0 Daniel Cheng1 over 5 years ago in reply to Robert Eschler

Mastermind 8275 points

Hi Robert,

When U1 and U2 are set to open drian, if the sink current is 65 ua and pull-up resistor value should be 50K-ohms? It seems to be small.

So what is the sink current when u1 and u2 are set to open drian?

Thanks

Daniel

0 Robert Eschler over 5 years ago in reply to Daniel Cheng1

TI__Guru 57035 points

The Idrive is spec'd for 6mA (Minimum) - as shown in your data manual snip-it. This is the amount of current the pin can sink when pulling the signal low.

0 Robert Eschler over 5 years ago in reply to Robert Eschler

TI__Guru 57035 points

Do you have any additional questions? If no - I'll close this thread.
