66AK2H14: LB_FEP loopback

Bruno B

Part Number: 66AK2H14

Hi,

I have a question about the LB_FEP loopback mode introduced in the SPRUHO3a document.

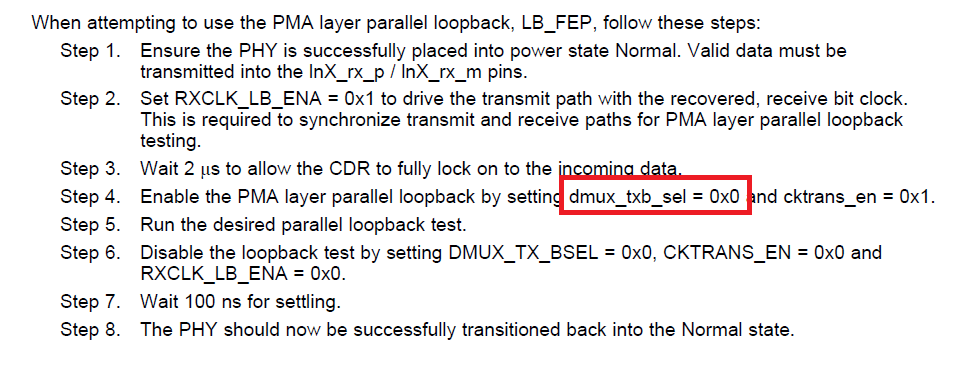

Table 9-18 page 153 requires to set DMUX_TXB_SEL_O = 5 , while the explanations given in the text just below require DMUX_TXB_SEL_O_=0

Please could you tell which value is correct.

With best regards,

Bruno

over 5 years ago

0 Aravind Batni over 5 years ago

TI__Expert 8885 points

Hi Bruno,

I am very sorry that this thread got missed out. I will take a look on this. I shall get back to you after I contact local SerDes expert for clarification.

Thanks,
Aravind

0 Aravind Batni over 5 years ago in reply to Aravind Batni

TI__Expert 8885 points

Hi Bruno,

Checked with local serdes expert and got this confirmed. Step 4 mentioned in the document is incorrect. Thanks for pointing this out.

Please correct the step 4 at your side as below.

Step 4. Enable the PMA layer parallel loopback by setting dmux_txb_sel = 0x0 --> 0x5 and cktrans_en = 0x1

Please note that this is also implemented in serdes diag test under PDK. (pdk/packages/ti/diag/serdes_diag/serdes_diag.h

The same file under GIT is: (I have provided the line number for your reference).

https://git.ti.com/cgit/keystone-rtos/serdes_diag/tree/serdes_diag.h#n729

This is under Serdes_Diag_SetFEPLoopback() function.

Hope this helps you. (Please mark the thread as resolved if it resolved your issue).

Thanks,
Aravind

0 Bruno B over 5 years ago in reply to Aravind Batni

Expert 1290 points

Thank's Aravind

I will close the Thread
