TDA4VM: RTI watchdog can not trigger GIC interrupt

Hi,

Which OS are you using ? Please share your application code.

Regards

Vineet

HI Vineet,

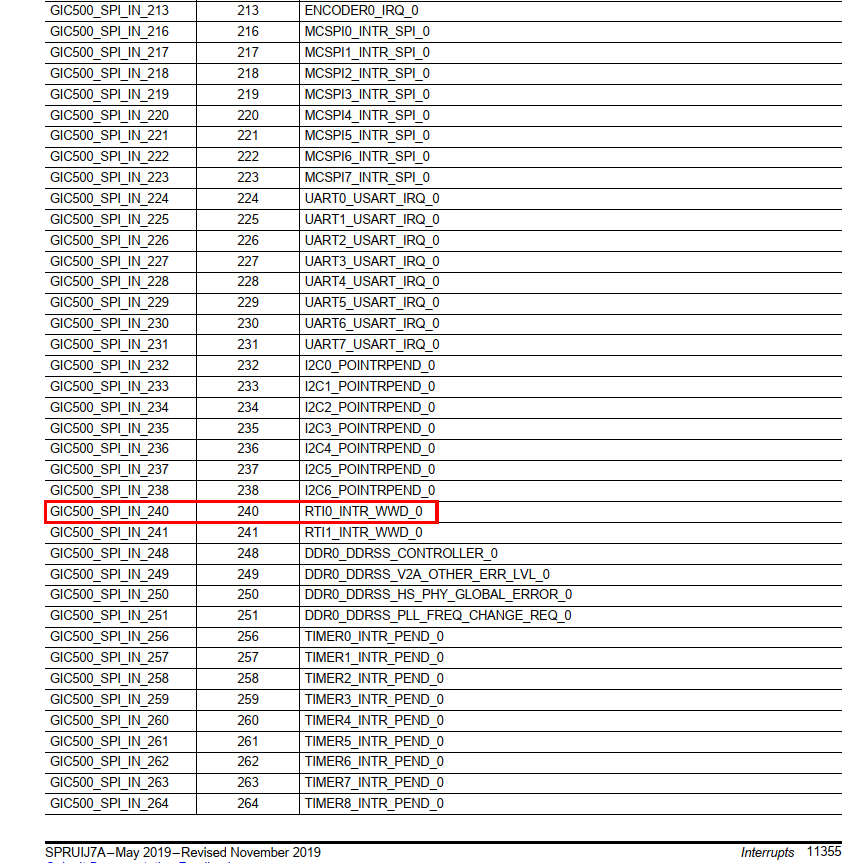

You can refer to /drivers/watchdog/rti_wdt.c in linux SDK. And enable RTI0 int(int num 240) of GIC. By default, interrupt is not supported in the driver. Can you provide me with a demo for RTI watchdog interrupt?  thanks

Hi Gates,

May i know the end use case for this interrupt in Linux? I will check on this & get back.

Best Regards,
Keerthy

Hi keerthy,

It is used as fusa mechanism. if watchdog is timeout, one interrupt occurs and trigger safety mechanism in interrupt handle.

Hi Gates,

There is no demo available for RTI WDG interrupt handling on the Linux side.

For FuSa mechanism i recommend to check the RTOS side file: ti-processor-sdk-rtos-j721e-evm-07_01_00_11/pdk_jacinto_07_01_00_45/packages/ti/csl/src/ip/rti/V0/priv/rti.c

As per the roadmap no Functional safety watchdog driver is planned for Linux. CSL is available on RTOS sdk. AUTOSAR WDG is target for 7.3 SDK.

Best Regards,
Keerthy

Hi keerthy,

Can you help me to confirm that is the RTI watchdog interrupt is supported in A72 side?

In my test, it doesn't work. And in the TRM, I see: real time interrupt is not supported(What't this meaning?). Please help me analyze, thanks.

Hi Gates,

I am checking with the internal team. I will get back to you as soon as i hear from them.

Typically watchdog interrupts are not registered in Linux if you see they generally directly reset the system
& hence you do not see the interrupt part in DT & driver.

Best Regards,
Keerthy

Gates,

Dip switch settings on the TDA4 Board:

SW2 and SW3 on the SOM board control the error signal handling. My setup is:

SW2: 1-off, 2-on

SW3: 1-on, 2-off

I found a quick way to validate the watch-dog reset on Linux side.

Boot to Linux prompt using PSKD Linux. Type the following commands.

cd /opt/ltp/

./runltp -P j721e-idk-gw -f ddt/wdt_test -s "WDT_M_FUNC_WRI

This is the default way of using the watchdog expiry from Linux side.

In the default linux configuration, the event coming out of RTI goes to ESM, which generates a safety event, and this in turn is configured to be routed directly to PMIC to issue a system wide reset.

The interrupts reaching CPU has not been validated.

Log: https://pastebin.ubuntu.com/p/7HWPj8M63g/

Best Regards,
Keerthy

HI Keerthy，

Can the event coming out of RTI Watchdog go to GIC directly?

Hi Gates,

I have looped in hardware experts on this thread to get confirmation.

Best Regards,
Keerthy
