Part Number: TMDXICE110
Other Parts Discussed in Thread: AMIC110
Hello,
We're using TMDXICE110 board, ti-processor-sdk-rtos-am335x-evm-06.03.00.106 and xds110 debugger for the development purpose. When trying to load any DDR based application (consider UART_BasicExample_iceAMIC110_armExampleProject for reference), it's throwing data verification error. Following is the error image.
We tried debugging / resolving the issue based on this reference. When Diagnosing RAM Problems, we found that all the contents of DDR memory is zero. Following is the image.

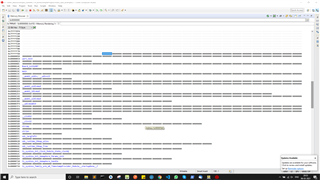

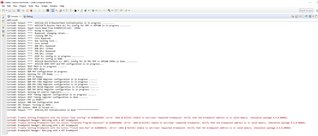

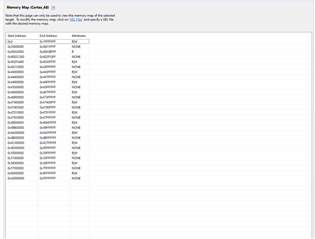

As per the link, this behavior is observed when memory is non-existent, but the board contains DDR3. Is the DDR3 got damaged or any wrongdoing? How to check whether DDR is working or not ?
Note:
1. Able to load and run hello world application successfully which will be located in internal memory
2. Following is the gel file
//####################################################
//iceAMIC110 GEL file
//v1.0 Mar28,2017 Initial version based on GEL v3.2 for TMDXICE3359
//v1.1 Nov30,2017 Updated PLL parameters to optimized values
//####################################################
//****************************************************
//PRCM module definitions
//****************************************************
#define PRCM_BASE_ADDR (0x44E00000)
#define CM_PER_EMIF_CLKCTRL (PRCM_BASE_ADDR + 0x028)
#define CM_PER_EMIF_FW_CLKCTRL (PRCM_BASE_ADDR + 0x0D0)
#define CM_WKUP_CLKSTCTRL (PRCM_BASE_ADDR + 0x400)
#define CM_WKUP_GPIO0_CLKCTRL (PRCM_BASE_ADDR + 0x408)
#define CM_AUTOIDLE_DPLL_MPU (PRCM_BASE_ADDR + 0x41C)
#define CM_IDLEST_DPLL_MPU (PRCM_BASE_ADDR + 0x420)
#define CM_CLKSEL_DPLL_MPU (PRCM_BASE_ADDR + 0x42C)
#define CM_AUTOIDLE_DPLL_DDR (PRCM_BASE_ADDR + 0x430)
#define CM_IDLEST_DPLL_DDR (PRCM_BASE_ADDR + 0x434)
#define CM_CLKSEL_DPLL_DDR (PRCM_BASE_ADDR + 0x440)
#define CM_AUTOIDLE_DPLL_DISP (PRCM_BASE_ADDR + 0x444)
#define CM_IDLEST_DPLL_DISP (PRCM_BASE_ADDR + 0x448)
#define CM_CLKSEL_DPLL_DISP (PRCM_BASE_ADDR + 0x454)
#define CM_AUTOIDLE_DPLL_CORE (PRCM_BASE_ADDR + 0x458)
#define CM_IDLEST_DPLL_CORE (PRCM_BASE_ADDR + 0x45C)
#define CM_CLKSEL_DPLL_CORE (PRCM_BASE_ADDR + 0x468)
#define CM_AUTOIDLE_DPLL_PER (PRCM_BASE_ADDR + 0x46C)
#define CM_IDLEST_DPLL_PER (PRCM_BASE_ADDR + 0x470)
#define CM_CLKSEL_DPLL_PER (PRCM_BASE_ADDR + 0x49C)
#define CM_DIV_M4_DPLL_CORE (PRCM_BASE_ADDR + 0x480)
#define CM_DIV_M5_DPLL_CORE (PRCM_BASE_ADDR + 0x484)
#define CM_CLKMODE_DPLL_MPU (PRCM_BASE_ADDR + 0x488)
#define CM_CLKMODE_DPLL_PER (PRCM_BASE_ADDR + 0x48C)
#define CM_CLKMODE_DPLL_CORE (PRCM_BASE_ADDR + 0x490)
#define CM_CLKMODE_DPLL_DDR (PRCM_BASE_ADDR + 0x494)
#define CM_CLKMODE_DPLL_DISP (PRCM_BASE_ADDR + 0x498)
#define CM_DIV_M2_DPLL_DDR (PRCM_BASE_ADDR + 0x4A0)
#define CM_DIV_M2_DPLL_DISP (PRCM_BASE_ADDR + 0x4A4)
#define CM_DIV_M2_DPLL_MPU (PRCM_BASE_ADDR + 0x4A8)
#define CM_DIV_M2_DPLL_PER (PRCM_BASE_ADDR + 0x4AC)
#define CM_DIV_M6_DPLL_CORE (PRCM_BASE_ADDR + 0x4D8)
#define CM_CLKOUT_CTRL (PRCM_BASE_ADDR + 0x700)
//****************************************************
//Control module definitions
//****************************************************
#define CONTROL_BASE_ADDR (0x44E10000)
#define CONTROL_STATUS (CONTROL_BASE_ADDR + 0x40)
#define CONF_XDMA_EVENT_INTR1 (CONTROL_BASE_ADDR + 0x9b4)
#define CONTROL_CONF_USB0_DRVVBUS (CONTROL_BASE_ADDR + 0x0a1c)
//DDR IO Control Registers
#define DDR_IO_CTRL (CONTROL_BASE_ADDR + 0x0E04)
#define VTP_CTRL_REG (CONTROL_BASE_ADDR + 0x0E0C)
#define DDR_CKE_CTRL (CONTROL_BASE_ADDR + 0x131C)
#define DDR_CMD0_IOCTRL (CONTROL_BASE_ADDR + 0x1404)
#define DDR_CMD1_IOCTRL (CONTROL_BASE_ADDR + 0x1408)
#define DDR_CMD2_IOCTRL (CONTROL_BASE_ADDR + 0x140C)
#define DDR_DATA0_IOCTRL (CONTROL_BASE_ADDR + 0x1440)
#define DDR_DATA1_IOCTRL (CONTROL_BASE_ADDR + 0x1444)
//****************************************************
//GPIO module definitions
//****************************************************
#define GPIO0_BASE_ADDR (0x44E07000)
#define GPIO0_SYSCONFIG (GPIO0_BASE_ADDR + 0x10)
#define GPIO0_SYSSTATUS (GPIO0_BASE_ADDR + 0x114)
#define GPIO0_CTRL (GPIO0_BASE_ADDR + 0x130)
#define GPIO0_OE (GPIO0_BASE_ADDR + 0x134)
#define GPIO0_CLEARDATAOUT (GPIO0_BASE_ADDR + 0x190)
#define GPIO0_SETDATAOUT (GPIO0_BASE_ADDR + 0x194)
//********************************************************************
//EMIF4DC module definitions
//********************************************************************
#define EMIF_BASE_ADDR (0x4C000000)
#define EMIF_STATUS_REG (EMIF_BASE_ADDR + 0x004)
#define EMIF_SDRAM_CONFIG_REG (EMIF_BASE_ADDR + 0x008)
#define EMIF_SDRAM_CONFIG_2_REG (EMIF_BASE_ADDR + 0x00C)
#define EMIF_SDRAM_REF_CTRL_REG (EMIF_BASE_ADDR + 0x010)
#define EMIF_SDRAM_REF_CTRL_SHDW_REG (EMIF_BASE_ADDR + 0x014)
#define EMIF_SDRAM_TIM_1_REG (EMIF_BASE_ADDR + 0x018)
#define EMIF_SDRAM_TIM_1_SHDW_REG (EMIF_BASE_ADDR + 0x01C)
#define EMIF_SDRAM_TIM_2_REG (EMIF_BASE_ADDR + 0x020)
#define EMIF_SDRAM_TIM_2_SHDW_REG (EMIF_BASE_ADDR + 0x024)
#define EMIF_SDRAM_TIM_3_REG (EMIF_BASE_ADDR + 0x028)
#define EMIF_SDRAM_TIM_3_SHDW_REG (EMIF_BASE_ADDR + 0x02C)
#define EMIF_LPDDR2_NVM_TIM_REG (EMIF_BASE_ADDR + 0x030)
#define EMIF_LPDDR2_NVM_TIM_SHDW_REG (EMIF_BASE_ADDR + 0x034)
#define EMIF_PWR_MGMT_CTRL_REG (EMIF_BASE_ADDR + 0x038)
#define EMIF_PWR_MGMT_CTRL_SHDW_REG (EMIF_BASE_ADDR + 0x03C)
#define EMIF_LPDDR2_MODE_REG_DATA_REG (EMIF_BASE_ADDR + 0x040)
#define EMIF_LPDDR2_MODE_REG_CFG_REG (EMIF_BASE_ADDR + 0x050)
#define EMIF_OCP_CONFIG_REG (EMIF_BASE_ADDR + 0x054)
#define EMIF_OCP_CFG_VAL_1_REG (EMIF_BASE_ADDR + 0x058)
#define EMIF_OCP_CFG_VAL_2_REG (EMIF_BASE_ADDR + 0x05C)
#define EMIF_IODFT_TLGC_REG (EMIF_BASE_ADDR + 0x060)
#define EMIF_IODFT_CTRL_MISR_RSLT_REG (EMIF_BASE_ADDR + 0x064)
#define EMIF_IODFT_ADDR_MISR_RSLT_REG (EMIF_BASE_ADDR + 0x068)
#define EMIF_IODFT_DATA_MISR_RSLT_1_REG (EMIF_BASE_ADDR + 0x06C)
#define EMIF_IODFT_DATA_MISR_RSLT_2_REG (EMIF_BASE_ADDR + 0x070)
#define EMIF_IODFT_DATA_MISR_RSLT_3_REG (EMIF_BASE_ADDR + 0x074)
#define EMIF_PERF_CNT_1_REG (EMIF_BASE_ADDR + 0x080)
#define EMIF_PERF_CNT_2_REG (EMIF_BASE_ADDR + 0x084)
#define EMIF_PERF_CNT_CFG_REG (EMIF_BASE_ADDR + 0x088)
#define EMIF_PERF_CNT_SEL_REG (EMIF_BASE_ADDR + 0x08C)
#define EMIF_PERF_CNT_TIM_REG (EMIF_BASE_ADDR + 0x090)
#define EMIF_READ_IDLE_CTRL_REG (EMIF_BASE_ADDR + 0x098)
#define EMIF_READ_IDLE_CTRL_SHDW_REG (EMIF_BASE_ADDR + 0x09C)
#define EMIF_IRQ_EOI_REG (EMIF_BASE_ADDR + 0x0A0)
#define EMIF_IRQSTATUS_RAW_SYS_REG (EMIF_BASE_ADDR + 0x0A4)
#define EMIF_IRQSTATUS_SYS_REG (EMIF_BASE_ADDR + 0x0AC)
#define EMIF_IRQENABLE_SET_SYS_REG (EMIF_BASE_ADDR + 0x0B4)
#define EMIF_IRQENABLE_CLR_SYS_REG (EMIF_BASE_ADDR + 0x0BC)
#define EMIF_ZQ_CONFIG_REG (EMIF_BASE_ADDR + 0x0C8)
#define EMIF_TEMP_ALERT_CONFIG_REG (EMIF_BASE_ADDR + 0x0CC)
#define EMIF_OCP_ERR_LOG_REG (EMIF_BASE_ADDR + 0x0D0)
#define EMIF_RDWR_LVL_RMP_WIN_REG (EMIF_BASE_ADDR + 0x0D4)
#define EMIF_RDWR_LVL_RMP_CTRL_REG (EMIF_BASE_ADDR + 0x0D8)
#define EMIF_RDWR_LVL_CTRL_REG (EMIF_BASE_ADDR + 0x0DC)
#define EMIF_DDR_PHY_CTRL_1_REG (EMIF_BASE_ADDR + 0x0E4)
#define EMIF_DDR_PHY_CTRL_1_SHDW_REG (EMIF_BASE_ADDR + 0x0E8)
#define EMIF_DDR_PHY_CTRL_2_REG (EMIF_BASE_ADDR + 0x0EC)
#define EMIF_PRI_COS_MAP_REG (EMIF_BASE_ADDR + 0x100)
#define EMIF_CONNID_COS_1_MAP_REG (EMIF_BASE_ADDR + 0x104)
#define EMIF_CONNID_COS_2_MAP_REG (EMIF_BASE_ADDR + 0x108)
#define EMIF_RD_WR_EXEC_THRSH_REG (EMIF_BASE_ADDR + 0x120)
//*******************************************************************
//DDR PHY registers
//*******************************************************************
#define DDR_PHY_BASE_ADDR (0x44E12000)
//CMD0
#define CMD0_REG_PHY_CTRL_SLAVE_RATIO_0 (0x01C + DDR_PHY_BASE_ADDR)
#define CMD0_REG_PHY_CTRL_SLAVE_FORCE_0 (0x020 + DDR_PHY_BASE_ADDR)
#define CMD0_REG_PHY_CTRL_SLAVE_DELAY_0 (0x024 + DDR_PHY_BASE_ADDR)
#define CMD0_REG_PHY_DLL_LOCK_DIFF_0 (0x028 + DDR_PHY_BASE_ADDR)
#define CMD0_REG_PHY_INVERT_CLKOUT_0 (0x02C + DDR_PHY_BASE_ADDR)
#define CMD0_PHY_REG_STATUS_PHY_CTRL_DLL_LOCK_0 (0x030 + DDR_PHY_BASE_ADDR)
#define CMD0_PHY_REG_STATUS_PHY_CTRL_OF_IN_LOCK_STATE_0 (0x034 + DDR_PHY_BASE_ADDR)
#define CMD0_PHY_REG_STATUS_PHY_CTRL_OF_IN_DELAY_VALUE_0 (0x038 + DDR_PHY_BASE_ADDR)
#define CMD0_PHY_REG_STATUS_PHY_CTRL_OF_OUT_DELAY_VALUE_0 (0x03C + DDR_PHY_BASE_ADDR)
//CMD1
#define CMD1_REG_PHY_CTRL_SLAVE_RATIO_0 (0x050 + DDR_PHY_BASE_ADDR)
#define CMD1_REG_PHY_CTRL_SLAVE_FORCE_0 (0x054 + DDR_PHY_BASE_ADDR)
#define CMD1_REG_PHY_CTRL_SLAVE_DELAY_0 (0x058 + DDR_PHY_BASE_ADDR)
#define CMD1_REG_PHY_DLL_LOCK_DIFF_0 (0x05C + DDR_PHY_BASE_ADDR)
#define CMD1_REG_PHY_INVERT_CLKOUT_0 (0x060 + DDR_PHY_BASE_ADDR)
#define CMD1_PHY_REG_STATUS_PHY_CTRL_DLL_LOCK_0 (0x064 + DDR_PHY_BASE_ADDR)
#define CMD1_PHY_REG_STATUS_PHY_CTRL_OF_IN_LOCK_STATE_0 (0x068 + DDR_PHY_BASE_ADDR)
#define CMD1_PHY_REG_STATUS_PHY_CTRL_OF_IN_DELAY_VALUE_0 (0x06C + DDR_PHY_BASE_ADDR)
#define CMD1_PHY_REG_STATUS_PHY_CTRL_OF_OUT_DELAY_VALUE_0 (0x070 + DDR_PHY_BASE_ADDR)
//CMD2
#define CMD2_REG_PHY_CTRL_SLAVE_RATIO_0 (0x084 + DDR_PHY_BASE_ADDR)
#define CMD2_REG_PHY_CTRL_SLAVE_FORCE_0 (0x088 + DDR_PHY_BASE_ADDR)
#define CMD2_REG_PHY_CTRL_SLAVE_DELAY_0 (0x08C + DDR_PHY_BASE_ADDR)
#define CMD2_REG_PHY_DLL_LOCK_DIFF_0 (0x090 + DDR_PHY_BASE_ADDR)
#define CMD2_REG_PHY_INVERT_CLKOUT_0 (0x094 + DDR_PHY_BASE_ADDR)
#define CMD2_PHY_REG_STATUS_PHY_CTRL_DLL_LOCK_0 (0x098 + DDR_PHY_BASE_ADDR)
#define CMD2_PHY_REG_STATUS_PHY_CTRL_OF_IN_LOCK_STATE_0 (0x09C + DDR_PHY_BASE_ADDR)
#define CMD2_PHY_REG_STATUS_PHY_CTRL_OF_IN_DELAY_VALUE_0 (0x0A0 + DDR_PHY_BASE_ADDR)
#define CMD2_PHY_REG_STATUS_PHY_CTRL_OF_OUT_DELAY_VALUE_0 (0x0A4 + DDR_PHY_BASE_ADDR)
//DATA0
#define DATA0_REG_PHY_DATA_SLICE_IN_USE_0 (0x0B8 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_DIS_CALIB_RST_0 (0x0BC + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_RDC_FIFO_RST_ERR_CNT_CLR_0 (0x0C0 + DDR_PHY_BASE_ADDR)
#define DATA0_PHY_RDC_FIFO_RST_ERR_CNT_0 (0x0C4 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_RD_DQS_SLAVE_RATIO_0 (0x0C8 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_RD_DQS_SLAVE_RATIO_1 (0x0CC + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_RD_DQS_SLAVE_FORCE_0 (0x0D0 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_RD_DQS_SLAVE_DELAY_0 (0x0D4 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_RD_DQS_SLAVE_DELAY_1 (0x0D8 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DQS_SLAVE_RATIO_0 (0x0DC + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DQS_SLAVE_RATIO_1 (0x0E0 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DQS_SLAVE_FORCE_0 (0x0E4 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DQS_SLAVE_DELAY_0 (0x0E8 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DQS_SLAVE_DELAY_1 (0x0EC + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WRLVL_INIT_RATIO_0 (0x0F0 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WRLVL_INIT_RATIO_1 (0x0F4 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WRLVL_INIT_MODE_0 (0x0F8 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_GATELVL_INIT_RATIO_0 (0x0FC + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_GATELVL_INIT_RATIO_1 (0x100 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_GATELVL_INIT_MODE_0 (0x104 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_FIFO_WE_SLAVE_RATIO_0 (0x108 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_FIFO_WE_SLAVE_RATIO_1 (0x10C + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_FIFO_WE_IN_FORCE_0 (0x110 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_FIFO_WE_IN_DELAY_0 (0x114 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_FIFO_WE_IN_DELAY_1 (0x118 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_DQ_OFFSET_0 (0x11C + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DATA_SLAVE_RATIO_0 (0x120 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DATA_SLAVE_RATIO_1 (0x124 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DATA_SLAVE_FORCE_0 (0x128 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DATA_SLAVE_DELAY_0 (0x12C + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_WR_DATA_SLAVE_DELAY_1 (0x130 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_USE_RANK0_DELAYS_0 (0x134 + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_DLL_LOCK_DIFF_0 (0x138 + DDR_PHY_BASE_ADDR)
#define DATA0_PHY_REG_STATUS_DLL_LOCK_0 (0x13C + DDR_PHY_BASE_ADDR)
#define DATA0_PHY_REG_STATUS_OF_IN_LOCK_STATE_0 (0x140 + DDR_PHY_BASE_ADDR)
#define DATA0_PHY_REG_STATUS_OF_IN_DELAY_VALUE_0 (0x144 + DDR_PHY_BASE_ADDR)
#define DATA0_PHY_REG_STATUS_OF_OUT_DELAY_VALUE_0 (0x148 + DDR_PHY_BASE_ADDR)
//DATA1
#define DATA1_REG_PHY_DATA_SLICE_IN_USE_0 (0x15C + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_DIS_CALIB_RST_0 (0x160 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_RDC_FIFO_RST_ERR_CNT_CLR_0 (0x164 + DDR_PHY_BASE_ADDR)
#define DATA1_PHY_RDC_FIFO_RST_ERR_CNT_0 (0x168 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_RD_DQS_SLAVE_RATIO_0 (0x16C + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_RD_DQS_SLAVE_RATIO_1 (0x170 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_RD_DQS_SLAVE_FORCE_0 (0x174 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_RD_DQS_SLAVE_DELAY_0 (0x178 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_RD_DQS_SLAVE_DELAY_1 (0x17C + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DQS_SLAVE_RATIO_0 (0x180 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DQS_SLAVE_RATIO_1 (0x184 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DQS_SLAVE_FORCE_0 (0x188 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DQS_SLAVE_DELAY_0 (0x18C + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DQS_SLAVE_DELAY_1 (0x190 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WRLVL_INIT_RATIO_0 (0x194 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WRLVL_INIT_RATIO_1 (0x198 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WRLVL_INIT_MODE_0 (0x19C + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_GATELVL_INIT_RATIO_0 (0x1A0 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_GATELVL_INIT_RATIO_1 (0x1A4 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_GATELVL_INIT_MODE_0 (0x1A8 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_FIFO_WE_SLAVE_RATIO_0 (0x1AC + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_FIFO_WE_SLAVE_RATIO_1 (0x1B0 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_FIFO_WE_IN_FORCE_0 (0x1B4 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_FIFO_WE_IN_DELAY_0 (0x1B8 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_FIFO_WE_IN_DELAY_1 (0x1BC + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_DQ_OFFSET_0 (0x1C0 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DATA_SLAVE_RATIO_0 (0x1C4 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DATA_SLAVE_RATIO_1 (0x1C8 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DATA_SLAVE_FORCE_0 (0x1CC + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DATA_SLAVE_DELAY_0 (0x1D0 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WR_DATA_SLAVE_DELAY_1 (0x1D4 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_USE_RANK0_DELAYS_0 (0x1D8 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_DLL_LOCK_DIFF_0 (0x1DC + DDR_PHY_BASE_ADDR)
#define DATA1_PHY_REG_STATUS_DLL_LOCK_0 (0x1E0 + DDR_PHY_BASE_ADDR)
#define DATA1_PHY_REG_STATUS_OF_IN_LOCK_STATE_0 (0x1E4 + DDR_PHY_BASE_ADDR)
#define DATA1_PHY_REG_STATUS_OF_IN_DELAY_VALUE_0 (0x1E8 + DDR_PHY_BASE_ADDR)
#define DATA1_PHY_REG_STATUS_OF_OUT_DELAY_VALUE_0 (0x1EC + DDR_PHY_BASE_ADDR)
//FIFO
#define FIFO_WE_OUT0_IO_CONFIG_I_0 (0x338 + DDR_PHY_BASE_ADDR)
#define FIFO_WE_OUT0_IO_CONFIG_SR_0 (0x33C + DDR_PHY_BASE_ADDR)
#define FIFO_WE_OUT1_IO_CONFIG_I_0 (0x340 + DDR_PHY_BASE_ADDR)
#define FIFO_WE_OUT1_IO_CONFIG_SR_0 (0x344 + DDR_PHY_BASE_ADDR)
#define FIFO_WE_IN2_IO_CONFIG_I_0 (0x348 + DDR_PHY_BASE_ADDR)
#define FIFO_WE_IN2_IO_CONFIG_SR_0 (0x34C + DDR_PHY_BASE_ADDR)
#define FIFO_WE_IN3_IO_CONFIG_I_0 (0x350 + DDR_PHY_BASE_ADDR)
#define FIFO_WE_IN3_IO_CONFIG_SR_0 (0x354 + DDR_PHY_BASE_ADDR)
//Leveling
#define DATA0_REG_PHY_WRLVL_NUM_OF_DQ0 (0x35C + DDR_PHY_BASE_ADDR)
#define DATA0_REG_PHY_GATELVL_NUM_OF_DQ0 (0x360 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_WRLVL_NUM_OF_DQ0 (0x364 + DDR_PHY_BASE_ADDR)
#define DATA1_REG_PHY_GATELVL_NUM_OF_DQ0 (0x368 + DDR_PHY_BASE_ADDR)
//*******************************************************************
//Watchdog Timer registers
//*******************************************************************
#define WDT1_BASE_ADDR (0x44E35000)
#define WDT1_WSPR (WDT1_BASE_ADDR + 0x48)
//*****************************************************************************
//Read write prototype
//*****************************************************************************
#define WR_MEM_32(addr, data) *(unsigned int*)(addr) = (unsigned int)(data)
#define RD_MEM_32(addr) *(unsigned int*)(addr)
#define UWORD32 unsigned int
//*****************************************************************************
//Global variables
//*****************************************************************************
UWORD32 CLKIN;
//*****************************************************************************
//Global Functions
//*****************************************************************************
StartUp()
{
GEL_LoadGel("$(GEL_file_dir)/AM335x_PRU_ICSS.gel");
}
//Watchdog is disabled to eliminate warm resets during debug
Disable_Watchdog()
{
WR_MEM_32(WDT1_WSPR,0x0000AAAA);
WR_MEM_32(WDT1_WSPR,0x00005555);
}
//Set the processor to ARM mode and Supervisor mode after a file is loaded, on a
//restart or on a reset
//This will facilitate code loading and debug by putting the processor in a known
//state
AMIC110StartState()
{
CPSR &= ~0x20;
CPSR = (CPSR & ~0x1F) | 0x13;
CP15_CONTROL_REGISTER &= ~0x1;
}
OnPreFileLoaded()
{
AMIC110StartState();
}
OnRestart()
{
AMIC110StartState();
}
OnReset()
{
AMIC110StartState();
Disable_Watchdog();
}
OnTargetConnect()
{
GEL_MapOff();
GEL_MapReset();
GEL_MapAddStr(0x00020000, 0, 0x0000C000, "R", 0); // Boot ROM
GEL_MapAddStr(0x00000000, 0, 0x20000000, "R|W", 0); // NOR FLASH
GEL_MapAddStr(0x40020000, 0, 0x0000C000, "R", 0); // Boot ROM (also at 0x20000)
GEL_MapAddStr(0x402F0400, 0, 0x0000FC00, "R|W", 0); // SRAM Internal
GEL_MapAddStr(0x40300000, 0, 0x00010000, "R|W", 0); // OCMC-RAM
GEL_MapAddStr(0x44000000, 0, 0x00400000, "R|W", 0); // L3F CFG Regs
GEL_MapAddStr(0x44800000, 0, 0x00400000, "R|W", 0); // L3S CFG Regs
GEL_MapAddStr(0x44C00000, 0, 0x00400000, "R|W", 0); // L4_WKUP
GEL_MapAddStr(0x46000000, 0, 0x00400000, "R|W", 0); // McASP0 Data
GEL_MapAddStr(0x46400000, 0, 0x00400000, "R|W", 0); // McASP1 Data
GEL_MapAddStr(0x47400000, 0, 0x00005000, "R|W", 0); // USB0/1
GEL_MapAddStr(0x47810000, 0, 0x00010000, "R|W", 0); // MMCHS2
GEL_MapAddStr(0x48000000, 0, 0x01000000, "R|W", 0); // L4 PER
GEL_MapAddStr(0x49000000, 0, 0x00B00000, "R|W", 0); // EDMA
GEL_MapAddStr(0x4A000000, 0, 0x01000000, "R|W", 0); // L4_FAST
GEL_MapAddStr(0x4C000000, 0, 0x01000000, "R|W", 0); // EMIF
GEL_MapAddStr(0x50000000, 0, 0x01000000, "R|W", 0); // GPMC Regs
GEL_MapAddStr(0x56000000, 0, 0x01000000, "R|W", 0); // SGX530
GEL_MapAddStr(0x80000000, 0, 0x20000000, "R|W", 0); // 512MB DDR3 external memory
GEL_MapOn();
GEL_AdvancedReset("System Reset"); // Reset the board to avoid conflicts with program running from NOR/SPI/SD
GEL_Halt(); // System Reset leaves the core running. Needs to halt it so memory can be accessed
Disable_Watchdog();
AMIC110_ICE_Initialization();
}
//******************************************************************************
//System Initialization
//******************************************************************************
menuitem "AMIC110 System Initialization"
hotmenu AMIC110_ICE_Initialization()
{
GEL_TextOut("**** AMIC110_ICE & BoosterPack Initialization is in progress .......... \n","Output",1,1,1);
ARM_OPP100_Config();
//DDR2_EMIF_Config();
DDR3_EMIF_Config();
GEL_TextOut("Turning on EDMA... \n");
EdmaPrcm();
GEL_TextOut("EDMA is turned on... \n");
GEL_TextOut("**** AMIC110_ICE Initialization is Done ****************** \n\n\n","Output",1,1,1);
}
hotmenu GetInputClockFrequency()
{
UWORD32 temp;
temp = RD_MEM_32(CONTROL_STATUS) >> 22;
temp = temp & 0x3;
if (temp == 0)
{
CLKIN = 19; //19.2MHz
GEL_TextOut("Input Clock Read from SYSBOOT[15:14]: 19.2MHz\n","Output",1,1,1);
}
if (temp == 1)
{
CLKIN = 24; //24MHz
GEL_TextOut("Input Clock Read from SYSBOOT[15:14]: 24MHz\n","Output",1,1,1);
}
if (temp == 2)
{
CLKIN = 25; //25MHz
GEL_TextOut("Input Clock Read from SYSBOOT[15:14]: 25MHz\n","Output",1,1,1);
}
if (temp == 3)
{
CLKIN = 26; //26MHz
GEL_TextOut("Input Clock Read from SYSBOOT[15:14]: 26MHz\n","Output",1,1,1);
}
}
hotmenu ARM_OPP100_Config()
{
GEL_TextOut("**** AMIC110 & Booster Pack ALL PLL Config for OPP == OPP100 is in progress ......... \n","Output",1,1,1);
GetInputClockFrequency();
if(CLKIN==24)
{
MPU_PLL_Config( CLKIN, 0, 25, 2); // 300 MHz
CORE_PLL_Config( CLKIN, 2, 125, 10, 8, 4);
DDR_PLL_Config( CLKIN, 2, 50, 1); // 400 MHz
PER_PLL_Config( CLKIN, 9, 400, 5);
DISP_PLL_Config( CLKIN, 0, 2, 1);
GEL_TextOut("**** AMIC110 ALL ADPLL Config for OPP == OPP100 24 MHz is Done ......... \n","Output",1,1,1);
}
else
if(CLKIN==25)
{
MPU_PLL_Config( CLKIN, 0, 24, 2); // 300 MHz
CORE_PLL_Config( CLKIN, 0, 40, 10, 8, 4);
DDR_PLL_Config( CLKIN, 0, 16, 1); // 400 MHz
PER_PLL_Config( CLKIN, 9, 384, 5);
DISP_PLL_Config( CLKIN, 24, 48, 1);
GEL_TextOut("**** AMIC110 BoosterPack ALL ADPLL Config for 25 MHz OPP == OPP100 25MHz is Done ......... \n","Output",1,1,1);
}
else
GEL_TextOut("**** AMIC110 PLL Config failed!! Check SYSBOOT[15:14] for proper input freq config \n","Output",1,1,1);
}
//**********************************************************************
//PLL Configuration functions
//**********************************************************************
MPU_PLL_Config(UWORD32 CLKIN,UWORD32 N,UWORD32 M,UWORD32 M2)
{
UWORD32 ref_clk,clk_out = 0;
UWORD32 clkmode,clksel,div_m2,idlest_dpll;
UWORD32 temp,i;
ref_clk = CLKIN/(N+1);
clk_out = (ref_clk*M)/M2;
clkmode=RD_MEM_32(CM_CLKMODE_DPLL_MPU);
clksel= RD_MEM_32(CM_CLKSEL_DPLL_MPU);
div_m2= RD_MEM_32(CM_DIV_M2_DPLL_MPU);
GEL_TextOut("**** Going to Bypass... \n","Output",1,1,1);
//put the DPLL in bypass mode
WR_MEM_32(CM_CLKMODE_DPLL_MPU,0x4);
while(((RD_MEM_32(CM_IDLEST_DPLL_MPU) & 0x101) != 0x00000100)); //wait for bypass status
GEL_TextOut("**** Bypassed, changing values... \n","Output",1,1,1);
//set multiply and divide values
clksel = clksel & (~0x7FFFF);
clksel = clksel | ((M <<0x8) | N);
WR_MEM_32(CM_CLKSEL_DPLL_MPU,clksel);
div_m2 = div_m2 & ~0x1F;
div_m2 = div_m2 | M2;
WR_MEM_32(CM_DIV_M2_DPLL_MPU,div_m2);
GEL_TextOut("**** Locking ARM PLL\n","Output",1,1,1);
//now lock the DPLL
clkmode = clkmode | 0x7; //enables lock mode
WR_MEM_32(CM_CLKMODE_DPLL_MPU,clkmode);
while(((RD_MEM_32(CM_IDLEST_DPLL_MPU) & 0x101) != 0x1)); //wait for lock
}
CORE_PLL_Config(UWORD32 CLKIN,UWORD32 N,UWORD32 M,UWORD32 M4,UWORD32 M5,UWORD32 M6)
{
UWORD32 ref_clk,clk_out4,clk_out5,clk_out6;
UWORD32 clkmode,clksel,div_m4,div_m5,div_m6,idlest_dpll;
ref_clk = CLKIN/(N+1);
clk_out4 = (ref_clk*M)/M4; //M4=200MHz
clk_out5 = (ref_clk*M)/M5; //M5=250MHz
clk_out6 = (ref_clk*M)/M6; //M6=500MHz
clkmode=RD_MEM_32(CM_CLKMODE_DPLL_CORE);
clksel= RD_MEM_32(CM_CLKSEL_DPLL_CORE);
div_m4= RD_MEM_32(CM_DIV_M4_DPLL_CORE);
div_m5= RD_MEM_32(CM_DIV_M5_DPLL_CORE);
div_m6= RD_MEM_32(CM_DIV_M6_DPLL_CORE);
//put DPLL in bypass mode
clkmode = (clkmode & 0xfffffff8)|0x00000004;
WR_MEM_32(CM_CLKMODE_DPLL_CORE,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_CORE) & 0x00000100 )!=0x00000100); //wait for bypass status
GEL_TextOut("**** Core Bypassed\n","Output",1,1,1);
//set multiply and divide values
clksel = clksel & (~0x7FFFF);
clksel = clksel | ((M <<0x8) | N);
WR_MEM_32(CM_CLKSEL_DPLL_CORE,clksel);
div_m4= M4; //200MHz
WR_MEM_32(CM_DIV_M4_DPLL_CORE,div_m4);
div_m5= M5; //250MHz
WR_MEM_32(CM_DIV_M5_DPLL_CORE,div_m5);
div_m6= M6; //500MHz
WR_MEM_32(CM_DIV_M6_DPLL_CORE,div_m6);
GEL_TextOut("**** Now locking Core...\n","Output",1,1,1);
//now lock the PLL
clkmode =(clkmode&0xfffffff8)|0x00000007;
WR_MEM_32(CM_CLKMODE_DPLL_CORE,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_CORE) & 0x00000001 )!=0x00000001);
GEL_TextOut("**** Core locked\n","Output",1,1,1);
}
DDR_PLL_Config(UWORD32 CLKIN,UWORD32 N,UWORD32 M,UWORD32 M2)
{
UWORD32 ref_clk,clk_out = 0;
UWORD32 clkmode,clksel,div_m2,idlest_dpll;
ref_clk = CLKIN/(N+1);
clk_out = (ref_clk*M)/M2;
clkmode=RD_MEM_32(CM_CLKMODE_DPLL_DDR);
clksel= RD_MEM_32(CM_CLKSEL_DPLL_DDR);
div_m2= RD_MEM_32(CM_DIV_M2_DPLL_DDR);
clkmode =(clkmode&0xfffffff8)|0x00000004;
WR_MEM_32(CM_CLKMODE_DPLL_DDR,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_DDR) & 0x00000100 )!=0x00000100);
GEL_TextOut("**** DDR DPLL Bypassed\n","Output",1,1,1);
clksel = clksel & (~0x7FFFF);
clksel = clksel | ((M <<0x8) | N);
WR_MEM_32(CM_CLKSEL_DPLL_DDR,clksel);
div_m2 = RD_MEM_32(CM_DIV_M2_DPLL_DDR);
div_m2 = (div_m2&0xFFFFFFE0) | M2;
WR_MEM_32(CM_DIV_M2_DPLL_DDR,div_m2);
clkmode =(clkmode&0xfffffff8)|0x00000007;
WR_MEM_32(CM_CLKMODE_DPLL_DDR,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_DDR) & 0x00000001 )!=0x00000001);
GEL_TextOut("**** DDR DPLL Locked\n","Output",1,1,1);
}
PER_PLL_Config(UWORD32 CLKIN,UWORD32 N,UWORD32 M,UWORD32 M2)
{
UWORD32 ref_clk,clk_out = 0;
UWORD32 clkmode,clksel,div_m2,idlest_dpll;
ref_clk = CLKIN/(N+1);
clk_out = (ref_clk*M)/M2;
clkmode=RD_MEM_32(CM_CLKMODE_DPLL_PER);
clksel= RD_MEM_32(CM_CLKSEL_DPLL_PER);
div_m2= RD_MEM_32(CM_DIV_M2_DPLL_PER);
clkmode =(clkmode&0xfffffff8)|0x00000004;
WR_MEM_32(CM_CLKMODE_DPLL_PER,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_PER) & 0x00000100 )!=0x00000100);
GEL_TextOut("**** PER DPLL Bypassed\n","Output",1,1,1);
clksel = clksel & (~0x7FFFF);
clksel = clksel | ((M <<0x8) | N);
WR_MEM_32(CM_CLKSEL_DPLL_PER,clksel);
div_m2= 0xFFFFFF80 | M2;
WR_MEM_32(CM_DIV_M2_DPLL_PER,div_m2);
clkmode =(clkmode&0xfffffff8)|0x00000007;
WR_MEM_32(CM_CLKMODE_DPLL_PER,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_PER) & 0x00000001 )!=0x00000001);
GEL_TextOut("**** PER DPLL Locked\n","Output",1,1,1);
}
DISP_PLL_Config(UWORD32 CLKIN,UWORD32 N,UWORD32 M,UWORD32 M2)
{
UWORD32 ref_clk,clk_out = 0;
UWORD32 clkmode,clksel,div_m2,idlest_dpll;
GEL_TextOut("**** DISP PLL Config is in progress .......... \n","Output",1,1,1);
ref_clk = CLKIN/(N+1);
clk_out = (ref_clk*M)/M2;
clkmode=RD_MEM_32(CM_CLKMODE_DPLL_DISP);
clksel= RD_MEM_32(CM_CLKSEL_DPLL_DISP);
div_m2= RD_MEM_32(CM_DIV_M2_DPLL_DISP);
clkmode =(clkmode&0xfffffff8)|0x00000004;
WR_MEM_32(CM_CLKMODE_DPLL_DISP,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_DISP) & 0x00000100 )!=0x00000100);
clksel = clksel & (~0x7FFFF);
clksel = clksel | ((M <<0x8) | N);
WR_MEM_32(CM_CLKSEL_DPLL_DISP,clksel);
div_m2= 0xFFFFFFE0 | M2;
WR_MEM_32(CM_DIV_M2_DPLL_DISP,div_m2);
clkmode =(clkmode&0xfffffff8)|0x00000007;
WR_MEM_32(CM_CLKMODE_DPLL_DISP,clkmode);
while((RD_MEM_32(CM_IDLEST_DPLL_DISP) & 0x00000001 )!=0x00000001);
GEL_TextOut("**** DISP PLL Config is DONE .......... \n","Output",1,1,1);
}
//##############################################################################
//##############################################################################
// DDR Configuration Section
//##############################################################################
//##############################################################################
//******************************************************************
//DDR2=266MHz
//OPP100
//******************************************************************
//globals
#define DATA_MACRO_0 0
#define DATA_MACRO_1 1
//*******************************************************************
//DDR2 PHY parameters
//*******************************************************************
#define DDR2_REG_PHY_CTRL_SLAVE_RATIO_DEFINE 0x80
#define DDR2_PHY_RD_DQS_SLAVE_RATIO_DEFINE 0x12
#define DDR2_PHY_WR_DQS_SLAVE_RATIO_DEFINE 0
#define DDR2_REG_PHY_WRLVL_INIT_RATIO_DEFINE 0
#define DDR2_REG_PHY_GATELVL_INIT_RATIO_DEFINE 0
#define DDR2_REG_PHY_FIFO_WE_SLAVE_RATIO_DEFINE 0x80
#define DDR2_REG_PHY_WR_DATA_SLAVE_RATIO_DEFINE 0x40
#define DDR2_PHY_DLL_LOCK_DIFF_DEFINE 0x0
#define DDR2_PHY_INVERT_CLKOUT_DEFINE 0x0
#define PHY_REG_USE_RANK0_DELAY 0x01
#define CMD_REG_PHY_CTRL_SLAVE_DELAY_DEFINE 0x00
#define CMD_REG_PHY_CTRL_SLAVE_FORCE_DEFINE 0x00
#define PHY_DLL_LOCK_DIFF_DEFINE 0x0
#define DDR_IOCTRL_VALUE (0x18B)
//******************************************************************
//EMIF parameters
//******************************************************************
#define DDR2_READ_LATENCY 0x05 //RD_Latency = (CL + 2) - 1
#define DDR2_SDRAM_TIMING1 0x0666B3C9
#define DDR2_SDRAM_TIMING2 0x243631CA
#define DDR2_SDRAM_TIMING3 0x00000337
#define DDR2_SDRAM_CONFIG 0x41805332 //termination = 1 (75ohm)
//SDRAM drive = 0 (full)
//CL = 4 (CAS latency = 4)
//ROWSIZE = 6 (15 row bits)
//PAGESIZE = 2 (10 column bits)
#define DDR2_REF_CTRL 0x0000081a //266*7.8us = 2074.8 = 0x81A
//******************************************************************
//DDR3=400MHz
//OPP100
//******************************************************************
//*******************************************************************
//DDR3 PHY parameters
//*******************************************************************
#define CMD_PHY_CTRL_SLAVE_RATIO (0x80)
#define CMD_PHY_INVERT_CLKOUT (0x00)
#define DATA_PHY_RD_DQS_SLAVE_RATIO (0x3A)
#define DATA_PHY_FIFO_WE_SLAVE_RATIO (0x96) //RD DQS GATE
#define DATA_PHY_WR_DQS_SLAVE_RATIO (0x39)
#define DATA_PHY_WR_DATA_SLAVE_RATIO (0x71) //WRITE DATA
#define DDR_IOCTRL_VALUE (0x18B)
//******************************************************************
//EMIF parameters
//******************************************************************
#define ALLOPP_DDR3_READ_LATENCY 0x07 //RD_Latency = (CL + 2) - 1
//400MHz
/*
#define ALLOPP_DDR3_SDRAM_TIMING1 0x0AAAD4DB
#define ALLOPP_DDR3_SDRAM_TIMING2 0x26437FDA
#define ALLOPP_DDR3_SDRAM_TIMING3 0x501F83FF
#define ALLOPP_DDR3_SDRAM_CONFIG 0x61C052B2 //termination = 1 (RZQ/4) //old - 0x61C04AB2
//dynamic ODT = 2 (RZQ/2)
//SDRAM drive = 0 (RZQ/6)
//CWL = 0 (CAS write latency = 5)
//CL=4 (CAS latency=6) //old - CL = 2 (CAS latency = 5)
//ROWSIZE = 5 (14 row bits)
//PAGESIZE = 2 (10 column bits)
#define ALLOPP_DDR3_REF_CTRL 0x00000C30 //400 * 7.8us = 0xC30
#define ALLOPP_DDR3_ZQ_CONFIG 0x50074BE4 */
#define ALLOPP_DDR3_SDRAM_TIMING1 0x0AAAD4DB
#define ALLOPP_DDR3_SDRAM_TIMING2 0x266B7FDA
#define ALLOPP_DDR3_SDRAM_TIMING3 0x501F867F
#define ALLOPP_DDR3_SDRAM_CONFIG 0x61C05332 //termination = 1 (75ohm)
// dynamic ODT = 2 (RZ/2)
//SDRAM Drive = 0 (RZQ/6)
//CWL = 0 (CAS write Latency = 5)
//CL = 4 (CAS Latency = 6)
//ROWSIZE = 6 (15 row bits)
//PAGESIZE = 2 (10 column bits)
#define ALLOPP_DDR3_REF_CTRL 0x00000C30 //400 * 7.8us = 3120 = 0xC30
#define ALLOPP_DDR3_ZQ_CONFIG 0x50074BE4
menuitem "AMIC110 DDR Configuration";
hotmenu DDR2_EMIF_Config()
{
GEL_TextOut("**** AMIC110 DDR2 EMIF and PHY configuration is in progress......... \n","Output",1,1,1);
cmd_DDR2_EMIF_Config(DDR2_REG_PHY_CTRL_SLAVE_RATIO_DEFINE,CMD_REG_PHY_CTRL_SLAVE_FORCE_DEFINE,CMD_REG_PHY_CTRL_SLAVE_DELAY_DEFINE,DDR2_PHY_DLL_LOCK_DIFF_DEFINE,DDR2_PHY_INVERT_CLKOUT_DEFINE,DDR2_PHY_RD_DQS_SLAVE_RATIO_DEFINE,DDR2_PHY_WR_DQS_SLAVE_RATIO_DEFINE,DDR2_REG_PHY_WRLVL_INIT_RATIO_DEFINE,DDR2_REG_PHY_GATELVL_INIT_RATIO_DEFINE,DDR2_REG_PHY_FIFO_WE_SLAVE_RATIO_DEFINE,DDR2_REG_PHY_WR_DATA_SLAVE_RATIO_DEFINE,DDR2_READ_LATENCY,DDR2_SDRAM_TIMING1,DDR2_SDRAM_TIMING2,
DDR2_SDRAM_TIMING3,DDR2_SDRAM_CONFIG,DDR2_REF_CTRL);
GEL_TextOut("**** AMIC110 DDR2 EMIF and PHY configuration is done **** \n","Output",1,1,1);
}
hotmenu Enable_VTT_Regulator()
{
UWORD32 temp;
/*DDR_VTT_EN - GPIO0_18 PINMUX Setup*/
WR_MEM_32(CONTROL_CONF_USB0_DRVVBUS, 0x27);
WR_MEM_32(CM_WKUP_GPIO0_CLKCTRL,0x40002);
/* Poll if module is functional */
while(RD_MEM_32(CM_WKUP_GPIO0_CLKCTRL) & 0x30000 != 0x0);
while( (RD_MEM_32(CM_WKUP_CLKSTCTRL) & 0x100) != 0x100);
//reset the GPIO module
WR_MEM_32(GPIO0_SYSCONFIG,0x2);
while(RD_MEM_32(GPIO0_SYSSTATUS)!= 0x1);
//enable module
WR_MEM_32(GPIO0_CTRL,0x0);
/*enable output for GPIO0_18*/
WR_MEM_32((GPIO0_SETDATAOUT),(1<<18));
temp = RD_MEM_32(GPIO0_OE);
temp = temp & ~(1 << 18);
WR_MEM_32(GPIO0_OE,temp);
temp = temp | (1 << 18);
WR_MEM_32(GPIO0_OE,temp);
}
hotmenu Disable_VTT_Regulator()
{
UWORD32 temp;
/*DDR_VTT_EN - GPIO0_18 PINMUX Setup*/
WR_MEM_32(CONTROL_CONF_USB0_DRVVBUS, 0x27);
WR_MEM_32(CM_WKUP_GPIO0_CLKCTRL,0x40002);
/* Poll if module is functional */
while(RD_MEM_32(CM_WKUP_GPIO0_CLKCTRL) & 0x30000 != 0x0);
while( (RD_MEM_32(CM_WKUP_CLKSTCTRL) & 0x100) != 0x100);
//reset the GPIO module
WR_MEM_32(GPIO0_SYSCONFIG,0x2);
while(RD_MEM_32(GPIO0_SYSSTATUS)!= 0x1);
//enable module
WR_MEM_32(GPIO0_CTRL,0x0);
/*enable output for GPIO0_18*/
WR_MEM_32((GPIO0_CLEARDATAOUT),(1<<18));
temp = RD_MEM_32(GPIO0_OE);
temp = temp & ~(1 << 18);
WR_MEM_32(GPIO0_OE,temp);
}
hotmenu DDR3_EMIF_Config()
{
UWORD32 i=0;
GEL_TextOut("**** AMIC110 DDR3 EMIF and PHY configuration is in progress... \n","Output",1,1,1);
Enable_VTT_Regulator();
EMIF_PRCM_CLK_ENABLE();
GEL_TextOut("DDR PHY Configuration in progress \n","Output",1,1,1);
VTP_Enable();
PHY_Config_CMD();
PHY_Config_DATA();
GEL_TextOut("Setting IO control registers....... \n","Output",1,1,1,i);
WR_MEM_32(DDR_CMD0_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_CMD1_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_CMD2_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_DATA0_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_DATA1_IOCTRL,DDR_IOCTRL_VALUE);
//IO to work for DDR3
WR_MEM_32(DDR_IO_CTRL, RD_MEM_32(DDR_IO_CTRL) & ~0x10000000 );
//CKE controlled by EMIF/DDR_PHY
WR_MEM_32(DDR_CKE_CTRL, RD_MEM_32(DDR_CKE_CTRL) | 0x00000001);
GEL_TextOut("EMIF Timing register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(EMIF_DDR_PHY_CTRL_1_REG, ALLOPP_DDR3_READ_LATENCY);
WR_MEM_32(EMIF_DDR_PHY_CTRL_1_SHDW_REG, ALLOPP_DDR3_READ_LATENCY);
WR_MEM_32(EMIF_DDR_PHY_CTRL_2_REG, ALLOPP_DDR3_READ_LATENCY);
WR_MEM_32(EMIF_SDRAM_TIM_1_REG,ALLOPP_DDR3_SDRAM_TIMING1);
WR_MEM_32(EMIF_SDRAM_TIM_1_SHDW_REG,ALLOPP_DDR3_SDRAM_TIMING1);
WR_MEM_32(EMIF_SDRAM_TIM_2_REG,ALLOPP_DDR3_SDRAM_TIMING2);
WR_MEM_32(EMIF_SDRAM_TIM_2_SHDW_REG,ALLOPP_DDR3_SDRAM_TIMING2);
WR_MEM_32(EMIF_SDRAM_TIM_3_REG,ALLOPP_DDR3_SDRAM_TIMING3);
WR_MEM_32(EMIF_SDRAM_TIM_3_SHDW_REG,ALLOPP_DDR3_SDRAM_TIMING3);
WR_MEM_32(EMIF_SDRAM_REF_CTRL_REG,ALLOPP_DDR3_REF_CTRL);
WR_MEM_32(EMIF_SDRAM_REF_CTRL_SHDW_REG,ALLOPP_DDR3_REF_CTRL);
WR_MEM_32(EMIF_ZQ_CONFIG_REG,ALLOPP_DDR3_ZQ_CONFIG);
WR_MEM_32(EMIF_SDRAM_CONFIG_REG, ALLOPP_DDR3_SDRAM_CONFIG);
GEL_TextOut("EMIF Timing register configuration is done ....... \n","Output",1,1,1);
if((RD_MEM_32(EMIF_STATUS_REG) & 0x4) == 0x4)
{
GEL_TextOut("PHY is READY!!\n","Output",1,1,1);
}
GEL_TextOut("DDR PHY Configuration done \n","Output",1,1,1);
}
PHY_Config_CMD()
{
UWORD32 i=0;
for(i=0;i<3;i++)
{
GEL_TextOut("DDR PHY CMD%d Register configuration is in progress ....... \n","Output",1,1,1,i);
WR_MEM_32(CMD0_REG_PHY_CTRL_SLAVE_RATIO_0 + (i*0x34),CMD_PHY_CTRL_SLAVE_RATIO);
WR_MEM_32(CMD0_REG_PHY_INVERT_CLKOUT_0 + (i*0x34),CMD_PHY_INVERT_CLKOUT);
}
}
PHY_Config_DATA()
{
UWORD32 i;
for(i=0;i<2;i++)
{
GEL_TextOut("DDR PHY DATA%d Register configuration is in progress ....... \n","Output",1,1,1,i);
WR_MEM_32(DATA0_REG_PHY_RD_DQS_SLAVE_RATIO_0 + (i*0xA4),DATA_PHY_RD_DQS_SLAVE_RATIO);
WR_MEM_32(DATA0_REG_PHY_WR_DQS_SLAVE_RATIO_0 + (i*0xA4),DATA_PHY_WR_DQS_SLAVE_RATIO);
WR_MEM_32(DATA0_REG_PHY_FIFO_WE_SLAVE_RATIO_0 + (i*0xA4),DATA_PHY_FIFO_WE_SLAVE_RATIO);
WR_MEM_32(DATA0_REG_PHY_WR_DATA_SLAVE_RATIO_0 + (i*0xA4),DATA_PHY_WR_DATA_SLAVE_RATIO);
}
}
/*
cmd_DDR2_EMIF_Config(UWORD32 REG_PHY_CTRL_SLAVE_RATIO,UWORD32 CMD_REG_PHY_CTRL_SLAVE_FORCE,UWORD32 CMD_REG_PHY_CTRL_SLAVE_DELAY,UWORD32 CMD_PHY_DLL_LOCK_DIFF,UWORD32 CMD_PHY_INVERT_CLKOUT,UWORD32 DATA_PHY_RD_DQS_SLAVE_RATIO,UWORD32 DATA_PHY_WR_DQS_SLAVE_RATIO,UWORD32 DATA_REG_PHY_WRLVL_INIT_RATIO,UWORD32 DATA_REG_PHY_GATELVL_INIT_RATIO,UWORD32 DATA_REG_PHY_FIFO_WE_SLAVE_RATIO,UWORD32 DATA_REG_PHY_WR_DATA_SLAVE_RATIO,UWORD32 RD_LATENCY,UWORD32 TIMING1,UWORD32 TIMING2,UWORD32 TIMING3,UWORD32 SDRAM_CONFIG,UWORD32 REF_CTRL)
{
EMIF_PRCM_CLK_ENABLE();
GEL_TextOut("DDR PHY Configuration in progress \n","Output",1,1,1);
//Enable VTP
VTP_Enable();
Cmd_Macro_Config(REG_PHY_CTRL_SLAVE_RATIO,CMD_REG_PHY_CTRL_SLAVE_FORCE,CMD_REG_PHY_CTRL_SLAVE_DELAY,CMD_PHY_DLL_LOCK_DIFF,CMD_PHY_INVERT_CLKOUT);
Data_Macro_Config(DATA_MACRO_0,DATA_PHY_RD_DQS_SLAVE_RATIO,DATA_PHY_WR_DQS_SLAVE_RATIO,DATA_REG_PHY_WRLVL_INIT_RATIO,
DATA_REG_PHY_GATELVL_INIT_RATIO,DATA_REG_PHY_FIFO_WE_SLAVE_RATIO,DATA_REG_PHY_WR_DATA_SLAVE_RATIO);
Data_Macro_Config(DATA_MACRO_1,DATA_PHY_RD_DQS_SLAVE_RATIO,DATA_PHY_WR_DQS_SLAVE_RATIO,DATA_REG_PHY_WRLVL_INIT_RATIO,
DATA_REG_PHY_GATELVL_INIT_RATIO,DATA_REG_PHY_FIFO_WE_SLAVE_RATIO,DATA_REG_PHY_WR_DATA_SLAVE_RATIO);
WR_MEM_32(DATA0_REG_PHY_USE_RANK0_DELAYS_0,PHY_REG_USE_RANK0_DELAY);
WR_MEM_32(DATA1_REG_PHY_USE_RANK0_DELAYS_0,PHY_REG_USE_RANK0_DELAY);
//set IO control registers
WR_MEM_32(DDR_CMD0_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_CMD1_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_CMD2_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_DATA0_IOCTRL,DDR_IOCTRL_VALUE);
WR_MEM_32(DDR_DATA1_IOCTRL,DDR_IOCTRL_VALUE);
//IO to work for DDR2
WR_MEM_32(DDR_IO_CTRL, RD_MEM_32(DDR_IO_CTRL) & ~0x10000000 );
//CKE controlled by EMIF/DDR_PHY
WR_MEM_32(DDR_CKE_CTRL, RD_MEM_32(DDR_CKE_CTRL) | 0x00000001);
EMIF_MMR_Config(RD_LATENCY,TIMING1,TIMING2,TIMING3,SDRAM_CONFIG,REF_CTRL);
if((RD_MEM_32(EMIF_STATUS_REG) & 0x4) == 0x4)
{
GEL_TextOut("PHY is READY!!\n","Output",1,1,1);
}
GEL_TextOut("DDR PHY Configuration done \n","Output",1,1,1);
}
*/
hotmenu EMIF_PRCM_CLK_ENABLE()
{
GEL_TextOut("EMIF PRCM is in progress ....... \n","Output",1,1,1);
/* Enable EMIF4 Firewall clocks*/
WR_MEM_32(CM_PER_EMIF_FW_CLKCTRL,0x02);
/* Enable EMIF4 clocks*/
WR_MEM_32(CM_PER_EMIF_CLKCTRL,0x02);
/* Poll if module is functional */
while(RD_MEM_32(CM_PER_EMIF_CLKCTRL)!= 0x02);
GEL_TextOut("EMIF PRCM Done \n","Output",1,1,1);
}
/*************************************************************************
* Cmd_Macro_Config() routine *
*************************************************************************/
Cmd_Macro_Config(UWORD32 REG_PHY_CTRL_SLAVE_RATIO_value,UWORD32 CMD_REG_PHY_CTRL_SLAVE_FORCE_value,UWORD32 CMD_REG_PHY_CTRL_SLAVE_DELAY_value,
UWORD32 PHY_DLL_LOCK_DIFF_value,UWORD32 CMD_PHY_INVERT_CLKOUT_value)
{
GEL_TextOut("DDR PHY CMD0 Register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(CMD0_REG_PHY_CTRL_SLAVE_RATIO_0,REG_PHY_CTRL_SLAVE_RATIO_value);
WR_MEM_32(CMD0_REG_PHY_CTRL_SLAVE_FORCE_0,CMD_REG_PHY_CTRL_SLAVE_FORCE_value);
WR_MEM_32(CMD0_REG_PHY_CTRL_SLAVE_DELAY_0,CMD_REG_PHY_CTRL_SLAVE_DELAY_value);
WR_MEM_32(CMD0_REG_PHY_DLL_LOCK_DIFF_0,PHY_DLL_LOCK_DIFF_value);
WR_MEM_32(CMD0_REG_PHY_INVERT_CLKOUT_0,CMD_PHY_INVERT_CLKOUT_value);
GEL_TextOut("DDR PHY CMD1 Register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(CMD1_REG_PHY_CTRL_SLAVE_RATIO_0,REG_PHY_CTRL_SLAVE_RATIO_value);
WR_MEM_32(CMD1_REG_PHY_CTRL_SLAVE_FORCE_0,CMD_REG_PHY_CTRL_SLAVE_FORCE_value);
WR_MEM_32(CMD1_REG_PHY_CTRL_SLAVE_DELAY_0,CMD_REG_PHY_CTRL_SLAVE_DELAY_value);
WR_MEM_32(CMD1_REG_PHY_DLL_LOCK_DIFF_0,PHY_DLL_LOCK_DIFF_value);
WR_MEM_32(CMD1_REG_PHY_INVERT_CLKOUT_0,CMD_PHY_INVERT_CLKOUT_value);
GEL_TextOut("DDR PHY CMD2 Register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(CMD2_REG_PHY_CTRL_SLAVE_RATIO_0,REG_PHY_CTRL_SLAVE_RATIO_value);
WR_MEM_32(CMD2_REG_PHY_CTRL_SLAVE_FORCE_0,CMD_REG_PHY_CTRL_SLAVE_FORCE_value);
WR_MEM_32(CMD2_REG_PHY_CTRL_SLAVE_DELAY_0,CMD_REG_PHY_CTRL_SLAVE_DELAY_value);
WR_MEM_32(CMD2_REG_PHY_DLL_LOCK_DIFF_0,PHY_DLL_LOCK_DIFF_value);
WR_MEM_32(CMD2_REG_PHY_INVERT_CLKOUT_0,CMD_PHY_INVERT_CLKOUT_value);
}
/*************************************************************************
* Data_Macro_Config() routine *
*************************************************************************/
Data_Macro_Config(UWORD32 dataMacroNum,UWORD32 PHY_RD_DQS_SLAVE_RATIO_value,UWORD32 PHY_WR_DQS_SLAVE_RATIO_value,UWORD32 REG_PHY_WRLVL_INIT_RATIO_value,
UWORD32 REG_PHY_GATELVL_INIT_RATIO_value,UWORD32 REG_PHY_FIFO_WE_SLAVE_RATIO_value,UWORD32 REG_PHY_WR_DATA_SLAVE_RATIO_value)
{
if(dataMacroNum == DATA_MACRO_0)
{
GEL_TextOut("DDR PHY DATA0 Register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(DATA0_REG_PHY_RD_DQS_SLAVE_RATIO_0,((PHY_RD_DQS_SLAVE_RATIO_value<<30)|(PHY_RD_DQS_SLAVE_RATIO_value<<20)|(PHY_RD_DQS_SLAVE_RATIO_value<<10)|(PHY_RD_DQS_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA0_REG_PHY_RD_DQS_SLAVE_RATIO_1,PHY_RD_DQS_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA0_REG_PHY_WR_DQS_SLAVE_RATIO_0,((PHY_WR_DQS_SLAVE_RATIO_value<<30)|(PHY_WR_DQS_SLAVE_RATIO_value<<20)|(PHY_WR_DQS_SLAVE_RATIO_value<<10)|(PHY_WR_DQS_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA0_REG_PHY_WR_DQS_SLAVE_RATIO_1,PHY_WR_DQS_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA0_REG_PHY_WRLVL_INIT_RATIO_0,((REG_PHY_WRLVL_INIT_RATIO_value<<30)|(REG_PHY_WRLVL_INIT_RATIO_value<<20)|(REG_PHY_WRLVL_INIT_RATIO_value<<10)|(REG_PHY_WRLVL_INIT_RATIO_value<<0)));
WR_MEM_32(DATA0_REG_PHY_WRLVL_INIT_RATIO_1,REG_PHY_WRLVL_INIT_RATIO_value>>2);
WR_MEM_32(DATA0_REG_PHY_GATELVL_INIT_RATIO_0,((REG_PHY_GATELVL_INIT_RATIO_value<<30)|(REG_PHY_GATELVL_INIT_RATIO_value<<20)|(REG_PHY_GATELVL_INIT_RATIO_value<<10)|(REG_PHY_GATELVL_INIT_RATIO_value<<0)));
WR_MEM_32(DATA0_REG_PHY_GATELVL_INIT_RATIO_1,REG_PHY_GATELVL_INIT_RATIO_value>>2);
WR_MEM_32(DATA0_REG_PHY_FIFO_WE_SLAVE_RATIO_0,((REG_PHY_FIFO_WE_SLAVE_RATIO_value<<30)|(REG_PHY_FIFO_WE_SLAVE_RATIO_value<<20)|(REG_PHY_FIFO_WE_SLAVE_RATIO_value<<10)|(REG_PHY_FIFO_WE_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA0_REG_PHY_FIFO_WE_SLAVE_RATIO_1,REG_PHY_FIFO_WE_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA0_REG_PHY_WR_DATA_SLAVE_RATIO_0,((REG_PHY_WR_DATA_SLAVE_RATIO_value<<30)|(REG_PHY_WR_DATA_SLAVE_RATIO_value<<20)|(REG_PHY_WR_DATA_SLAVE_RATIO_value<<10)|(REG_PHY_WR_DATA_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA0_REG_PHY_WR_DATA_SLAVE_RATIO_1,REG_PHY_WR_DATA_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA0_REG_PHY_DLL_LOCK_DIFF_0,PHY_DLL_LOCK_DIFF_DEFINE);
}
else if(dataMacroNum == DATA_MACRO_1)
{
GEL_TextOut("DDR PHY DATA1 Register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(DATA1_REG_PHY_RD_DQS_SLAVE_RATIO_0,((PHY_RD_DQS_SLAVE_RATIO_value<<30)|(PHY_RD_DQS_SLAVE_RATIO_value<<20)|(PHY_RD_DQS_SLAVE_RATIO_value<<10)|(PHY_RD_DQS_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA1_REG_PHY_RD_DQS_SLAVE_RATIO_1,PHY_RD_DQS_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA1_REG_PHY_WR_DQS_SLAVE_RATIO_0,((PHY_WR_DQS_SLAVE_RATIO_value<<30)|(PHY_WR_DQS_SLAVE_RATIO_value<<20)|(PHY_WR_DQS_SLAVE_RATIO_value<<10)|(PHY_WR_DQS_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA1_REG_PHY_WR_DQS_SLAVE_RATIO_1,PHY_WR_DQS_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA1_REG_PHY_WRLVL_INIT_RATIO_0,((REG_PHY_WRLVL_INIT_RATIO_value<<30)|(REG_PHY_WRLVL_INIT_RATIO_value<<20)|(REG_PHY_WRLVL_INIT_RATIO_value<<10)|(REG_PHY_WRLVL_INIT_RATIO_value<<0)));
WR_MEM_32(DATA1_REG_PHY_WRLVL_INIT_RATIO_1,REG_PHY_WRLVL_INIT_RATIO_value>>2);
WR_MEM_32(DATA1_REG_PHY_GATELVL_INIT_RATIO_0,((REG_PHY_GATELVL_INIT_RATIO_value<<30)|(REG_PHY_GATELVL_INIT_RATIO_value<<20)|(REG_PHY_GATELVL_INIT_RATIO_value<<10)|(REG_PHY_GATELVL_INIT_RATIO_value<<0)));
WR_MEM_32(DATA1_REG_PHY_GATELVL_INIT_RATIO_1,REG_PHY_GATELVL_INIT_RATIO_value>>2);
WR_MEM_32(DATA1_REG_PHY_FIFO_WE_SLAVE_RATIO_0,((REG_PHY_FIFO_WE_SLAVE_RATIO_value<<30)|(REG_PHY_FIFO_WE_SLAVE_RATIO_value<<20)|(REG_PHY_FIFO_WE_SLAVE_RATIO_value<<10)|(REG_PHY_FIFO_WE_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA1_REG_PHY_FIFO_WE_SLAVE_RATIO_1,REG_PHY_FIFO_WE_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA1_REG_PHY_WR_DATA_SLAVE_RATIO_0,((REG_PHY_WR_DATA_SLAVE_RATIO_value<<30)|(REG_PHY_WR_DATA_SLAVE_RATIO_value<<20)|(REG_PHY_WR_DATA_SLAVE_RATIO_value<<10)|(REG_PHY_WR_DATA_SLAVE_RATIO_value<<0)));
WR_MEM_32(DATA1_REG_PHY_WR_DATA_SLAVE_RATIO_1,REG_PHY_WR_DATA_SLAVE_RATIO_value>>2);
WR_MEM_32(DATA1_REG_PHY_DLL_LOCK_DIFF_0,PHY_DLL_LOCK_DIFF_DEFINE);
}
}
/*************************************************************************
* EMIF_MMR_Config() routine *
*************************************************************************/
EMIF_MMR_Config(UWORD32 Read_Latency,UWORD32 Timing1,UWORD32 Timing2,UWORD32 Timing3,UWORD32 Sdram_Config,UWORD32 Ref_Ctrl,UWORD32 ZQ_Config)
{
unsigned int i=0;
GEL_TextOut("EMIF Timing register configuration is in progress ....... \n","Output",1,1,1);
WR_MEM_32(EMIF_DDR_PHY_CTRL_1_REG, Read_Latency);
WR_MEM_32(EMIF_DDR_PHY_CTRL_1_SHDW_REG, Read_Latency);
WR_MEM_32(EMIF_DDR_PHY_CTRL_2_REG, Read_Latency);
WR_MEM_32(EMIF_SDRAM_TIM_1_REG,Timing1);
WR_MEM_32(EMIF_SDRAM_TIM_1_SHDW_REG,Timing1);
WR_MEM_32(EMIF_SDRAM_TIM_2_REG,Timing2);
WR_MEM_32(EMIF_SDRAM_TIM_2_SHDW_REG,Timing2);
WR_MEM_32(EMIF_SDRAM_TIM_3_REG,Timing3);
WR_MEM_32(EMIF_SDRAM_TIM_3_SHDW_REG,Timing3);
WR_MEM_32(EMIF_SDRAM_CONFIG_REG, Sdram_Config);
WR_MEM_32(EMIF_SDRAM_CONFIG_2_REG, 0x8000000);
WR_MEM_32(EMIF_SDRAM_REF_CTRL_REG,Ref_Ctrl);
WR_MEM_32(EMIF_SDRAM_REF_CTRL_SHDW_REG,Ref_Ctrl);
WR_MEM_32(EMIF_ZQ_CONFIG_REG,ZQ_Config);
for(i=0;i<5000;i++)
{
}
WR_MEM_32(EMIF_SDRAM_REF_CTRL_REG,Ref_Ctrl);
WR_MEM_32(EMIF_SDRAM_REF_CTRL_SHDW_REG,Ref_Ctrl);
WR_MEM_32(EMIF_SDRAM_CONFIG_REG, Sdram_Config);
WR_MEM_32(EMIF_SDRAM_CONFIG_2_REG, Sdram_Config);
GEL_TextOut("EMIF Timing register configuration is done ....... \n","Output",1,1,1);
}
//************************************************************************
//VTP_Enable() routine *
//************************************************************************
VTP_Enable()
{
//Write 1 to enable VTP
WR_MEM_32(VTP_CTRL_REG ,(RD_MEM_32(VTP_CTRL_REG) | 0x00000040));
//Write 0 to CLRZ bit
WR_MEM_32(VTP_CTRL_REG ,(RD_MEM_32(VTP_CTRL_REG) & 0xFFFFFFFE));
//Write 1 to CLRZ bit
WR_MEM_32(VTP_CTRL_REG ,(RD_MEM_32(VTP_CTRL_REG) | 0x00000001));
//Check for VTP ready bit
GEL_TextOut("Waiting for VTP Ready ....... \n","Output",1,1,1);
while((RD_MEM_32(VTP_CTRL_REG) & 0x00000020) != 0x00000020);
GEL_TextOut("VTP is Ready! \n","Output",1,1,1);
}
//#########################################################################
//simple DDR test
//#########################################################################
#define NO_LOOP_CNT 250
#define DDR_START_ADDR 0x80000000
menuitem "AMIC110 DDR Tests"
hotmenu DDR_DataTransferCheck()
{
unsigned int temp_reg_rd = 0;
unsigned int temp_reg_wr = 0xA5A5A5A5;
unsigned int i=0;
unsigned int error=0;
GEL_TextOut("Try Accessing DDR memory....Write data\n");
for (i=0;i<NO_LOOP_CNT; i++)
{
*((UWORD32 *)DDR_START_ADDR + (i)) = temp_reg_wr;
//GEL_TextOut("Data Written is :: %x \n",,,,,(unsigned int *)i);
GEL_TextOut("Data written at :: %x \n",,,,,(unsigned int *)DDR_START_ADDR + (i));
}
for (i=0;i<NO_LOOP_CNT; i++)
{
temp_reg_rd = *((UWORD32 *)DDR_START_ADDR + (i));
// GEL_TextOut("Data Read is :: %x \n",,,,,(unsigned int *)temp_reg_rd);
if(temp_reg_rd != 0xA5A5A5A5)
{
//GEL_TextOut("Data check failed at :: %x \n",,,,,(unsigned int *)DDR_START_ADDR + (i));
error++;
}
else
{
//GEL_TextOut("Data check passed at :: %x \n",,,,,(unsigned int *)DDR_START_ADDR + (i));
}
GEL_TextOut("No of Failed locations are :: %x \n",,,,,(unsigned int *)error);
}
if(error != 0)
{
GEL_TextOut("Data Integrity check Failed ");
}
else {
GEL_TextOut("Data Integrity check Passed\n");
}
}
//#########################################################################
//EDMA tests for DDR
//#########################################################################
#define TPCC_BASE_ADDR 0x49000000
#define INT_SRAM_BASE_ADDR 0x00300000
#define DDR_BASE_ADDR 0x80000000
#define DMA_SIZE 512 /*Words*/
#define L3_OFFSET_ADDR 0x40000000
#define CPU_OFFSET_ADDR 0x40000000
#define CM_PER_TPTC0_CLKCTRL (PRCM_BASE_ADDR +0x0024)
#define CM_PER_TPCC_CLKCTRL (PRCM_BASE_ADDR +0x00BC)
#define CM_PER_TPTC1_CLKCTRL (PRCM_BASE_ADDR +0x00FC)
#define CM_PER_TPTC2_CLKCTRL (PRCM_BASE_ADDR +0x0100)
hotmenu EDMA()
{
unsigned int pattern=0;
unsigned int queuqePri=0;
unsigned int TPTC0_MMU_MAP=0;
GEL_TextOut("\n\nThis EDMA test consists of 8 tests.\n It will take approximately 13 minutes to complete\n");
EdmaPrcm();
memWrite(DDR_BASE_ADDR, 0x100, 0);
memWrite(0x40300000, 0x100, 0);
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 1\n");
pattern=0xAAAAAAAA;
queuqePri=0;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 2\n");
pattern=0x55555555;
queuqePri=1;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 3\n");
pattern=0x00FF00FF;
queuqePri=2;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 4\n");
pattern=0x80808080;
queuqePri=3;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 5\n");
pattern=0xCCCCCCCC;
queuqePri=4;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 6\n");
pattern=0xA0A0A0A0;
queuqePri=5;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 7\n");
pattern=0x12345678;
queuqePri=6;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*DDR ->Internal SRAM EDMA data Transfer */
GEL_TextOut("\nTest 8\n");
pattern=0xAA55AA55;
queuqePri=7;
memWrite(DDR_BASE_ADDR, DMA_SIZE, pattern);
edmaConfigure(DDR_BASE_ADDR, (INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR), DMA_SIZE, queuqePri);
compare((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR), DMA_SIZE, pattern);
GEL_TextOut("\n");
/*Internal SRAM->DDR EDMA data Transfer */
memWrite(((INT_SRAM_BASE_ADDR+CPU_OFFSET_ADDR)+4*DMA_SIZE), DMA_SIZE, pattern);
edmaConfigure(((INT_SRAM_BASE_ADDR+L3_OFFSET_ADDR)+4*DMA_SIZE), (DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, queuqePri);
compare((DDR_BASE_ADDR+4*DMA_SIZE), DMA_SIZE, pattern);
GEL_TextOut("\n");
GEL_TextOut("Test is complete\n");
}
edmaConfigure(unsigned int srcAddr, unsigned DstAddr, unsigned short dmaSize, unsigned int QUEPRI)
{
GEL_TextOut("\EDMA Transfer Start for QUEPRI %x\n",,,,,QUEPRI);
WR_MEM_32(TPCC_BASE_ADDR +0x0284, (QUEPRI&0x7));
WR_MEM_32(TPCC_BASE_ADDR +0x0340, 0x00000001);
WR_MEM_32(TPCC_BASE_ADDR +0x0240, 0x00000000);
WR_MEM_32(TPCC_BASE_ADDR +0x0100, 0x00000000);
WR_MEM_32(TPCC_BASE_ADDR +0x4000, 0x00100200);
WR_MEM_32(TPCC_BASE_ADDR +0x4004, srcAddr);
WR_MEM_32(TPCC_BASE_ADDR +0x400C, DstAddr);
WR_MEM_32(TPCC_BASE_ADDR +0x4008, 0x00010000 | (dmaSize * 4)); /* byte len */
WR_MEM_32(TPCC_BASE_ADDR +0x401C, 0x00000001);
WR_MEM_32(TPCC_BASE_ADDR +0x4010, 0x00000000);
WR_MEM_32(TPCC_BASE_ADDR +0x4018, 0x00000000);
WR_MEM_32(TPCC_BASE_ADDR +0x4014, 0x0000ffff);
WR_MEM_32(TPCC_BASE_ADDR +0x1060, 0x00000001);
WR_MEM_32(TPCC_BASE_ADDR +0x1010, 0x00000001);
while( (RD_MEM_32(TPCC_BASE_ADDR+0x1068)&0x1) !=1 ) {}
WR_MEM_32(TPCC_BASE_ADDR+0x1070, 0x1);
GEL_TextOut("\EDMA Transfer Complete for QUEPRI %x\n",,,,,QUEPRI);
}
memWrite(unsigned int Addr, unsigned int size, unsigned int initData)
{
unsigned int len=0;
for(len=0; len<size; len++) {
WR_MEM_32(Addr+4*len, (initData+len));
}
GEL_TextOut("Write is completed Starting @%x\n",,,,,Addr);
}
compare(unsigned int Addr, unsigned int size, unsigned int initData)
{
unsigned int len=0, fail=0;
for(len=0; len<size; len++) {
if( RD_MEM_32(Addr+4*len) != (initData+len) ) {
GEL_TextOut("\nFailed@%x\tExpected=%x \tRead=%x\n",,,,,(Addr+4*len),(initData+len),RD_MEM_32(Addr+4*len) );
fail++;
}
}
if(fail==0) {
GEL_TextOut("Test Case Passed for Destination Addr=%x\n",,,,,Addr);
}
}
EdmaPrcm() {
WR_MEM_32(CM_PER_TPCC_CLKCTRL, 2); // it was L3
WR_MEM_32(CM_PER_TPTC0_CLKCTRL , 2);
WR_MEM_32(CM_PER_TPTC1_CLKCTRL , 2);
WR_MEM_32(CM_PER_TPTC2_CLKCTRL , 2);
}
//##############################################################################
//##############################################################################
// SYS_CLKOUT2 Configuration Section
//##############################################################################
//##############################################################################
menuitem "SYS_CLKOUT2"
hotmenu OSC_32KHz()
{
set_CLKOUT2(0);
}
hotmenu L3_CLK()
{
set_CLKOUT2(1);
}
//DDR needs to be enabled
hotmenu DDR_PHY_Clock()
{
EMIF_PRCM_CLK_ENABLE();
set_CLKOUT2(2);
}
hotmenu PER_Clock()
{
set_CLKOUT2(3);
}
hotmenu LCD_Clock()
{
set_CLKOUT2(4);
}
set_CLKOUT2(UWORD32 mode)
{
unsigned int temp;
unsigned int divider = 2; //change here if you want to pick a different divider
WR_MEM_32(CONF_XDMA_EVENT_INTR1,0x3); // Set Pinmux to mode 3 (and rest to zero)
WR_MEM_32(CM_CLKOUT_CTRL, (divider-1) << 3); //Set divider (which is set above)
temp = RD_MEM_32(CM_CLKOUT_CTRL);
temp = (temp & ~(0x7) ) | mode;
WR_MEM_32(CM_CLKOUT_CTRL,temp);
enable_SYS_CLKOUT2();
if(mode == 0)
GEL_TextOut(" **** SYS_CLKOUT2 = 32khz Crystal (divided by %d)\n",,,,,(unsigned int *)(divider));
else if (mode == 1)
GEL_TextOut(" **** SYS_CLKOUT2 = L3 (From Core PLL) (divided by %d)\n",,,,,(unsigned int *)(divider));
else if (mode == 2)
GEL_TextOut(" **** SYS_CLKOUT2 = DDR PHY CLK (divided by %d)\n",,,,,(unsigned int *)(divider));
else if (mode == 3)
GEL_TextOut(" **** SYS_CLKOUT2 = Per PLL Clock (192 Mhz)(divided by %d)\n",,,,,(unsigned int *)(divider));
else
GEL_TextOut(" **** SYS_CLKOUT2 = LCD Pixel Clock (divided by %d)\n",,,,,(unsigned int *)(divider));
}
enable_SYS_CLKOUT2()
{
unsigned int temp;
temp = RD_MEM_32(CM_CLKOUT_CTRL);
temp = temp | 0x80;
WR_MEM_32(CM_CLKOUT_CTRL,temp);
}
menuitem "Status"
hotmenu Device_Type()
{
unsigned int temp;
temp = RD_MEM_32(CONTROL_STATUS);
temp = (temp & 0x700) >> 8;
if (temp == 0)
GEL_TextOut(" **** Device Type: Test\n","Output",1,1,1);
else if (temp == 1)
GEL_TextOut(" **** Device Type: EMU\n","Output",1,1,1);
else if (temp == 2)
GEL_TextOut(" **** Device Type: HS\n","Output",1,1,1);
else if (temp == 3)
GEL_TextOut(" **** Device Type: GP\n","Output",1,1,1);
else
GEL_TextOut(" **** Device Type: INVALID\n","Output",1,1,1);
}
3. Following is the memory map
4. Gel file initialization is happening during connect and is successful. Following is the output
CortxA8: Output: **** AMIC110_ICE & BoosterPack Initialization is in progress ..........
CortxA8: Output: **** AMIC110 & Booster Pack ALL PLL Config for OPP == OPP100 is in progress .........
CortxA8: Output: Input Clock Read from SYSBOOT[15:14]: 25MHz
CortxA8: Output: **** Going to Bypass...
CortxA8: Output: **** Bypassed, changing values...
CortxA8: Output: **** Locking ARM PLL
CortxA8: Output: **** Core Bypassed
CortxA8: Output: **** Now locking Core...
CortxA8: Output: **** Core locked
CortxA8: Output: **** DDR DPLL Bypassed
CortxA8: Output: **** DDR DPLL Locked
CortxA8: Output: **** PER DPLL Bypassed
CortxA8: Output: **** PER DPLL Locked
CortxA8: Output: **** DISP PLL Config is in progress ..........
CortxA8: Output: **** DISP PLL Config is DONE ..........
CortxA8: Output: **** AMIC110 BoosterPack ALL ADPLL Config for 25 MHz OPP == OPP100 25MHz is Done .........
CortxA8: Output: **** AMIC110 DDR3 EMIF and PHY configuration is in progress...
CortxA8: Output: EMIF PRCM is in progress .......
CortxA8: Output: EMIF PRCM Done
CortxA8: Output: DDR PHY Configuration in progress
CortxA8: Output: Waiting for VTP Ready .......
CortxA8: Output: VTP is Ready!
CortxA8: Output: DDR PHY CMD0 Register configuration is in progress .......
CortxA8: Output: DDR PHY CMD1 Register configuration is in progress .......
CortxA8: Output: DDR PHY CMD2 Register configuration is in progress .......
CortxA8: Output: DDR PHY DATA0 Register configuration is in progress .......
CortxA8: Output: DDR PHY DATA1 Register configuration is in progress .......
CortxA8: Output: Setting IO control registers.......
CortxA8: Output: EMIF Timing register configuration is in progress .......
CortxA8: Output: EMIF Timing register configuration is done .......
CortxA8: Output: PHY is READY!!
CortxA8: Output: DDR PHY Configuration done
CortxA8: GEL Output: Turning on EDMA...
CortxA8: GEL Output: EDMA is turned on...
CortxA8: Output: **** AMIC110_ICE Initialization is Done ******************
5. DDR_DataTransferCheck test provided by gel file is failing
6. SPI flash is empty, So the processor is running ROM code / trying to boot via UART during JTAG connect.
6. We tried checking with latest ccs and latest emulator, but same error is observed.
Thanks & Regards,
Raja
