TDA4VM: How to route GPIO from MAIN Domain to specific Test Point (TP)?

There are not many spare pins available on the EVM for general testing.  Most GPIO are connected to peripherals for controlling various interfaces.

Test Point TP120 on the SOM module is connected to schematic net TIMER_IO0 and is unused.  This connects to pin V6 of the processor.

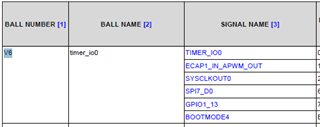

The data manual for the processors shows that pin supports GPIO1_13

Below shows the location of TP120:

Hi Robert,

thank you for the information.

I added the corresponding pinmux to the device tree file and I was able to set GPIO1_13 to HIGH during boot (at  6.656731 sec) and I could also verify it with a scope.

However, later in the boot process (at around 18 sec), there is some clocking signal (maybe SYSCLKOUT0?) on TP120 which cancels out my previous HIGH command. I checked all device trees for pin V6 of the processor, but there is only the one occurence which I previously added.

Is there maybe an alternative TP to use for MAIN_GPIO? Or is there a way to deactivate this clocking signal on TP120? (I am using the latest PSDKL release (07.02.00)).

Thanks again.
