Hi,
I copied the cli.c file from OOB HCC of 6843ISK, and only change the include file, then the error happened as follow:
/* Standard Include Files. */
#include <stdint.h>
#include <stdlib.h>
#include <stddef.h>
#include <string.h>
#include <stdio.h>
/* BIOS/XDC Include Files. */
#include <xdc/runtime/System.h>
/* mmWave SDK Include Files: */
#include <ti/common/sys_common.h>
#include <ti/common/mmwave_sdk_version.h>
#include <ti/drivers/uart/UART.h>
#include <ti/control/mmwavelink/mmwavelink.h>
#include <ti/utils/cli/cli.h>
#include <ti/utils/mathutils/mathutils.h>
/* Demo Include Files */
#include <ti/demo/xwr18xx/mmw/include/mmw_config.h>
#include <ti/demo/xwr18xx/mmw/mss/mmw_mss.h>
#include <ti/demo/utils/mmwdemo_adcconfig.h>
#include <ti/demo/utils/mmwdemo_rfparser.h>
/**************************************************************************
*************************** Local function prototype****************************
**************************************************************************/
/* HCC Extended Command Functions */
void mmwDemo_sensorConfig_task(UArg arg0, UArg arg1);
static int32_t MmwDemo_HCCGuiMonSel(uint8_t numProf);
static int32_t MmwDemo_HCCCfarCfg(uint8_t numProf);
static int32_t MmwDemo_HCCCfarFovCfg(uint8_t numProf);
static int32_t MmwDemo_HCCAoAFovCfg (void);
static int32_t MmwDemo_HCCExtendedMaxVelocity(void);
static int32_t MmwDemo_HCCMultiObjBeamForming (uint8_t numProf);
static int32_t MmwDemo_HCCCalibDcRangeSig (uint8_t numProf);
static int32_t MmwDemo_HCCClutterRemoval (void);
static int32_t MmwDemo_HCCADCBufCfg (void);
static int32_t MmwDemo_HCCCompRangeBiasAndRxChanPhaseCfg(void);
static int32_t MmwDemo_HCCMeasureRangeBiasAndRxChanPhaseCfg(void);
static int32_t MmwDemo_HCCChirpQualityRxSatMonCfg(uint8_t numProf);
static int32_t MmwDemo_HCCChirpQualitySigImgMonCfg (uint8_t numProf);
static int32_t MmwDemo_HCCAnalogMonitorCfg (void);
static int32_t MmwDemo_HCCLvdsStreamCfg(void);
/**************************************************************************
*************************** Extern Definitions *******************************
**************************************************************************/
extern MmwDemo_MSS_MCB gMmwMssMCB;
/**************************************************************************
*************************** Local Definitions ****************************
**************************************************************************/
#define MMWDEMO_DATAUART_MAX_BAUDRATE_SUPPORTED 3125000
/**************************************************************************
*************************** CLI Function Definitions **************************
**************************************************************************/
/**
* @b Description
* @n
* This is the CLI Handler for the sensor start command
*
* @param[in] argc
* Number of arguments
* @param[in] argv
* Arguments
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCGuiMonSel(uint8_t numProf)
{
MmwDemo_GuiMonSel guiMonSel[numProf];
int8_t subFrameIdx[numProf];
uint8_t i;
/* Initialize the guiMonSel configuration: */
for (i = 0; i < numProf; i++)
memset((void *)&guiMonSel[i], 0, sizeof(MmwDemo_GuiMonSel));
/* Initialize Subframe Index */
for (i = 0; i < numProf; i++)
memset((void *)&subFrameIdx[i], 0, sizeof(int8_t));
/* Populate configuration: */
subFrameIdx[0] = GUI_HCC_0_SUBFRAME_IDX;
guiMonSel[0].detectedObjects = GUI_HCC_0_DETECTED_OBJECTS;
guiMonSel[0].logMagRange = GUI_HCC_0_LOG_MAGNITUDE_RANGE;
guiMonSel[0].noiseProfile = GUI_HCC_0_NOISE_PROFILE;
guiMonSel[0].rangeAzimuthHeatMap = GUI_HCC_0_RANGE_AZIMUTH_MAP;
guiMonSel[0].rangeDopplerHeatMap = GUI_HCC_0_RANGE_DOPPLER_MAP;
guiMonSel[0].statsInfo = GUI_HCC_0_STATS_INFO;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 2){
subFrameIdx[1] = GUI_HCC_1_SUBFRAME_IDX;
guiMonSel[1].detectedObjects = GUI_HCC_1_DETECTED_OBJECTS;
guiMonSel[1].logMagRange = GUI_HCC_1_LOG_MAGNITUDE_RANGE;
guiMonSel[1].noiseProfile = GUI_HCC_1_NOISE_PROFILE;
guiMonSel[1].rangeAzimuthHeatMap = GUI_HCC_1_RANGE_AZIMUTH_MAP;
guiMonSel[1].rangeDopplerHeatMap = GUI_HCC_1_RANGE_DOPPLER_MAP;
guiMonSel[1].statsInfo = GUI_HCC_1_STATS_INFO;
}
if (numProf >= 3){
subFrameIdx[2] = GUI_HCC_2_SUBFRAME_IDX;
guiMonSel[2].detectedObjects = GUI_HCC_2_DETECTED_OBJECTS;
guiMonSel[2].logMagRange = GUI_HCC_2_LOG_MAGNITUDE_RANGE;
guiMonSel[2].noiseProfile = GUI_HCC_2_NOISE_PROFILE;
guiMonSel[2].rangeAzimuthHeatMap = GUI_HCC_2_RANGE_AZIMUTH_MAP;
guiMonSel[2].rangeDopplerHeatMap = GUI_HCC_2_RANGE_DOPPLER_MAP;
guiMonSel[2].statsInfo = GUI_HCC_2_STATS_INFO;
}
if (numProf == 4){
subFrameIdx[3] = GUI_HCC_3_SUBFRAME_IDX;
guiMonSel[3].detectedObjects = GUI_HCC_3_DETECTED_OBJECTS;
guiMonSel[3].logMagRange = GUI_HCC_3_LOG_MAGNITUDE_RANGE;
guiMonSel[3].noiseProfile = GUI_HCC_3_NOISE_PROFILE;
guiMonSel[3].rangeAzimuthHeatMap = GUI_HCC_3_RANGE_AZIMUTH_MAP;
guiMonSel[3].rangeDopplerHeatMap = GUI_HCC_3_RANGE_DOPPLER_MAP;
guiMonSel[3].statsInfo = GUI_HCC_3_STATS_INFO;
}
#endif
for (i = 0; i < numProf; i++)
MmwDemo_CfgUpdate((void *)&guiMonSel[i], MMWDEMO_GUIMONSEL_OFFSET, sizeof(MmwDemo_GuiMonSel), subFrameIdx[i]);
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for CFAR configuration
*
* @param[in] numProf
* Number of offset profiles
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCCfarCfg(uint8_t numProf)
{
DPU_CFARCAProc_CfarCfg cfarCfg[numProf];
uint32_t procDirection[numProf];
int8_t subFrameIdx[numProf];
uint8_t i;
/* Initialize configuration: */
for (i = 0; i < numProf; i++)
memset ((void *)&cfarCfg[i], 0, sizeof(cfarCfg[i]));
/* Initialize Processing Direction */
for (i = 0; i < numProf; i++)
memset ((void *)&procDirection[i], 0, sizeof(uint32_t));
/* Initialize Subframe Index */
for (i = 0; i < numProf; i++)
memset((void *)&subFrameIdx[i], 0, sizeof(int8_t));
/* Populate configuration: */
subFrameIdx[0] = CFAR_HCC_0_SUBFRAME_IDX;
procDirection[0] = CFAR_HCC_0_PROC_DIRECTION;
cfarCfg[0].averageMode = CFAR_HCC_0_MODE;
cfarCfg[0].winLen = CFAR_HCC_0_NOISE_WIN;
cfarCfg[0].guardLen = CFAR_HCC_0_GUARD_LEN;
cfarCfg[0].noiseDivShift = CFAR_HCC_0_DIV_SHIFT;
cfarCfg[0].cyclicMode = CFAR_HCC_0_CYCLIC_MODE;
cfarCfg[0].thresholdScale = (uint16_t) (CFAR_HCC_0_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[0].peakGroupingEn = CFAR_HCC_0_PEAK_GROUPING;
subFrameIdx[1] = CFAR_HCC_1_SUBFRAME_IDX;
procDirection[1] = CFAR_HCC_1_PROC_DIRECTION;
cfarCfg[1].averageMode = CFAR_HCC_1_MODE;
cfarCfg[1].winLen = CFAR_HCC_1_NOISE_WIN;
cfarCfg[1].guardLen = CFAR_HCC_1_GUARD_LEN;
cfarCfg[1].noiseDivShift = CFAR_HCC_1_DIV_SHIFT;
cfarCfg[1].cyclicMode = CFAR_HCC_1_CYCLIC_MODE;
cfarCfg[1].thresholdScale = (uint16_t) (CFAR_HCC_1_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[1].peakGroupingEn = CFAR_HCC_1_PEAK_GROUPING;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 3){
subFrameIdx[2] = CFAR_HCC_2_SUBFRAME_IDX;
procDirection[2] = CFAR_HCC_2_PROC_DIRECTION;
cfarCfg[2].averageMode = CFAR_HCC_2_MODE;
cfarCfg[2].winLen = CFAR_HCC_2_NOISE_WIN;
cfarCfg[2].guardLen = CFAR_HCC_2_GUARD_LEN;
cfarCfg[2].noiseDivShift = CFAR_HCC_2_DIV_SHIFT;
cfarCfg[2].cyclicMode = CFAR_HCC_2_CYCLIC_MODE;
cfarCfg[2].thresholdScale = (uint16_t) (CFAR_HCC_2_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[2].peakGroupingEn = CFAR_HCC_2_PEAK_GROUPING;
subFrameIdx[3] = CFAR_HCC_3_SUBFRAME_IDX;
procDirection[3] = CFAR_HCC_3_PROC_DIRECTION;
cfarCfg[3].averageMode = CFAR_HCC_3_MODE;
cfarCfg[3].winLen = CFAR_HCC_3_NOISE_WIN;
cfarCfg[3].guardLen = CFAR_HCC_3_GUARD_LEN;
cfarCfg[3].noiseDivShift = CFAR_HCC_3_DIV_SHIFT;
cfarCfg[3].cyclicMode = CFAR_HCC_3_CYCLIC_MODE;
cfarCfg[3].thresholdScale = (uint16_t) (CFAR_HCC_3_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[3].peakGroupingEn = CFAR_HCC_3_PEAK_GROUPING;
}
if (numProf >= 5){
subFrameIdx[4] = CFAR_HCC_4_SUBFRAME_IDX;
procDirection[4] = CFAR_HCC_4_PROC_DIRECTION;
cfarCfg[4].averageMode = CFAR_HCC_4_MODE;
cfarCfg[4].winLen = CFAR_HCC_4_NOISE_WIN;
cfarCfg[4].guardLen = CFAR_HCC_4_GUARD_LEN;
cfarCfg[4].noiseDivShift = CFAR_HCC_4_DIV_SHIFT;
cfarCfg[4].cyclicMode = CFAR_HCC_4_CYCLIC_MODE;
cfarCfg[4].thresholdScale = (uint16_t) (CFAR_HCC_4_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[4].peakGroupingEn = CFAR_HCC_4_PEAK_GROUPING;
subFrameIdx[5] = CFAR_HCC_5_SUBFRAME_IDX;
procDirection[5] = CFAR_HCC_5_PROC_DIRECTION;
cfarCfg[5].averageMode = CFAR_HCC_5_MODE;
cfarCfg[5].winLen = CFAR_HCC_5_NOISE_WIN;
cfarCfg[5].guardLen = CFAR_HCC_5_GUARD_LEN;
cfarCfg[5].noiseDivShift = CFAR_HCC_5_DIV_SHIFT;
cfarCfg[5].cyclicMode = CFAR_HCC_5_CYCLIC_MODE;
cfarCfg[5].thresholdScale = (uint16_t) (CFAR_HCC_5_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[5].peakGroupingEn = CFAR_HCC_5_PEAK_GROUPING;
}
if (numProf >= 7){
subFrameIdx[6] = CFAR_HCC_6_SUBFRAME_IDX;
procDirection[6] = CFAR_HCC_6_PROC_DIRECTION;
cfarCfg[6].averageMode = CFAR_HCC_6_MODE;
cfarCfg[6].winLen = CFAR_HCC_6_NOISE_WIN;
cfarCfg[6].guardLen = CFAR_HCC_6_GUARD_LEN;
cfarCfg[6].noiseDivShift = CFAR_HCC_6_DIV_SHIFT;
cfarCfg[6].cyclicMode = CFAR_HCC_6_CYCLIC_MODE;
cfarCfg[6].thresholdScale = (uint16_t) (CFAR_HCC_6_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[6].peakGroupingEn = CFAR_HCC_6_PEAK_GROUPING;
subFrameIdx[7] = CFAR_HCC_7_SUBFRAME_IDX;
procDirection[7] = CFAR_HCC_7_PROC_DIRECTION;
cfarCfg[7].averageMode = CFAR_HCC_7_MODE;
cfarCfg[7].winLen = CFAR_HCC_7_NOISE_WIN;
cfarCfg[7].guardLen = CFAR_HCC_7_GUARD_LEN;
cfarCfg[7].noiseDivShift = CFAR_HCC_7_DIV_SHIFT;
cfarCfg[7].cyclicMode = CFAR_HCC_7_CYCLIC_MODE;
cfarCfg[7].thresholdScale = (uint16_t) (CFAR_HCC_7_THRESHOLD_SCALE * MMWDEMO_CFAR_THRESHOLD_ENCODING_FACTOR);
cfarCfg[7].peakGroupingEn = CFAR_HCC_7_PEAK_GROUPING;
}
#endif
/* Save Configuration to use later */
for (i = 0; i < numProf; i++){
if (procDirection[i] == 0){
MmwDemo_CfgUpdate((void *)&cfarCfg[i], MMWDEMO_CFARCFGRANGE_OFFSET, sizeof(cfarCfg[i]), subFrameIdx[i]);
}
else{
MmwDemo_CfgUpdate((void *)&cfarCfg[i], MMWDEMO_CFARCFGDOPPLER_OFFSET, sizeof(cfarCfg[i]), subFrameIdx[i]);
}
}
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for CFAR FOV (Field Of View) configuration
*
* @param[in] numProf
* Number of offset profiles
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCCfarFovCfg(uint8_t numProf)
{
DPU_CFARCAProc_FovCfg fovCfg[numProf];
uint32_t procDirection[numProf];
int8_t subFrameIdx[numProf];
uint8_t i;
/* Initialize configuration: */
for (i = 0; i < numProf; i++)
memset ((void *)&fovCfg[i], 0, sizeof(fovCfg[i]));
/* Initialize Processing Direction */
for (i = 0; i < numProf; i++)
memset ((void *)&procDirection[i], 0, sizeof(uint32_t));
/* Initialize Subframe Index */
for (i = 0; i < numProf; i++)
memset((void *)&subFrameIdx[i], 0, sizeof(int8_t));
/* Populate configuration: */
subFrameIdx[0] = CFAR_FOV_HCC_0_SUBFRAME_IDX;
procDirection[0] = CFAR_FOV_HCC_0_PROC_DIRECTION;
fovCfg[0].min = CFAR_FOV_HCC_0_MINIMUM;
fovCfg[0].max = CFAR_FOV_HCC_0_MAXIMUM;
subFrameIdx[1] = CFAR_FOV_HCC_1_SUBFRAME_IDX;
procDirection[1] = CFAR_FOV_HCC_1_PROC_DIRECTION;
fovCfg[1].min = CFAR_FOV_HCC_1_MINIMUM;
fovCfg[1].max = CFAR_FOV_HCC_1_MAXIMUM;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 3){
subFrameIdx[2] = CFAR_FOV_HCC_2_SUBFRAME_IDX;
procDirection[2] = CFAR_FOV_HCC_2_PROC_DIRECTION;
fovCfg[2].min = CFAR_FOV_HCC_2_MINIMUM;
fovCfg[2].max = CFAR_FOV_HCC_2_MAXIMUM;
subFrameIdx[3] = CFAR_FOV_HCC_3_SUBFRAME_IDX;
procDirection[3] = CFAR_FOV_HCC_3_PROC_DIRECTION;
fovCfg[3].min = CFAR_FOV_HCC_3_MINIMUM;
fovCfg[3].max = CFAR_FOV_HCC_3_MAXIMUM;
}
if (numProf >= 5){
subFrameIdx[4] = CFAR_FOV_HCC_4_SUBFRAME_IDX;
procDirection[4] = CFAR_FOV_HCC_4_PROC_DIRECTION;
fovCfg[4].min = CFAR_FOV_HCC_4_MINIMUM;
fovCfg[4].max = CFAR_FOV_HCC_4_MAXIMUM;
subFrameIdx[5] = CFAR_FOV_HCC_5_SUBFRAME_IDX;
procDirection[5] = CFAR_FOV_HCC_5_PROC_DIRECTION;
fovCfg[5].min = CFAR_FOV_HCC_5_MINIMUM;
fovCfg[5].max = CFAR_FOV_HCC_5_MAXIMUM;
}
if (numProf >= 7){
subFrameIdx[6] = CFAR_FOV_HCC_6_SUBFRAME_IDX;
procDirection[6] = CFAR_FOV_HCC_6_PROC_DIRECTION;
fovCfg[6].min = CFAR_FOV_HCC_6_MINIMUM;
fovCfg[6].max = CFAR_FOV_HCC_6_MAXIMUM;
subFrameIdx[7] = CFAR_FOV_HCC_7_SUBFRAME_IDX;
procDirection[7] = CFAR_FOV_HCC_7_PROC_DIRECTION;
fovCfg[7].min = CFAR_FOV_HCC_7_MINIMUM;
fovCfg[7].max = CFAR_FOV_HCC_7_MAXIMUM;
}
#endif
/* Save Configuration to use later */
for (i = 0; i < numProf; i++){
if (procDirection[i] == 0){
MmwDemo_CfgUpdate((void *)&fovCfg[i], MMWDEMO_FOVRANGE_OFFSET, sizeof(fovCfg[i]), subFrameIdx[i]);
}
else{
MmwDemo_CfgUpdate((void *)&fovCfg[i], MMWDEMO_FOVDOPPLER_OFFSET, sizeof(fovCfg[i]), subFrameIdx[i]);
}
}
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for AoA FOV (Field Of View) configuration
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCAoAFovCfg (void)
{
DPU_AoAProc_FovAoaCfg fovCfg;
/* Initialize configuration: */
memset ((void *)&fovCfg, 0, sizeof(fovCfg));
/* Populate configuration: */
fovCfg.minAzimuthDeg = AOAFOV_HCC_MIN_AZIMUTH_DEG;
fovCfg.maxAzimuthDeg = AOAFOV_HCC_MAX_AZIMUTH_DEG;
fovCfg.minElevationDeg = AOAFOV_HCC_MIN_ELEVATION_DEG;
fovCfg.maxElevationDeg = AOAFOV_HCC_MAX_ELEVATION_DEG;
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&fovCfg, MMWDEMO_FOVAOA_OFFSET, sizeof(fovCfg), AOAFOV_HCC_SUBFRAME_IDX);
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for extended maximum velocity configuration
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCExtendedMaxVelocity (void)
{
DPU_AoAProc_ExtendedMaxVelocityCfg cfg;
/* Initialize configuration: */
memset((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = EXTENDMAXVELOCITY_HCC_ENABLED;
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_EXTMAXVEL_OFFSET, sizeof(cfg), EXTENDMAXVELOCITY_HCC_SUBFRAME_IDX);
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for multi object beam forming configuration
*
* @param[in] numProf
* Number of offset profiles
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCMultiObjBeamForming (uint8_t numProf)
{
DPU_AoAProc_MultiObjBeamFormingCfg cfg[numProf];
int8_t subFrameIdx[numProf];
uint8_t i;
/* Initialize configuration: */
for (i = 0; i < numProf; i++)
memset ((void *)&cfg[i], 0, sizeof(cfg[i]));
/* Initialize Subframe Index */
for (i = 0; i < numProf; i++)
memset((void *)&subFrameIdx[i], 0, sizeof(int8_t));
/* Populate configuration: */
subFrameIdx[0] = MULTI_OBJ_BEAM_HCC_0_SUBFRAME_IDX;
cfg[0].enabled = MULTI_OBJ_BEAM_HCC_0_ENABLED;
cfg[0].multiPeakThrsScal = MULTI_OBJ_BEAM_HCC_0_THRESHOLD;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 2){
subFrameIdx[1] = MULTI_OBJ_BEAM_HCC_1_SUBFRAME_IDX;
cfg[1].enabled = MULTI_OBJ_BEAM_HCC_1_ENABLED;
cfg[1].multiPeakThrsScal = MULTI_OBJ_BEAM_HCC_1_THRESHOLD;
}
if (numProf >= 3){
subFrameIdx[2] = MULTI_OBJ_BEAM_HCC_2_SUBFRAME_IDX;
cfg[2].enabled = MULTI_OBJ_BEAM_HCC_2_ENABLED;
cfg[2].multiPeakThrsScal = MULTI_OBJ_BEAM_HCC_2_THRESHOLD;
}
if (numProf == 4){
subFrameIdx[3] = MULTI_OBJ_BEAM_HCC_3_SUBFRAME_IDX;
cfg[3].enabled = MULTI_OBJ_BEAM_HCC_3_ENABLED;
cfg[3].multiPeakThrsScal = MULTI_OBJ_BEAM_HCC_3_THRESHOLD;
}
#endif
/* Save Configuration to use later */
for (i = 0; i < numProf; i++)
MmwDemo_CfgUpdate((void *)&cfg[i], MMWDEMO_MULTIOBJBEAMFORMING_OFFSET, sizeof(cfg[i]), subFrameIdx[i]);
return 0;
}
static int32_t MmwDemo_HCCCalibDcRangeSig (uint8_t numProf)
{
DPU_RangeProc_CalibDcRangeSigCfg cfg[numProf];
uint32_t log2NumAvgChirps[numProf];
int8_t subFrameIdx[numProf];
uint8_t i;
/* Initialize configuration for DC range signature calibration */
for (i = 0; i < numProf; i++)
memset ((void *)&cfg[i], 0, sizeof(cfg[i]));
/* Initialize log2(Number Average Chirps) */
for (i = 0; i < numProf; i++)
memset((void *)&log2NumAvgChirps[i], 0, sizeof(uint32_t));
/* Initialize Subframe Index */
for (i = 0; i < numProf; i++)
memset((void *)&subFrameIdx[i], 0, sizeof(int8_t));
/* Populate configuration: */
subFrameIdx[0] = CALIB_DC_RANGE_HCC_0_SUBFRAME_IDX;
cfg[0].enabled = CALIB_DC_RANGE_HCC_0_ENABLED;
cfg[0].negativeBinIdx = CALIB_DC_RANGE_HCC_0_NEG_BIN_IDX;
cfg[0].positiveBinIdx = CALIB_DC_RANGE_HCC_0_POS_BIN_IDX;
cfg[0].numAvgChirps = CALIB_DC_RANGE_HCC_0_NUM_AVG;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 2){
subFrameIdx[1] = CALIB_DC_RANGE_HCC_1_SUBFRAME_IDX;
cfg[1].enabled = CALIB_DC_RANGE_HCC_1_ENABLED;
cfg[1].negativeBinIdx = CALIB_DC_RANGE_HCC_1_NEG_BIN_IDX;
cfg[1].positiveBinIdx = CALIB_DC_RANGE_HCC_1_POS_BIN_IDX;
cfg[1].numAvgChirps = CALIB_DC_RANGE_HCC_1_NUM_AVG;
}
if (numProf >= 3){
subFrameIdx[2] = CALIB_DC_RANGE_HCC_2_SUBFRAME_IDX;
cfg[2].enabled = CALIB_DC_RANGE_HCC_2_ENABLED;
cfg[2].negativeBinIdx = CALIB_DC_RANGE_HCC_2_NEG_BIN_IDX;
cfg[2].positiveBinIdx = CALIB_DC_RANGE_HCC_2_POS_BIN_IDX;
cfg[2].numAvgChirps = CALIB_DC_RANGE_HCC_2_NUM_AVG;
}
if (numProf == 4){
subFrameIdx[3] = CALIB_DC_RANGE_HCC_3_SUBFRAME_IDX;
cfg[3].enabled = CALIB_DC_RANGE_HCC_3_ENABLED;
cfg[3].negativeBinIdx = CALIB_DC_RANGE_HCC_3_NEG_BIN_IDX;
cfg[3].positiveBinIdx = CALIB_DC_RANGE_HCC_3_POS_BIN_IDX;
cfg[3].numAvgChirps = CALIB_DC_RANGE_HCC_3_NUM_AVG;
}
#endif
for (i = 0; i < numProf; i++){
if (cfg[i].negativeBinIdx > 0)
{
printf("Error: Invalid negative bin index\n");
return -1;
}
if ((cfg[i].positiveBinIdx - cfg[i].negativeBinIdx + 1) > DPU_RANGEPROC_SIGNATURE_COMP_MAX_BIN_SIZE)
{
printf("Error: Number of bins exceeds the limit\n");
return -1;
}
log2NumAvgChirps[i] = (uint32_t) mathUtils_ceilLog2(cfg[i].numAvgChirps);
if (cfg[i].numAvgChirps != (1U << log2NumAvgChirps[i]))
{
printf("Error: Number of averaged chirps is not power of two\n");
return -1;
}
}
/* Save Configuration to use later */
for (i = 0; i < numProf; i++)
MmwDemo_CfgUpdate((void *)&cfg[i], MMWDEMO_CALIBDCRANGESIG_OFFSET, sizeof(cfg[i]), subFrameIdx[i]);
return 0;
}
/**
* @b Description
* @n
* Clutter removal Configuration
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCClutterRemoval (void)
{
DPC_ObjectDetection_StaticClutterRemovalCfg_Base cfg;
/* Initialize configuration for clutter removal */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = CLUTTER_HCC_ENABLED;
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_STATICCLUTTERREMOFVAL_OFFSET, sizeof(cfg), CLUTTER_HCC_SUBFRAME_IDX);
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for data logger set command
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCADCBufCfg (void)
{
MmwDemo_ADCBufCfg adcBufCfg;
/* Initialize the ADC Output configuration: */
memset ((void *)&adcBufCfg, 0, sizeof(adcBufCfg));
/* Populate configuration: */
adcBufCfg.adcFmt = ADCBUF_HCC_OUTPUT_FMT;
adcBufCfg.iqSwapSel = ADCBUF_HCC_SAMPLE_SWAP;
adcBufCfg.chInterleave = ADCBUF_HCC_CHAN_INTERLEAVE;
adcBufCfg.chirpThreshold = ADCBUF_HCC_CHIRP_THRESHOLD;
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&adcBufCfg, MMWDEMO_ADCBUFCFG_OFFSET, sizeof(adcBufCfg), ADCBUF_HCC_SUBFRAME_IDX);
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for compensation of range bias and channel phase offsets
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCCompRangeBiasAndRxChanPhaseCfg(void)
{
DPU_AoAProc_compRxChannelBiasCfg cfg;
int32_t Re, Im;
int32_t argInd;
int32_t i;
char *compRange[] = {"compRangeBiasAndRxChanPhase", "0.0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0", "1", "0"};
/* Initialize configuration: */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.rangeBias = COMPRANGEBIASANDRXCHANPHASE;
argInd = 2;
for (i=0; i < SYS_COMMON_NUM_TX_ANTENNAS*SYS_COMMON_NUM_RX_CHANNEL; i++)
{
Re = (int32_t) (atof (compRange[argInd++]) * 32768.);
MATHUTILS_SATURATE16(Re);
cfg.rxChPhaseComp[i].real = (int16_t) Re;
Im = (int32_t) (atof (compRange[argInd++]) * 32768.);
MATHUTILS_SATURATE16(Im);
cfg.rxChPhaseComp[i].imag = (int16_t) Im;
}
/* Save Configuration to use later */
memcpy((void *) &gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.compRxChanCfg, &cfg, sizeof(cfg));
gMmwMssMCB.objDetCommonCfg.isCompRxChannelBiasCfgPending = 1;
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for measurement configuration of range bias
* and channel phase offsets
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCMeasureRangeBiasAndRxChanPhaseCfg(void)
{
DPC_ObjectDetection_MeasureRxChannelBiasCfg cfg;
/* Initialize configuration: */
memset ((void *)&cfg, 0, sizeof(cfg));
/* Populate configuration: */
cfg.enabled = MEASURERANGEBIAS_HCC_ENABLED;
cfg.targetDistance = MEASURERANGEBIAS_HCC_TARGET_DIST;
cfg.searchWinSize = MEASURERANGEBIAS_HCC_SEARCH_WIN;
/* Save Configuration to use later */
memcpy((void *) &gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.measureRxChannelBiasCfg, &cfg, sizeof(cfg));
gMmwMssMCB.objDetCommonCfg.isMeasureRxChannelBiasCfgPending = 1;
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for configuring CQ RX Saturation monitor
*
* @param[in] numProf
* Number of offset profiles
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCChirpQualityRxSatMonCfg(uint8_t numProf)
{
rlRxSatMonConf_t cqSatMonCfg[numProf];
uint8_t i;
/* Initialize configuration: */
for (i = 0; i < numProf; i++)
memset ((void *)&cqSatMonCfg[i], 0, sizeof(rlRxSatMonConf_t));
/* Populate configuration: */
cqSatMonCfg[0].profileIndx = CQRXSAT_HCC_0_PROFILE_ID;
cqSatMonCfg[0].satMonSel = CQRXSAT_HCC_0_SAT_MON_SEL;
cqSatMonCfg[0].primarySliceDuration = CQRXSAT_HCC_0_PRI_SLICE_DURATION;
cqSatMonCfg[0].numSlices = CQRXSAT_HCC_0_NUM_SLICES;
cqSatMonCfg[0].rxChannelMask = CQRXSAT_HCC_0_RX_CHAN_MASK;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 2){
cqSatMonCfg[1].profileIndx = CQRXSAT_HCC_1_PROFILE_ID;
cqSatMonCfg[1].satMonSel = CQRXSAT_HCC_1_SAT_MON_SEL;
cqSatMonCfg[1].primarySliceDuration = CQRXSAT_HCC_1_PRI_SLICE_DURATION;
cqSatMonCfg[1].numSlices = CQRXSAT_HCC_1_NUM_SLICES;
cqSatMonCfg[1].rxChannelMask = CQRXSAT_HCC_1_RX_CHAN_MASK;
}
if (numProf >= 3){
cqSatMonCfg[2].profileIndx = CQRXSAT_HCC_2_PROFILE_ID;
cqSatMonCfg[2].satMonSel = CQRXSAT_HCC_2_SAT_MON_SEL;
cqSatMonCfg[2].primarySliceDuration = CQRXSAT_HCC_2_PRI_SLICE_DURATION;
cqSatMonCfg[2].numSlices = CQRXSAT_HCC_2_NUM_SLICES;
cqSatMonCfg[2].rxChannelMask = CQRXSAT_HCC_2_RX_CHAN_MASK;
}
if (numProf == 4){
cqSatMonCfg[3].profileIndx = CQRXSAT_HCC_3_PROFILE_ID;
cqSatMonCfg[3].satMonSel = CQRXSAT_HCC_3_SAT_MON_SEL;
cqSatMonCfg[3].primarySliceDuration = CQRXSAT_HCC_3_PRI_SLICE_DURATION;
cqSatMonCfg[3].numSlices = CQRXSAT_HCC_3_NUM_SLICES;
cqSatMonCfg[3].rxChannelMask = CQRXSAT_HCC_3_RX_CHAN_MASK;
}
#endif
/* Save Configuration to use later */
for (i = 0; i < numProf; i++)
gMmwMssMCB.cqSatMonCfg[cqSatMonCfg[i].profileIndx] = cqSatMonCfg[i];
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for configuring CQ Signal & Image band monitor
*
* @param[in] numProf
* Number of offset profiles
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCChirpQualitySigImgMonCfg (uint8_t numProf)
{
rlSigImgMonConf_t cqSigImgMonCfg[numProf];
uint8_t i;
/* Initialize configuration: */
for (i = 0; i < numProf; i++)
memset ((void *)&cqSigImgMonCfg[i], 0, sizeof(rlSigImgMonConf_t));
/* Populate configuration: */
cqSigImgMonCfg[0].profileIndx = CQSIGIMG_HCC_0_PROFILE_ID;
cqSigImgMonCfg[0].numSlices = CQSIGIMG_HCC_0_NUM_SLICES;
cqSigImgMonCfg[0].timeSliceNumSamples = CQSIGIMG_HCC_0_NUM_SAMPLE_PER_SLICE;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProf >= 2){
cqSigImgMonCfg[1].profileIndx = CQSIGIMG_HCC_1_PROFILE_ID;
cqSigImgMonCfg[1].numSlices = CQSIGIMG_HCC_1_NUM_SLICES;
cqSigImgMonCfg[1].timeSliceNumSamples = CQSIGIMG_HCC_1_NUM_SAMPLE_PER_SLICE;
}
if (numProf >= 3){
cqSigImgMonCfg[2].profileIndx = CQSIGIMG_HCC_2_PROFILE_ID;
cqSigImgMonCfg[2].numSlices = CQSIGIMG_HCC_2_NUM_SLICES;
cqSigImgMonCfg[2].timeSliceNumSamples = CQSIGIMG_HCC_2_NUM_SAMPLE_PER_SLICE;
}
if (numProf == 4){
cqSigImgMonCfg[3].profileIndx = CQSIGIMG_HCC_3_PROFILE_ID;
cqSigImgMonCfg[3].numSlices = CQSIGIMG_HCC_3_NUM_SLICES;
cqSigImgMonCfg[3].timeSliceNumSamples = CQSIGIMG_HCC_3_NUM_SAMPLE_PER_SLICE;
}
#endif
/* Save Configuration to use later */
for (i = 0; i < numProf; i++)
gMmwMssMCB.cqSigImgMonCfg[cqSigImgMonCfg[i].profileIndx] = cqSigImgMonCfg[i];
return 0;
}
static int32_t MmwDemo_HCCAnalogMonitorCfg (void)
{
/* Save Configuration to use later */
gMmwMssMCB.anaMonCfg.rxSatMonEn = ANALOGMONITOR_HCC_RX_SATURATION;
gMmwMssMCB.anaMonCfg.sigImgMonEn = ANALOGMONITOR_HCC_SIG_IMG_BAND;
gMmwMssMCB.isAnaMonCfgPending = 1;
return 0;
}
/**
* @b Description
* @n
* This is the HCC Handler for the High Speed Interface
*
* @retval
* Success - 0
* @retval
* Error - <0
*/
static int32_t MmwDemo_HCCLvdsStreamCfg()
{
MmwDemo_LvdsStreamCfg cfg;
/* Initialize configuration for DC range signature calibration */
memset ((void *)&cfg, 0, sizeof(MmwDemo_LvdsStreamCfg));
/* Populate configuration: */
cfg.isHeaderEnabled = LVDSSTREAM_HCC_ENABLE_HEADER;
cfg.dataFmt = LVDSSTREAM_HCC_DATA_FMT;
cfg.isSwEnabled = LVDSSTREAM_HCC_ENABLE_SW;
/* Save Configuration to use later */
MmwDemo_CfgUpdate((void *)&cfg, MMWDEMO_LVDSSTREAMCFG_OFFSET, sizeof(MmwDemo_LvdsStreamCfg), LVDSSTREAM_HCC_SUBFRAME_IDX);
return 0;
}
/**
* @b Description
* @n
* Sensor Configuration Task which initializes the
* hard-coded chirp configurations for the sensor.
*
* @retval
* Not Applicable.
*/
void mmwDemo_sensorConfig_task(UArg arg0, UArg arg1)
{
int32_t errCode;
uint8_t index, numAdvSubframes;
memset ((void *)&errCode, 0, sizeof(int32_t));
memset ((void *)&index, 0, sizeof(uint8_t));
memset ((void *)&numAdvSubframes, 0, sizeof(uint8_t));
/* Configure Varying Number of Subframes if Using Advanced Subframe Profile*/
#ifdef PROFILE_ADVANCED_SUBFRAME
numAdvSubframes = ADVFRAME_HCC_NUM_SUBFRAMES;
#endif
/* Get RF frequency scale factor */
double gHCC_mmwave_freq_scale_factor;
memset ((void *)&gHCC_mmwave_freq_scale_factor, 0, sizeof(double));
gHCC_mmwave_freq_scale_factor = SOC_getDeviceRFFreqScaleFactor(gMmwMssMCB.socHandle, &errCode);
/*****************************************************************************
* Configuration :: Open Sensor
*****************************************************************************/
/* Initialize the channel configuration */
gMmwMssMCB.cfg.openCfg.chCfg.rxChannelEn = CHANNEL_HCC_RX_CHANNEL_EN;
gMmwMssMCB.cfg.openCfg.chCfg.txChannelEn = CHANNEL_HCC_TX_CHANNEL_EN;
gMmwMssMCB.cfg.openCfg.chCfg.cascading = CHANNEL_HCC_CASCADING;
/* Initialize the low power mode configuration */
gMmwMssMCB.cfg.openCfg.lowPowerMode.lpAdcMode = LP_HCC_LOW_POWER_MODE;
/* Initialize the ADCOut configuration */
gMmwMssMCB.cfg.openCfg.adcOutCfg.fmt.b2AdcBits = ADC_HCC_NUM_ADC_BITS;
gMmwMssMCB.cfg.openCfg.adcOutCfg.fmt.b2AdcOutFmt = ADC_HCC_OUTPUT_FMT;
/* Call MMW Demo helper function to open sensor */
if (MmwDemo_openSensor(true) < 0)
printf("MmDemo_openSensor command returned an error.\n");
else
printf("Sensor was successfully opened.\n");
/*****************************************************************************
* Configuration :: Initializing and Adding Profiles
*****************************************************************************/
uint8_t numProfiles;
numProfiles = 1;
#ifdef PROFILE_ADVANCED_SUBFRAME
numProfiles = numAdvSubframes;
#endif
/* Initialize the profile configurations */
rlProfileCfg_t profileCfg[numProfiles];
for (index = 0; index < numProfiles; index++)
memset ((void *)&profileCfg[index], 0, sizeof(rlProfileCfg_t));
/* Populate the profiles from hard-coded config */
profileCfg[0].profileId = PROFILE_HCC_0_PROFILE_ID;
profileCfg[0].startFreqConst = (uint32_t)((float)PROFILE_HCC_0_START_FREQ_GHZ * (1U << 26) / gHCC_mmwave_freq_scale_factor);
profileCfg[0].idleTimeConst = (uint32_t)((float)PROFILE_HCC_0_IDLE_TIME_VAL * 1000 / 10);
profileCfg[0].adcStartTimeConst = (uint32_t)((float)PROFILE_HCC_0_ADC_START_TIME_VAL * 1000 / 10);
profileCfg[0].rampEndTime = (uint32_t)((float)PROFILE_HCC_0_RAMP_END_TIME_VAL * 1000 / 10);
profileCfg[0].txOutPowerBackoffCode = PROFILE_HCC_0_TXOUT_POWER_BACKOFF;
profileCfg[0].txPhaseShifter = PROFILE_HCC_0_TXPHASESHIFTER_VAL;
profileCfg[0].freqSlopeConst = (int16_t)((float)PROFILE_HCC_0_FREQ_SLOPE_MHZ_PER_US * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e3) * 900.0));
profileCfg[0].txStartTime = (int32_t)((float)PROFILE_HCC_0_TX_START_TIME_VAL * 1000 / 10);
profileCfg[0].numAdcSamples = PROFILE_HCC_0_ADC_SAMPLE_VAL;
profileCfg[0].digOutSampleRate = PROFILE_HCC_0_DIGOUT_SAMPLERATE_VAL;
profileCfg[0].hpfCornerFreq1 = PROFILE_HCC_0_HPFCORNER_FREQ1_VAL;
profileCfg[0].hpfCornerFreq2 = PROFILE_HCC_0_HPFCORNER_FREQ2_VAL;
profileCfg[0].rxGain = PROFILE_HCC_0_RX_GAIN_VAL;
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numProfiles >= 2){
profileCfg[1].profileId = PROFILE_HCC_1_PROFILE_ID;
profileCfg[1].startFreqConst = (uint32_t)((float)PROFILE_HCC_1_START_FREQ_GHZ * (1U << 26) / gHCC_mmwave_freq_scale_factor);
profileCfg[1].idleTimeConst = (uint32_t)((float)PROFILE_HCC_1_IDLE_TIME_VAL * 1000 / 10);
profileCfg[1].adcStartTimeConst = (uint32_t)((float)PROFILE_HCC_1_ADC_START_TIME_VAL * 1000 / 10);
profileCfg[1].rampEndTime = (uint32_t)((float)PROFILE_HCC_1_RAMP_END_TIME_VAL * 1000 / 10);
profileCfg[1].txOutPowerBackoffCode = PROFILE_HCC_1_TXOUT_POWER_BACKOFF;
profileCfg[1].txPhaseShifter = PROFILE_HCC_1_TXPHASESHIFTER_VAL;
profileCfg[1].freqSlopeConst = (int16_t)((float)PROFILE_HCC_1_FREQ_SLOPE_MHZ_PER_US * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e3) * 900.0));
profileCfg[1].txStartTime = (int32_t)((float)PROFILE_HCC_1_TX_START_TIME_VAL * 1000 / 10);
profileCfg[1].numAdcSamples = PROFILE_HCC_1_ADC_SAMPLE_VAL;
profileCfg[1].digOutSampleRate = PROFILE_HCC_1_DIGOUT_SAMPLERATE_VAL;
profileCfg[1].hpfCornerFreq1 = PROFILE_HCC_1_HPFCORNER_FREQ1_VAL;
profileCfg[1].hpfCornerFreq2 = PROFILE_HCC_1_HPFCORNER_FREQ2_VAL;
profileCfg[1].rxGain = PROFILE_HCC_1_RX_GAIN_VAL;
}
if (numProfiles >= 3){
profileCfg[2].profileId = PROFILE_HCC_2_PROFILE_ID;
profileCfg[2].startFreqConst = (uint32_t)((float)PROFILE_HCC_2_START_FREQ_GHZ * (1U << 26) / gHCC_mmwave_freq_scale_factor);
profileCfg[2].idleTimeConst = (uint32_t)((float)PROFILE_HCC_2_IDLE_TIME_VAL * 1000 / 10);
profileCfg[2].adcStartTimeConst = (uint32_t)((float)PROFILE_HCC_2_ADC_START_TIME_VAL * 1000 / 10);
profileCfg[2].rampEndTime = (uint32_t)((float)PROFILE_HCC_2_RAMP_END_TIME_VAL * 1000 / 10);
profileCfg[2].txOutPowerBackoffCode = PROFILE_HCC_2_TXOUT_POWER_BACKOFF;
profileCfg[2].txPhaseShifter = PROFILE_HCC_2_TXPHASESHIFTER_VAL;
profileCfg[2].freqSlopeConst = (int16_t)((float)PROFILE_HCC_2_FREQ_SLOPE_MHZ_PER_US * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e3) * 900.0));
profileCfg[2].txStartTime = (int32_t)((float)PROFILE_HCC_2_TX_START_TIME_VAL * 1000 / 10);
profileCfg[2].numAdcSamples = PROFILE_HCC_2_ADC_SAMPLE_VAL;
profileCfg[2].digOutSampleRate = PROFILE_HCC_2_DIGOUT_SAMPLERATE_VAL;
profileCfg[2].hpfCornerFreq1 = PROFILE_HCC_2_HPFCORNER_FREQ1_VAL;
profileCfg[2].hpfCornerFreq2 = PROFILE_HCC_2_HPFCORNER_FREQ2_VAL;
profileCfg[2].rxGain = PROFILE_HCC_2_RX_GAIN_VAL;
}
if (numProfiles == 4){
profileCfg[3].profileId = PROFILE_HCC_3_PROFILE_ID;
profileCfg[3].startFreqConst = (uint32_t)((float)PROFILE_HCC_3_START_FREQ_GHZ * (1U << 26) / gHCC_mmwave_freq_scale_factor);
profileCfg[3].idleTimeConst = (uint32_t)((float)PROFILE_HCC_3_IDLE_TIME_VAL * 1000 / 10);
profileCfg[3].adcStartTimeConst = (uint32_t)((float)PROFILE_HCC_3_ADC_START_TIME_VAL * 1000 / 10);
profileCfg[3].rampEndTime = (uint32_t)((float)PROFILE_HCC_3_RAMP_END_TIME_VAL * 1000 / 10);
profileCfg[3].txOutPowerBackoffCode = PROFILE_HCC_3_TXOUT_POWER_BACKOFF;
profileCfg[3].txPhaseShifter = PROFILE_HCC_3_TXPHASESHIFTER_VAL;
profileCfg[3].freqSlopeConst = (int16_t)((float)PROFILE_HCC_3_FREQ_SLOPE_MHZ_PER_US * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e3) * 900.0));
profileCfg[3].txStartTime = (int32_t)((float)PROFILE_HCC_3_TX_START_TIME_VAL * 1000 / 10);
profileCfg[3].numAdcSamples = PROFILE_HCC_3_ADC_SAMPLE_VAL;
profileCfg[3].digOutSampleRate = PROFILE_HCC_3_DIGOUT_SAMPLERATE_VAL;
profileCfg[3].hpfCornerFreq1 = PROFILE_HCC_3_HPFCORNER_FREQ1_VAL;
profileCfg[3].hpfCornerFreq2 = PROFILE_HCC_3_HPFCORNER_FREQ2_VAL;
profileCfg[3].rxGain = PROFILE_HCC_3_RX_GAIN_VAL;
}
#endif
/* Initialize the profile handles */
MMWave_ProfileHandle profileHandle[numProfiles];
for (index = 0; index < numProfiles; index++)
memset ((void *)&profileHandle[index], 0, sizeof(MMWave_ProfileHandle));
/* Adding Profiles to Control Handle */
for (index = 0; index < numProfiles; index++){
profileHandle[index] = MMWave_addProfile(gMmwMssMCB.ctrlHandle, &profileCfg[index], &errCode);
}
/*****************************************************************************
* Configuration :: Initializing and Adding Chirps
*****************************************************************************/
uint8_t numChirps;
numChirps = 2;
#if (defined(PROFILE_3d) || defined(PROFILE_CALIBRATION))
numChirps = 3;
#elif defined(PROFILE_ADVANCED_SUBFRAME)
numChirps = 2*numAdvSubframes;
#endif
/* Initialize the chirp configurations */
rlChirpCfg_t chirpCfg[numChirps];
for (index = 0; index < numChirps; index++)
memset ((void *)&chirpCfg[index], 0, sizeof(rlChirpCfg_t));
/* Populate the chirps from hard-coded configs */
chirpCfg[0].chirpStartIdx = CHIRP_HCC_0_START_INDEX;
chirpCfg[0].chirpEndIdx = CHIRP_HCC_0_END_INDEX;
chirpCfg[0].profileId = CHIRP_HCC_0_PROFILE_ID;
chirpCfg[0].startFreqVar = (uint32_t)((float)CHIRP_HCC_0_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[0].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_0_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[0].idleTimeVar = (uint32_t)((float)CHIRP_HCC_0_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[0].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_0_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[0].txEnable = CHIRP_HCC_0_TX_CHANNEL;
chirpCfg[1].chirpStartIdx = CHIRP_HCC_1_START_INDEX;
chirpCfg[1].chirpEndIdx = CHIRP_HCC_1_END_INDEX;
chirpCfg[1].profileId = CHIRP_HCC_1_PROFILE_ID;
chirpCfg[1].startFreqVar = (uint32_t)((float)CHIRP_HCC_1_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[1].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_1_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[1].idleTimeVar = (uint32_t)((float)CHIRP_HCC_1_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[1].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_1_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[1].txEnable = CHIRP_HCC_1_TX_CHANNEL;
#if (defined(PROFILE_3d) || defined(PROFILE_CALIBRATION) || defined(PROFILE_ADVANCED_SUBFRAME))
if (numChirps >= 3){
chirpCfg[2].chirpStartIdx = CHIRP_HCC_2_START_INDEX;
chirpCfg[2].chirpEndIdx = CHIRP_HCC_2_END_INDEX;
chirpCfg[2].profileId = CHIRP_HCC_2_PROFILE_ID;
chirpCfg[2].startFreqVar = (uint32_t)((float)CHIRP_HCC_2_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[2].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_2_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[2].idleTimeVar = (uint32_t)((float)CHIRP_HCC_2_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[2].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_2_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[2].txEnable = CHIRP_HCC_2_TX_CHANNEL;
}
#endif
#ifdef PROFILE_ADVANCED_SUBFRAME
if (numChirps >= 4){
chirpCfg[3].chirpStartIdx = CHIRP_HCC_3_START_INDEX;
chirpCfg[3].chirpEndIdx = CHIRP_HCC_3_END_INDEX;
chirpCfg[3].profileId = CHIRP_HCC_3_PROFILE_ID;
chirpCfg[3].startFreqVar = (uint32_t)((float)CHIRP_HCC_3_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[3].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_3_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[3].idleTimeVar = (uint32_t)((float)CHIRP_HCC_3_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[3].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_3_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[3].txEnable = CHIRP_HCC_3_TX_CHANNEL;
}
if (numChirps >= 5){
chirpCfg[4].chirpStartIdx = CHIRP_HCC_4_START_INDEX;
chirpCfg[4].chirpEndIdx = CHIRP_HCC_4_END_INDEX;
chirpCfg[4].profileId = CHIRP_HCC_4_PROFILE_ID;
chirpCfg[4].startFreqVar = (uint32_t)((float)CHIRP_HCC_4_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[4].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_4_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[4].idleTimeVar = (uint32_t)((float)CHIRP_HCC_4_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[4].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_4_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[4].txEnable = CHIRP_HCC_4_TX_CHANNEL;
}
if (numChirps >= 6){
chirpCfg[5].chirpStartIdx = CHIRP_HCC_5_START_INDEX;
chirpCfg[5].chirpEndIdx = CHIRP_HCC_5_END_INDEX;
chirpCfg[5].profileId = CHIRP_HCC_5_PROFILE_ID;
chirpCfg[5].startFreqVar = (uint32_t)((float)CHIRP_HCC_5_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[5].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_5_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[5].idleTimeVar = (uint32_t)((float)CHIRP_HCC_5_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[5].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_5_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[5].txEnable = CHIRP_HCC_5_TX_CHANNEL;
}
if (numChirps >= 7){
chirpCfg[6].chirpStartIdx = CHIRP_HCC_6_START_INDEX;
chirpCfg[6].chirpEndIdx = CHIRP_HCC_6_END_INDEX;
chirpCfg[6].profileId = CHIRP_HCC_6_PROFILE_ID;
chirpCfg[6].startFreqVar = (uint32_t)((float)CHIRP_HCC_6_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[6].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_6_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[6].idleTimeVar = (uint32_t)((float)CHIRP_HCC_6_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[6].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_6_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[6].txEnable = CHIRP_HCC_6_TX_CHANNEL;
}
if (numChirps >= 8){
chirpCfg[7].chirpStartIdx = CHIRP_HCC_7_START_INDEX;
chirpCfg[7].chirpEndIdx = CHIRP_HCC_7_END_INDEX;
chirpCfg[7].profileId = CHIRP_HCC_7_PROFILE_ID;
chirpCfg[7].startFreqVar = (uint32_t)((float)CHIRP_HCC_7_START_FREQ_VAL * (1U << 26) / (gHCC_mmwave_freq_scale_factor * 1e9));
chirpCfg[7].freqSlopeVar = (uint16_t)((float)CHIRP_HCC_7_FREQ_SLOPE_VAL * (1U << 26) / ((gHCC_mmwave_freq_scale_factor * 1e6) * 900.0));
chirpCfg[7].idleTimeVar = (uint32_t)((float)CHIRP_HCC_7_IDLE_TIME_VAL * 1000.0 / 10.0);
chirpCfg[7].adcStartTimeVar = (uint32_t)((float)CHIRP_HCC_7_ADC_START_TIME_VAL * 1000.0 / 10.0);
chirpCfg[7].txEnable = CHIRP_HCC_7_TX_CHANNEL;
}
#endif
/* Initialize the chirp handles */
MMWave_ChirpHandle chirpHandle[numChirps];
for (index = 0; index < numChirps; index++)
memset ((void *)&chirpHandle[index], 0, sizeof(MMWave_ChirpHandle));
/* Adding Chirps to profile handles */
for (index = 0; index < numChirps; index++){
chirpHandle[index] = MMWave_addChirp(profileHandle[chirpCfg[index].profileId], &chirpCfg[index], &errCode);
}
/*****************************************************************************
* Configuration :: Initializing Output Mode and Frame Configurations
*****************************************************************************/
/* Determine Output Mode */
switch(DFE_DATA_OUTPUT_MODE_HCC)
{
case 1U:
printf("Data Output Mode: Frame\n");
gMmwMssMCB.cfg.ctrlCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_FRAME;
/* Populate the frame config */
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.chirpStartIdx = FRAME_HCC_CHIRP_START_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.chirpEndIdx = FRAME_HCC_CHIRP_END_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.numLoops = FRAME_HCC_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.numFrames = FRAME_HCC_NUM_FRAMES;
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.framePeriodicity = (uint32_t)((float)FRAME_HCC_FRAME_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.triggerSelect = FRAME_HCC_TRIGGER_SELECT;
gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.frameCfg.frameTriggerDelay = (uint32_t)((float)FRAME_HCC_FRAME_TRIG_DELAY * 1000000 / 5);
memcpy((void *)&gMmwMssMCB.cfg.ctrlCfg.u.frameCfg.profileHandle[0], (void *)&profileHandle[0], sizeof(profileHandle[0]));
break;
case 2U:
printf("Data Output Mode: Continuous\n");
printf("Continuous Mode is not supported with OOB demos. Please choose either Frame Mode or Advanced Frame Mode.\n");
gMmwMssMCB.cfg.ctrlCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_CONTINUOUS;
break;
case 3U:
printf("Data Output Mode: Advanced Frame\n");
gMmwMssMCB.cfg.ctrlCfg.dfeDataOutputMode = MMWave_DFEDataOutputMode_ADVANCED_FRAME;
#ifdef PROFILE_ADVANCED_SUBFRAME
/* Populate the advanced subframe configs */
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.numOfSubFrames = numAdvSubframes;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.numSubFrames = numAdvSubframes;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.forceProfile = ADVFRAME_HCC_FORCE_PROFILE;
if (numAdvSubframes >= 1){
memcpy((void *)&gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.profileHandle[0], (void *)&profileHandle[0], sizeof(profileHandle[0]));
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].forceProfileIdx = SUBFRAME_HCC_0_FORCE_PROFILE_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].chirpStartIdx = SUBFRAME_HCC_0_CHIRP_START_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].numOfChirps = SUBFRAME_HCC_0_NUM_CHIRPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].numLoops = SUBFRAME_HCC_0_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].burstPeriodicity = (uint32_t)((float)SUBFRAME_HCC_0_BURST_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].chirpStartIdxOffset = SUBFRAME_HCC_0_CHIRP_START_OFFSET;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].numOfBurst = SUBFRAME_HCC_0_NUM_BURST;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].numOfBurstLoops = SUBFRAME_HCC_0_NUM_BURST_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[0].subFramePeriodicity = (uint32_t)((float)SUBFRAME_HCC_0_SUBFRAME_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[0].numAdcSamples = PROFILE_HCC_0_ADC_SAMPLE_VAL * 2;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[0].totalChirps = SUBFRAME_HCC_0_NUM_CHIRPS * SUBFRAME_HCC_0_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[0].numChirpsInDataPacket = SUBFRAME_HCC_0_NUM_CHIRPS;
}
if (numAdvSubframes >= 2){
memcpy((void *)&gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.profileHandle[1], (void *)&profileHandle[1], sizeof(profileHandle[1]));
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].forceProfileIdx = SUBFRAME_HCC_1_FORCE_PROFILE_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].chirpStartIdx = SUBFRAME_HCC_1_CHIRP_START_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].numOfChirps = SUBFRAME_HCC_1_NUM_CHIRPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].numLoops = SUBFRAME_HCC_1_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].burstPeriodicity = (uint32_t)((float)SUBFRAME_HCC_1_BURST_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].chirpStartIdxOffset = SUBFRAME_HCC_1_CHIRP_START_OFFSET;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].numOfBurst = SUBFRAME_HCC_1_NUM_BURST;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].numOfBurstLoops = SUBFRAME_HCC_1_NUM_BURST_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[1].subFramePeriodicity = (uint32_t)((float)SUBFRAME_HCC_1_SUBFRAME_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[1].numAdcSamples = PROFILE_HCC_1_ADC_SAMPLE_VAL * 2;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[1].totalChirps = SUBFRAME_HCC_1_NUM_CHIRPS * SUBFRAME_HCC_1_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[1].numChirpsInDataPacket = SUBFRAME_HCC_1_NUM_CHIRPS;
}
if (numAdvSubframes >= 3){
memcpy((void *)&gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.profileHandle[2], (void *)&profileHandle[2], sizeof(profileHandle[2]));
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].forceProfileIdx = SUBFRAME_HCC_2_FORCE_PROFILE_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].chirpStartIdx = SUBFRAME_HCC_2_CHIRP_START_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].numOfChirps = SUBFRAME_HCC_2_NUM_CHIRPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].numLoops = SUBFRAME_HCC_2_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].burstPeriodicity = (uint32_t)((float)SUBFRAME_HCC_2_BURST_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].chirpStartIdxOffset = SUBFRAME_HCC_2_CHIRP_START_OFFSET;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].numOfBurst = SUBFRAME_HCC_2_NUM_BURST;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].numOfBurstLoops = SUBFRAME_HCC_2_NUM_BURST_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[2].subFramePeriodicity = (uint32_t)((float)SUBFRAME_HCC_2_SUBFRAME_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[2].numAdcSamples = PROFILE_HCC_2_ADC_SAMPLE_VAL * 2;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[2].totalChirps = SUBFRAME_HCC_2_NUM_CHIRPS * SUBFRAME_HCC_2_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[2].numChirpsInDataPacket = SUBFRAME_HCC_2_NUM_CHIRPS;
}
if (numAdvSubframes == 4){
memcpy((void *)&gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.profileHandle[3], (void *)&profileHandle[3], sizeof(profileHandle[3]));
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].forceProfileIdx = SUBFRAME_HCC_3_FORCE_PROFILE_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].chirpStartIdx = SUBFRAME_HCC_3_CHIRP_START_INDEX;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].numOfChirps = SUBFRAME_HCC_3_NUM_CHIRPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].numLoops = SUBFRAME_HCC_3_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].burstPeriodicity = (uint32_t)((float)SUBFRAME_HCC_3_BURST_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].chirpStartIdxOffset = SUBFRAME_HCC_3_CHIRP_START_OFFSET;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].numOfBurst = SUBFRAME_HCC_3_NUM_BURST;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].numOfBurstLoops = SUBFRAME_HCC_3_NUM_BURST_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.subFrameCfg[3].subFramePeriodicity = (uint32_t)((float)SUBFRAME_HCC_3_SUBFRAME_PERIODICITY * 1000000 / 5);
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[3].numAdcSamples = PROFILE_HCC_3_ADC_SAMPLE_VAL * 2;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[3].totalChirps = SUBFRAME_HCC_3_NUM_CHIRPS * SUBFRAME_HCC_3_NUM_LOOPS;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameData.subframeDataCfg[3].numChirpsInDataPacket = SUBFRAME_HCC_3_NUM_CHIRPS;
}
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.numFrames = ADVFRAME_HCC_NUM_FRAMES;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.triggerSelect = ADVFRAME_HCC_TRIGGER_SELECT;
gMmwMssMCB.cfg.ctrlCfg.u.advancedFrameCfg.frameCfg.frameSeq.frameTrigDelay = (uint32_t)((float)ADVFRAME_HCC_FRAME_TRIG_DELAY * 1000000 / 5);
#endif
break;
default:
printf("DFE = Default!\n");
printf("Error: Invalid Mode.\n");
break;
}
/*****************************************************************************
* Configuration :: Initializing Data Path Configurations
*****************************************************************************/
uint8_t numProf;
numProf = 1;
#ifdef PROFILE_ADVANCED_SUBFRAME
numProf = numAdvSubframes;
#endif
/* Call HCC helper functions to configure data path */
MmwDemo_HCCGuiMonSel(numProf);
MmwDemo_HCCCfarCfg(2*numProf);
MmwDemo_HCCCfarFovCfg(2*numProf);
MmwDemo_HCCAoAFovCfg();
MmwDemo_HCCExtendedMaxVelocity();
MmwDemo_HCCMultiObjBeamForming(numProf);
MmwDemo_HCCCalibDcRangeSig (numProf);
MmwDemo_HCCClutterRemoval();
MmwDemo_HCCADCBufCfg();
MmwDemo_HCCCompRangeBiasAndRxChanPhaseCfg();
MmwDemo_HCCMeasureRangeBiasAndRxChanPhaseCfg();
MmwDemo_HCCBpmCfg();
MmwDemo_HCCChirpQualityRxSatMonCfg(numProf);
MmwDemo_HCCChirpQualitySigImgMonCfg(numProf);
MmwDemo_HCCAnalogMonitorCfg();
MmwDemo_HCCLvdsStreamCfg();
/* Configure Pre-Start Common Config */
gMmwMssMCB.objDetCommonCfg.preStartCommonCfg.numSubFrames = MmwDemo_RFParser_getNumSubFrames(&gMmwMssMCB.cfg.ctrlCfg);
/*****************************************************************************
* Deployment :: Configuring and Starting Sensor
*****************************************************************************/
/* Call MMW Demo helper function to configure sensor */
printf("Sending configSensor command to EVM.\n");
if (MmwDemo_configSensor() < 0)
printf("MmwDemo_configSensor command returned an error.\n");
else
printf("Sensor was successfully configured.\n");
/* Call MMW Demo helper function to start sensor */
if (MmwDemo_startSensor() < 0)
printf("MmDemo_startSensor command returned an error.\n");
else
printf("Hard Coded Configuration successfully sent to EVM.\n");
return;
}
/**
* @b Description
* @n
* This is the CLI Execution Task
*
* @retval
* Not Applicable.
*/
void MmwDemo_CLIInit (uint8_t taskPriority)
{
Task_Params taskParams;
/* Initialize the Task Parameters */
Task_Params_init(&taskParams);
taskParams.priority = taskPriority;
Task_create(mmwDemo_sensorConfig_task, &taskParams, NULL);
}

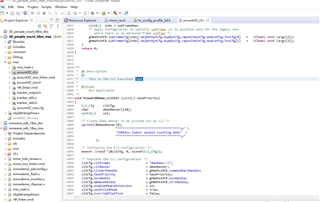

"../cli.c", line 138: error #20: identifier "GUI_HCC_0_DETECTED_OBJECTS" is undefined
"../cli.c", line 139: error #20: identifier "GUI_HCC_0_LOG_MAGNITUDE_RANGE" is undefined
What am I doing wrong?
Thanks a lot
Jiaqi
