IWRL6432: Elevation Estimation and Parameters of Antenna Geometry

chiachih chang

Part Number: IWRL6432

Hi Expert,

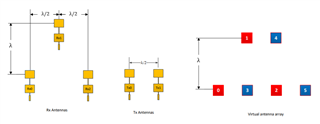

In my case, the antenna RX1 is designed to move up with a spacing of one wavelength to the RX2 and 3 in the elevation. Below figure is the antenna geometry.

Since the spacing of elevation is changed, the phase difference will be changed in the elevation FFT. Does elevation estimation in IWRL6432 radar support this design? If yes, please tell me where to modify.

Best regards,

ChiaChih

over 2 years ago

0 Angie Mitchell over 2 years ago

TI__Genius 10730 points

Hi ChiaChih,

Currently the SDK for IWRL6432 only supports the IWRL6432BOOST antenna design. SDK 5.2 will support modifying the antenna design.

Thank you,

Angie

0 chiachih chang over 2 years ago in reply to Angie Mitchell

Prodigy 90 points

Hi Angie,

From the previous question, IWRL6432: Parameters of Antenna Geometry - Sensors forum - Sensors - TI E2E support forums, I am able to modify the antenna design. Could you help confirm it?

Best regards,

ChiaChih

0 Angie Mitchell over 2 years ago in reply to chiachih chang

TI__Genius 10730 points

Hi ChiaChih,

Thank you for linking this! Yes, this is the way to modify antennas today and this is what we were pointing customers to before we knew we had a fix coming in our next SDK release. I usually don't share this method on the forums as it is complex but I can help you take these steps if you would like.

Thank you,

Angie

0 chiachih chang over 2 years ago in reply to Angie Mitchell

Prodigy 90 points

Hi Angie,

Thanks for the reply.

So is there a way of changing the spacing of antenna to one lambda? or could you teach me about how to configure the rx2 that has the spacing of one lambda?

Best regards,

ChiaChih

0 Angie Mitchell over 2 years ago in reply to chiachih chang

TI__Genius 10730 points

Hi ChiaChih,

Yes we can help with this and we will be reaching out offline since we are already supporting you offline.

For anyone else reading this thread -- the easiest way to get this functionality will be to use the additional CLI commands which will be available in SDK 5.2 which will enable custom antenna patterns and antenna spacing.

Thank you,

Angie
