Other Parts Discussed in Thread: AWR6843AOPEVM
Tool/software:
Hello,
I am using the AWR6843AOPEVM and DCA1000EVM with the "mmWave Studio 02.01.01.00" program. I have several questions regarding its operation and would greatly appreciate it if you could kindly provide answers.

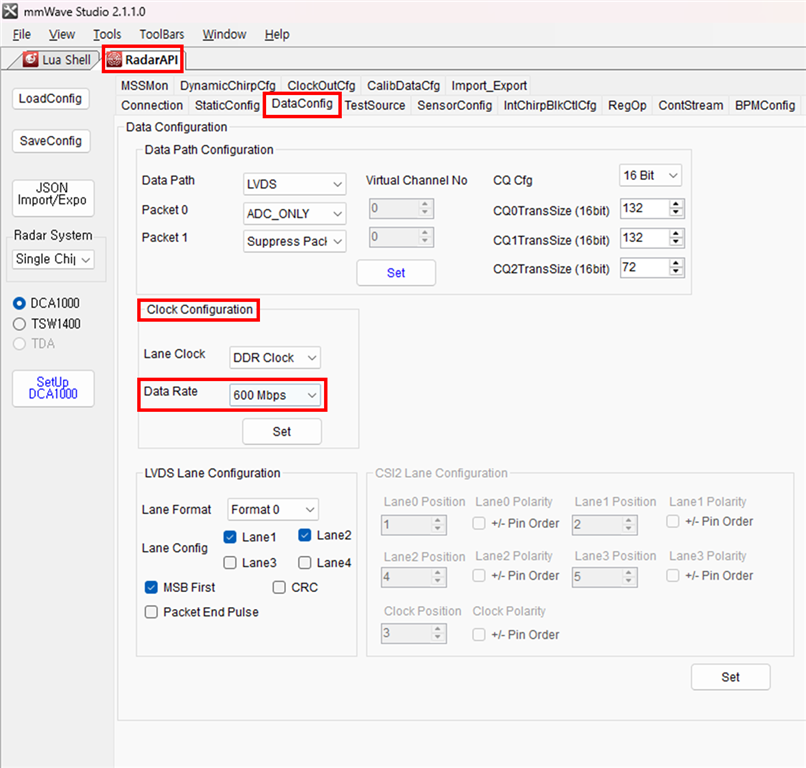

1. RadarAPI => DataConfig => Clock Configuration:
Currently, the configuration is set to Lane Clock: DDR Clock and Data Rate: 600 Mbps. If the Data Rate is changed, will the CFG file for the AWR6843AOPEVM be modified, or will it remain unchanged?
2. RadarAPI => Connection:
2.1 Is the RS232 Operations used only for writing the firmware and transmitting the CFG file to the AWR6843AOPEVM?
2.2 Does SPI Operations => SPI Connect(5) relate to controlling the Lua Shell and interacting with FPGA control?
2.3 What happens when the RF Power-up(6) button is pressed? Please explain the action that occurs.
3. RadarAPI => When I click the 'Set' button in StaticConfig, DataConfig, and SensorConfig, will the related CFG file settings and FPGA settings of AWR6843AOPEVM be applied?

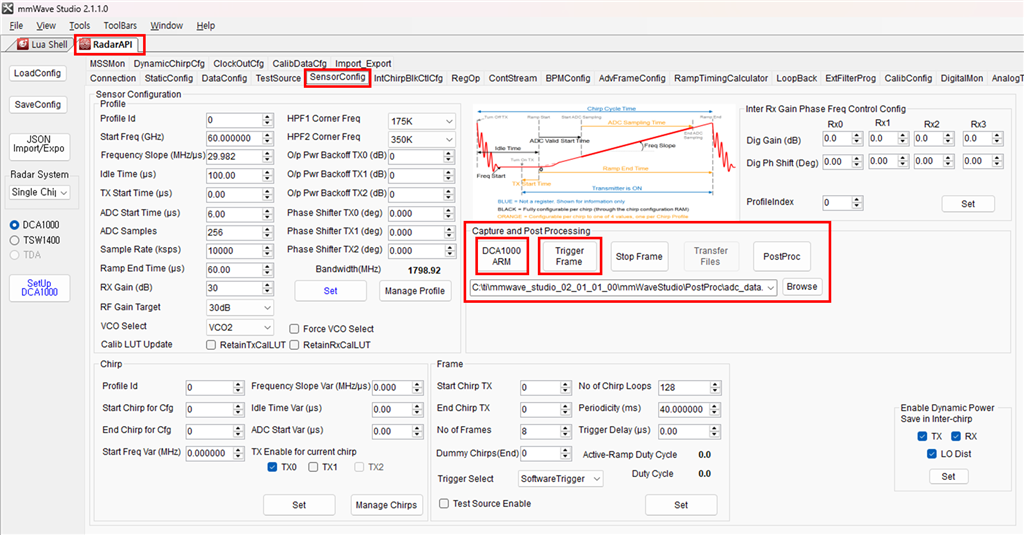

4. RadarAPI => SensorConfig => Capture and Post Processing:
When the 'DCA1000ARM' and 'Trigger Frame' buttons are clicked, what actions are performed?
Thank you very much for your assistance in advance.
Best regards,
JAEHOON KIM
