TDC1000: How to mount the ultrasonic transducer on a pipe without any reflector.

vidya s

Part Number: TDC1000
Other Parts Discussed in Thread: TDC7200

Hi Sir/Mam,

I am working on water flow meter using TDC1000 and TDC7200 for a NON-INTRUSIVE type and using an ultrasonic transducer from Audio -well i.e US0004 (part number: 137130100017).

1) For non-intrusive type mounting, do we require reflectors? If required, we don't want that to be placed inside the pipe.

if any suggestions on this, it would be very helpful for us to continue further. I have enclosed the datasheet of a transducer for reference.

With regards,

Vidya S

US0004-000 Transducer in plastic pipe water meter.pdf HS0014-000 for DN15 water meter.pdf

over 7 years ago

0 Bharat Aravamudhan over 7 years ago

TI__Genius 11015 points

Hello Vidya,

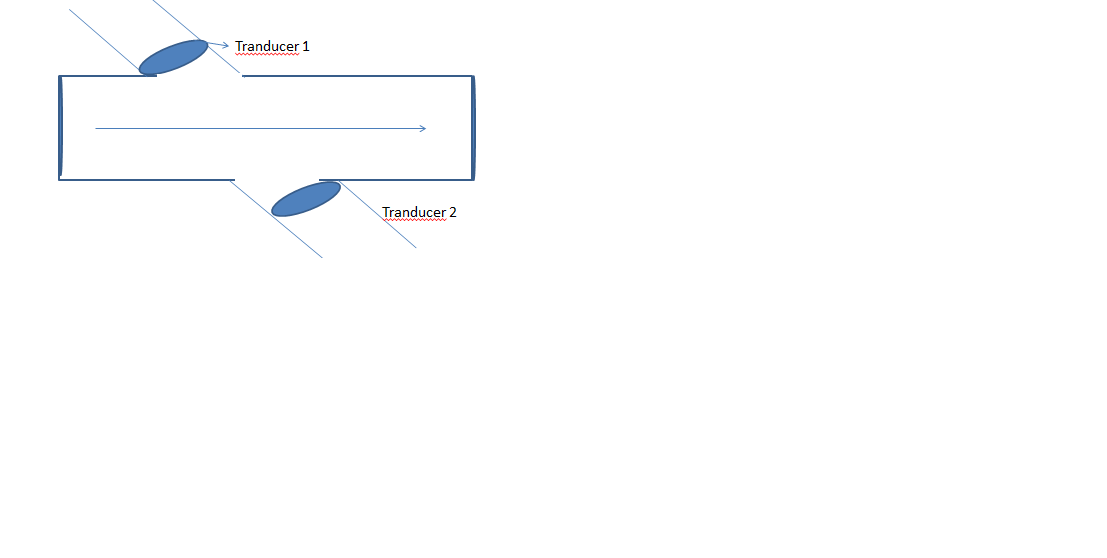

For the non-intrusive type mounting you wont require any reflectors. Refer Fig below for an example on how to mount the transducer:

However in the 2nd file that you have attached I find there is an internal reflector, please clarify if you consider that as Non- Intrusive.

0 vidya s over 7 years ago in reply to Bharat Aravamudhan

Prodigy 100 points

Hi Bharath,

Thanks for your response. what type of pipe material need to be used for non-intrusive? we are focusing on CPVC pipes.

Thank you

with regards,

Vidya S

0 Bharat Aravamudhan over 7 years ago in reply to vidya s

TI__Genius 11015 points

Vidya,

You should be able to use any type of pipe for non-intrusive. CPVC should be good.

0 vidya s over 7 years ago in reply to Bharat Aravamudhan

Prodigy 100 points

Hi Bharat,

The transducer I mentioned earlier requires a reflector, but we don't want any reflectors inside the pipe (NON-INTRUSIVE). The transducer (US0004-000) we used was mentioned by TI only.

So can you suggest the transducer which won't require reflector?

With regards,

Vidya s

0 Bharat Aravamudhan over 6 years ago in reply to vidya s

TI__Genius 11015 points

Vidya,

As suggested above if you have an reflector and transducer within the pipe it is called an intrusive type.

We can setup the transducers as shown in the figure before it is know as non-intrusive type.

All the recommended transducers are in the TDC1000 app notes.

I hope this helps your setup, please start a new thread in case you have any further question in this regard.
