TMP112: Is it possible to apply 3.3V to SCL, SDA and ADD0 when powering off (V+=0V)?

K.Yaita

Part Number: TMP112
Other Parts Discussed in Thread: TMP102

Hi Team,

Is it possible to apply 3.3V to SCL, SDA and ADD0 when powering off (V+=0V) for TMP112?
It seems no ploblem according to datasheet however TMP102 shouldn't to apply above although these devices are pin-to-pin compatible..
Could you check it just in case?

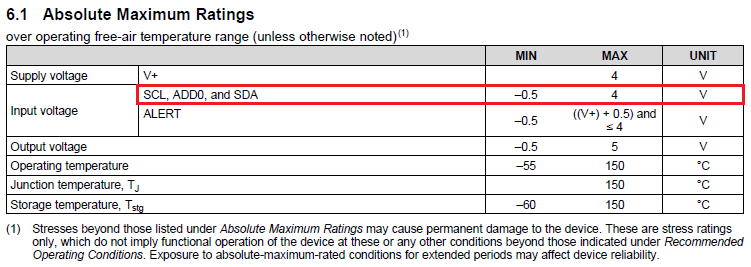

↓TMP112

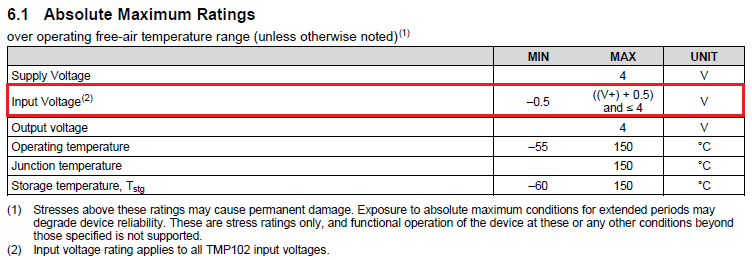

↓TMP102

Best Regards,
Yaita

over 6 years ago

0 Amit Ashara over 6 years ago

TI__Guru**** 244400 points

Hello Yaita

There has been an error in the datasheet for TMP112 and it is being corrected right now. The maximum voltage on the Input pins shall be ((V+) + 0.3) and < 4.

0 K.Yaita over 6 years ago in reply to Amit Ashara

Guru 29720 points

>The maximum voltage on the Input pins shall be ((V+) + 0.3) and < 4.
I beleive "((V+) + 0.5) and < 4" is correct.
Is my understanding correct?

Best Regards,
Yaita

0 Amit Ashara over 6 years ago in reply to K.Yaita

TI__Guru**** 244400 points

Hello Yaita,

We reviewed the datasheet for the TMP112 and TMP102 devices after your thread was opened. The following will be what will be seen in the final datasheet.

	Min	Max	Units
Supply Voltage, V+	-0.5	4	V
Voltage at SCL, SDA, ADD0	-0.5	4	V
Voltage at ALERT	-0.5	((V+) +0.3V ) and <= 4	V

In summary:

When the supply voltage is 0V, it is possible to apply 3.3V to SCL, SDA and ADD0 pins. But not to the ALERT pin.

0 K.Yaita over 6 years ago in reply to Amit Ashara

Guru 29720 points

Hi Amit-san,

Did you refer I2C pins of TMP112 and TMP102 are possible to apply 3.3V when V+=0V?
I am confused..
If so, I request the following thread to be modified.
https://e2e.ti.com/support/sensors/f/1023/t/731731?tisearch=e2e-quicksearch&keymatch=TMP102

Best Regards,
Yaita

0 Amit Ashara over 6 years ago in reply to K.Yaita

TI__Guru**** 244400 points

Hello Yaita-san

I was referring specifically to the I2C pins for TMP112. I shall update the other thread as well for TMP102.
