IWR1443BOOST: Data capture of vital signs using the Capture demo

Khalidul Haq Aliyar

Part Number: IWR1443BOOST

Greetings,

I have captured some raw data using the capture demo and I am trying to get my head around it. The format for the data is 16-bit hex and the memory words read was 8000. My question is how many seconds or milliseconds does this data account for?

Thank you in advance, your help is very much appreciated.

Kind regards,

Khalid

over 6 years ago

0 Chloe Shay71 over 6 years ago

TI__Expert 4025 points

Hi Khalid,

Can you please send me your chirp configuration?

-Chloe

0 Khalidul Haq Aliyar over 6 years ago in reply to Chloe Shay71

Prodigy 60 points

Hi Chloe,

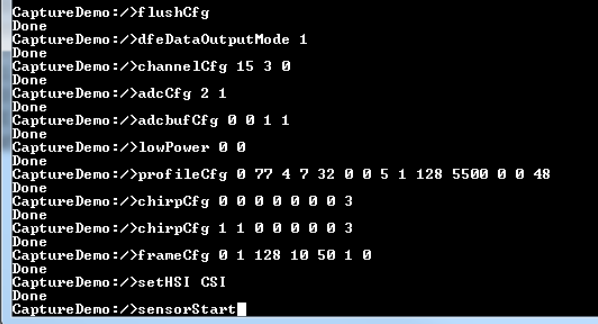

Thanks for replying. It was the same configuration shown in the presentation found at e2e.ti.com/.../ADC-Data-Capture-SDK1.05-V1.00.pdf

Kind regards,

Khalid

0 Chloe Shay71 over 6 years ago in reply to Khalidul Haq Aliyar

TI__Expert 4025 points

Hi Khalid,

The chirp time for a single chirp can be found by adding the idle time to the ramp end time ( 7µs idle time + 32µs ramp time = 39 microseconds).

You then multiply this by the total number of chirps (4 frames* 128 loops * 2 chirps per loop = 1024 total chirps).

1024 chirps * 39µs per chirp = .039936 seconds

However, we no longer support the capture demo. We recommend using the DCA1000 for capturing data.

-Chloe
