AWR1642: AWR1642BOOST

Abderrahim BELISSAOUI

Part Number: AWR1642

Dear all,

Thank you for your support and answering to my related questions ( https://e2e.ti.com/support/sensors/f/1023/t/840424 ) .

That issue is resolved now after some modifications in object detection over can lab MSS main. Consequently, I started receiving correctly and continuously both CAN FD and CAN classic frames from the AWR1642BOOST revB.

To communicate with an ECU (this ECU Supports only CAN 2.0 with 500 Kbits/s), I need CAN Technical Description for the AWR1642 Evaluation Module (AWR1642BOOST) or DBC file.

Could you please provide me the technical description for the AWR1642 Evaluation Module (AWR1642BOOST) or DBC file? or just tell me how to generate dbc file!

ECU: Electronic Control Unit

over 5 years ago

0 Cesar over 5 years ago

TI__Guru*** 147844 points

HI,

The CAN and CAN-FD interfaces are described in the TRM. Is there anything else needed?

Thank you

Cesar

0 Abderrahim BELISSAOUI over 5 years ago in reply to Cesar

Intellectual 260 points

Hi Cesar,

Thanks for your reply

I read The TRM especially the session talking about CAN communication. I need to interprete the DATA, localize the x and x in the data field and then sending though CAN bus in addition to X and Y also the velocity information (or doppler).

Hope somone can claritfy this point or provide me canfd dbc file this will be so helpful

Have a good day

0 Cesar over 5 years ago in reply to Abderrahim BELISSAOUI

TI__Guru*** 147844 points

Hi,

The data information sent through can is the same information that is sent through UART. It is organized per frame basis. The beginning of the frame data starts with a magic number

https://e2e.ti.com/support/sensors/f/1023/t/677383?AWR1642BOOST-Magic-word

http://e2e.ti.com/support/sensors/f/1023/t/752541?IWR6843-TLV-Parser

Thank you

Cesar

0 Abderrahim BELISSAOUI over 5 years ago in reply to Cesar

Intellectual 260 points

Hi Cesar,

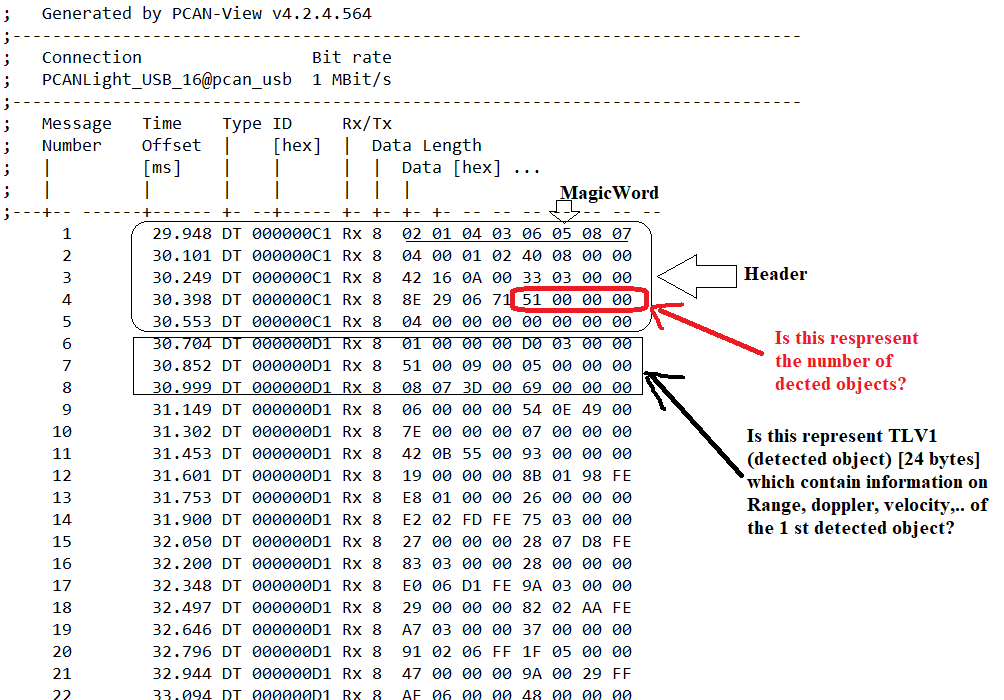

I have just recorded some sent packets using PcanView (trc file), and i'm actually analysing these packets. I need your confirmation and clarification on some points ( see picture below).

Thank you

0 Cesar over 5 years ago in reply to Abderrahim BELISSAOUI

TI__Guru*** 147844 points

Hi,

The code that transfers the data buffers is defined in the following function MmwDemo_dssSendProcessOutputToMSS() in the file

mmwave_automotive_toolbox_2_7_1\labs\lab0005_object_data_over_can\odoc-target\dss\dss_main.c

You should be able to deduct every field from there. The (x,y) is in Q9 data format. So you will have to divide the integer hex value by 512 to get the value in decimal format

thank you

Cesar
