LDC1612: LDC tools FEM problem

Simon Schmitt

Part Number: LDC1612

Hello,

I've tried to use the FEM Excel sheet (Excel_FEMM_v1p28) and I've changed my decimal marks to points like since it seemed to solve some problems.

But I still have an error about material attribution to nodes:

"Incorrect simulation constructed error: Material properties have not been defined fo all block labels. Cannot analysze the problem. Please fix the mesh THEN press OK to continue."

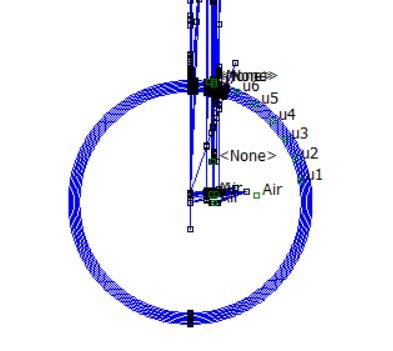

So I check the FEMM window to see that:

I've tried to attribute Air material to <none> nodes but the software isn't really straightforward to use with mouse. I understand why peoples prefer to generate a FEMM problem from other sources.

So I clock OK, but after maybe 20 seconds, there is another window who say "can't find the ******..ans file". So I suppose it couldn't create a mesh to analyse.

I would like to know if someone have an idea about why it desn't work. After researching the forum, I seem to be the only one with this problem.

Best regards,

over 5 years ago

0 Kristin Jones93 over 5 years ago

TI__Genius 17440 points

Hello Simon,

Can you share your Excel_FEMM sheet so that I can try to run it on my computer? One immediate problem is that the workspace boundaries aren't large enough to surround the whole target and coil. I'm not sure if this is the root of your issue, but it could be part of the problem. The construction of the target and coil also looks odd to me, but I'll have to look at your Excel_FEMM sheet to compare the output to the input.

Best Regards,

0 Simon Schmitt over 5 years ago in reply to Kristin Jones93

Prodigy 50 points

Hello Kristin,

Here is my file: (I had to change extension since xlsm isn't accepted by the forum)

Excel_FEMM_v1p28 - Copie.xlsx

Best regards,

EDIT: after checking with a brand new excell sheet, I discovered that the problem varies when I change the target distance.

Default value generate the same error than this thread: https://e2e.ti.com/support/sensors/f/1023/t/732122?tisearch=e2e-quicksearch&keymatch=femm even after changin decimal separator to "."

After changing target distance to 20mm, I get the material attribution problem I've described earlyer.

All these errors, even after allowing all macro in the security center.

0 Simon Schmitt over 5 years ago in reply to Simon Schmitt

Prodigy 50 points

Hello again,

After doing some check in the VBA code, I've noticed that the program have a problem at the femmcmd, that mean when a new instruction is send to femm.

It crash everytime when the line "mi_addsegment(2,8437,0,2,9013,0)" is sended.

Someone have an idea why? I don't have enough experience with LUA scripts and FEMM to interpret the problem.

Thank you.

0 Kristin Jones93 over 5 years ago in reply to Simon Schmitt

TI__Genius 17440 points

Hi Simon,

My apologies for the delayed update; I'm still looking into this. I should have more feedback for you by the end of next week.

Best Regards,

0 Kristin Jones93 over 5 years ago in reply to Kristin Jones93

TI__Genius 17440 points

Hi Simon,

Unfortunately this is taking some time to resolve and I'll need to continue debugging offline. When we're able to solve the issue we'll release an update either to the tool or to the FAQ.
