IWR6843ISK: Issue in sending configuration for out of the box demo using mmwave demo visualiser

Shraddha Swami

Part Number: IWR6843ISK
Other Parts Discussed in Thread: MMWAVEICBOOST,

Hi TI Team,

We are using IWR6843ISK + MMWAVEICBOOST, we are trying to run Out of The box demo for generating heatmaps provided by TI using mmwave demo visualiser.

we flashed board with out of the box demo located in "/home/vvdn/ti/mmwave_sdk_03_03_00_03/packages/ti/demo/xwr68xx/mmw" and after flashing we switched to functional mode (removed SOP2).

We tried to configure device using mmave demo visualiser version 3.5 using https://dev.ti.com/gallery/view/mmwave/mmWave_Demo_Visualizer/ver/3.5.0/ but could not configure the device by clicking "SEND CONFIG TO MMWAVE DEVICE" .

Error Occured: incorrect config reported by target , change configuration and try again"

Also we tried to load config (profile_2d.cfg) located in SDK from PC, but no plots observed.

Then we tried to configure device using mmwave demo visualiser version 3.3 using https://dev.ti.com/gallery/view/mmwave/mmWave_Demo_Visualizer/ver/3.3.0/ , we could send the configuration by selecting various plots and heatmaps but we could not see any data in plots. (blank plots)

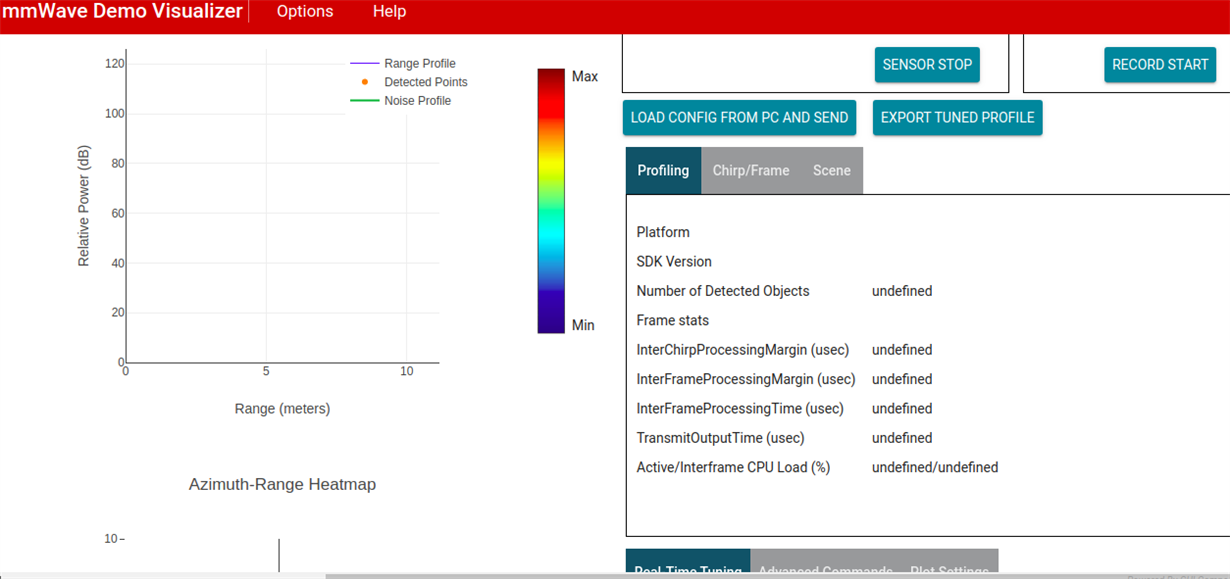

Please find the below screenshot of mmwave demo visualiser 3.3 which shows blank plots and profiling as undefined.

Please let us know if we are missing any thing.

over 4 years ago

0 Charles Oladimeji over 4 years ago

TI__Mastermind 33805 points

Hi,

Can you confirm you have an ES2 IC on the EVM

https://dev.ti.com/tirex/explore/node?node=ADsPyX6E2a-akoJpFzxp2A__VLyFKFf__LATEST&r=VLyFKFf__4.1.0

and then use the try using the latest SDK

https://www.ti.com/tool/MMWAVE-SDK

Regards,

Charles O

0 Shraddha Swami over 4 years ago in reply to Charles Oladimeji

Intellectual 370 points

Hi Charles O,

Yes we have (678A, ES2.0) ES2 IC on EVM.

We can give one try with latest SDK as you suggested.

Thanks

Shraddha

0 Shraddha Swami over 4 years ago in reply to Shraddha Swami

Intellectual 370 points

Hi Charles O,

We tried with latest SDK 3.5.0, tried to configure device with 10 fps but could not generate heatmaps.

So we reduced frame rate to 4 fps as recommended by demo visualiser warning. We were able to generate heatmaps.

Then we enabled static cluttering option and set the Azimuth FoV = - 20 to +20 and Elevation to -40 to +40.

May i learn why frame rate need to be less than 5 fps for generating heatmaps?

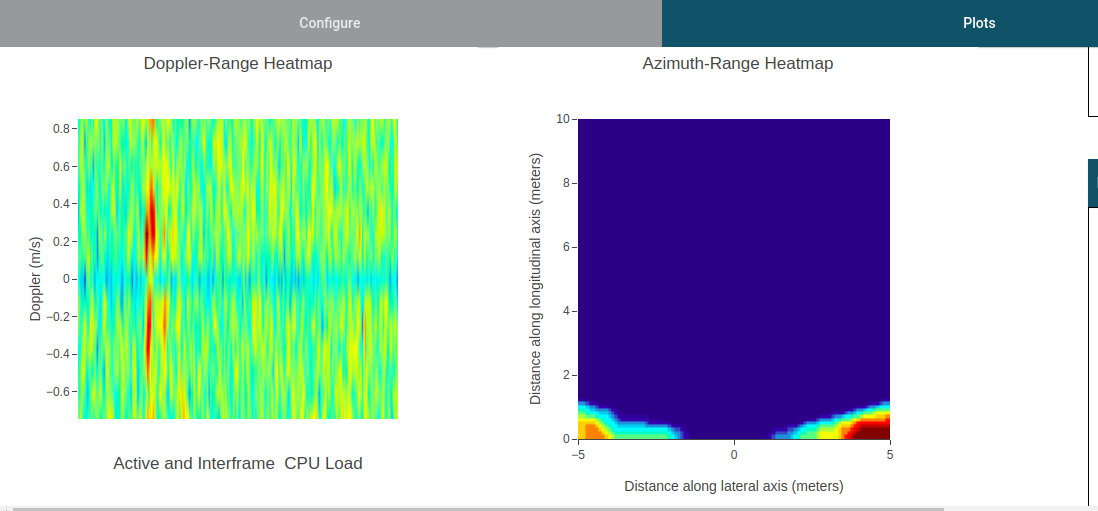

Please find the attached screenshot for generated heatmaps.

In doppler-range heatmap the red section is observed continuously even after removing static clutter.

In Azimuth-Range heatmaps we could not observe any change even if the object is in front of device.

Could you please help us to understand the heatmaps ?

Thanks

Shraddha

0 Charles Oladimeji over 4 years ago in reply to Shraddha Swami

TI__Mastermind 33805 points

I will reach out the the software team and get back to you.

Regards,

Charles O

0 Shraddha Swami over 4 years ago in reply to Charles Oladimeji

Intellectual 370 points

Hi Charles O

Gentle reminder !!

Any update on the above query ?

Thanks

Shraddha

0 Charles Oladimeji over 4 years ago in reply to Shraddha Swami

TI__Mastermind 33805 points

Shraddha Swami said:

Could you please help us to understand the heatmaps ?

please see section 3.5 and 3.6 of linked visualizer user manual. Disabling static clutter setting will not change Heatmap

https://www.ti.com/lit/ug/swru529c/swru529c.pdf

Shraddha Swami said:
May i learn why frame rate need to be less than 5 fps for generating heatmaps?

the bottle neck here is the UART speed and the amount data that needs to be parsed. see related link below for more details

https://e2e.ti.com/support/sensors/f/1023/t/680378

Regards,

Charles O

0 Shraddha Swami over 4 years ago in reply to Charles Oladimeji

Intellectual 370 points

Hi Charles O,

Thanks for your response

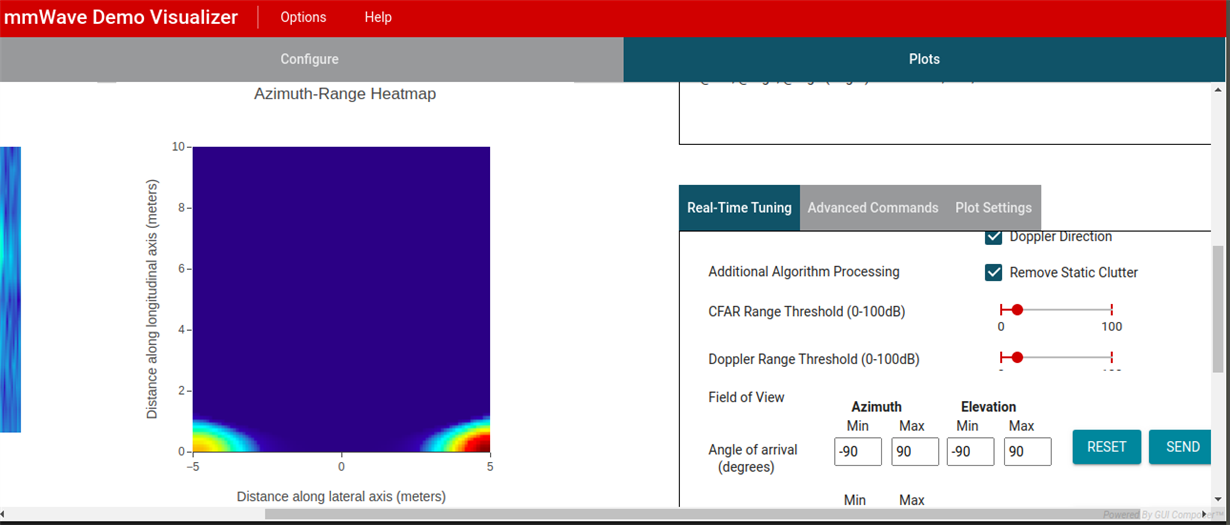

We tried to generate heatmap by keeping antenna in Modular mode also with default configuration and 4 fps frame rate in mmwave demo visualiser using mmwave adk_03_05_00 OOB demo.

Able to generate both heatmap with "remove static clutter" option disabled.

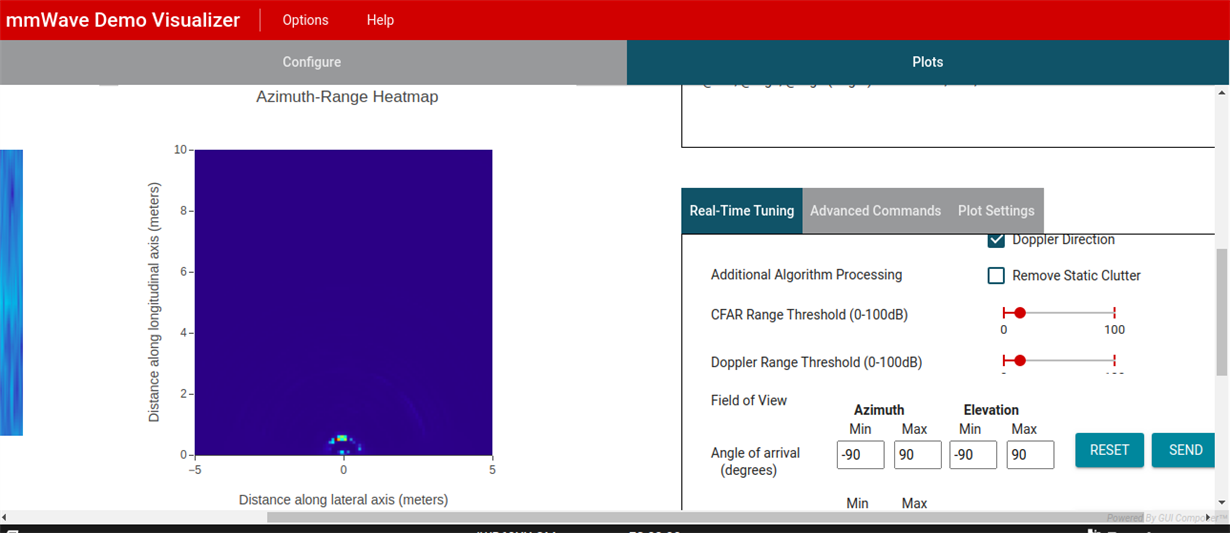

then we enabled "Remove static cutter" we are not able to get Azimuth-Range heatmap.

Could you please guide us on this?

Thanks

Shraddha

0 Charles Oladimeji over 4 years ago in reply to Shraddha Swami

TI__Mastermind 33805 points

Hi,

I will try this and get back to you.

Regards,

Charles O

0 Shraddha Swami over 4 years ago in reply to Charles Oladimeji

Intellectual 370 points

Hi Charles O,

Is there any update on this? Please acknowledge

Thanks

0 Charles Oladimeji over 4 years ago in reply to Shraddha Swami

TI__Mastermind 33805 points

Hi,

I tried this and got the same result.

My previous comment that " Disabling static clutter setting will not change Heatmap" is actually wrong. heat map is the static heatmap so enabling static clutter removal and enabling the heat map will not provide any useful information

https://e2e.ti.com/support/sensors/f/1023/t/915894

The plot on the edged of the heatmap should be disregarded

Regards,

Charles O

0 Shraddha Swami over 4 years ago in reply to Charles Oladimeji

Intellectual 370 points

Hi Charles O,

We are little unclear about the "remove static clutter" and heatmap relation.

We don't want reflection from static object for our use case, so we are trying with enabling that option.

Thanks

Shraddha

0 Charles Oladimeji over 4 years ago in reply to Shraddha Swami

TI__Mastermind 33805 points

Hi,

The azimuth heat map as implement in the demo show static object, if you need the heat map and also need to remove static clutter then you need to implement a computation.

This is explain in the post i shared earlier and linked again below

https://e2e.ti.com/support/sensors/f/1023/p/915894/3384770#3384770

If you have more questions, please start a new post and will be assigned to the subject matter expert.

Regards,

Charles O

0 Shraddha Swami over 4 years ago in reply to Charles Oladimeji

Intellectual 370 points

Hi Charles O,

We would like to know what is parameter mentioned in below graph as z e.g. (z = 3427). what does that mean?

can we get reference code to do our custom heatmap plot generation?

Thanks

Shraddha

0 Charles Oladimeji over 4 years ago in reply to Shraddha Swami

TI__Mastermind 33805 points

Hi,

This thread seems to have deviated from the original inquiry.

Can you please start a new thread with this question so that the relevant subject matter expert can attend to it ?

Thanks

Charles O
