SN74LV4052A: IBIS (output) model

Yu-Chen

Intellectual 1255 points

Part Number: SN74LV4052A
Other Parts Discussed in Thread: TMUX1309,

Tool/software:

Team,

Customer is asking SN74LV4052APWR IBIS model. We provided TMUX1309 IBIS first, but TMUX1309 IBIS only has input model.

Can you help to provide output IBIS model too? or provide SN74LV4052APWR full IBIS?

7 months ago

+1 Clemens Ladisch 7 months ago

Guru 316940 points

Neither the TMUX1309 nor the SN74LV4052A has any buffered outputs. The control pins are inputs; the S/D/COM/Y pins are connected to transmission gates.

Unfortunately, the TMUX1309 IBIS file does not contain models for the switches (and its electrical characteristics would be different anyway). For how to model the switch, see [FAQ] How do I Approximate Propagation Delay and Channel to Channel Skew in an Analog Switch/Multiplexer?

0 Yu-Chen 7 months ago in reply to Clemens Ladisch

TI__Intellectual 1255 points

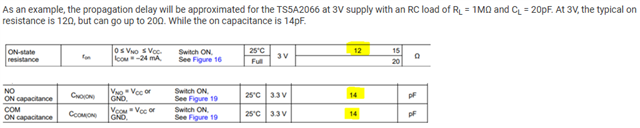

Thanks Clemens. Customer is also asking if we can provide any SN74LV4052A data file that contains the following parameters?

0 Rami Mooti1 7 months ago in reply to Yu-Chen

TI__Mastermind 35528 points

Hi Yu-chen,

I'm not sure exactly what you mean by a datafile but if no IBIS file exists they'll need to create a passive model using the CON and RON from the datasheet and following this FAQ:

[FAQ] What if my Analog Switch/Multiplexer is Missing an IBIS Model?

Thanks,
Rami
