TINA TI - Square Wave irregular signal

marco carta

Prodigy 20 points

Hi,

how can I generate a signal like this?

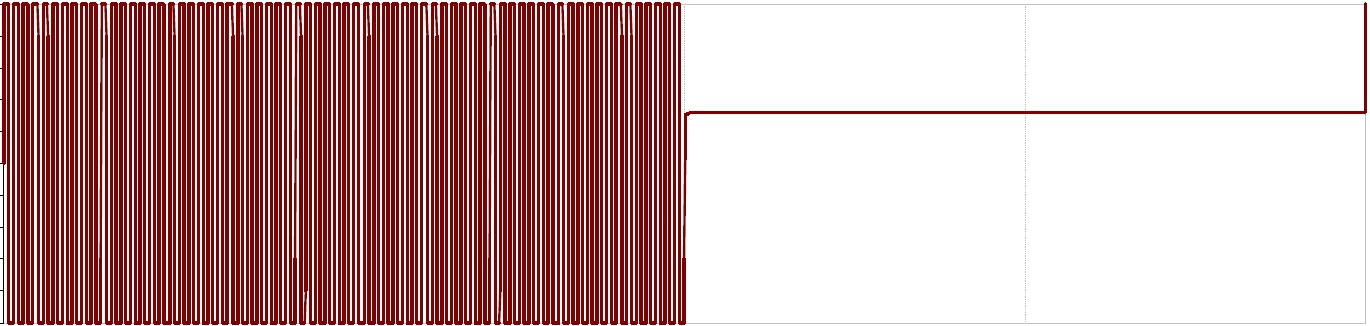

5kHz PWM from 0 sec to 1 sec
5 volt costant from 1 sec to 2 sec
5kHz PWM from 2 sec to 3 sec
5 volt costant from 3 sec to 4 sec
keep going...
...

over 9 years ago

0 Britt Brooks - Online Design Tools over 9 years ago

TI__Mastermind 41310 points

Marco,

There are probably a few hundred ways to do this, but the simplest I can come up with is attached. Use a PWM input and a 5V input and switch between the two. Since I have no idea what your PWM signal looks like or what voltage levels you are using, this is the method I would use.

Mixed_Voltages.TSC

You can control the time interval independently with one source and can change the PWM/voltage value separately.

0 marco carta over 9 years ago in reply to Britt Brooks - Online Design Tools

Prodigy 20 points

thanks!
