WEBENCH® Tools/TPS63070: TINA SPICE Model

Ram Sai
Prodigy 60 points
Part Number: TPS63070

Tool/software: WEBENCH® Design Tools

Hi Team,

As per our project need we are trying to simulate our circuit using TPS63070 in TINA Simulation tool. We tried with the pspice transient simulation model available in your website but we are unable to simulate with this model (Refer Attachment).

We tried by exporting from power design webench tool. Even in that way we couldn't simulate in TINA.

So, I request you to provide me the spice model ASAP for TPS63070 which I can use in TINA.

I hope you will reply soon.

Thanks and Regards,

Ram Sai.

  • 0
    TI__Expert 5550 points

    Hi Ram,

    Kindly follow the steps below to export the design from power designer tool.

    Step 1: Use the link mentioned below to access Webench power designer.Provide the desired input conditions (refer the image below) and click on open design.

    https://www.ti.com/product/TPS63070

    Step2: Click on "Export" and then click on TINA as shown in image below.Click on "Export design".

    Step 3:Download the exported file and click on  "Simulation".

    Step 4:Click on "Analysis" ,as shown in image below .Choose "Transient Analysis"

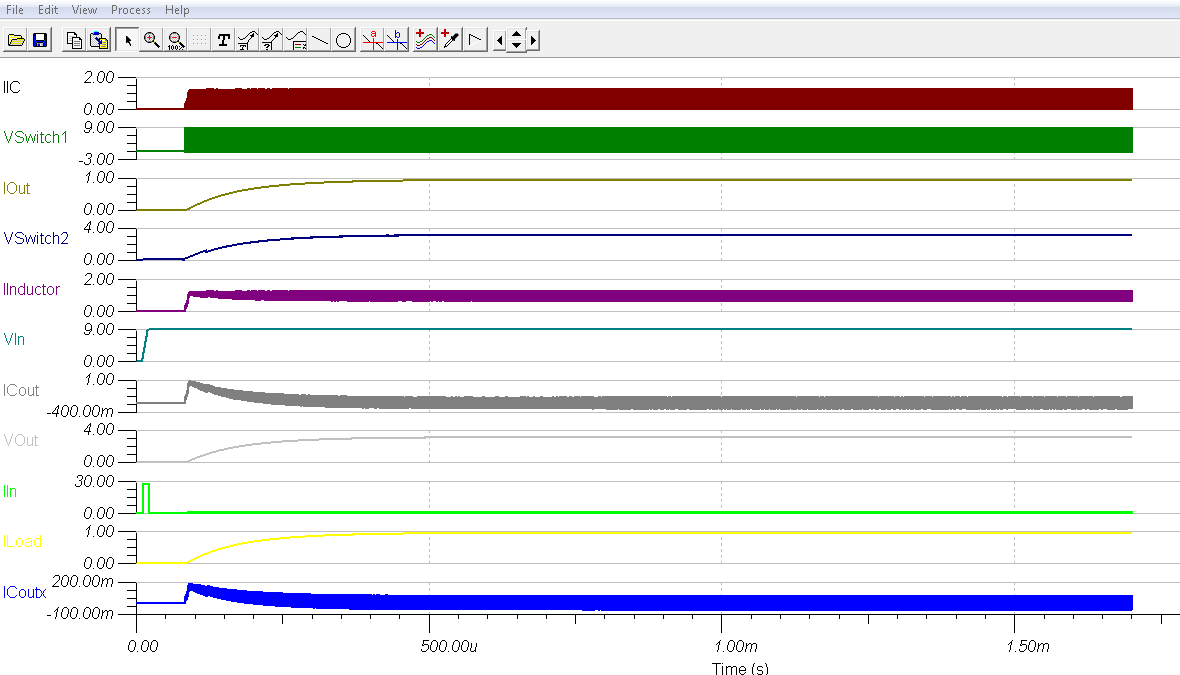

    Please find TINA simulation result below,

    If the issue still persist kindly follow the steps below to share the design.

    Thanks and Regards,

    Umayal
