WEBENCH® Tools/TPS63070: Simulation, hardware & system design tools forum

Chris Woodhouse1
Prodigy 20 points
Part Number: TPS63070

Tool/software: WEBENCH® Design Tools

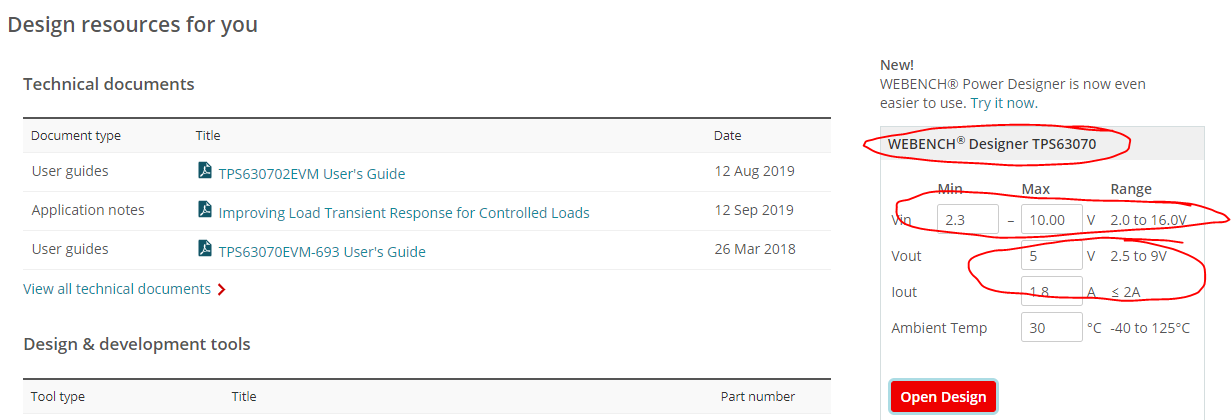

I'm entering the values into the webench design fields as below, which are within the ranges, but it keeps coming up with design not possible?

if the design cannot support my requirements then why are the  recommended values there?

  • 0
    TI__Expert 5540 points

    Hi Chris,

    We are able to replicate the issue. Currently analyzing to verify if its a valid fail.
    Shall keep you updated on the same.

    Thanks and Regards,
    Umayal

  • 0 in reply to Umayal Ramanathan
    TI__Expert 5540 points

    Hi Chris,

    We have identified the root cause of the issue.We are working to fix the issue.Shall keep you updated on the same.

    Thanks and Regards,
    Umayal

  • 0 in reply to Umayal Ramanathan
    TI__Expert 8365 points

    Hi Chris,

    The WEBENCH design is failing due to the average current limit is being hit.

    For the above conditions, The Input current for Boost mode exceeds the average current limit threshold as shown below.

    BoostDutyCycle = (Vout_Usr - VinMin_Usr) / (Vout_Usr) =(5-2.3) /5=0.54

    Input Current = Iout_Usr / (Eff_Est * (1 - BoostDutyCycle))= 1.8/( 1*(1-0.54))=3.91A         : Considering the Ideal Duty cycle and 100% Efficiency

    Input Current > 3.05A Hence WEBENCH Design is getting failed. Please reduce the load current value to avoid current limit hit.

    Please refer to the below table in the datasheet.

    Thanks & Regards,

    Praveen
