CCS/CC2640R2F: CC2640R2F Updating .hex File

Hi sir

Thanks for reply

Have you any example code like that

Regards

Shivraj

The sblAppEx source which was created in Visual Studio Professional 2015 is provided in the corresponding Application Report.  UNIFLASH also offers a scripting tool but I'm not sure if this will be helpful for your application, please refer to the Quick Start Guide and SLAU799.

Regards,
Ryan

Hi Sir,

Thanks for Rply

I am trying  to generate a script to facilitate UART commands necessary to program the device

also i have one question how to convert  .hex to .bin file?

Regards

shivraj

Hi Sir,

can i executive SWRA466C all command in Command Prompt.


Regards

Shivraj

Hi Shivraj,

I'm not sure, you can call the executable from a command prompt but you would have to investigate the application further.

Regards,
Ryan

Hi sir,

Thanks for replying

My aim  is to program cc2640r2f by using cc3200 wifi

Without using smart rf flash programer.is it possible.

Please ASAP

Regards

Shivraj

Yes, using the Serial Boot Loader described in SWRA466.

Regards,
Ryan

Hi sir,

But how by using sbl, how to write sbl command and where to write,is it possible to check manually

Regards

Shivraj

Hi Sir

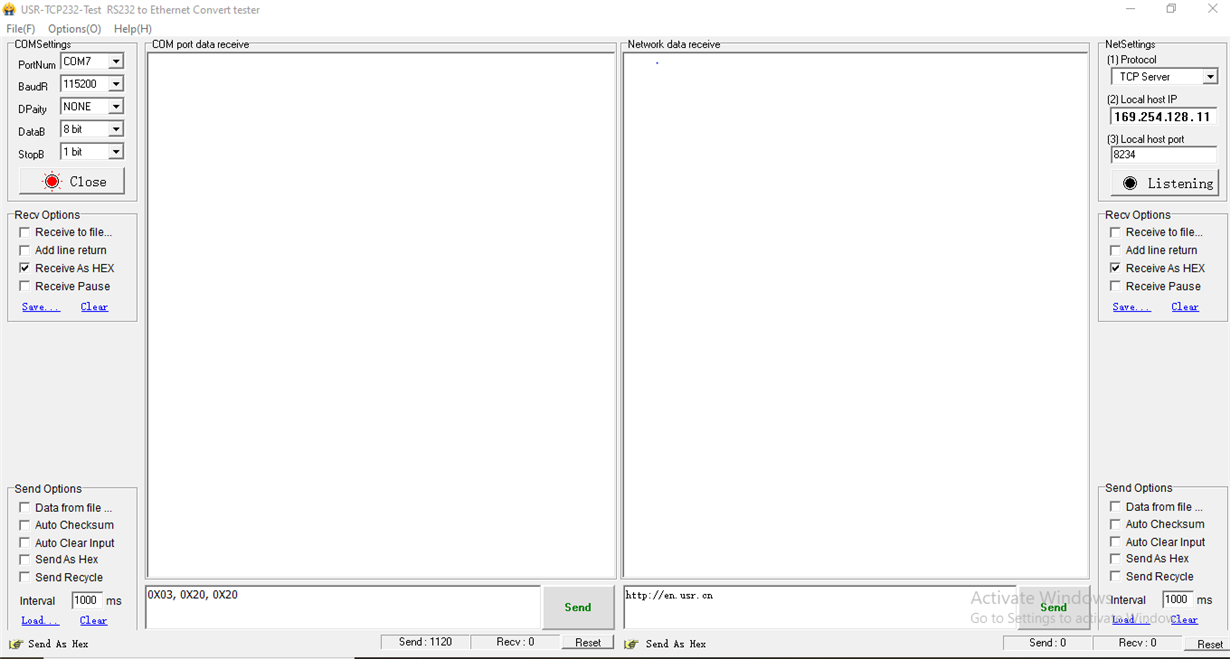

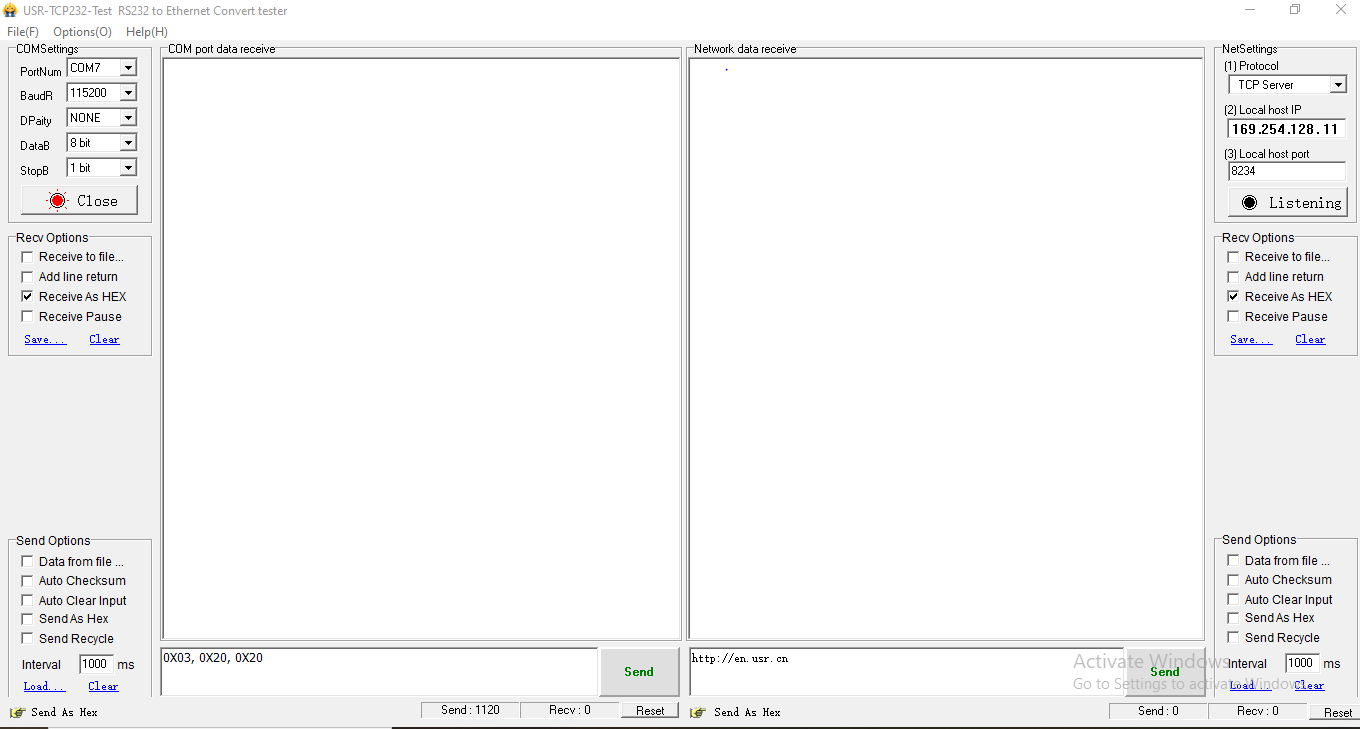

I m using USR-TCP232-Test-V1.3 for sending serial data using XDS110 Class Application/User UART (COM7) on chip uart .

i sent 0x55, 0X55 to board it replays with 00 CC it ok it ACK, but how to send

COMMAND_GET_CHIP_ID

unsigned char ucCommand[3];

ucCommand[0] = <size=3>;

ucCommand[1] =<checksum>;

ucCommand[2] = COMMAND_GET_CHIP_ID;

and

COMMAND_PING

like command and also how to send .hix file. to CC2640R2F board?

Hi Sir,

CC2640R2F Launchxl Not responding on both command ( COMMAND_GET_CHIP_ID packet would be {0x03, 0x28, 0x28} and COMMAND_PING {0x03, 0x20, 0x20} ) only responds on 0X55, 0X55  as 00 CC

and which document i will refer for " You must use the Serial Bus Commands in Section 8.2.3 to program the flash memory data at the addresses described in the hex file "

my attachment

Shirav,

Section 8.2.2.1.1 of SWCU117 and Section 2.4.3 of SWRA466 state that sending two bytes with the value of 0x55 is required to let the device detect the baud rate, only after which should commands be sent.  Perhaps your byte significance is also to be considered.  Please carefully review the documentation and scope the UART lines to debug before returning with further inquiries.

Regards,
Ryan

Hi Sir,

i m using smart RF flash programmer 2 to force mass erase the code,  than boot loader code will erase OR  it will stay as it is.

If erased then where i find that boot loader code?

 Regards,

Shivraj

Hi Sir,

i m waIting for your valuable replay,

i using serial terminal software to connect com port, baud rate, parity to CC2640R2F than i sent 0x55, 0x55 it will replay 00CC but than i sent 0x03, 0x28, 0x28

it will replay 0033 continuously but i expect chip it .

please replay ASAP.

Regards,

shivraj

The bootloader is stored in ROM and as such will not be erased nor is the source available to developers.  A value of 0x33 indicates a NACK which could imply an issue with your UART baud rate.  You can attempt other simple commands such as COMMAND_PING or COMMAND_GET_STATUS.

Regards,
Ryan

Hi Sir,

thank u for your valuable replay,

I am trying to flash an image to a 2640 device over UART(using serial software) using the bootloader.

We are able to establish a connection to the bootloader and send commands successfully.

I send only 1 byte of data in the COMMAND_SEND_DATA packet, we are able to send a few packets successfully.

How to send, blinky_backdoor_select_btn2640r2.bin OR simple_peripheral_cc2640r2lp_app.hex

to flash an image successfully(send from serial software)?

Regards,

shivraj

I'm glad to hear you are making progress.  The application you develop must interpret the addresses and data bytes stored inside the hex image and program the device accordingly using bootloader commands (COMMAND_SECTOR_ERASE, COMMAND_DOWNLOAD, COMMAND_SEND_DATA, etc).

Regards,
Ryan

Hi Sir,

i m sending data serially, command and ack as below.

             Host                                                                                                     Bootloader

             5555   (Com.port,Buadrate)                                                                 00 CC (ACK)

              032020(Ping)                                                                                      00 CC (ACK)

               0b23210000000000020000 (Download command)                           00 CC (ACK)

             032323(Get Status)                                                                             00 CC 03 40 40(for success ful Command)

            ff db 24 00 4c 00 20 f9 27 00 00 01 c9 01 10 01 c9 01 10 01 c9 01 10 01 c9 01 10 01 c9 01 10 01 c9 01 10 01 c9 01 10 01 c9 01 10 01 c9 01 10 01                c9 01 10 01 c9 01 10 01 c9 01 10 3f c9 01 10 bb (Data Send)

                                                                                                                              00 33 (NACK)   accepted here 00 CC  ?

upto get satatus all will ok, when sending command data send it will NACK  i am cross check with sblAppEx_1_03_00_00 data on serial monitor .

Something is incorrect with your COMMAND_DATA_SEND packet if you receive a NACK.  You will have to ensure that your size and checksum are correct.  It is a good idea to cross check with sblAppEx.

Regards,
Ryan

Hi Sir,

i m copying data from sblAppEx.(serial monitor data)

i m sending same data (sblAppEx) as in  but it will reply with NACK

Regard's

Shivraj

You will need to determine why this happens.

Regards,
Ryan

Hi Sir

thank you for replay

i config.  ccfg_app_ble.c  in Simple Peripheral project below

#define SET_CCFG_BL_CONFIG_BL_ENABLE 0xC5 // Enabled
#define SET_CCFG_BL_CONFIG_BOOTLOADER_ENABLE 0xC5 // Enable ROM boot loader
#define SET_CCFG_BL_CONFIG_BL_LEVEL 0x00 // Active high to open boot loader backdoor, 0x0 for active low
#define SET_CCFG_BL_CONFIG_BL_PIN_NUMBER 0x0C // DIO number for boot loader backdoor
#include <startup_files/ccfg.c>

using flash programmer 2 i will update .hex file first time successfully but will i trying to update second time (without erasing first code).

it will give below error

>Initiate access to target: COM7 using 2-pin cJTAG.

>Reading file: C:/Users/smart/workspace_v7_simple_peripheral/simple_peripheral_cc2640r2lp_app/FlashROM_StackLibrary/simple_peripheral_cc2640r2lp_app.hex.

>Start flash programming ...

>Device returned status FLASH_FAIL

>Device returned status FLASH_FAIL

>Error retrying flash download.

- Start address 0x00000000 (page 0).

- Tried to transfer 252 bytes.

- This was transfer 1 in chunk 0.

>Failed to erase target memory: Error code 1: Error retrying flash download.

- Start address 0x00000000 (page 0).

- Tried to transfer 252 bytes.

- This was transfer 1 in chunk 0.

>Failed to write 60820 bytes to address 0x00000000.

>Reset target ...

>Reset of target successful.

my aim is like off chip OAD

Regard's

Shivraj

What version of SIMPLELINK-CC2640R2-SDK and CCSTUDIO do you use to build the code?  Are you able to program after the memory is erased?  Enabling the ROM bootloader should not interfere with JTAG access, have you made any other code changes?
https://dev.ti.com/tirex/content/simplelink_cc2640r2_sdk_4_20_00_04/docs/blestack/ble_user_guide/html/ble-stack-common/flash_memory-cc2640.html#customer-configuration-ccfg-table
https://dev.ti.com/tirex/explore/node?node=AGdUy.2vNuW8gKwK6lpEPg__krol.2c__LATEST

Regards,
Ryan

HI SIr,

1) What version of SIMPLELINK-CC2640R2-SDK and CCSTUDIO do you use to build the code?

--> SIMPLELINK-CC2640R2-SDK 1.40 and CCSTUDIO 7.4.0 and smart RF Flash Prog. 2 Ver 1.8.2

2) Are you able to program after the memory is erased?

--> Yes

3) Enabling the ROM bootloader should not interfere with JTAG access, have you made any other code changes?

--> No, i m using as it is simple_peripheral Code(with above changes in ccfg_app_ble.c)

Please upgrade to SIMPLELINK-CC2640R2-SDK v2.40 and CCSTUDIO 9.3 if possible.  I recommend erasing memory before re-programming unless you can provide a reason that this is not warranted for your application.

Regards,
Ryan

hi sir

thank you for your reply

I have 2 question

1) my aim same as off-chip OAD( in place of wireless  firmware update I am using wired (through uart) )

when existing firmware runs on the device, I send new firmware if the image is valid than update the new one OR if the image invalid than run with the old one firmware. with erasing existing firmware how is it possible?

2) I am using a simple peripheral example it generates .out and .hex file, I want the .bin file so please tell me how to generate the .bin file?

  I am using the below version

 SIMPLELINK-CC2640R2-SDK 1.40

 CCSTUDIO 7.4.0 and smart RF Flash Prog. 2 Ver 1.8.2

Regards

shivraj

1) If intending to follow the off-chip BIM then you can refer to the following steps currently used: https://dev.ti.com/tirex/content/simplelink_cc2640r2_sdk_4_20_00_04/docs/blestack/ble_user_guide/html/oad-secure/bim-off-chip.html

2) You can use a hex to binary conversion tool such as that from the CCS install path, ccs\utils\tiobj2bin\mkhex4bin.exe, or reference the OAD Image Tool: https://dev.ti.com/tirex/content/simplelink_cc2640r2_sdk_4_20_00_04/docs/blestack/ble_user_guide/html/oad-secure/tools.html

Regards,
Ryan

hi sir

simple_peripheral_oad_offchip not working.

build and program successfully using ccs and flash programer 2 but not advertising.

  I am using the below version

 SIMPLELINK-CC2640R2-SDK 1.40

 CCSTUDIO 7.4.0 and smart RF Flash Prog. 2 Ver 1.8.2

Regards

shivraj

Hi Sir,

thank you for your replay

how to write code on external flash using flash programmer 2 using uart .

regards

shivraj

You can erase the external memory with execution of a pre-built image and then build a project which creates a factory image and loads it into the external flash.  You will have to reference the resources from the SIMPLELINK-CC13X2-26X2-SDK (oadCreateFactoryImageBackup):

https://e2e.ti.com/support/wireless-connectivity/bluetooth/f/538/t/822868 https://dev.ti.com/tirex/explore/node?node=ALj8m.1An.NynYoryea.zg__krol.2c__LATEST

Regards,
Ryan

Hi Ryan,

You can erase the external memory with execution of a pre-built image and then build a project which creates a factory image and loads it into the external flash.  You will have to reference the resources from the SIMPLELINK-CC13X2-26X2-SDK (oadCreateFactoryImageBackup):

i do not understand above solution, please tell me how to convert off chip OAD code for uart (how to write new firmware in external flash when running existing firmware using flash programmer 2) my aim is update the firmware thrugh uart  in the place of offchip oad.please suggest a solution.

Regard's

Shivraj

Hi Ryan,

Thank you for your reply

I am already trays bootloader methods but it requires to erase running code than updated new firmware ( mean I m writing firmware on internal flash only).

By using bootloader  how write firmware to external flash.

Regards

Shivraj.

I explained the process for creating a factory image backup to be stored in external flash memory but this (and off-chip OAD) uses NVS SPI driver to interface with a MX25R8035F external flash memory device.  TI does not provide a NVS UART driver so you would have to develop one using the resources provided.

Regards,
Ryan

Hi Sir,

Thank you for your replay,

for bootloader mode, I am holding BTN-1(DIO13) and press and release the Reset switch. It's working fine

can I all the above producer configure on the software side is it possible? (i check the reset command, it work. what about BTN-1 how to configure in software as active low)

Regard's

Shivraj

Hello Shivraj,

The ROM bootloader can only be entered after a device reset, not jumped to during active operation, and you can modify the SET_CCFG_BL_CONFIG_* values inside the CCFG file to configure its options.  Otherwise you would need to develop a custom flash bootloader solution.

Regards,
Ryan

Hi Sir,

but it seems that we must hold down the user selection key and reset button to work.

Is there any way to program the new application without pressing these physical keys?

Regards

Shivraj

The ROM bootloader must be configured such that it is entered based on the level of a DIO pin during reset.  You can determine both the level and pin number inside the CCFG.

Regards,
Ryan

Hi sir,

The ROM bootloader must be configured such that it is entered based on the level of a DIO pin during reset.  You can determine both the level and pin number inside the CCFG.

Is there any samples code for ccfg configuration through software?

Regards,

Shivraj

Hi Sir,

thank you for the replay

I already did ccfg setting, but I m stuck in How to replace pressing the bootloader  and reset switch through software/in code, is there any command for entering directly to

bootloader.

any command for the Reset button press relese action.

regards

shivraj
